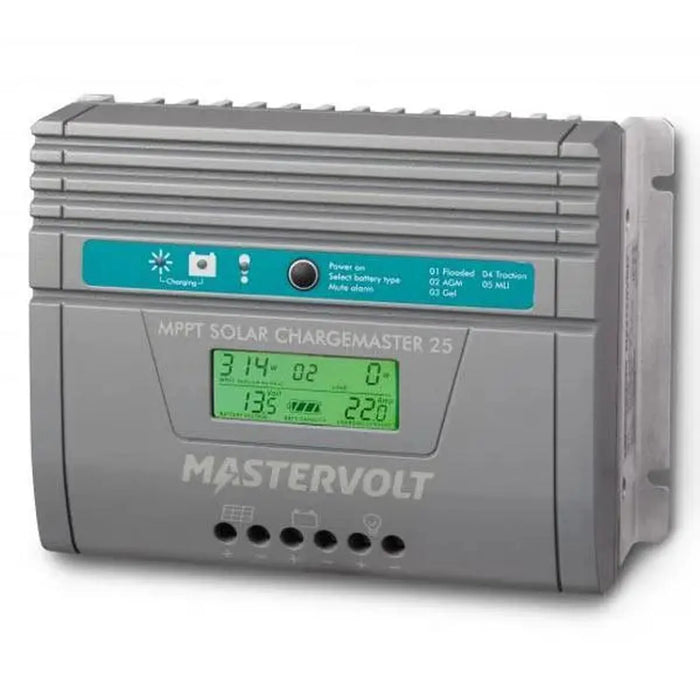

Mastervolt SCM25 25A MPPT Solar Battery Charger 12V/24V

The Mastervolt SCM25 is a compact MPPT solar battery charger rated at 25A for 12V and 24V battery systems, with a maximum PV input of 720W. It's the smallest unit in Mastervolt's SCM range and accepts 36-cell, 60-cell and 72-cell modules, so it works with most commonly used solar panels. Built for marine, motorhome and small off-grid installations where space is tight.

Solar panel battery charger 12v features

• Charge current, 25A maximum
• Battery voltage, 12V and 24V banks
• PV input, up to 720W
• Panel compatibility, 36-cell, 60-cell and 72-cell modules
• Tracking, MPPT for maximum energy harvest
• Battery types, sealed, AGM, GEL and flooded lead-acid

Applications

Fitted to boats and yachts, motorhomes and caravans, and small off-grid setups needing reliable solar charging on 12V or 24V systems. The compact size suits installation in confined spaces such as lockers or cable runs.

System integration

MasterBus communication lets the SCM25 link into a wider Mastervolt system, useful where other Mastervolt equipment is already installed on the same vessel or vehicle.

Installation and safety notes

Wiring must comply with IET Wiring Regulations and the Mastervolt installation manual. Battery connections require correct polarity, and the maximum PV input voltage must not be exceeded. Install in a ventilated location protected from moisture.
