20A MPPT Solar Charge Controller 12V/24V 520W | Epever Tracer 2206AN

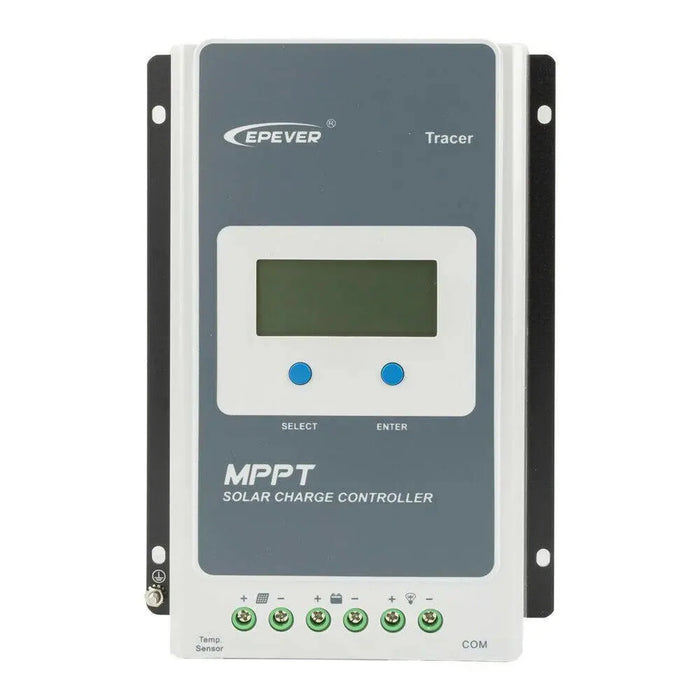

The Epever Tracer 2206AN is a 20A MPPT solar charge controller built for 12V and 24V battery systems, accepting a maximum PV input of 520W. A dual-core processor and multiphase synchronous rectification handle the maximum power point tracking, keeping the panel array working at its optimum voltage.

Key features of this MPPT solar charge controller

• Charging current, 20A maximum
• Battery systems, 12V and 24V, maximum PV input 520W
• Battery compatibility, lithium-ion, GEL, AGM and flooded lead-acid

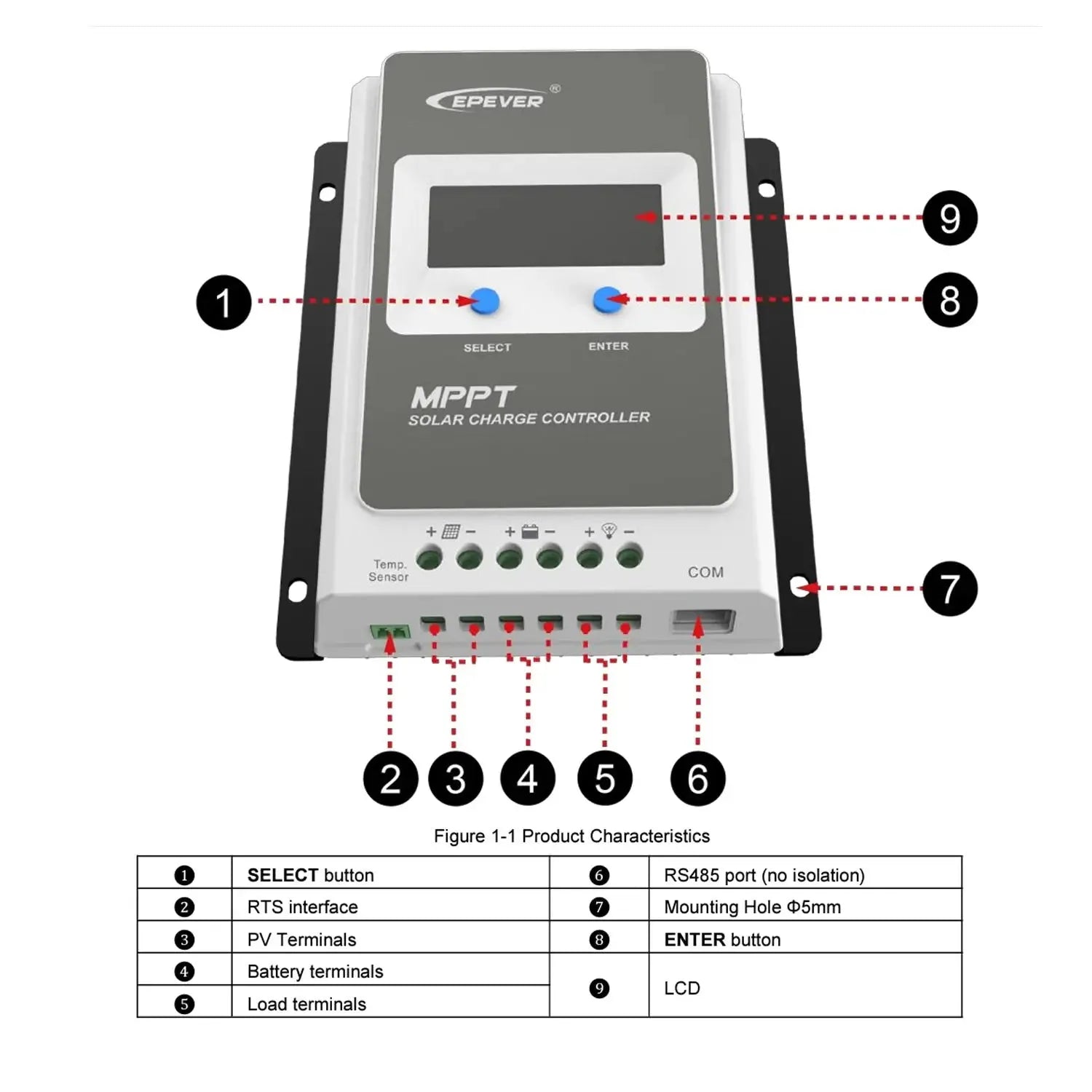

• Display, backlit LCD showing real-time generation and battery data
• Communication, RS485 port for optional MT50 remote display or PC monitoring
• Extras, USB output for device charging and temperature compensation for battery charging accuracy

Protection

Built-in protection covers over-voltage, over-current, short circuit and reverse polarity, which matters when a controller sits between a solar array and a battery bank that cannot be left unguarded.

Applications

Suits residential off-grid battery systems, motorhome and caravan solar setups, boats, and remote or agricultural 12V/24V power systems where lithium-ion, GEL, AGM or flooded batteries need charging from solar.

Installation and safety notes

Fit the controller somewhere well ventilated and away from flammable materials. Wiring must comply with IET Wiring Regulations, and battery connections need correct polarity. Do not exceed the rated 20A charge current or the maximum PV input for this controller.
