Emergency LED Tube Kit T8 60cm 10W 3 Hour LiFePO4 | Liteplan NLP/1S/80-K
- Vendor
- Liteplan
- SKU
- 002645+110803
- Availability
- In stock
- Weight
- 0.25 kg
£57.74inc VAT £48.12exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
This emergency LED tube kit pairs a 60cm 10W LED T8 tube with the Liteplan NLP/1S/80-K emergency conversion pack. In normal use the tube lights the space as usual. If the mains supply fails, the pack takes over and runs the tube in emergency mode for 3 hours.
Emergency LED tube and conversion pack

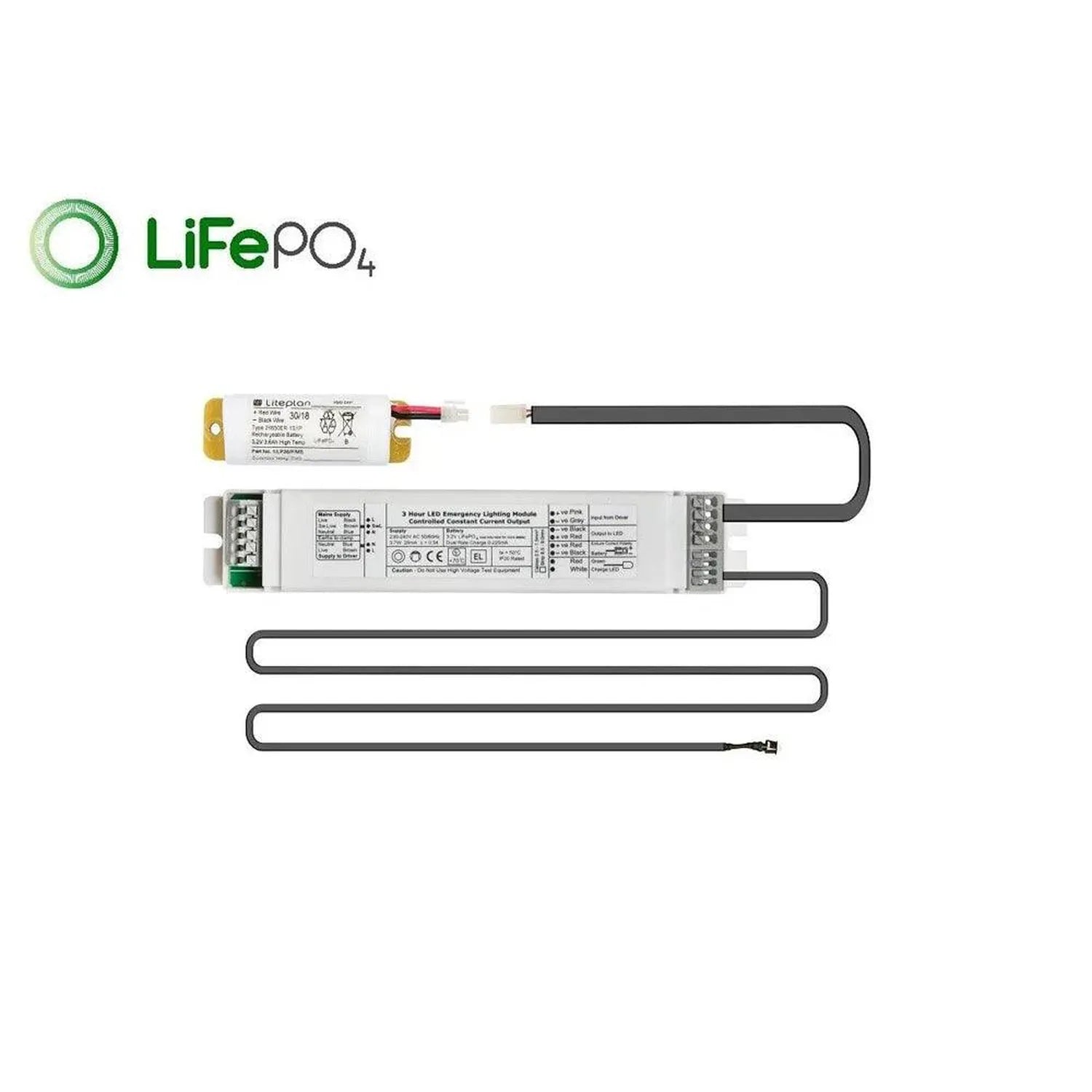

The NLP module is slim enough to sit inside the luminaire. It runs from a long life LiFePO4 battery and adjusts the LED current to suit both the battery and the load. The pack has been third party tested and certified by TÜV.

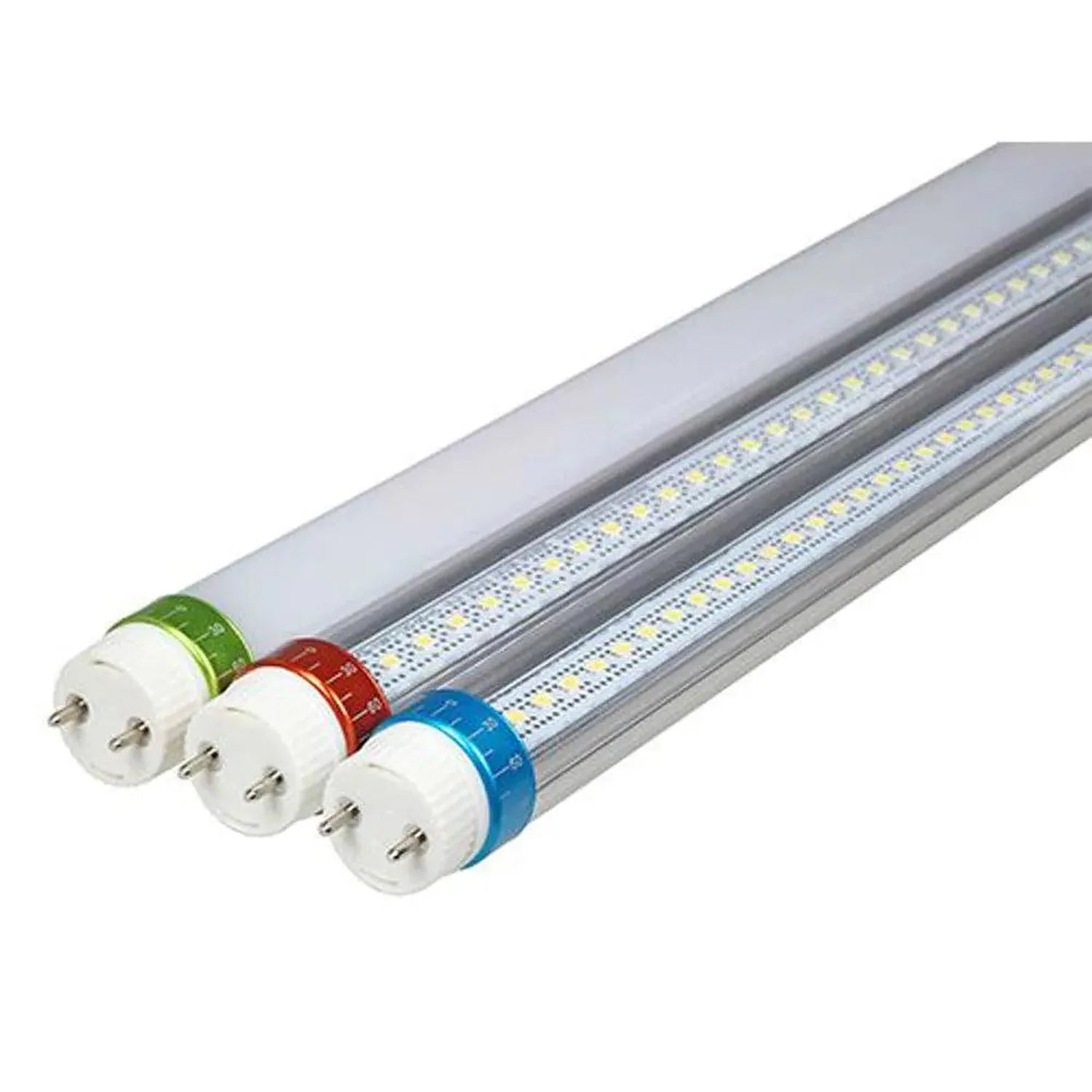

LED tube
- Size and power: 60cm, 10W
- Light output: 1000 lumens in normal operation
- Input voltage: universal AC90-277V
- End caps: 180 degree rotatable
- Tube life: 50,000 hours, with a 5-year warranty
Emergency pack
- Duration: 3 hour emergency operation
- LED load range: 6 - 79 Volts
- Mains supply: 230V to 240V AC, 50/60Hz, with a 24 hour recharge period
- Battery: LiFePO4 lithium iron phosphate, 3.2V 4.8Ah
- Protection: deep discharge and battery temperature protection, with charging cut off below 0°C or above 55°C
- Module: 178 x 30 x 22.5mm, 172mm fixing centres, 0.085kg, IP20
Installation notes
Installation, wiring and testing must be carried out by a qualified electrician to the emergency lighting standards. The pack needs an unswitched supply to charge. Not every lamp suits emergency conversion, so check the fitting and the space inside it before you start.
What's in the box
- 1 x 60cm 10W LED T8 tube
- 1 x Liteplan NLP/1S/80-K emergency conversion kit
Technical Specifications 33 rows Show
| Tube type | LED T8 Tube |
| Tube length | 60cm |
| Tube power | 10W |
| Normal light output | 1000 lumens |
| Tube input voltage | AC90-277V |
| Tube efficacy | 110lm/W |
| Tube lifetime | 50,000 hours |
| Lumen maintenance | 80% @6000h |
| Switching cycles | 200,000 |
| End cap | 180 degree rotatable |
| Tube approvals | VDE/TUV/CE/ROHS |
| Emergency pack model | Liteplan NLP/1S/80-K |
| LED load range | 6 - 79 Volts |
| Mains supply | 230V to 240V AC, 50/60Hz |
| Emergency duration | 3 hours |
| Recharge period | 24 hours |
| Power rating (charging) | 2.7W, 17mA, λ = 0.67 |
| Power rating (standby) | 1.2W 13mA λ = 0.40 |
| Charge current | 225mA nominal |
| Battery type | LiFePO4 lithium iron phosphate |
| Battery | 3.2V 4.8Ah LiFePO4 |
| Battery discharge current | 1A nominal |
| Discharge voltage limit | 2.4V |
| Battery temperature parameters | 0°C to 55°C |
| Ingress protection | IP20 |
| Push wire terminal size | 0.5mm² to 1.5mm² |
| Module dimensions | 178 x 30 x 22.5mm |
| Module fixing centres | 172mm |
| Module weight | 0.085kg |
| Battery dimensions | 230 x 24 x 21mm |
| Battery fixing centres | 215mm |
| Battery weight | 0.14kg |
| Indicator | Green charge healthy indicator LED |
Manufacturer datasheet. Figures as published by the manufacturer.
