Emergency LED Tube Kit T8 120cm 20W 3 Hour LiFePO4 | Liteplan NLP/1S/80-K
- Vendor
- Liteplan
- SKU
- 002645+110813
- Availability
- In stock
- Weight
- 0.25 kg
£60.89inc VAT £50.74exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
This kit pairs a 120cm 20W LED T8 tube with the Liteplan NLP/1S/80-K emergency conversion pack. In normal use the tube runs from the mains. If the mains fails, the pack keeps it lit in emergency mode for 3 hours.
Emergency LED tube kit features

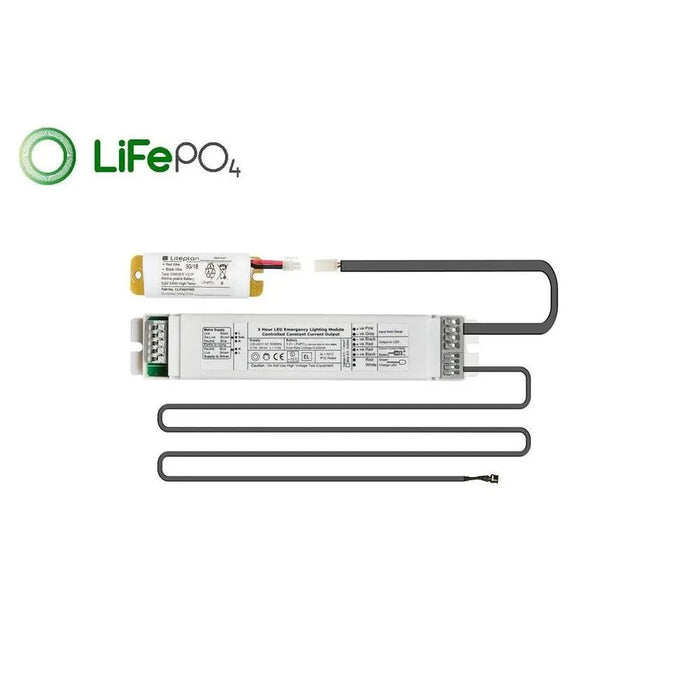

The NLP module is slim enough to fit inside the luminaire. It runs on a long life LiFePO4 battery and adjusts the LED current to suit both the battery and the load.
The LED tube
- Length: 120cm
- Power: 20W, with 2000 lumens of normal light output
- Input: universal AC90-277V
- End caps: 180 degree rotatable
- Lifetime: 50,000 hours, backed by a 5-year warranty
The emergency pack
- Duration: 3 hours, with a 24 hour recharge period
- LED load: for loads operating between 6 - 79 Volts
- Mains supply: 230V to 240V AC, 50/60Hz
- Battery: LiFePO4 lithium iron phosphate, 3.2V 4.8Ah
- Protection: deep discharge and battery temperature protection, with charging cut off below 0°C or above 55°C
- Module: 178 x 30 x 22.5mm, 172mm fixing centres, 0.085kg, IP20, third party tested and certified by TÜV
Installation notes
Fitting must be carried out, wired and tested by a qualified electrician to the emergency lighting standards. Not every lamp suits emergency conversion, so check the fitting and the space inside it first. The pack also needs an unswitched supply to charge.
In the box
- 1 x 120cm 20W LED T8 tube
- 1 x Liteplan NLP/1S/80-K emergency conversion kit
Technical Specifications 33 rows Show
| Tube type | LED T8 Tube |
| Tube length | 120cm |
| Tube power | 20W |
| Normal light output | 2000 lumens |
| Tube input voltage | AC90-277V |
| Tube efficacy | 110lm/W |
| Tube lifetime | 50,000 hours |
| Lumen maintenance | 80% @6000h |
| Switching cycles | 200,000 |
| End cap | 180 degree rotatable |
| Tube approvals | VDE/TUV/CE/ROHS |
| Emergency pack model | Liteplan NLP/1S/80-K |
| LED load range | 6 - 79 Volts |
| Mains supply | 230V to 240V AC, 50/60Hz |
| Emergency duration | 3 hours |
| Recharge period | 24 hours |
| Power rating (charging) | 2.7W, 17mA, λ = 0.67 |
| Power rating (standby) | 1.2W 13mA λ = 0.40 |
| Charge current | 225mA nominal |
| Battery type | LiFePO4 lithium iron phosphate |
| Battery | 3.2V 4.8Ah LiFePO4 |
| Battery discharge current | 1A nominal |
| Discharge voltage limit | 2.4V |
| Battery temperature parameters | 0°C to 55°C |
| Ingress protection | IP20 |
| Push wire terminal size | 0.5mm² to 1.5mm² |
| Module dimensions | 178 x 30 x 22.5mm |
| Module fixing centres | 172mm |
| Module weight | 0.085kg |
| Battery dimensions | 230 x 24 x 21mm |
| Battery fixing centres | 215mm |
| Battery weight | 0.14kg |
| Indicator | Green charge healthy indicator LED |
Manufacturer datasheet. Figures as published by the manufacturer.
