LED Spot Light for Ceiling 10W AR111 Dimmable UGR<19 Opal | Ledison
- Vendor
- Ledison
- SKU
- 222565
- Availability
- In stock
- Weight
- 0.15 kg
£26.24inc VAT £21.87exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

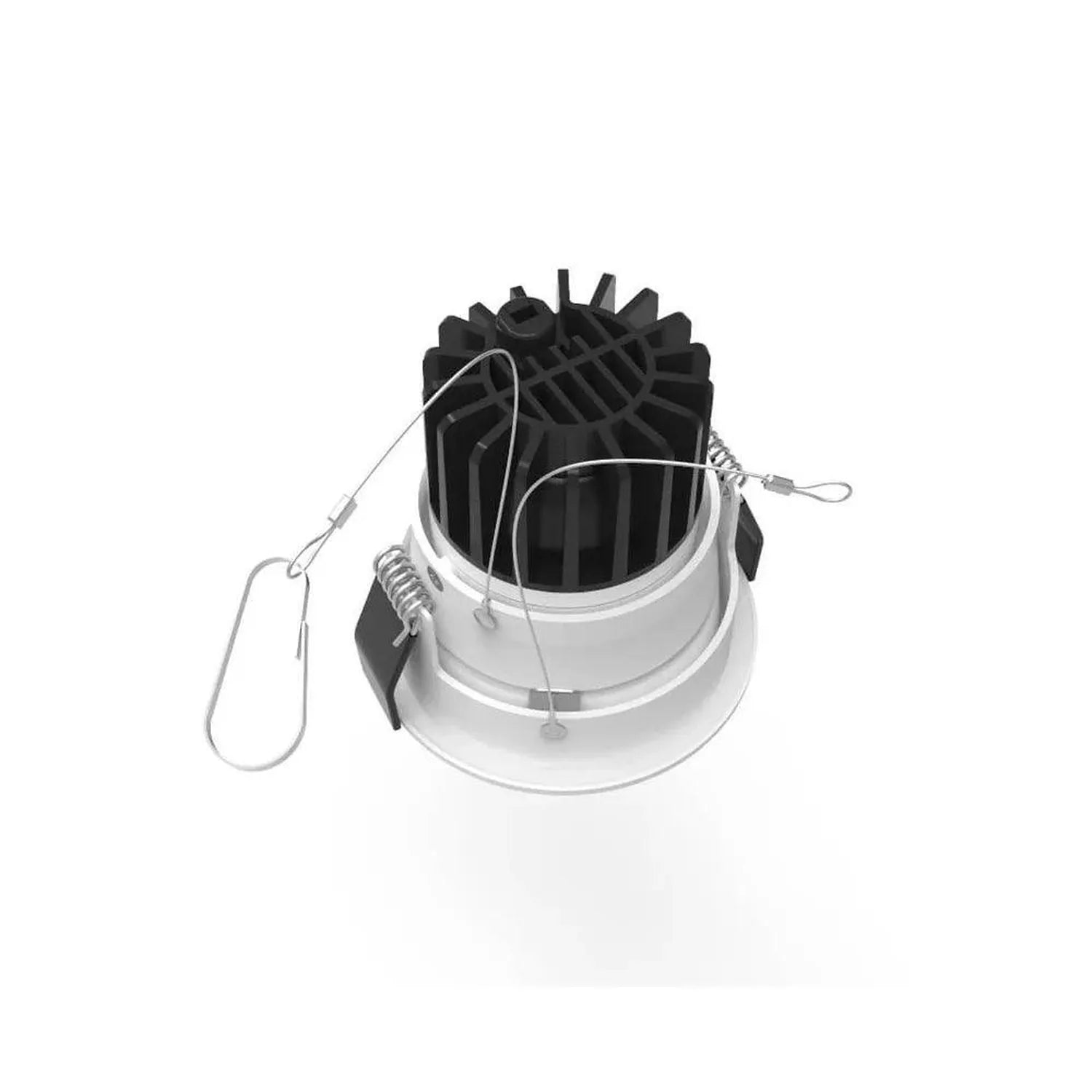

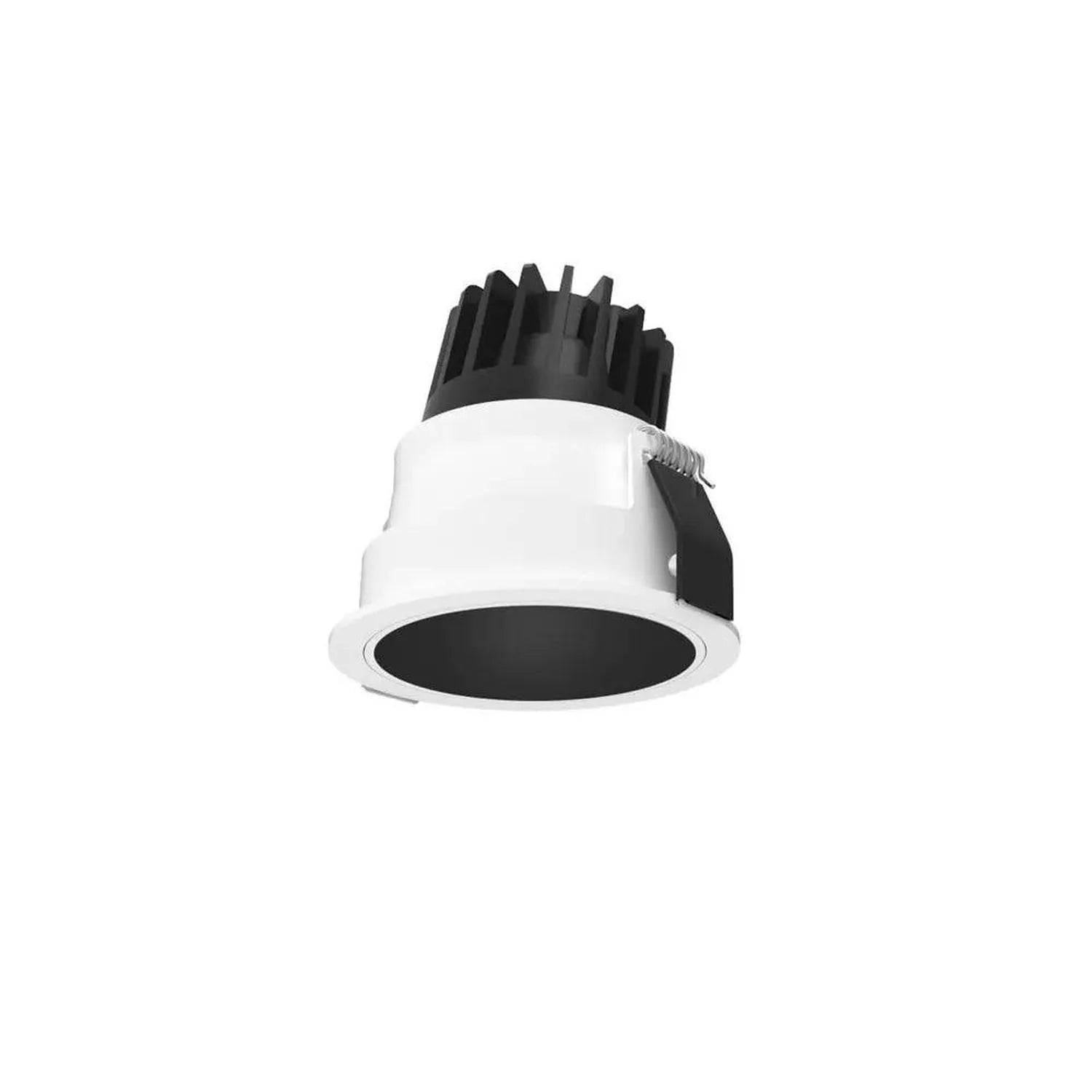

This Ledison recessed spot is a single 10W fitting built to replace an AR111 spotlight. Its LED module is held in a solid aluminium heatsink and tilts by 20º, so you can aim the beam at a picture, a worktop or a feature wall. Output is 730lm with a CRI of 97.
LED spot light for ceiling: key features
- Power: 10W, 730lm
- Colour rendering: CRI 97
- Glare control: UGR <19
- Beam angle: 15/24/36º
- Colour temperature: 2700/3000/4000K
- Dimming: with an AC triac ACTEC driver
Fitting and wiring

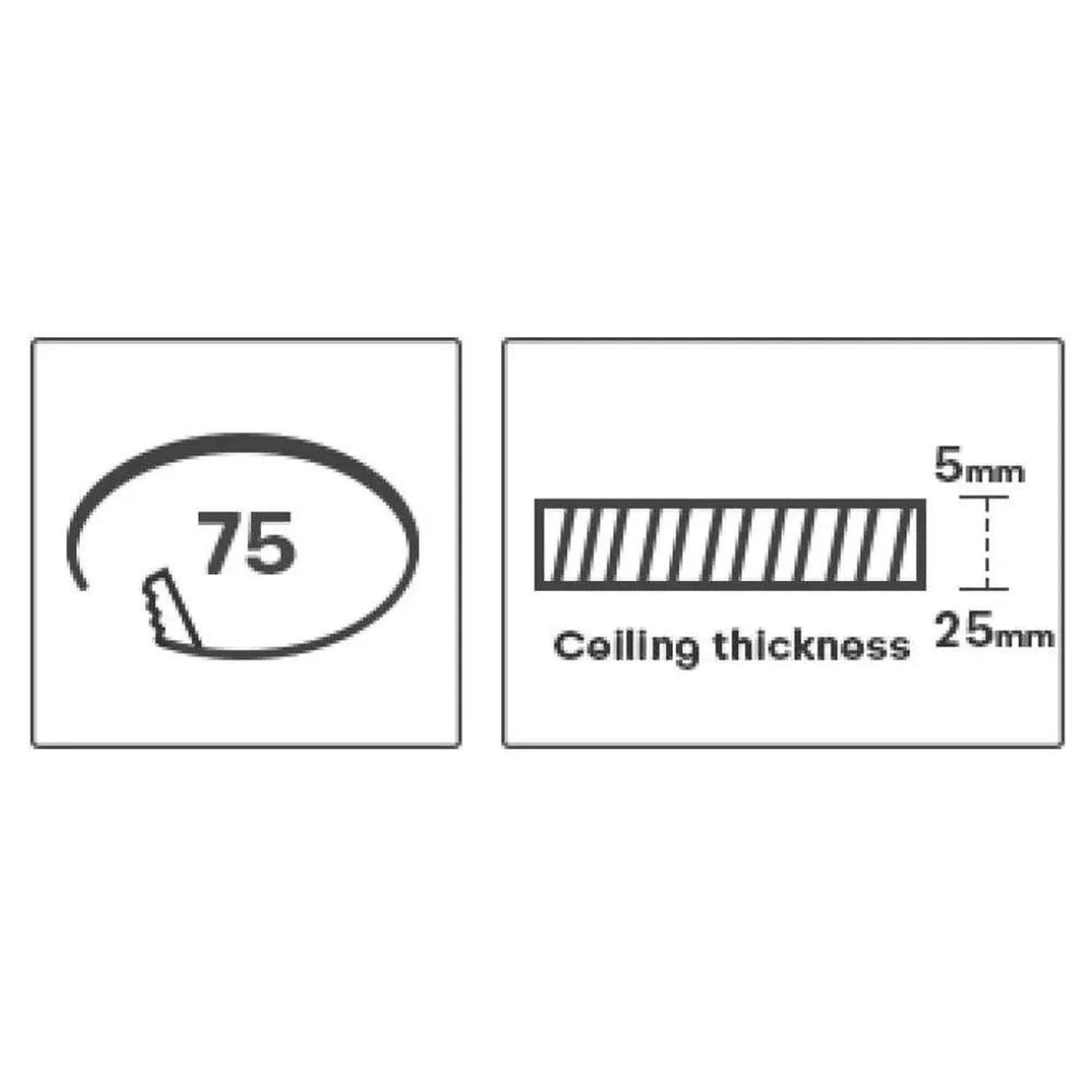

Cut a 75mm hole. The spot can then go in with a frame, or be set completely rimless straight into the ceiling for a flush finish. Each spotlight and power supply are interchangeable.
Mains wiring connects either to the driver terminal directly or through the optional wiring kit, which is ordered separately. The fitting runs on a 220-240V input and is Safety Class II.
Where it can go
It is rated IP20 and intended for indoor rooms up to ta 40C. Mount it on normally inflammable surfaces.
Before you buy
The LED module is not replaceable. When it reaches end of life, the whole luminaire is swapped out rather than the light source alone. Worth knowing if you are planning a large installation and want spares on hand.
For anyone moving away from AR111 lamps, this gives a tiltable, dimmable replacement with low glare and high colour accuracy in a compact 10W fitting.
Technical Specifications 16 rows Show
| Power | 10W |
| Input voltage | 220-240V |
| Lumen | 730lm |
| Beam angle | 15/24/36º |
| Colour temperature | 2700/3000/4000K |
| Colour rendering index | 97 |
| Glare | UGR: <19 |
| Tilt | 20º |
| Dimming | AC triac ACTEC driver |
| Ceiling hole | 75mm |
| Safety class | II |
| IP rating | IP20 |
| Ambient temperature | ta 40C |
| Light source | LED module, not replaceable |
| Mounting surface | Normally inflammable surfaces |
| Use | Indoor |
Manufacturer datasheet. Figures as published by the manufacturer.
