10W LED Bulb G24 PLG24 2-Pin 1000lm Replaces 26W CFL | Ledison
- Vendor
- Ledison
- SKU
- 105028
- Availability
- In stock
- Weight
- 0.2 kg
£16.79inc VAT £13.99exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

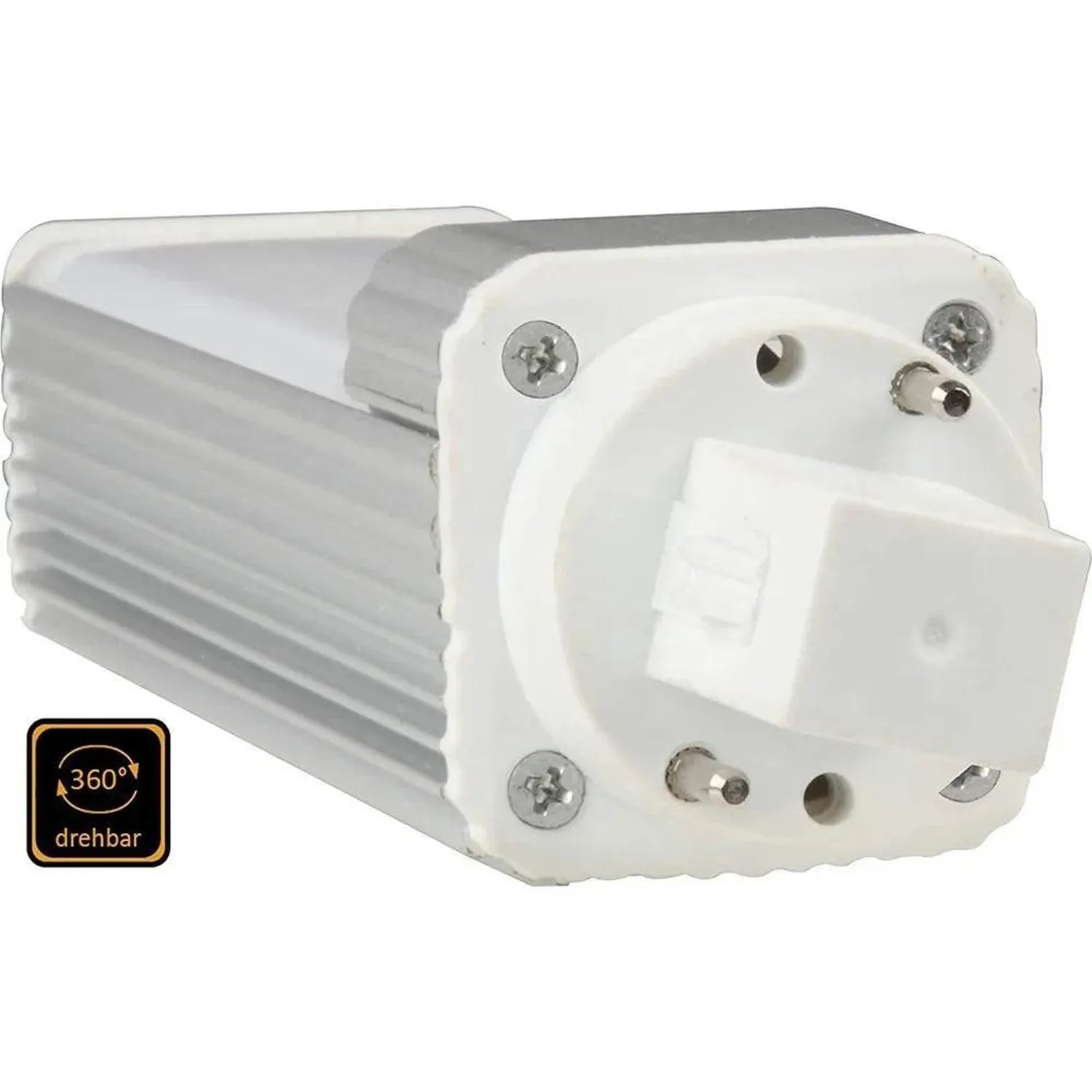

This Ledison 10W LED bulb fits a G24 base (PLG24) and takes the place of a 26W compact fluorescent (CFL) PL lamp. It puts out 1000 lumens. Because the G24 plug rotates 360 degrees, you can aim the light where it is needed instead of losing it into the ceiling or the body of the fitting.
Why choose this 10W LED bulb
- Output: 10 watts, 1000 lumens, 100lm/W
- Colour rendering: CRI >80
- Supply voltage: 85-265 Volt
- Size: 35mm diameter, 161mm high
- Lifetime: average of 50,000 hours
- Warranty: 3 years
The bulb is not dimmable, so use it on a standard switched circuit.
Construction and light quality

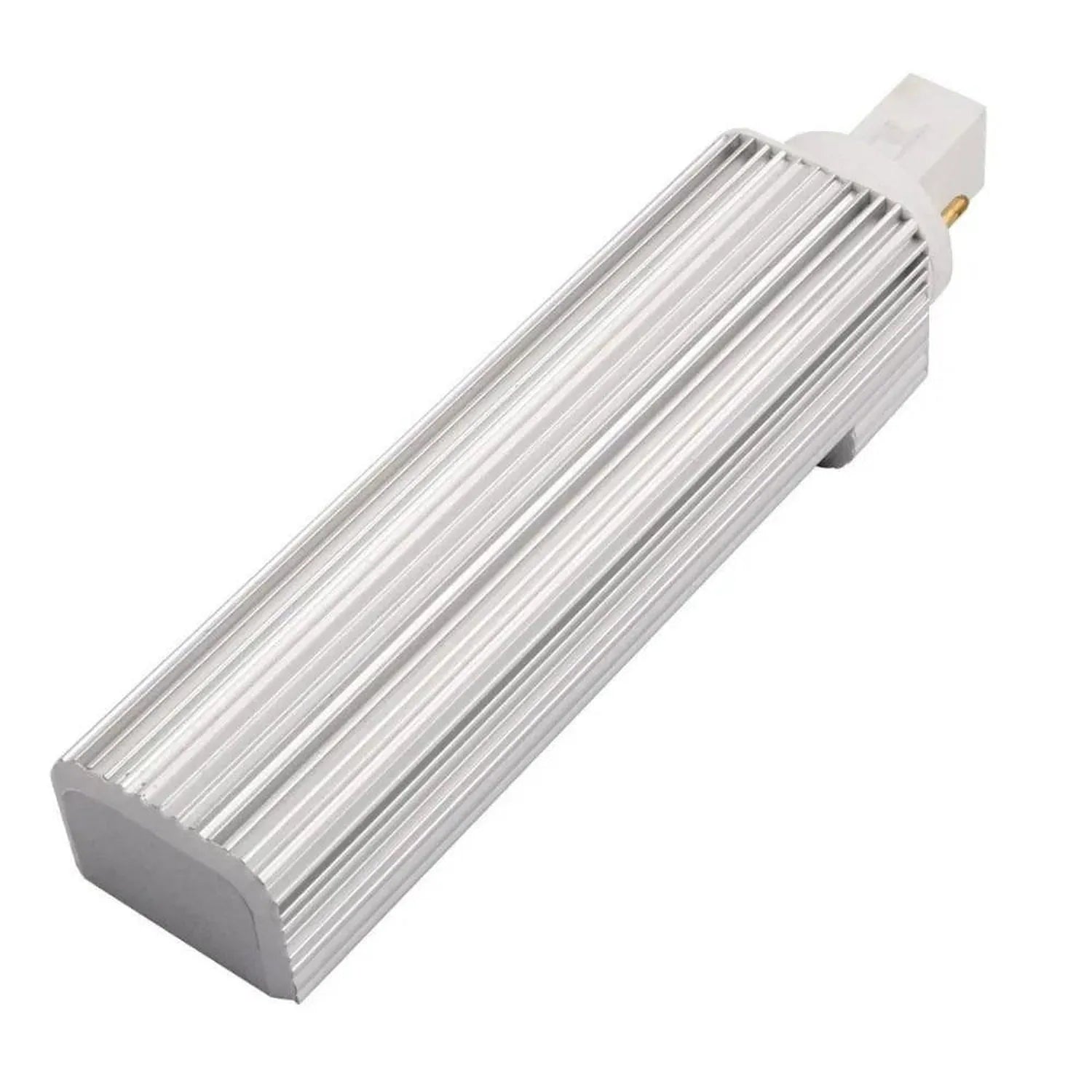

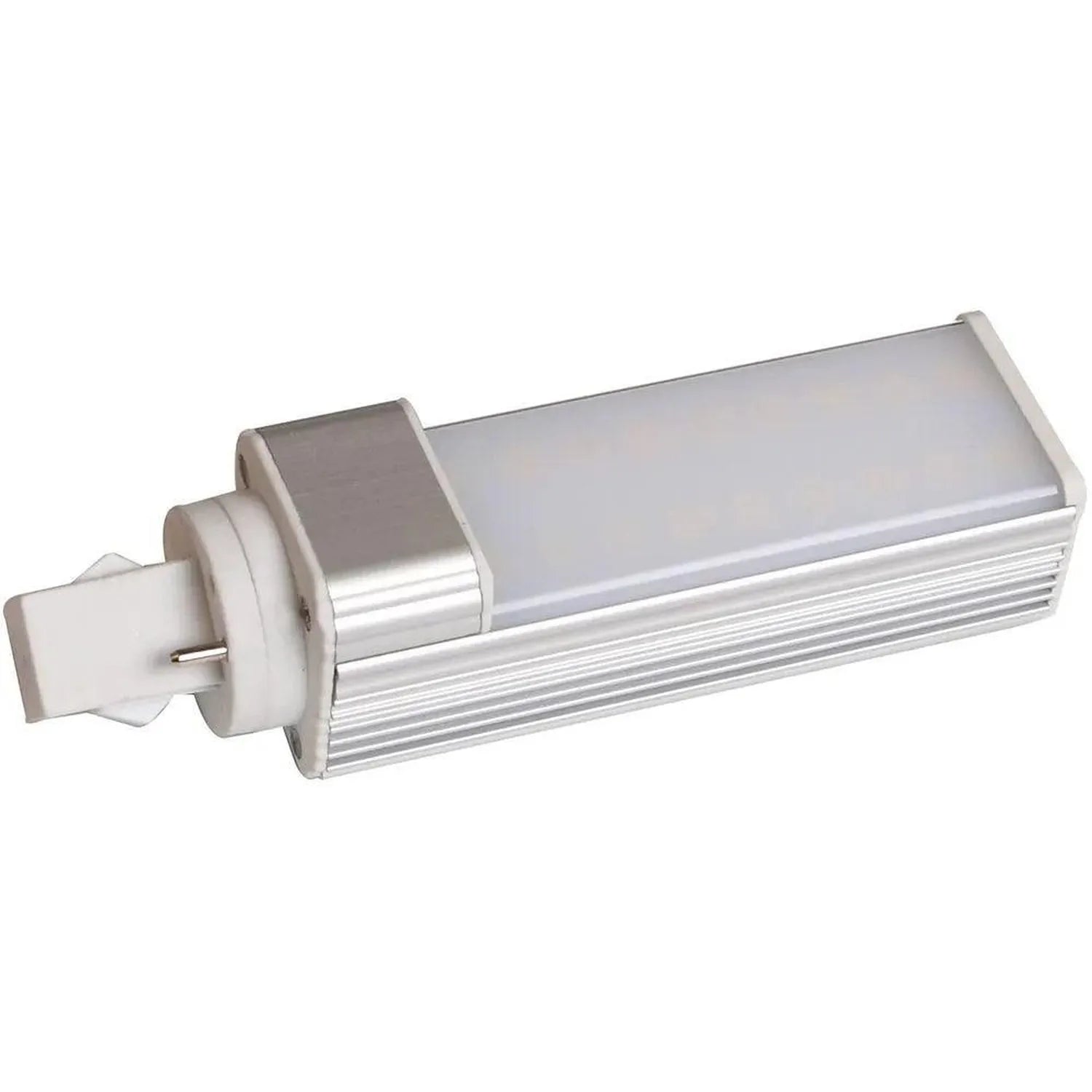

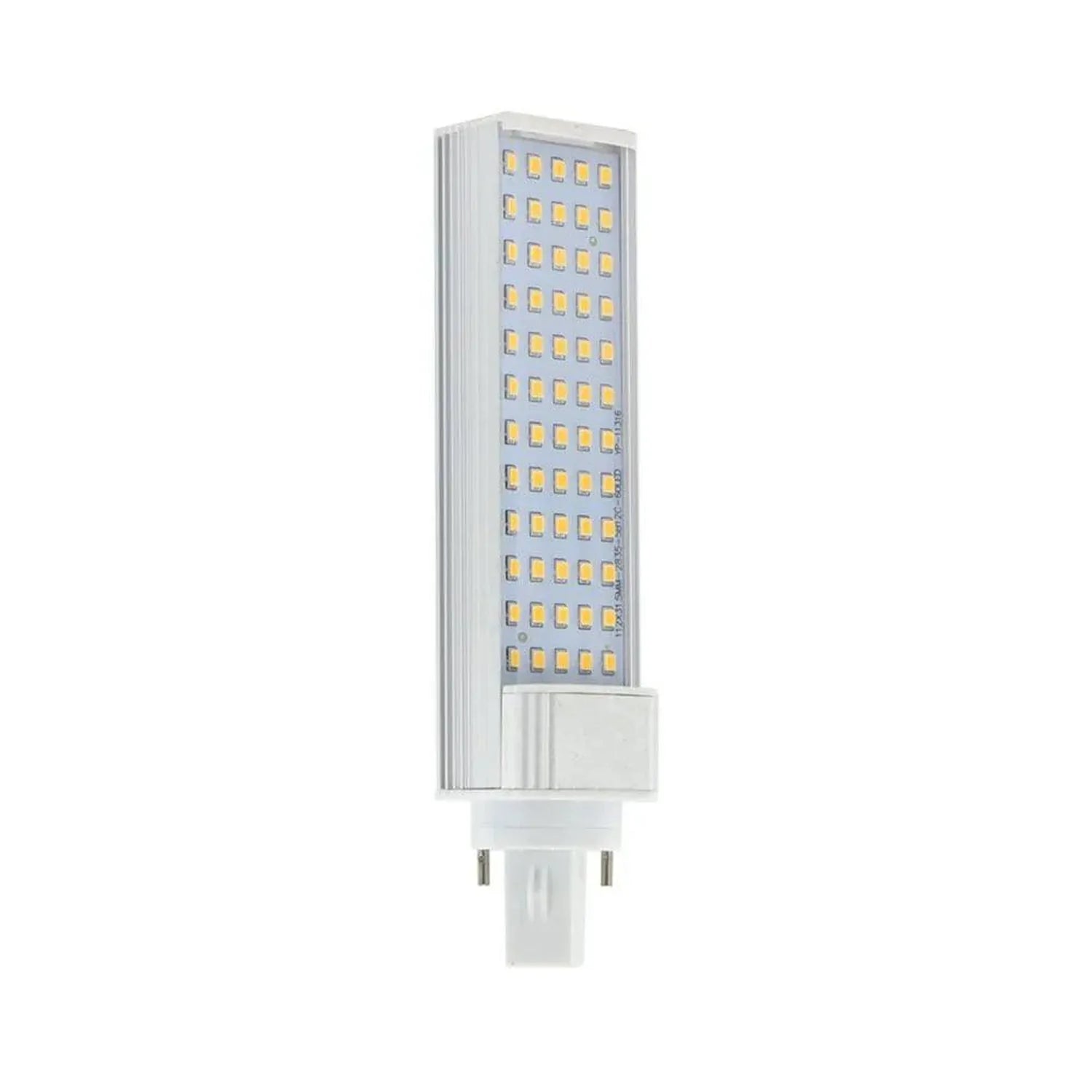

An aluminium heatsink carries heat away from the LEDs. Light passes through a frosted cover for an even spread, and clear covers can be supplied on request. You can order it in warm, natural or cool white to suit the room or match existing lamps.
Compatible lamp holders
The bulb suits the following holders:
- GX24q-1, GX24q-2, GX24q-3, GX24q-4
- GX24d-1, GX24d-2, GX24d-3, GX24d-4
Emergency lighting
It works with the PLG24 emergency conversion pack. That makes it a practical swap for installers upgrading emergency fittings that currently run CFL PL lamps.
Where to use it
Any fitting built around a 26W CFL PL lamp with a G24 holder is a candidate. Swapping the lamp drops the load to 10W per fitting. The rotating base lets you direct the light downward in recessed downlights and bulkheads.
Technical Specifications 24 rows Show
| Fitting | G24 |
| Fitting/pins | G24d-1,G24d-2,G24d-3 G24d-4,G24q-1,G24q-2 G24q-3,G24q-4 |
| Wattage (rated) | 10 Watt |
| Luminous flux | 1000lm |
| Typical efficiency | 100lm/W |
| Colour rendering index | >80 |
| Voltage | 85-265 Volt |
| Line frequency | 50/60Hz |
| Colour temperature | Warm white: 3000K, Natural white: 4000K, Cool white: 6000K |
| Diameter | 35mm |
| Height | 161mm |
| Net weight per piece | 120gr |
| Average lifetime | 50,000 hours |
| Dimmable | NO |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 3 years |
| Pins | 2-pin |
| LED chips | SMD 2835 |
| Base | G24 plug rotates 360 degrees |
| Cover | Frosted |
| Heatsink | Aluminium |
| Standard | Low voltage directive 2014/35/EU |
| Emergency use | Compatible with our PLG24 emergency conversion pack |
Manufacturer datasheet. Figures as published by the manufacturer.
