Product Description

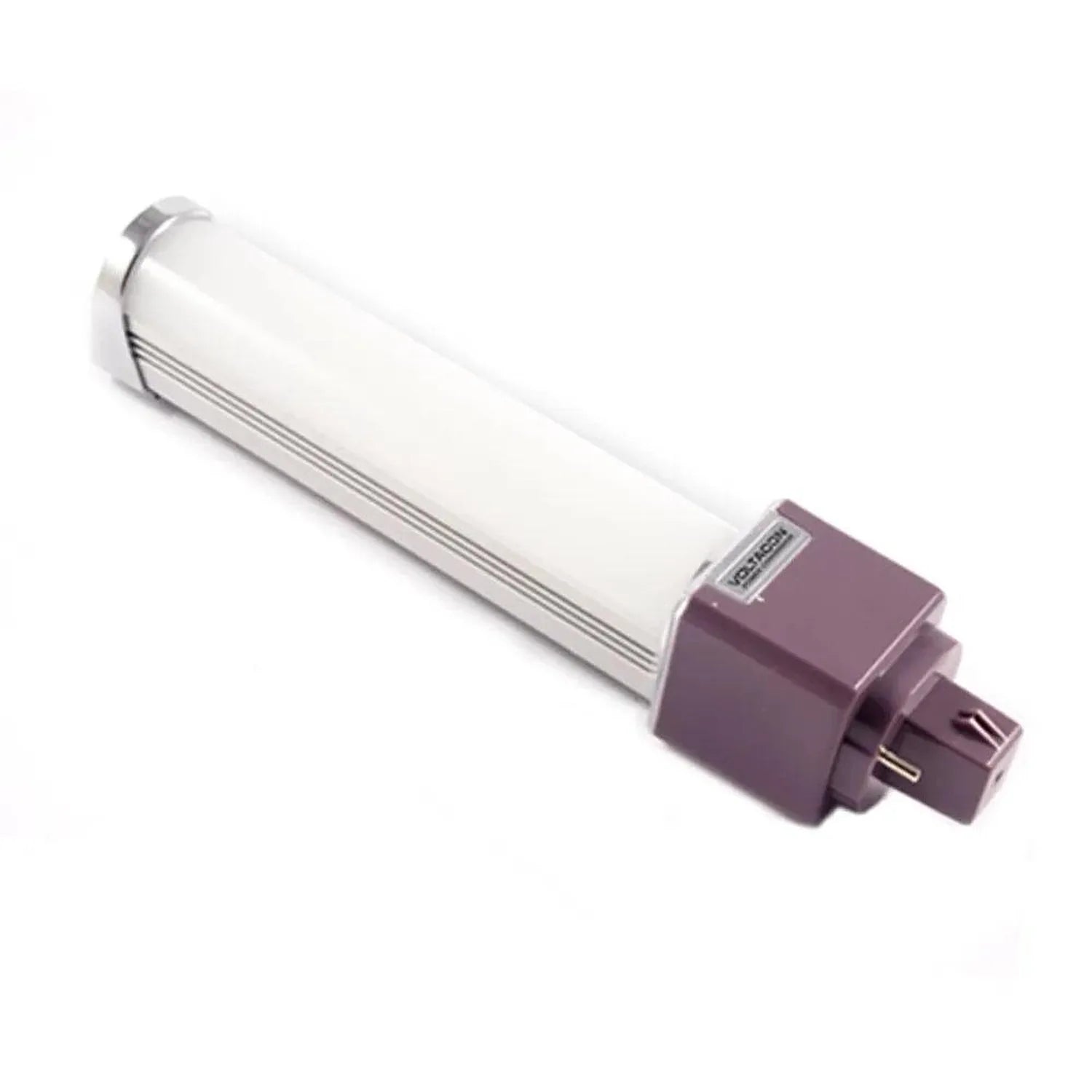

The Ledison PL G24 LED bulb is an 8 Watt replacement for 16W CFL PL lamps, giving 800lm of light with a colour rendering index above 76. The G24 base rotates 360 degrees so the beam can be aimed where it is needed, rather than spreading light in every direction as fluorescent PL tubes do.

G24 LED bulb 4 pin compatibility

  • Fitting, G24, working with gx24q-1 to gx24q-4 and gx24d-1 to gx24d-4 holders
  • Luminous flux, 800lm at 105lm/W efficiency
  • Voltage, 100-265Volt, 50/60Hz
  • Lifetime, 50,000 hours average, backed by a 5 year warranty
  • Cover, frosted as standard for even light spread; clear covers available on request

Applications

Built around Lumenmax and Philips lumiled chips with an aluminium heatsink to draw heat away from the LEDs, this bulb suits commercial and domestic fittings currently running fluorescent PL lamps. It meets the low voltage directive 2014/35/EU.

2-pin and 4-pin holders

All PL lamps with 2-pin bases are fully compatible with both 2-pin and 4-pin PL lamp holders, so a single bulb covers either fitting type.

Emergency conversion

The PLG24 lamp works with the emergency conversion pack, compliant with the British Standard for emergency lighting. The kit contains a PLG24 emergency PL, an LED driver with lithium battery, and LED indicators for diagnostics.

Technical Specifications 19 rows Show
Fitting:G24
Luminous flux:800lm
Wattage (rated):8 Watt
Color Rendering index:>76
Voltage:100-265Volt
Typical efficiency:105lm/W
Line frequency:50/60Hz
Fitting/Pins:G24d-1,G24d-2,G24d-3
G24d-4,G24q-1,G24q-2
G24q-3,G24q-4, E27
Average lifetime:50,000 hours
Net Weight per piece100gr
Color Temperature:
Diameter31.2mm
Warm white:3000K
Height160mm
Natural white:4000K
DimmableNO
Cool white:6000K
Warranty:5 years
Operating Temp: -40 OC to 50 OC Certification:



Manufacturer datasheet. Figures as published by the manufacturer.
