10W LED Lamp G24 PL 2-Pin 950lm Replaces 26W CFL | Ledison
- Vendor
- Ledison
- SKU
- 105076
- Availability
- In stock
- Weight
- 0.2 kg
£16.79inc VAT £13.99exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
This 10W LED lamp has a G24 PL base and takes the place of a 26W compact fluorescent (CFL) PL lamp. It gives 950 lumens. The G24 plug rotates 360 degrees, so the light can be aimed where it is needed instead of into the ceiling or the back of the fitting. Choose warm, natural or cool white.
10W LED lamp key features
- Output: 10 watts, 950 lumens
- Colour rendering: CRI >80
- Supply voltage: 100-265Volt
- Size: 31.5mm diameter, 176mm high
- Rated life: average lifetime of 50,000 hours
- Warranty: 5 years
Construction
An aluminium heatsink carries heat away from the LEDs. Light passes through a frosted cover for an even spread, and clear covers are available on request. This is the older aluminium-heatsink version of the PLG24 lamp; a newer plastic, square-style PLG24 is listed separately.
The lamp is not dimmable.
Compatible holders
It fits the following lamp holders:
- GX24q-1, GX24q-2, GX24q-3, GX24q-4
- GX24d-1, GX24d-2, GX24d-3, GX24d-4
Emergency lighting
The lamp works with the PLG24 emergency conversion pack, so a fitting can be converted for emergency use while keeping the same lamp.
Where it is used

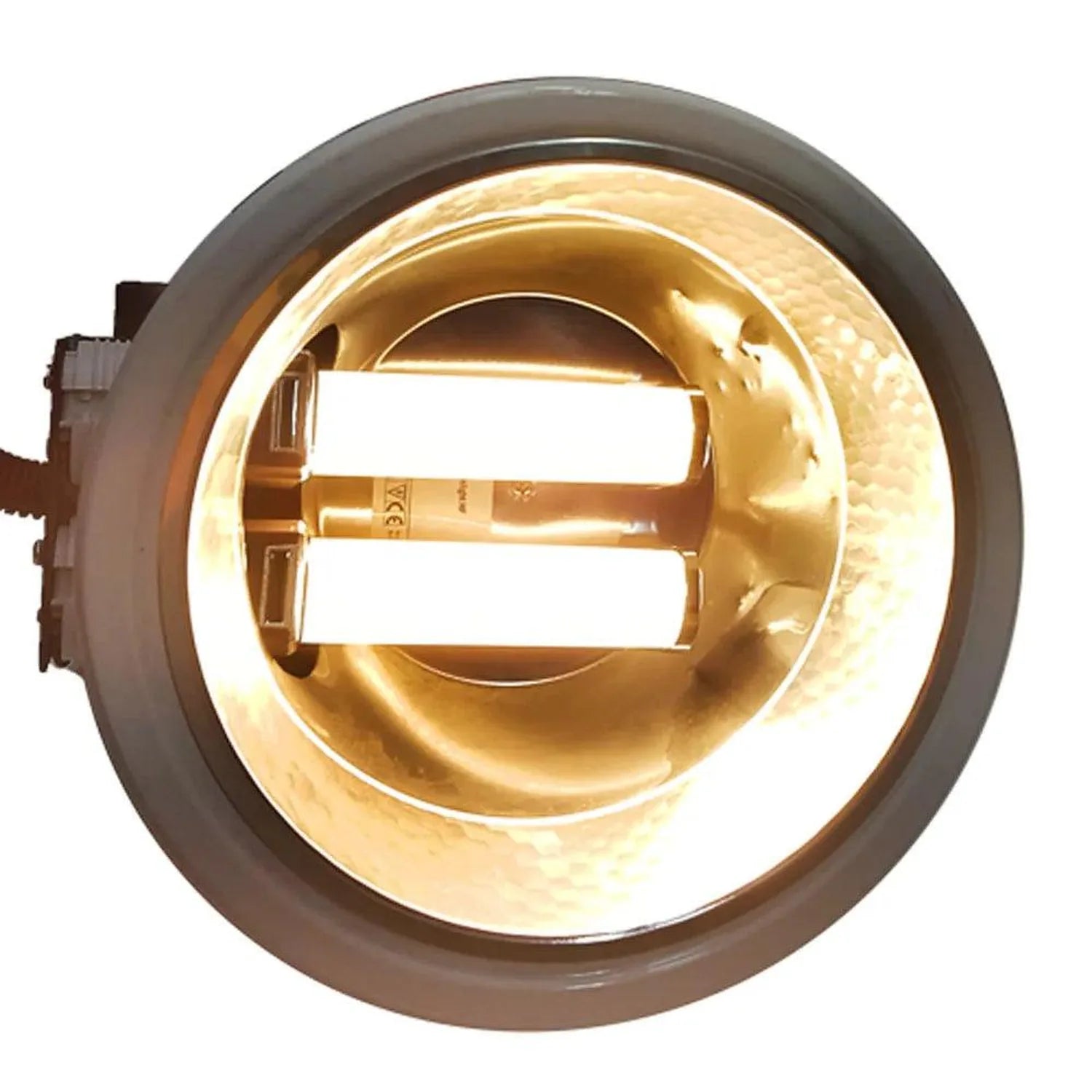

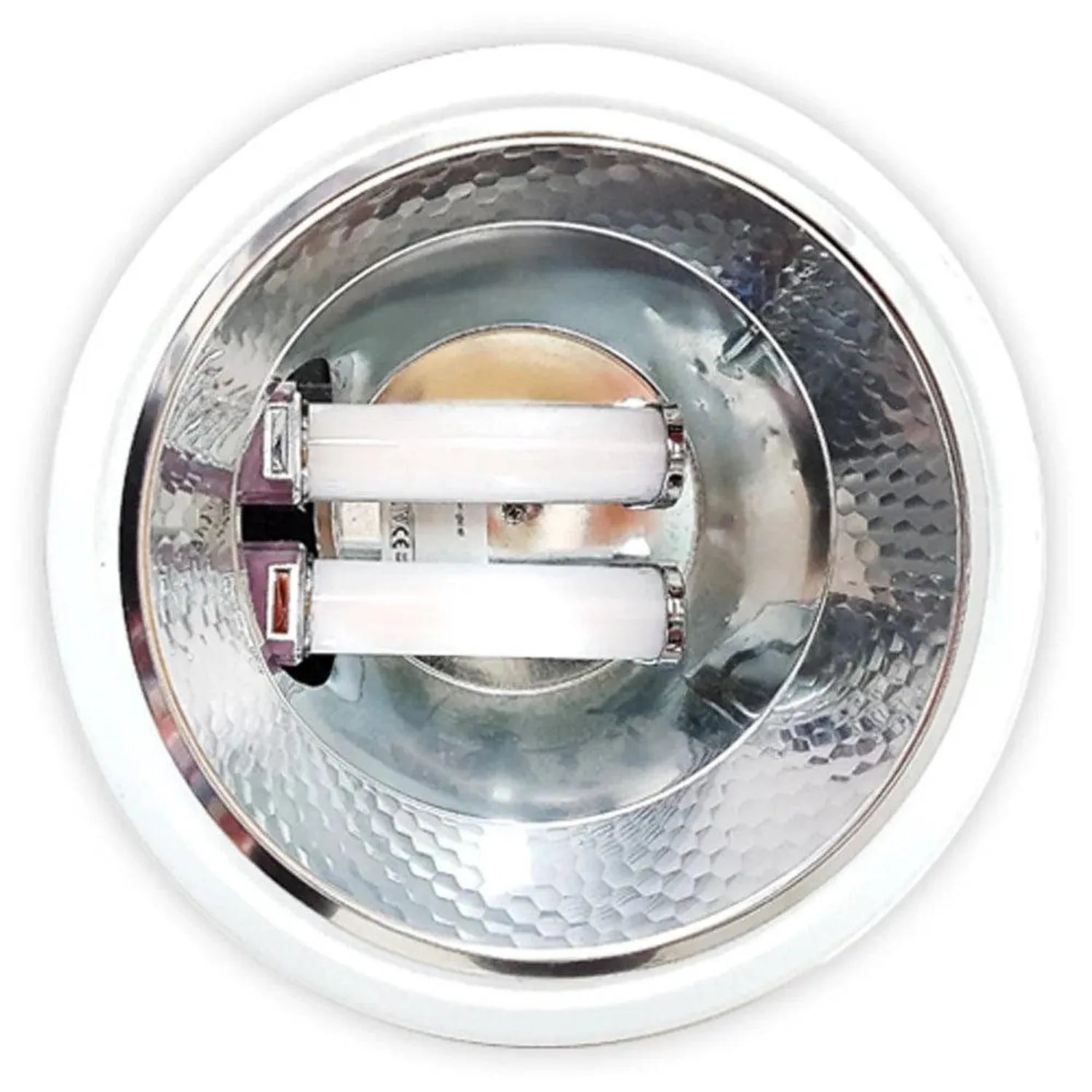

Any fitting built for a 26W CFL PL lamp on one of the holders above is a candidate for this swap. Because the plug turns through a full circle, it suits downlights and wall fittings where a fixed lamp would throw light in the wrong direction. Check the holder code on your existing fitting before ordering.
Technical Specifications 23 rows Show
| Fitting | G24 |
| Fitting/pins | G24d-1,G24d-2,G24d-3 G24d-4,G24q-1,G24q-2 G24q-3,G24q-4 |
| Wattage (rated) | 10 Watt |
| Luminous flux | 950lm |
| Colour rendering index | >80 |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| Colour temperature | Warm white: 3000K, Natural white: 4000K, Cool white: 6000K |
| Diameter | 31.5mm |
| Height | 176mm |
| Net weight per piece | 120gr |
| Average lifetime | 50,000 hours |
| Dimmable | NO |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
| Pins | 2-pin |
| LED chips | SMD 2835 |
| Base | G24 plug rotates 360 degrees |
| Cover | Frosted |
| Heatsink | Aluminium |
| Standard | Low voltage directive 2014/35/EU |
| Emergency use | Compatible with our PLG24 emergency conversion pack |
Manufacturer datasheet. Figures as published by the manufacturer.
