3W LED Emergency Spot Light 3 Hour Non-Maintained | Liteplan S/BNM/1
- Vendor
- Liteplan
- SKU
- 002939
- Availability
- Sold out
- Weight
- 0.25 kg
£67.19inc VAT £55.99exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Liteplan S/BNM/1 is a 3W recessed LED emergency spot light for ceilings in commercial, residential and public buildings. Because it is non-maintained, the LED stays dark during normal use. When the mains fails, it lights for 3 hours.
Emergency spot light features
- Operation: 3 hour non-maintained
- Emergency output: 700mA driver
- Battery: 3.2V 3.8Ah LiFePO4, with a 24 hour recharge period
- Protection: deep discharge and battery temperature protection, with charging cut off below 0°C or above 55°C
- Rating: IP20, class II

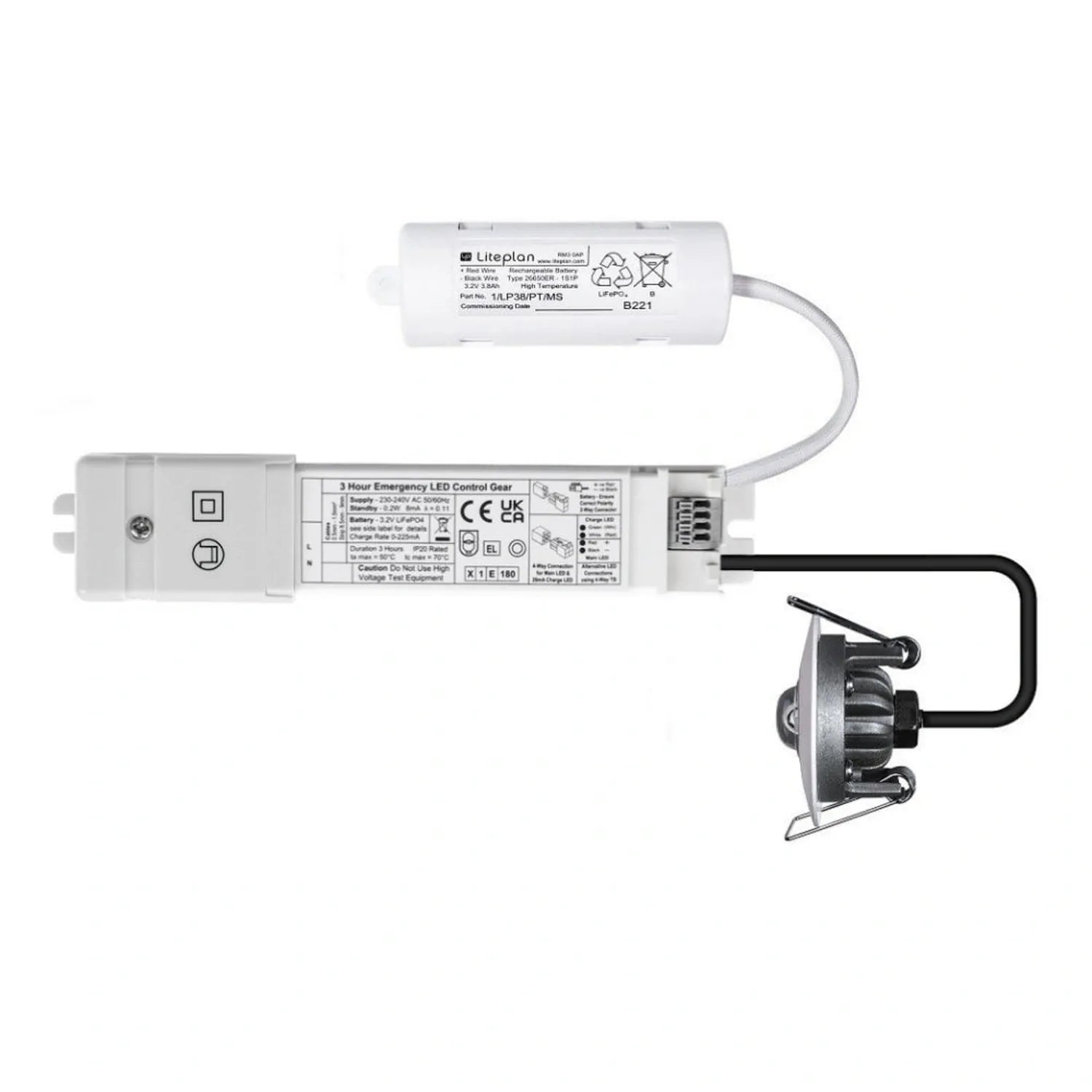

Lithium iron phosphate uses less power and lasts longer than traditional emergency batteries. The module, battery and LED each come with plugs and leads, so connections are made without extra wiring work, and a strain relief module protects the cables.
Optic
It comes with an open area lens under a single order code:
- S/BNM/1/LED/43/OA/W: open area lens, 266 lumen
Installation
The fitting passes through a 40mm to 43mm aperture. With a 40mm cut-out, allow a minimum void depth of 90mm. The module measures 150mm x 30mm x 28mm and the battery 90mm x 35mm, giving an overall weight with LED of 0.34kg.
Where it suits
Corridors, escape routes and stairwells are the obvious places. It also fits offices, shops and hotels, along with schools, healthcare settings and other public buildings where discreet ceiling emergency lighting is wanted.
Technical Specifications 23 rows Show
| Brand | Liteplan |
| Model | S/BNM/1/LED/43/OA/W (open area lens) |
| Operation | Non-maintained emergency only |
| Emergency duration | 3 hours |
| Emergency output | 700mA |
| Mains supply | 230-240V AC 50/60 Hz |
| Battery | 3.2V 3.8Ah LiFePO4 |
| Charge current | 225mA Nom. |
| Discharge voltage cut off | 2.5Volts |
| Recharge period | 24 hours |
| Ingress protection | IP20 |
| Protection class | II |
| Max module Ta and Tc | Ta: 50 C & Tc: 70 C |
| Battery Tc | 0 C to 55 C |
| Aperture size | 40mm to 43mm |
| Minimum void depth | 90mm |
| Module dimensions | 150mm x 30mm x 28mm |
| Battery dimensions | 90mm x 35mm |
| Mains input terminals | 0.5mm - 1.5mm |
| Module fixing centres | 145mm |
| Module weight | 0.09kg |
| Overall weight with LED | 0.34kg |
| TM65 rating | 6.73 CO2e |
Manufacturer datasheet. Figures as published by the manufacturer.
