15W LED Downlight CoB 120° Beam Angle | Voltafit

Warm White / No
£40.69
Skip to product information
White round LED downlight with yellow COB center and black heat sink fins, product alone on white background.
15W LED Downlight CoB 120° Beam Angle | Voltafit

15W LED Downlight CoB 120° Beam Angle | Voltafit

Vendor
Ledison
SKU
222596
Availability
In stock
Weight
1.4 kg

£40.69inc VAT £33.91exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

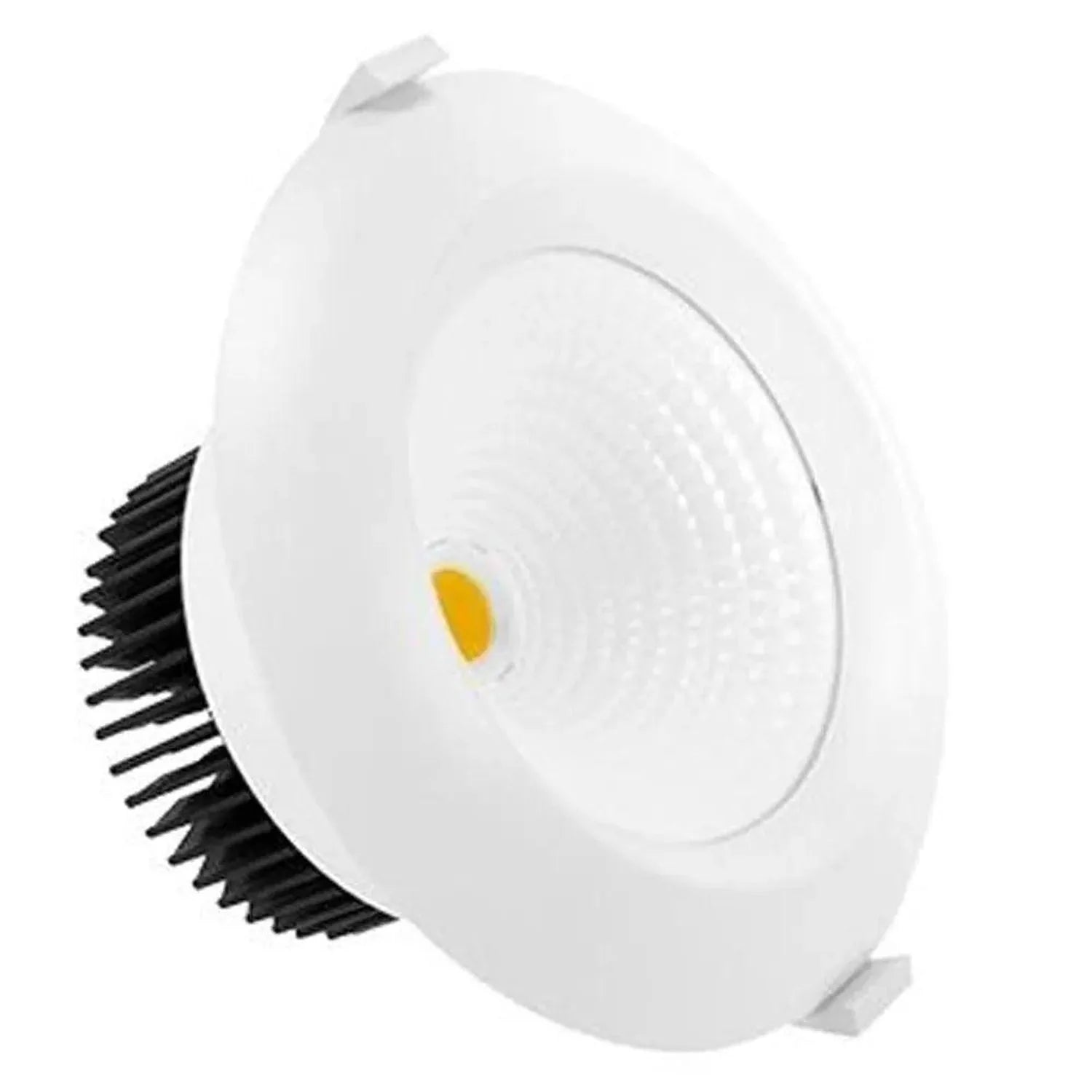

The Voltafit LED Down Light 15W is built around a high lumen chip on board (CoB) from CITIZEN LED (Japan), giving a 120° beam angle and an efficacy of 111lm/watt. The LED driver runs at 96% efficiency and is included with the fitting.

Key features of this LED downlight

  • Light source, CITIZEN LED (Japan) CoB chip, 120° beam angle
  • Efficacy, 111lm/watt
  • Driver, 96% efficiency, included
  • Mains voltage, 220-240Vac, with a 110-120Vac version for the American market
  • Life span, 50,000 hours, LM79 certified
  • Protection, IP54 rated on the room side
  • Colour options, warm white 3000K, natural white 4000K, cool white 5000K

Applications

Suited to corridors, foyers, lobbies and shops, and designed to sit into standard suspended or false ceilings for quick integration. It replaces compact fluorescent downlight lamps such as the PLG24.

Dimming and running costs

A dimmable version is available with 1-10V, PWM or resistor control. Running maintenance free, it can cut electricity costs by up to 80%, and at an average of 8 hours daily use the 50,000 hour life span works out at around 15 to 17 years before replacement.

Housing

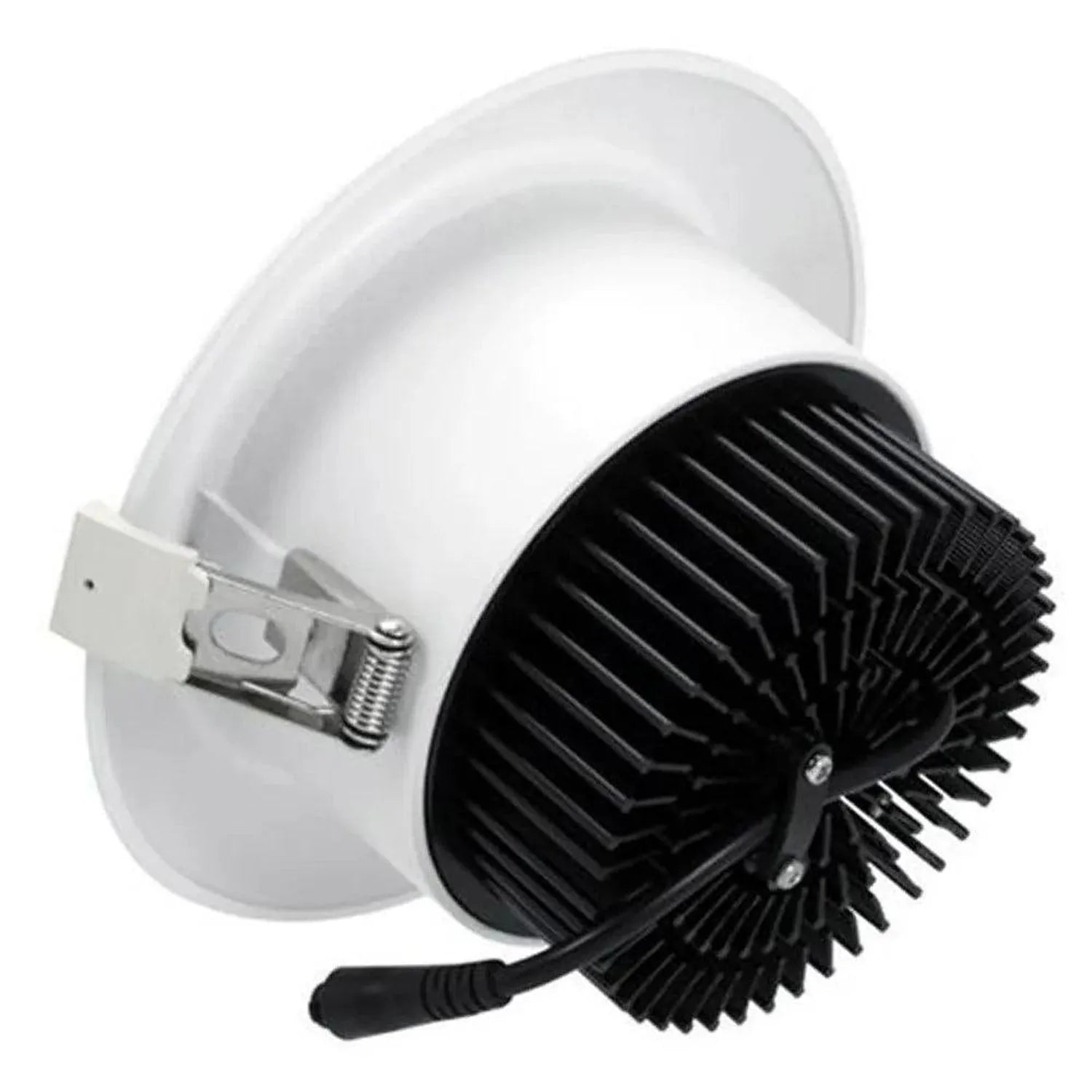

The downlight has an aluminium housing and a new DC power plug design intended to simplify installation.

Technical Specifications 15 rows Show
ParameterDLC06-15-WWDLC06-15-NWDLC06-15-CW
Power Consumption15W
Rated Life50,000 Hours
Supply Voltage100-240V AC
(Driver with CUL Certificate Support 277V AC for North America only: non-dimmable)
Power Factor (PF)0.88 at 120V AC, 0.8 at 240V AC without dimmer
Colour Temperature3000K4000K5000K
Light Output1600 lm1700 lm1720 lm
System Efficacy107 lm/W113 lm/W115 lm/W
Colour Rendering (Minimum)808080
Beam Angle90° (Reflector)
SizeØ 175 x 100mm / 6"
Ingress ProtectionIP40
Operating Temperature-20°C ~ +40°C

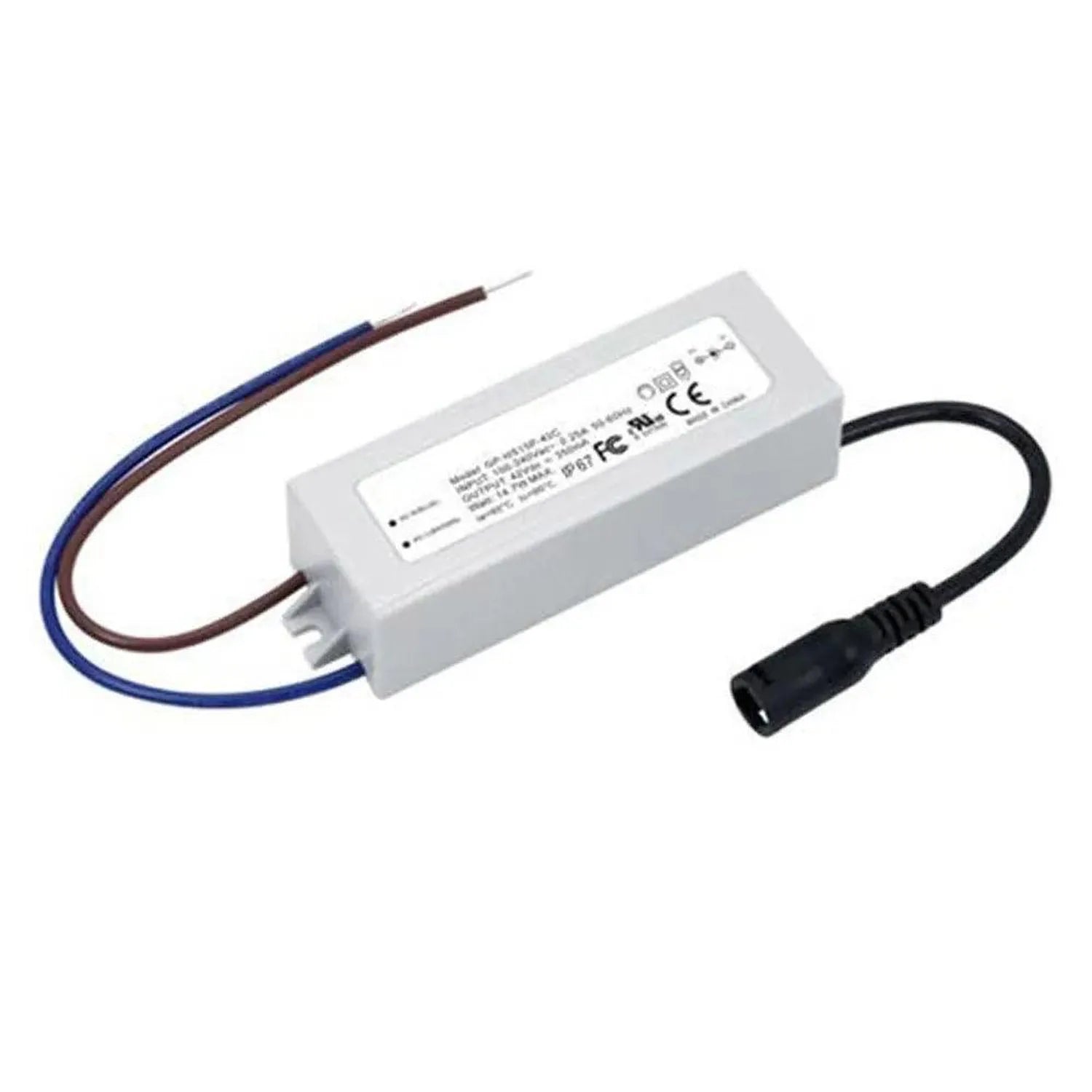

Included DriverGP-HS15P-42C
Weight850 g (with driver)
Packing8 Boxes / Carton

Manufacturer datasheet. Figures as published by the manufacturer.
