Solis 3.6kW Hybrid Solar Kit 5.12kWh Battery 6 JA Solar Panels IP65

This hybrid solar kit pairs a 3.6kW Solis single phase inverter with a 5.12kWh US5000 LiFePO4 battery and six JA Solar 450W N-Type bifacial panels, giving a 2.7kW PV array for UK homes and small commercial sites. Both the inverter and battery are IP65 rated, so the system can be fitted indoors or outdoors without needing extra shelter.

Key features

• Inverter, Solis 3.6kW hybrid, single phase, WiFi ready
• Battery, 5.12kWh US5000 Pylontech 48V LiFePO4 lithium storage
• Solar array, 6 x JA Solar 450W bifacial black N-Type panels (JAM54D41-450-LB), 2.7kW total
• Weather protection, inverter and battery both IP65 rated
• Grid modes, import, export, controlled export and zero export
• Extras, off peak battery charging support and backup ready operation for essential loads

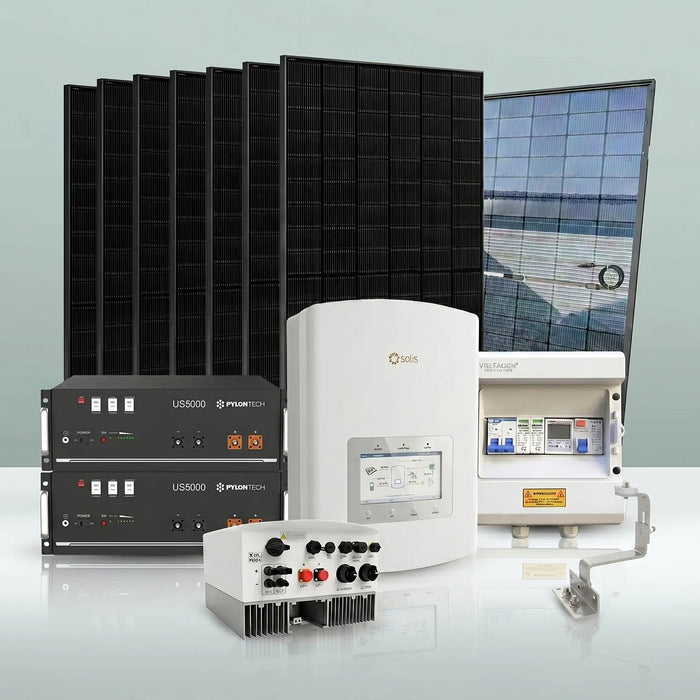

What's in the box

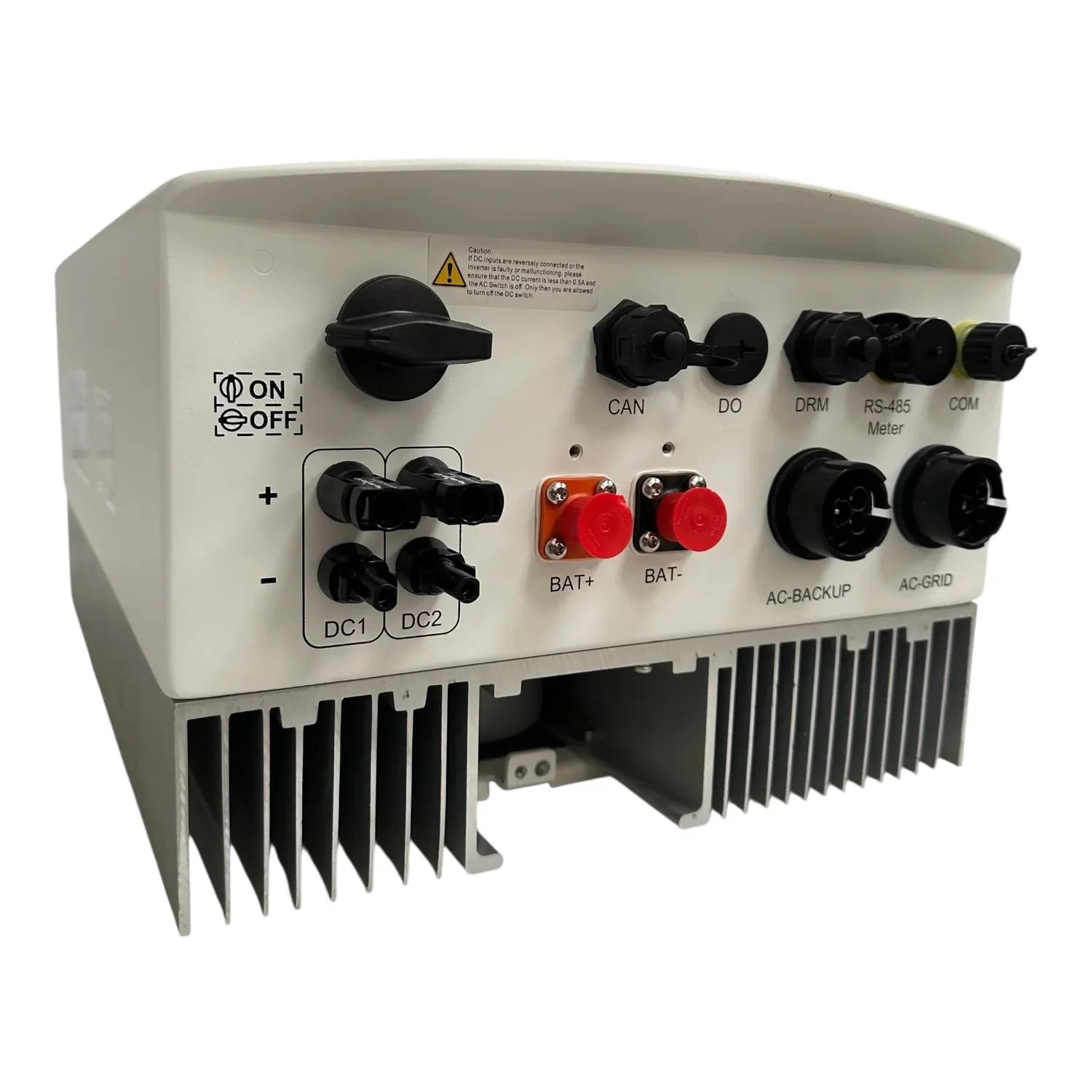

• 1 x Solis 3.6kW hybrid solar inverter, single phase, WiFi ready
• 1 x US5000 Pylontech 5.12kWh 48V lithium battery (LiFePO4)
• 1 x Mersen battery fuse and DC disconnector set
• 6 x JA Solar 450W bifacial black N-Type panels (JAM54D41-450-LB)
• 1 x roof mounting kit for 6 panels
• 1 x 25m solar PV cable 6mm², pre crimped
• 1 x AC combiner box 230Vac with surge protection and energy meter
• 1 x DC solar panel isolator switch

Applications

Built for self consumption and lower electricity costs, this kit suits homeowners and small businesses that want a hybrid system with monitoring through the Solis WiFi platform. The roof mounting kit supplied is for tile roofs; an alternative kit is available on request at no extra cost.

Installation

Professional installation by a qualified electrician is recommended. Protection settings, commissioning and verification should follow local regulations and site requirements.
