Flat Roof Solar Panel Mounting Kit U-Shape Mini Rail | Voltacon

Vendor
Voltacon
SKU
002960
Availability
In stock
Weight
1.0 kg

£32.54inc VAT £27.12exc VAT

Delivery from £20.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This black aluminium mini rail kit fixes solar panels straight onto trapezoidal and corrugated metal roof sheets. Short U-shape rail sections take the place of full length mounting rails. Each kit is sized for 2, 3 or 4 panels in one row and carries every part needed between panel frame and roof: 120mm mini rails with rubber pads and self-tapping screws, plus end and mid clamps for 30mm or 35mm frames.

Flat roof solar panel mounting kit features

  • Mini rail: ING-SPR-120, U-shape, 120mm long, black aluminium.
  • Roof fixing: self-tapping screws go directly into the metal sheet, with a rubber pad under every rail.

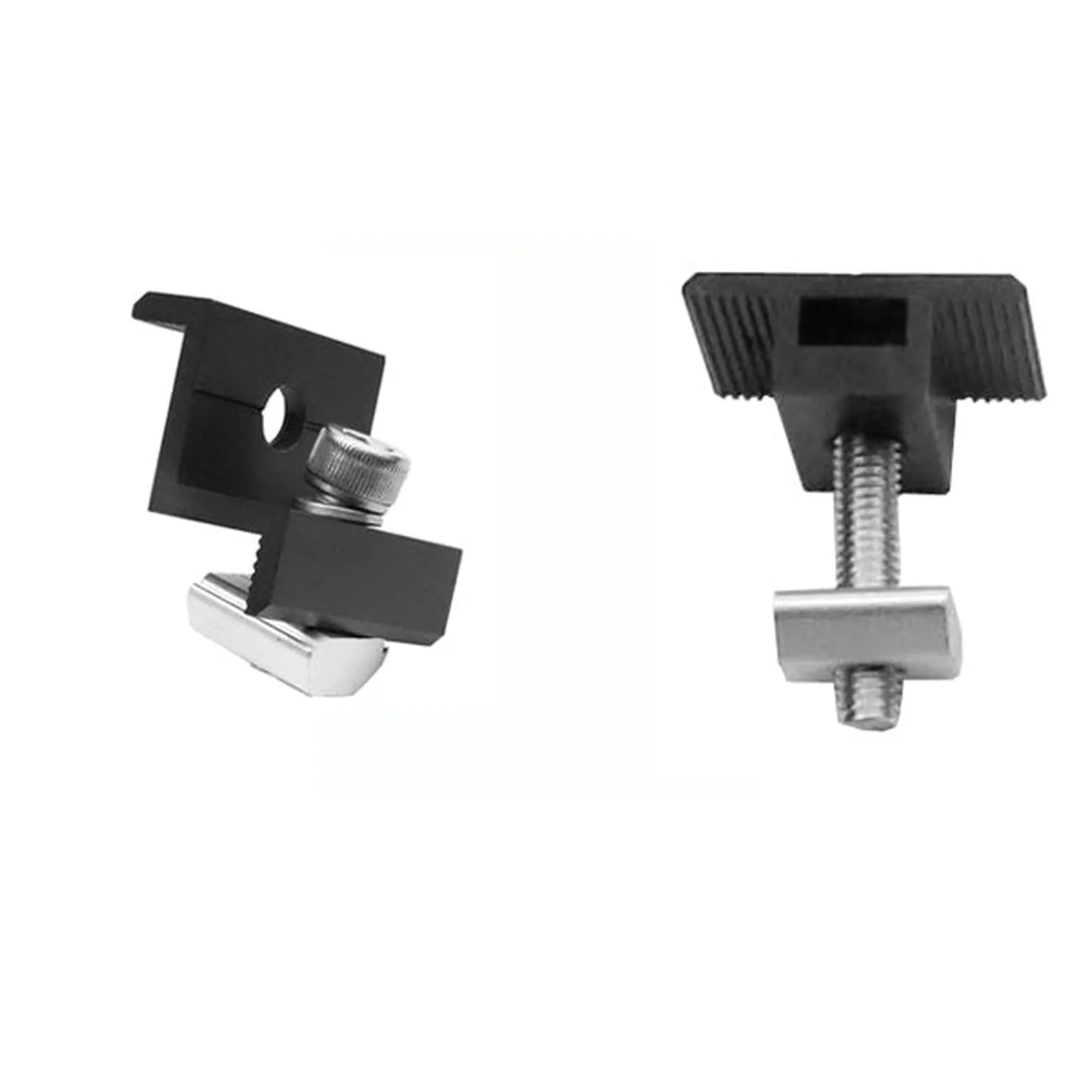

  • End clamps: ING-SEC-30/35, reversible, with one side for 30mm frames and the other for 35mm.
  • Mid clamps: ING-SMC-30/35, holding two panels on one rail.
  • Kit sizes: 2, 3 or 4 panels, and kits can be combined for larger arrays.

Where it fits

Use it on flat and low pitch metal roofs on industrial units, warehouses and workshops, or on garages, barns, sheds and agricultural buildings. The black finish matches black frame and all black panels on homes and commercial buildings alike. Aluminium nuts slide into the rail channel to take the clamps, so the panels sit low and close to the roof.

It is not intended for tiled, slate, felt or membrane roofs.

How it goes together

Fit the rubber pad to the underside of each mini rail, then screw the rail to the roof at the spacing set by the panel size. End clamps go on the first panel, a mid clamp between each pair, and end clamps again on the far side. Tighten every clamp bolt fully.

Tools and safety

You will need a T-handle hex key, a cordless drill with socket bit and work gloves. A qualified solar installer or competent roofer should carry out the work, after checking the condition of the roof sheet and the structure beneath. Rail spacing and fixings must suit the panel size, roof profile and local wind and snow loads. Check the panel manufacturer's clamping zones before marking out. Electrical connection is a job for a qualified electrician or MCS certified installer.

Kit contents

  • 2 panels: 6 mini rail sets, 4 end clamps, 2 mid clamps.

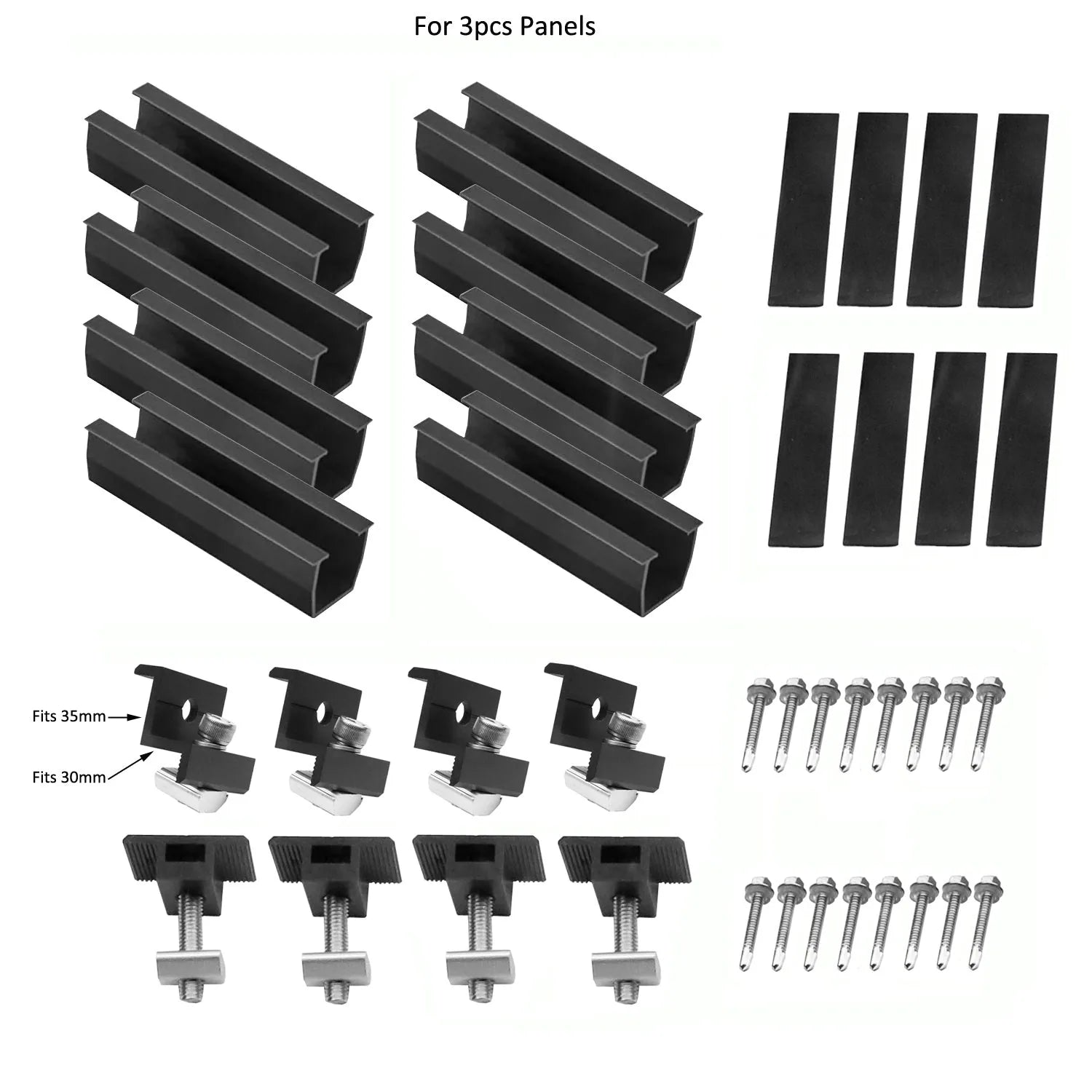

  • 3 panels: 8 mini rail sets, 4 end clamps, 4 mid clamps.
  • 4 panels: 10 mini rail sets, 4 end clamps, 6 mid clamps.

Solar panels are not included.

Technical Specifications 17 rows Show

Model Information

ParameterValue
Model (2 panels)ING-UMK-120-2B
Model (3 panels)ING-UMK-120-3B
Model (4 panels)ING-UMK-120-4B
SystemU-shape mini rail mounting kit
FinishBlack aluminium

Components

ParameterValue
Mini railING-SPR-120, U-shape, 120mm long
Roof fixingSelf-tapping screws with rubber pad
End clampING-SEC-30/35
Mid clampING-SMC-30/35
Panel frame thickness30mm or 35mm
Roof typeTrapezoidal and corrugated metal roof sheet

Kit Contents

KitContents
2 panels (ING-UMK-120-2B)6 mini rail sets, 4 end clamps, 2 mid clamps
3 panels (ING-UMK-120-3B)8 mini rail sets, 4 end clamps, 4 mid clamps
4 panels (ING-UMK-120-4B)10 mini rail sets, 4 end clamps, 6 mid clamps

Manufacturer datasheet. Figures as published by the manufacturer.
