Adjustable Triangle Solar Panel Mounting 10-35° | Flat Roof & Ground

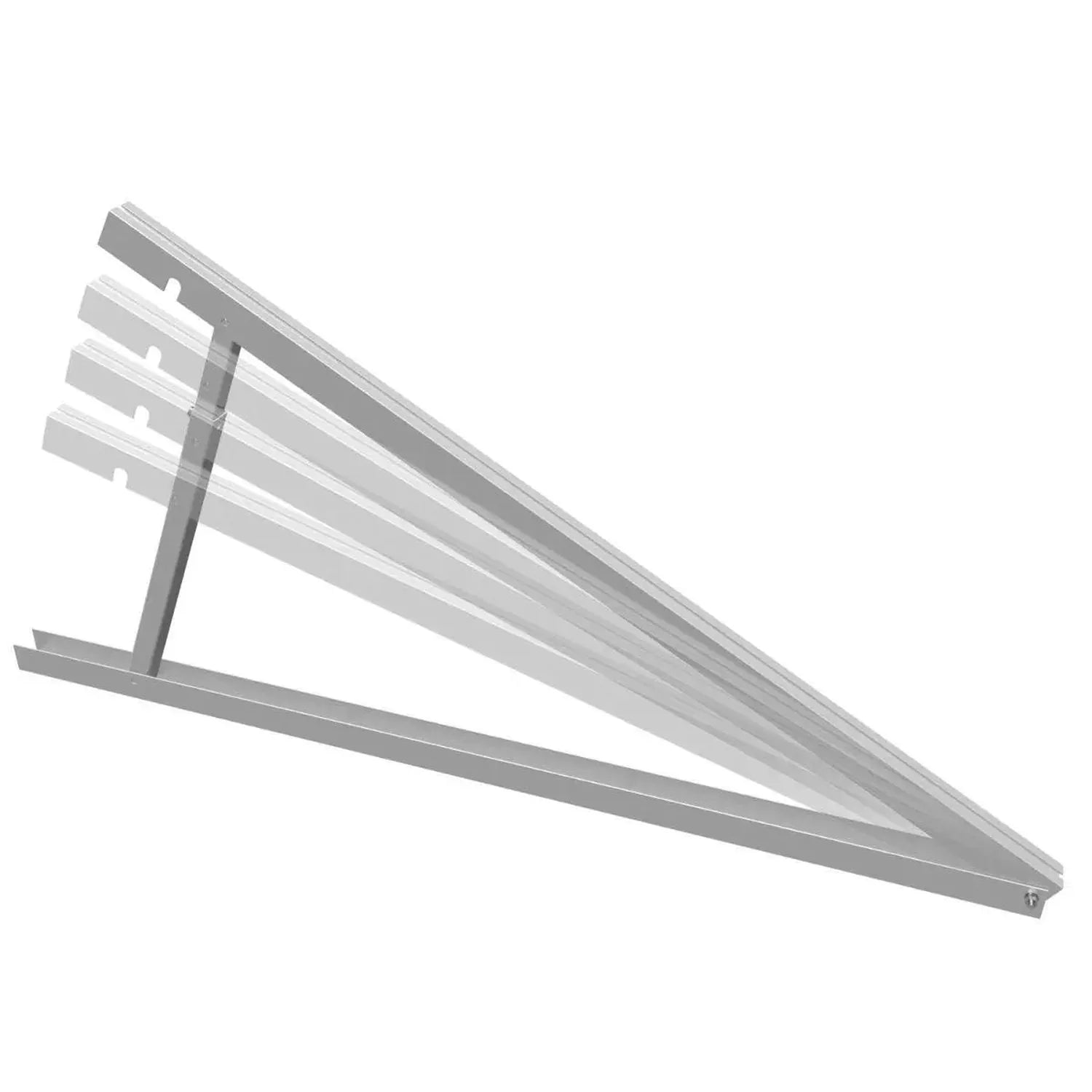

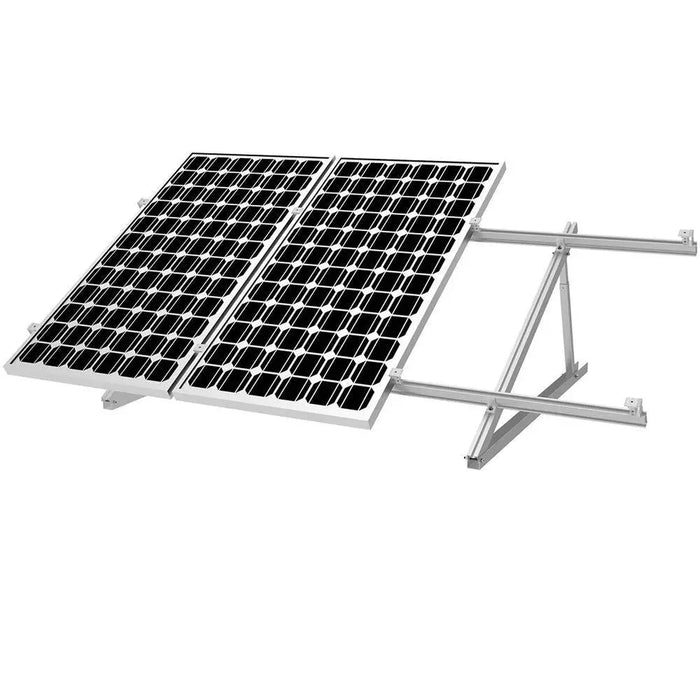

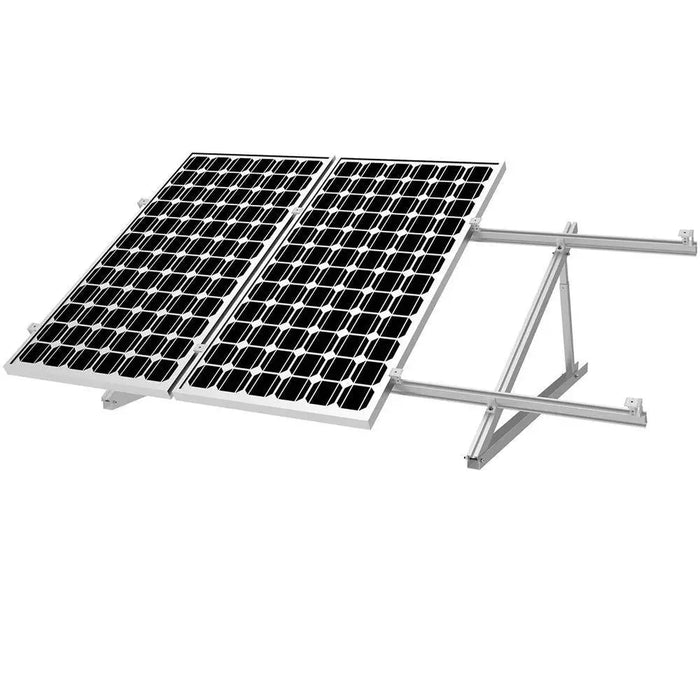

An adjustable triangle mounting system for solar panels on flat roofs and ground installations, built from pure aluminium with stainless steel fixings. The back pillar sets the inclination angle anywhere between 10 and 35 degrees, so the array can be optimised for the site latitude. It suits panels from 200W up to 600W-plus, including full-size 2.2m modules, and no foundation is required for ground installations.

Key features

• Inclination range, 10 to 35 degrees, set on site
• Frame material, pure aluminium with stainless steel fixings throughout
• Panel compatibility, 200W to 600W-plus, including full-size 2.2m modules

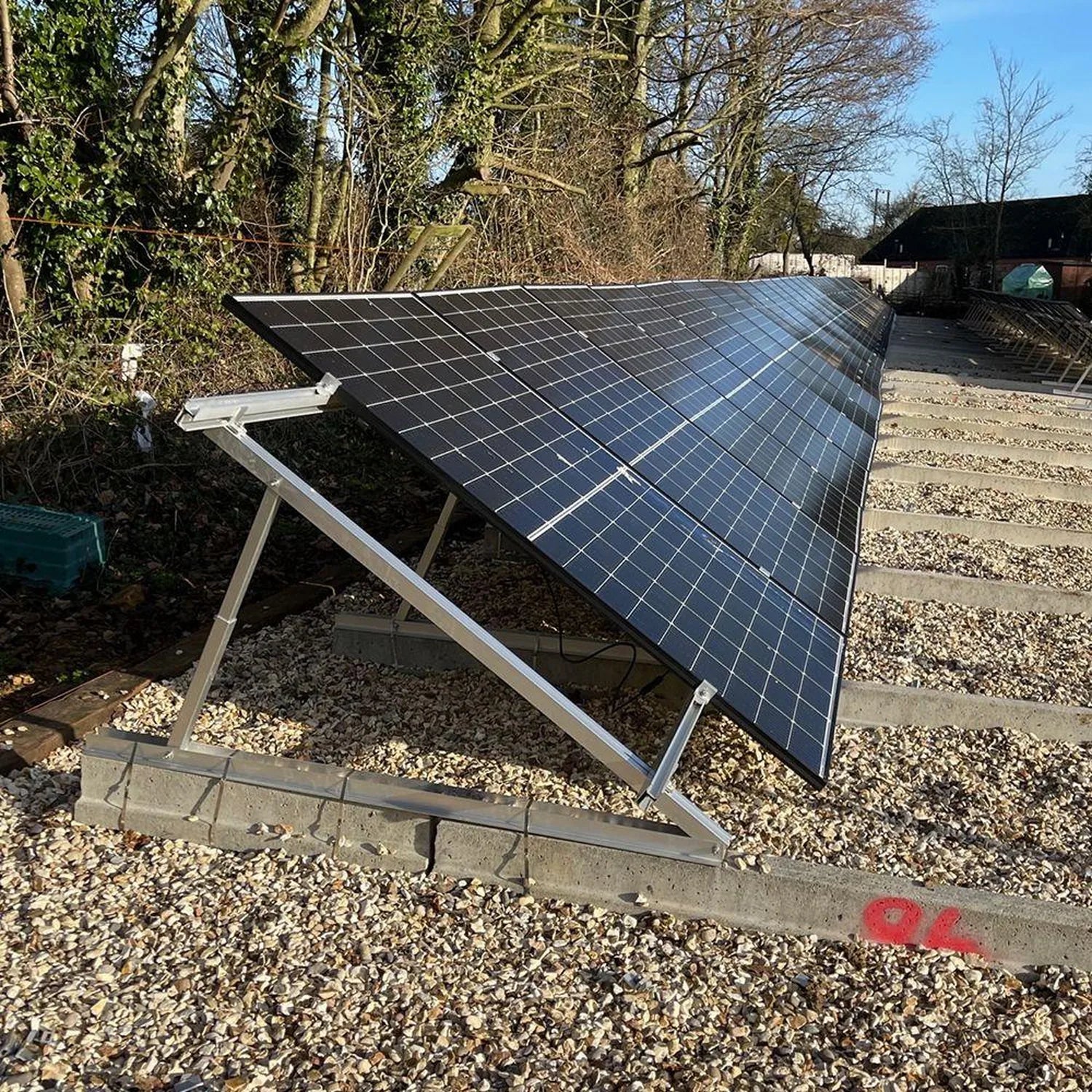

• Foundation, none required for ground installs; solid concrete ballast blocks are adequate
• Seasonal adjustment, angle can be repositioned through the year for up to 20% additional energy yield
• Row spacing, adjustable on site to reduce inter-row shading

Applications

This flat roof solar mounting kit suits residential, commercial and industrial roofs, as well as ground-mounted arrays on open land, car parks and agricultural sites. It's suited to larger arrays where row spacing and shadow management need careful planning, and to installations where the angle will be adjusted seasonally to chase the sun's changing elevation.

Installation notes

Installation should be carried out by a qualified solar installer. On flat roofs, check the roof can carry the combined weight of frames, ballast and panels. For ground mounting, concrete ballast blocks aren't included and need to be sourced separately. Row spacing and inclination angle should be worked out for the site's latitude and wind zone before fitting. Orders can be placed for 1 to 20 modules.
