Eastron SDM630 Three Phase Energy Meter | Modbus Card & Server
£173.25
Skip to product information
Eastron SDM630 Three Phase Energy Meter | Modbus Card & Server
- Vendor
- Eastron
- SKU
- SDM630MCT-MOD-MID-2
- Availability
- In stock
- Weight
- 0.45 kg
£173.25inc VAT £144.38exc VAT
Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description

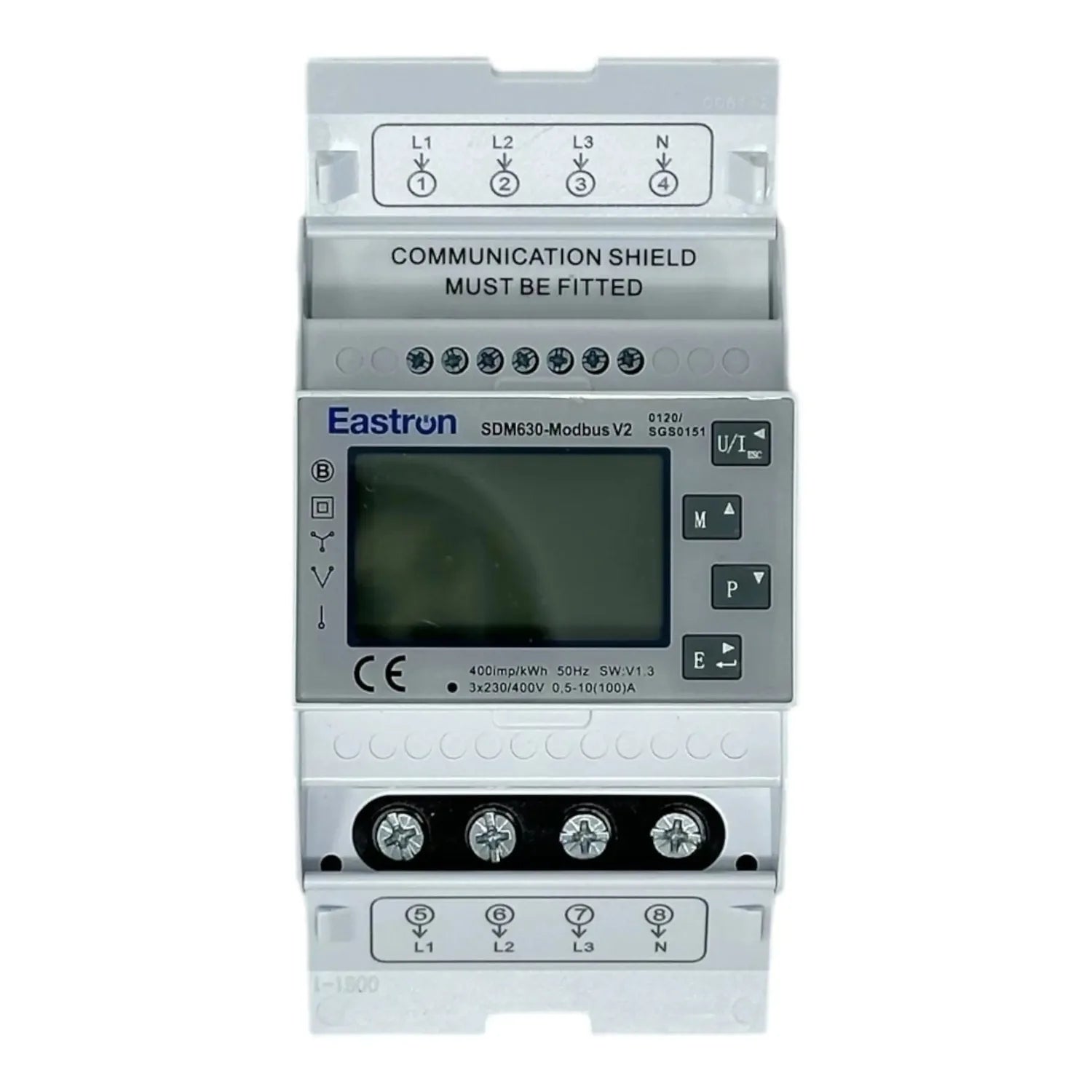

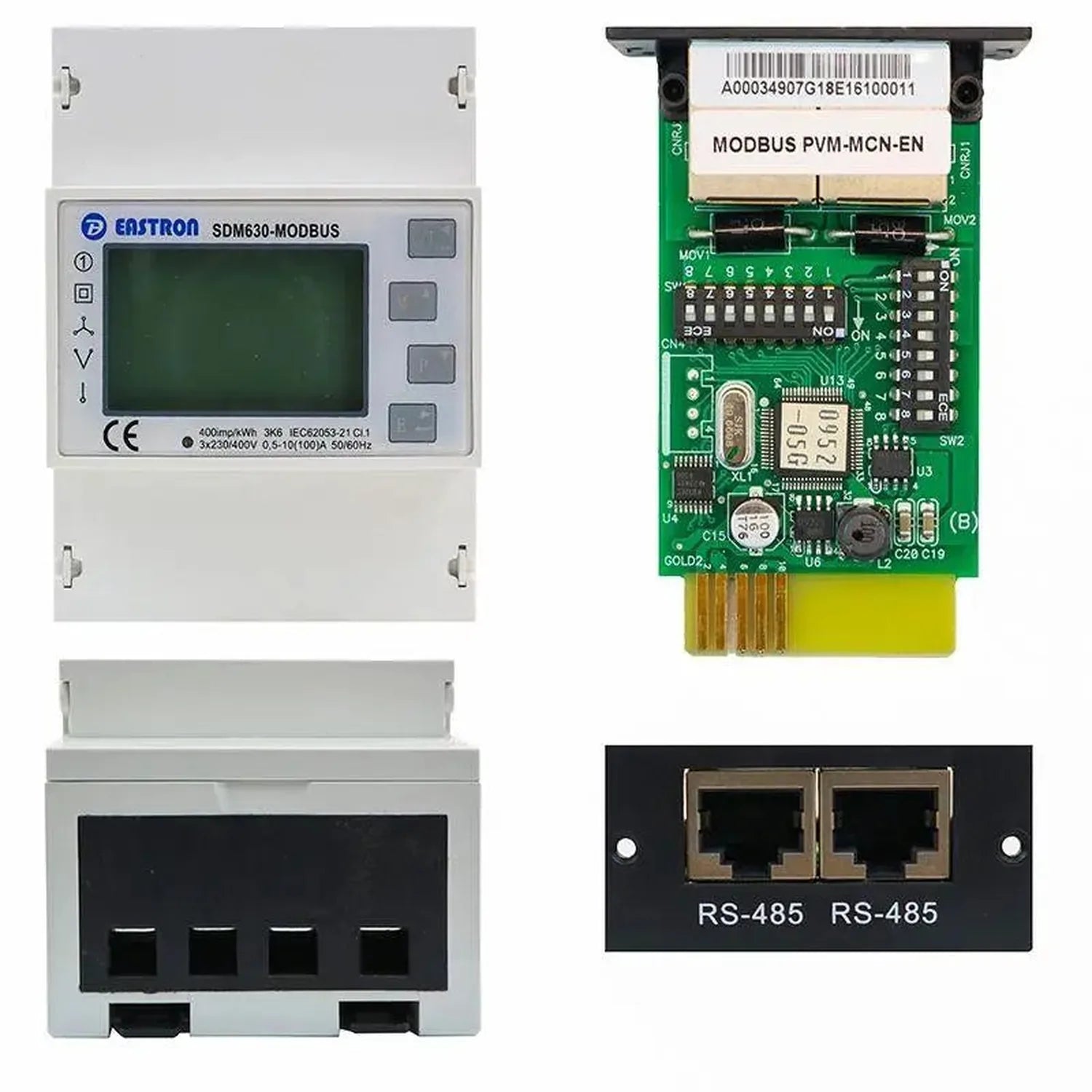

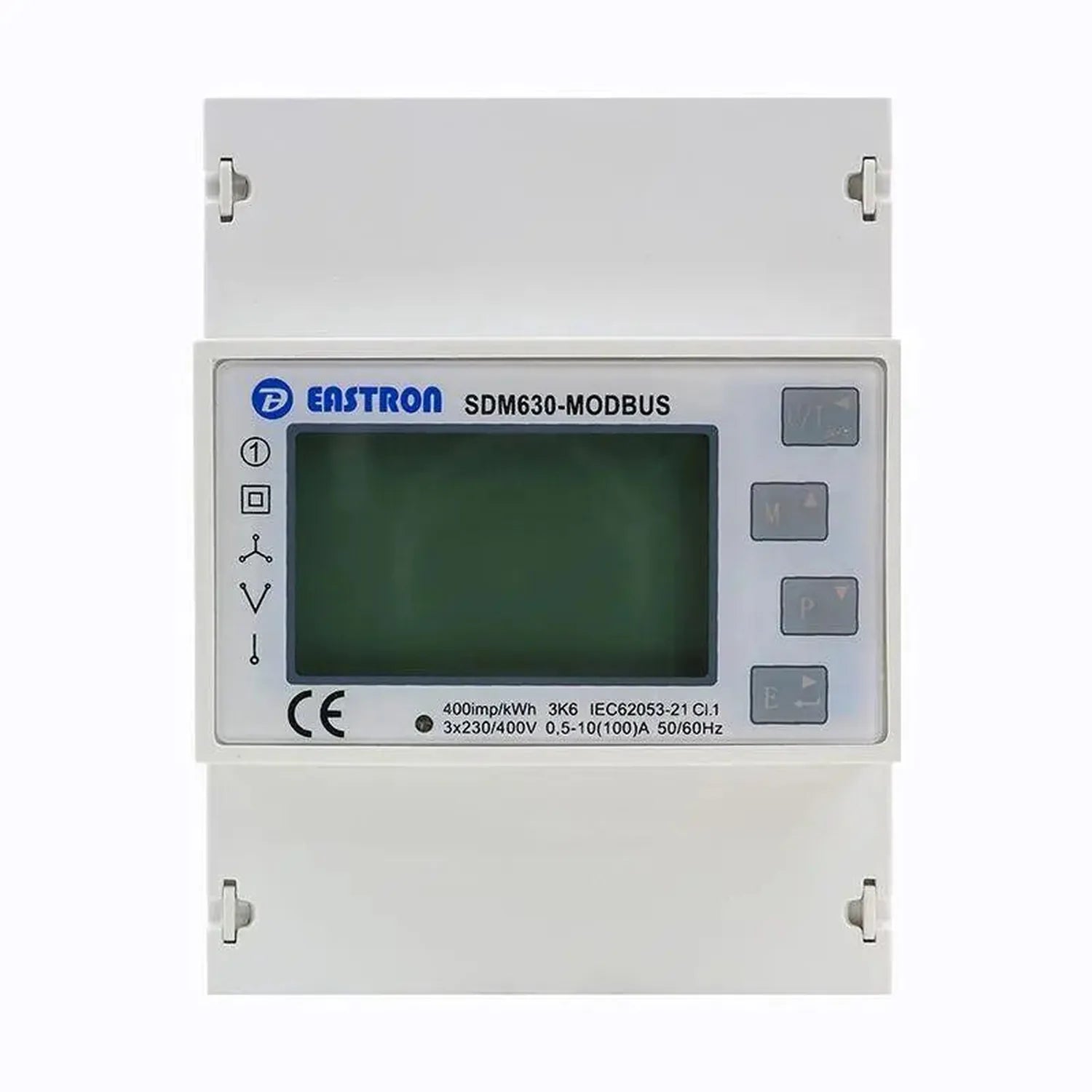

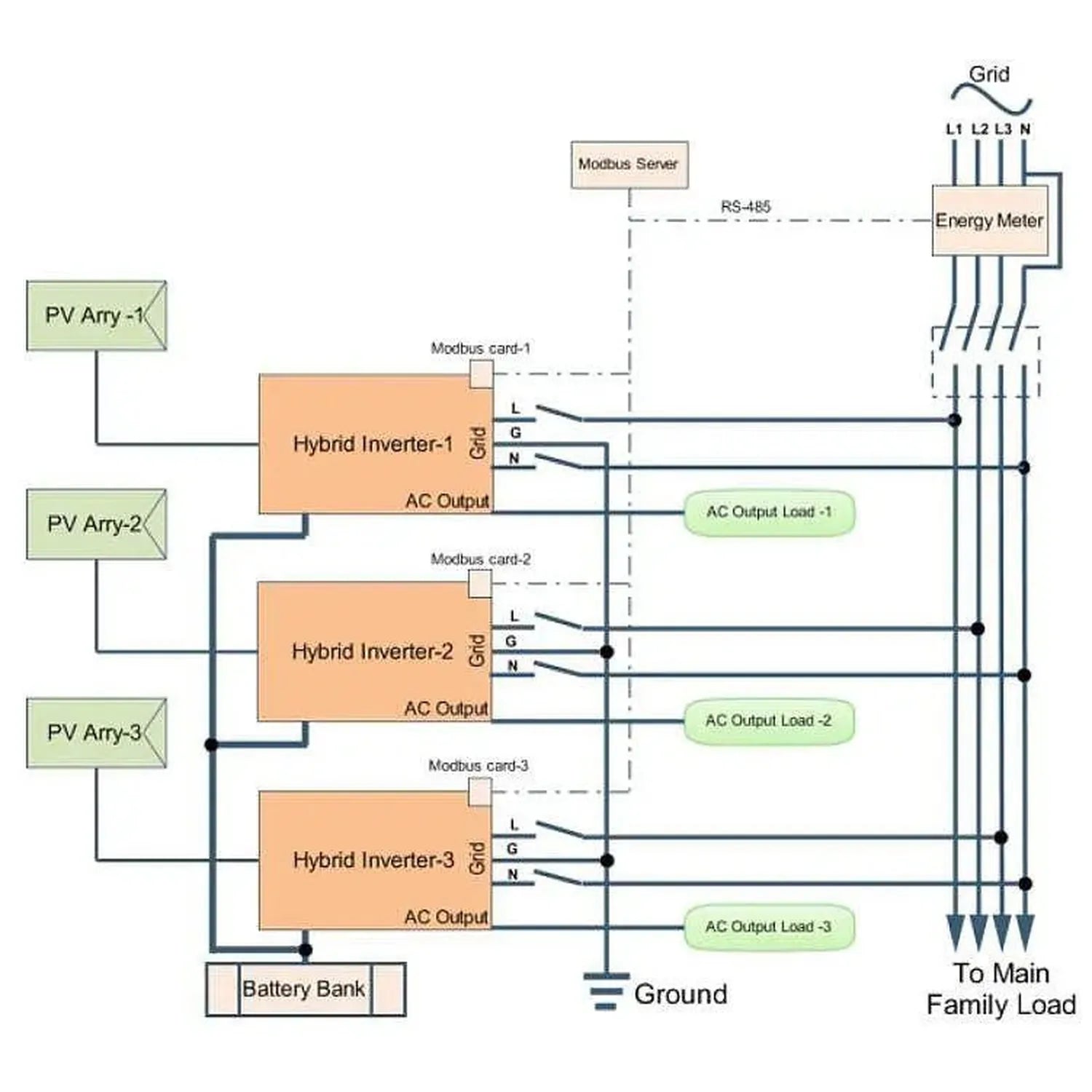

The Eastron SDM630 is a three phase DIN rail energy meter that reads power, current, voltage, THD, import and export kWh, and active and reactive power. Add the optional Modbus card and Modbus server, sold separately, and it links into Voltasol Hybrid HSI series inverters for real-time self-consumption monitoring and grid support.
Eastron SDM630 modbus meter features
- Meter type, three phase DIN rail energy meter
- Measurements, power, current, volts, THD, import and export kWh, active and reactive power
- Communication, RS485 Modbus
- Inverter compatibility, Voltasol Hybrid HSI series inverters

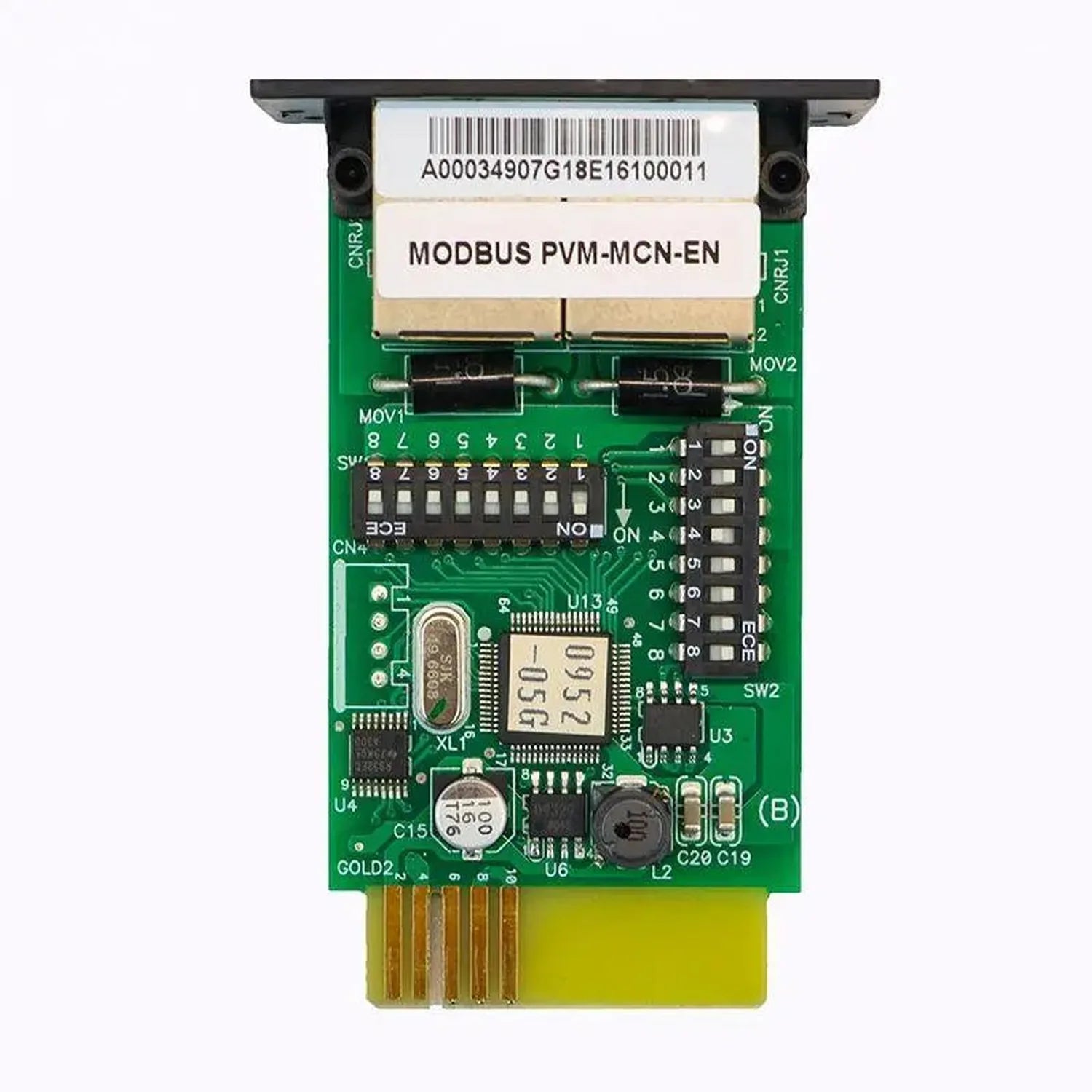

- Optional accessories, Modbus card and Modbus server available separately for inverter integration
- Mounting, 35mm DIN rail
Applications
- Self-consumption monitoring for three phase on-grid and hybrid solar systems
- Grid import and export energy measurement
Installation notes
Wiring should only be carried out by a qualified electrician. The optional Modbus card needs to be fitted inside the inverter before the energy meter is connected over RS485.
