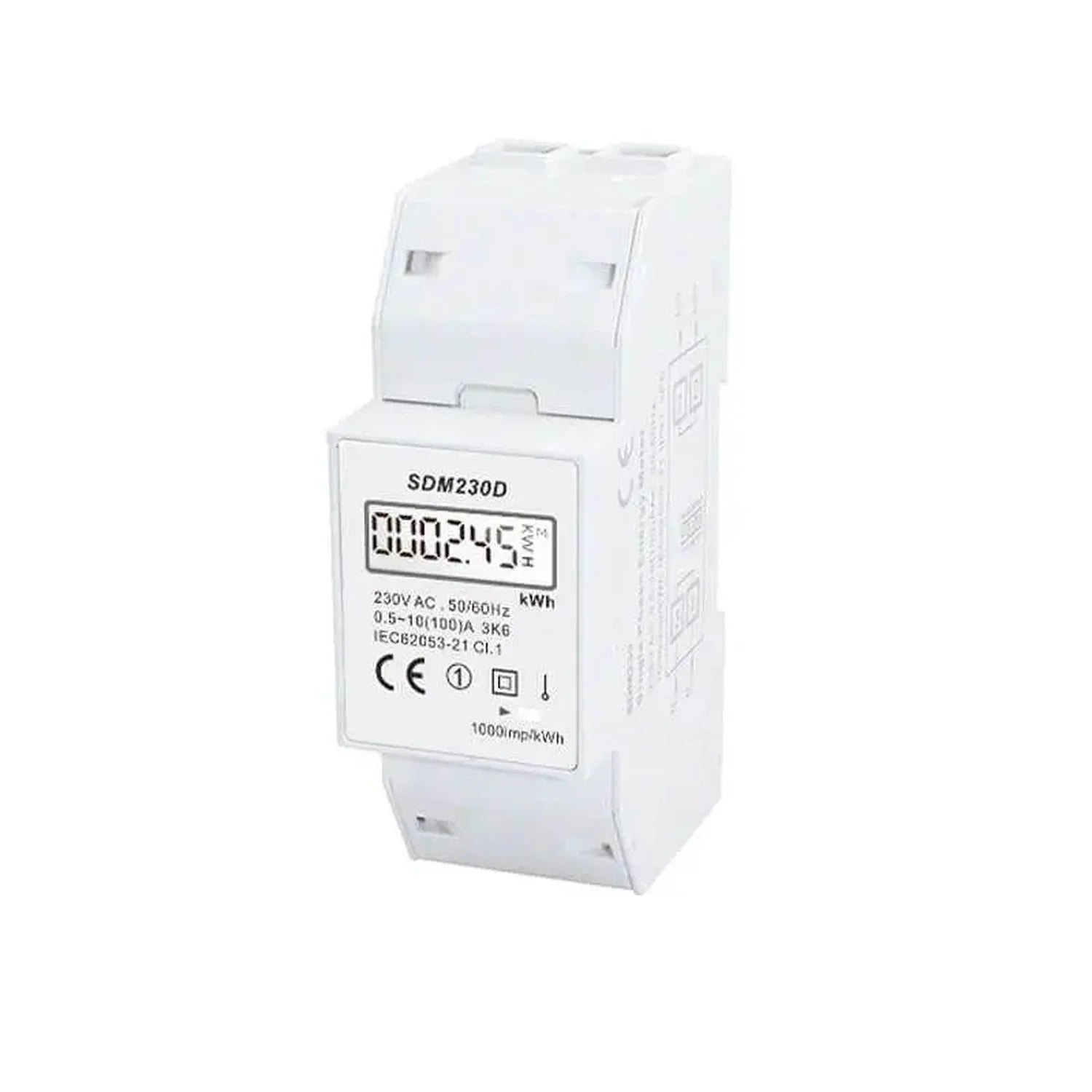

White DIN rail-mounted digital energy meter displaying 0004245 kWh on LCD screen, front view product shot.

Eastron SDM230-D Single Phase DIN Rail Energy Meter 100A

Eastron SDM230-D Single Phase DIN Rail Energy Meter 100A

Vendor: Eastron
SKU: SDM230-D
Availability: In stock
Weight: 0.1 kg

£44.00inc VAT £36.67exc VAT

Secure checkout

Talk to our sales team

Product Description

The Eastron SDM230-D is a single phase two-module DIN rail energy meter with 100A direct connection, so no current transformer is needed. It measures total energy in kWh, shown on a white backlit LCD display, and gives a single pulse output. Accuracy is better than Class 1 / B.

Key features of this din rail meter

Connection, 100A direct, no CT required
Measurement, total energy (kWh)
Output, one pulse output
Display, white backlit LCD
Accuracy, better than Class 1 / B
Mounting, 35mm DIN rail, two-module width

Applications

Fits residential and commercial single phase installations where energy use needs monitoring. It also works well for submetering in utility and industrial settings, giving a clear read on consumption at a single point in the supply.

Installation notes

The meter connects inline in the single phase supply. Wiring must be carried out by a qualified electrician, following IET Wiring Regulations.

Datasheets & documents

SDM230D PDF ↓
