DC-DC Power Supply 10-65V Input to 5V USB-C 3A | Voltacon

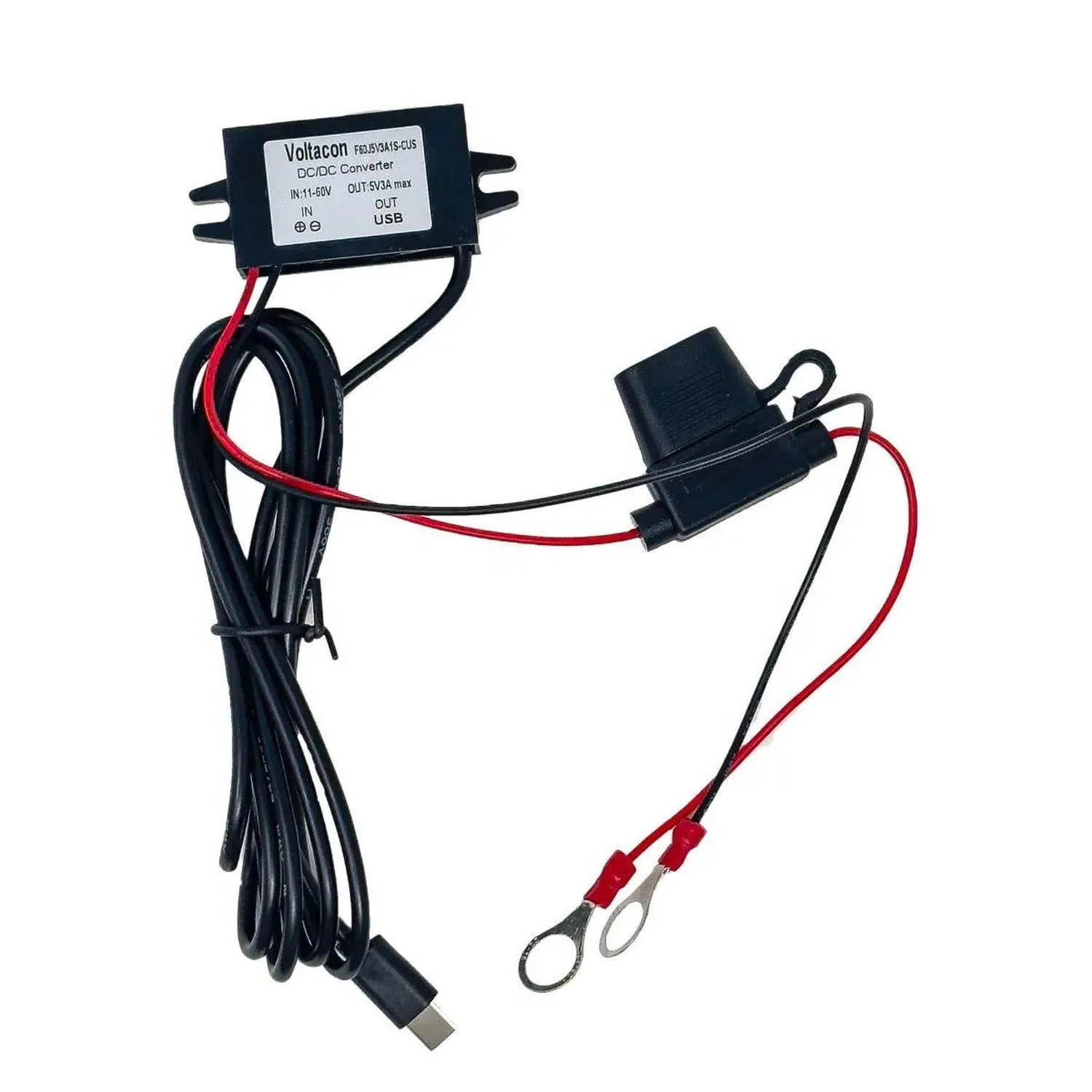

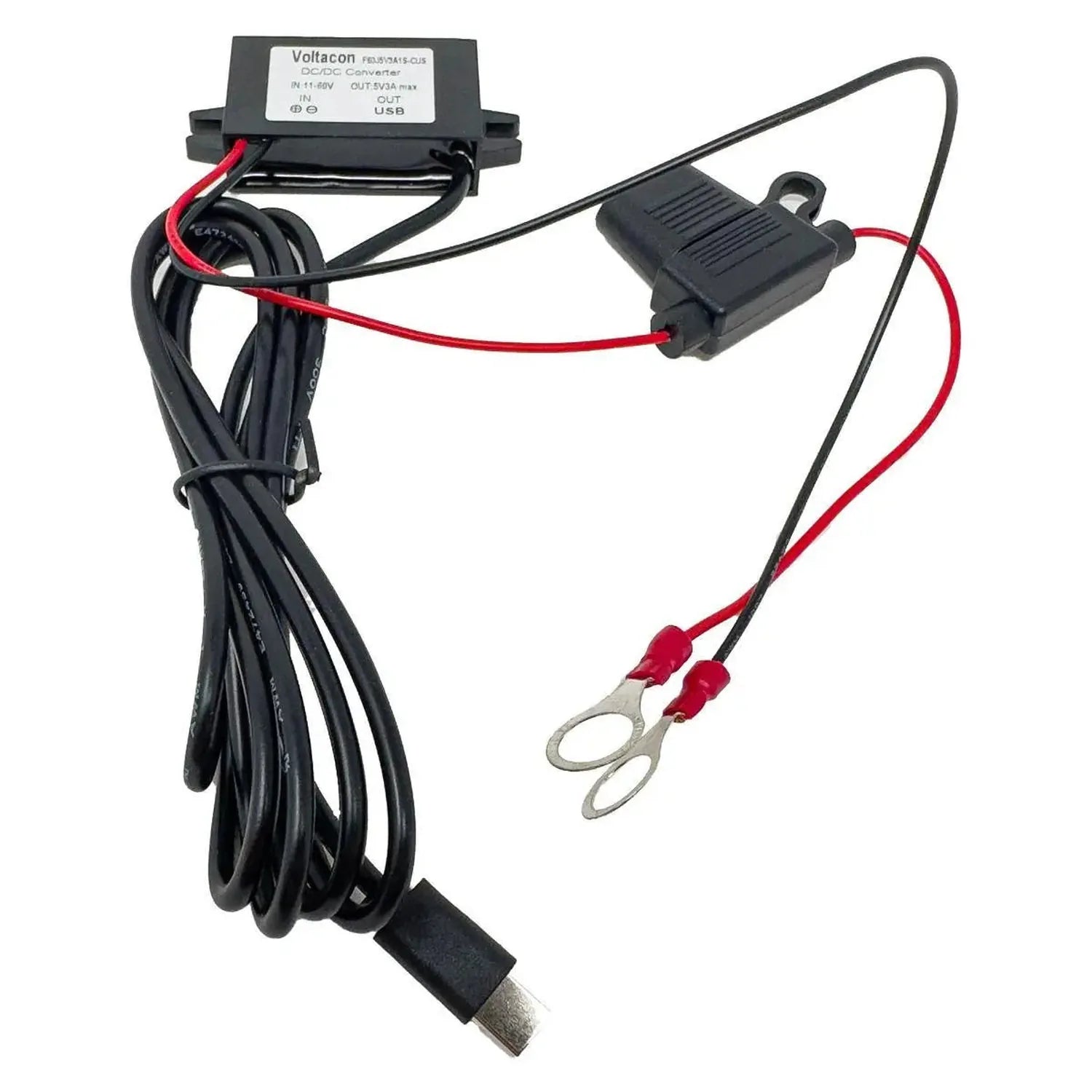

This DC-DC step-down converter takes a 10-65V input and outputs a regulated 5V 3A supply through USB-C. It is built to run the Solar Assistant Orange Pi 3 LTS monitoring controller straight from a 12V, 24V or 48V battery bank, so there's no need for a mains socket or separate AC adapter.

Key features

• Input range, 10 to 65V DC, suited to 12V, 24V and 48V battery systems.
• Output, 5V 3A (15W) via USB-C.
• Output stability, regulated supply for reliable controller operation.
• Form factor, compact inline module.
• Use case, powers the Solar Assistant Orange Pi 3 LTS directly from a battery bank.

Applications

Use it to run the Solar Assistant Orange Pi monitoring controller from a battery bank's DC supply, or to power any other 5V USB-C accessory drawing up to 15W from a 12V, 24V or 48V DC system.

Installation notes

Wire the input terminals to the battery bank's positive and negative, checking polarity before connecting. Keep the input below the 65V maximum. Make sure whatever you plug into the USB-C output stays within the 15W rating of the converter.
