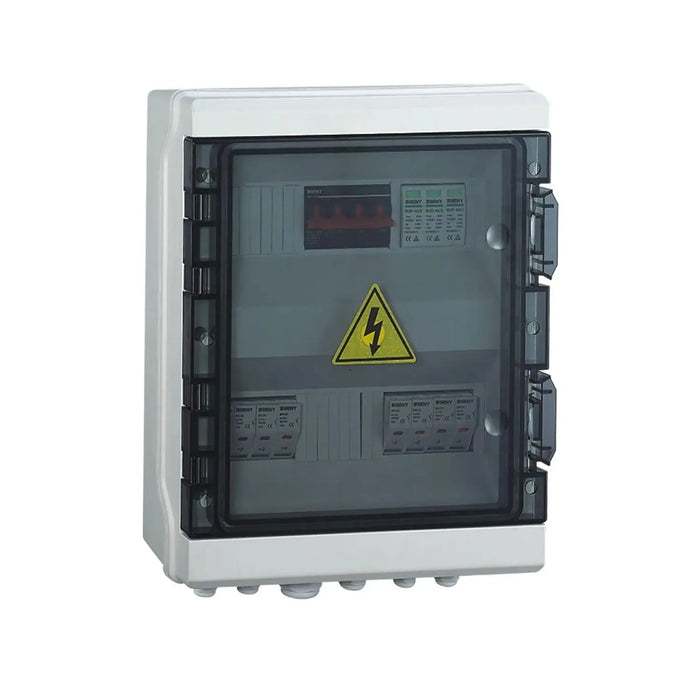

Solar DC combiner box with white exterior casing, black interior panel, yellow electrical hazard warning symbol, digital disp

Solar PV DC Combiner Box 6-In 1-Out 1000V IP65 | Voltacon

12A / 150V
£313.95
Skip to product information
Solar DC combiner box with white exterior casing, black interior panel, yellow electrical hazard warning symbol, digital disp
Solar PV DC Combiner Box 6-In 1-Out 1000V IP65 | Voltacon

Solar PV DC Combiner Box 6-In 1-Out 1000V IP65 | Voltacon

Vendor
Voltacon
SKU
738122-1
Availability
In stock
Weight
4.0 kg

£313.95inc VAT £261.63exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

This pre-wired solar PV DC combiner box takes six PV string inputs down to a single protected output, built for single MPPT installations. It combines fused string terminals, a surge protection device and a DC isolator inside one IP65 enclosure, suitable for off-grid, grid-tied and hybrid photovoltaic systems.

Key features of this solar PV combiner box

  • Configuration, 6 fused string inputs, 1 protected output
  • Maximum voltage, 1000VDC
  • String protection, fused PV string terminals with LED fault indicators
  • Surge protection, built-in DC surge protection device
  • Isolation, integrated DC isolator
  • Enclosure, IP65 weatherproof, cable glands included

Applications

Fitted as DC string protection ahead of a single MPPT inverter input, covering off-grid and grid-tied solar PV arrays with up to six strings.

Installation and safety

DC solar circuits carry dangerous voltages. This unit must be installed by a qualified electrician, with all PV strings isolated before any work on the internal connections.

Technical Specifications 3 rows Show
SpecificationValue
Inputs and outputs6 inputs, 1 output
Maximum voltage1000VDC
Enclosure ratingIP65

Manufacturer datasheet. Figures as published by the manufacturer.
