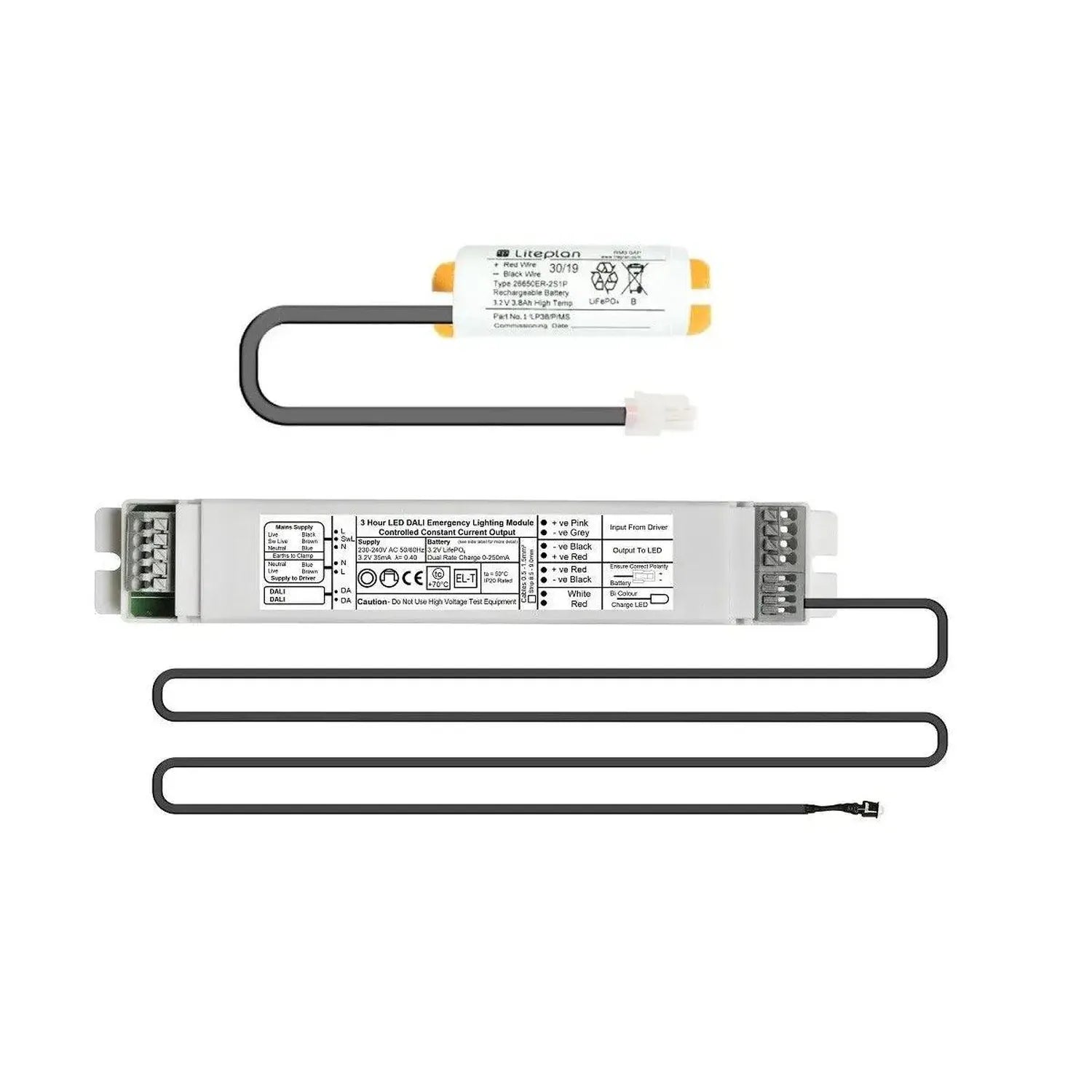

DALI LED emergency driver kit with Lifeplan lithium battery, control module, and wiring harness displayed against white backg

DALI Emergency Light Conversion Kit 3 Hour Self-Test | Liteplan DNA/1

£65.05
Skip to product information

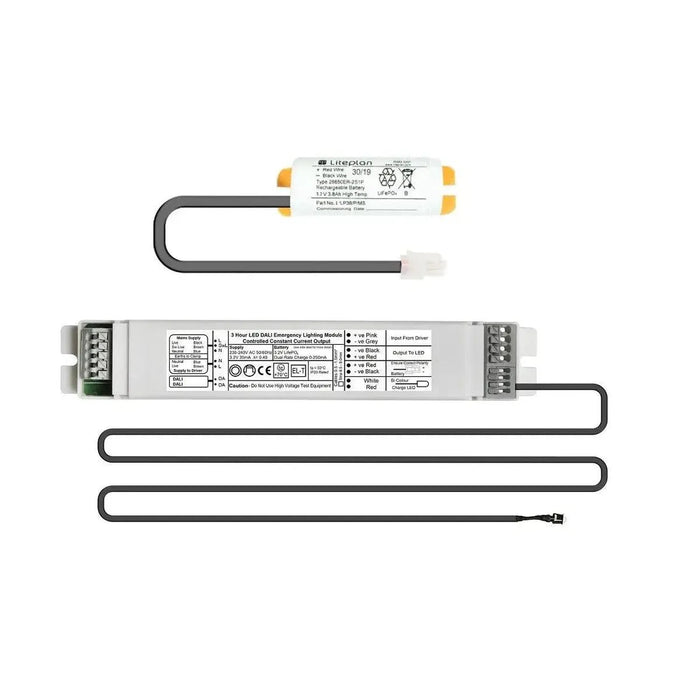

DALI LED emergency driver kit with Lifeplan lithium battery, control module, and wiring harness displayed against white backg

DALI Emergency Light Conversion Kit 3 Hour Self-Test | Liteplan DNA/1

Vendor
Liteplan
SKU
002143
Availability
In stock
Weight
0.15 kg

£65.05inc VAT £54.21exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Liteplan DNA/1 converts an LED fitting into a 3 hour emergency light that can be addressed over DALI. It suits LED tubes, downlights, bulbs and LED panels. During a mains failure it adjusts the LED current to suit both the battery and the connected load, so the fitting gives as much light as possible across the full battery duration.

DALI emergency light features

  • DALI: DiiA registered DALI 1 device, fully DALI compliant.
  • LED load range: DNA/1 takes 6-55V forward voltage. DNA/1S/80 takes 6-80V forward.
  • Average emergency output: 2.1W on the DNA/1 and 2.3W on the DNA/1S.
  • Relays: 2-pole changeover relay plus a 3rd pole relay for driver protection.
  • Battery: extra long life LiFePO4 cells with deep discharge protection and an intelligent, low energy charging circuit.
  • Certification: TÜV tested and certified.

Self-test and monitoring

Commissioned on a DALI control system, the kit reports through that system. If no DALI controller is present, it falls back to standalone self-test. Faults then appear on the charge LED. It can also work with the LiteMesh wireless system for monitoring.

Installation

The module is slim and intended for integral mounting inside the luminaire. An LED indicator and full wiring instructions come with the kit, so the installer has what is needed to connect it between the mains supply, the existing LED driver and the LED load.

Choosing the right version

Check the forward voltage of the LED load first. Loads between 6V and 55V suit the DNA/1. Higher voltage loads up to 80V need the DNA/1S/80.

In the box

  • DNA/1 emergency conversion module
  • LED indicator
  • Full wiring instructions
Technical Specifications 18 rows Show
BrandLiteplan
ModelDNA/1
Duration3 hour
DALIDiiA Registered DALI 1 Device
LED load (DNA/1)6-55V forward
LED load (DNA/1S/80)6 and 80V forward
Average emergency outputDNA/1 - 2.1W, DNA/1S - 2.3W
BatteryExtra Long Life LiFePO4 Cells
Order code (inFlow)DNA/1-K
Battery pack (inFlow)3.2V 3.6Ah LiFePO4
IndicatorBi-colour indicator LED
Relay2-pole changeover relay, additional 3rd pole relay for driver protection
Battery protectionDeep discharge protection, LiFePO4 automatic battery protection and recovery
ChargingIntelligent, low energy charging circuit
Self-testReverts to standalone self-test without a DALI control system; faults shown on the charge LED
MonitoringLiteMesh wireless system
CertificationTÜV Tested and Certified
MountingSlim module for integral mounting

Manufacturer datasheet. Figures as published by the manufacturer.
