Acrel DTSD1352-C Three Phase Energy Meter for Solis Inverters | 3CT

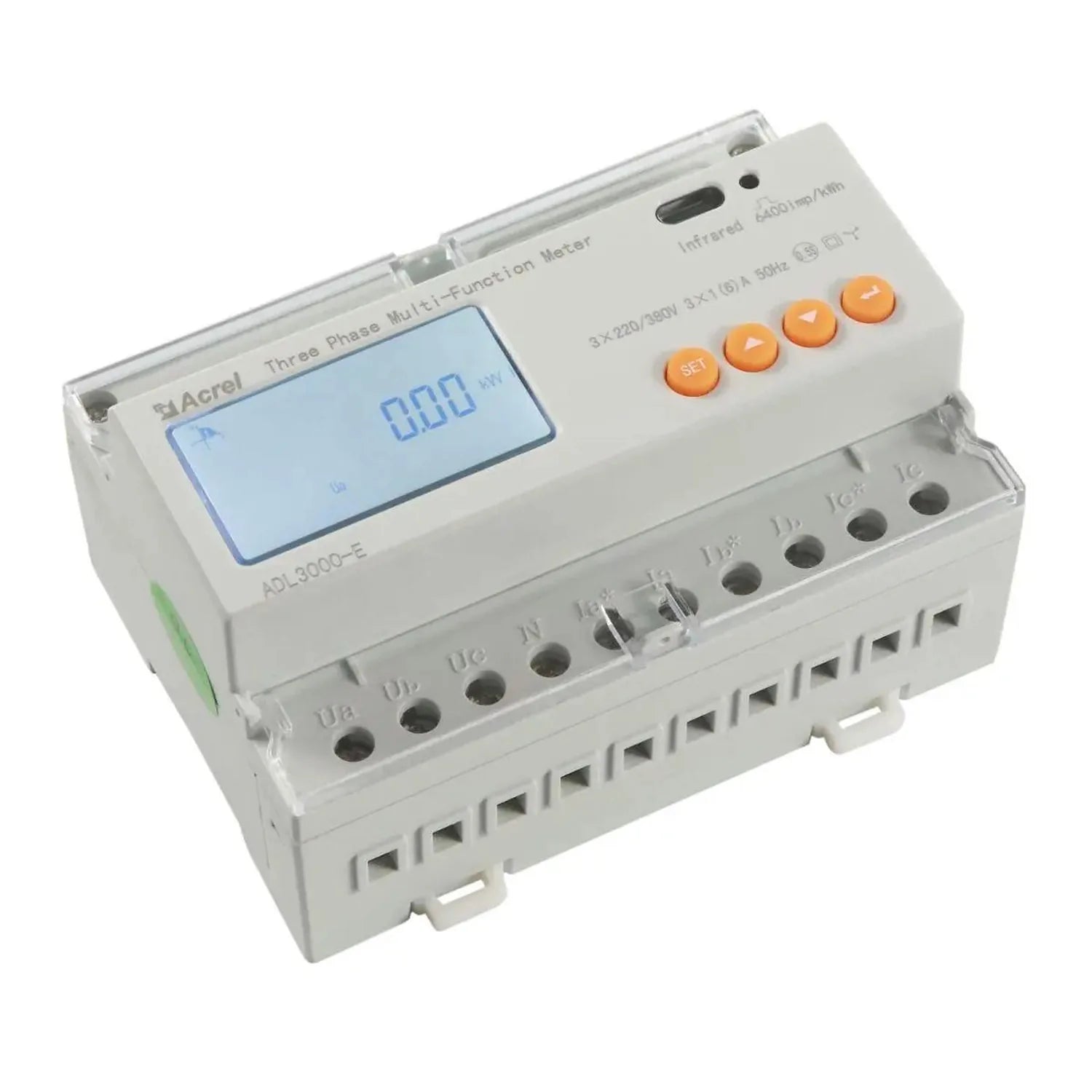

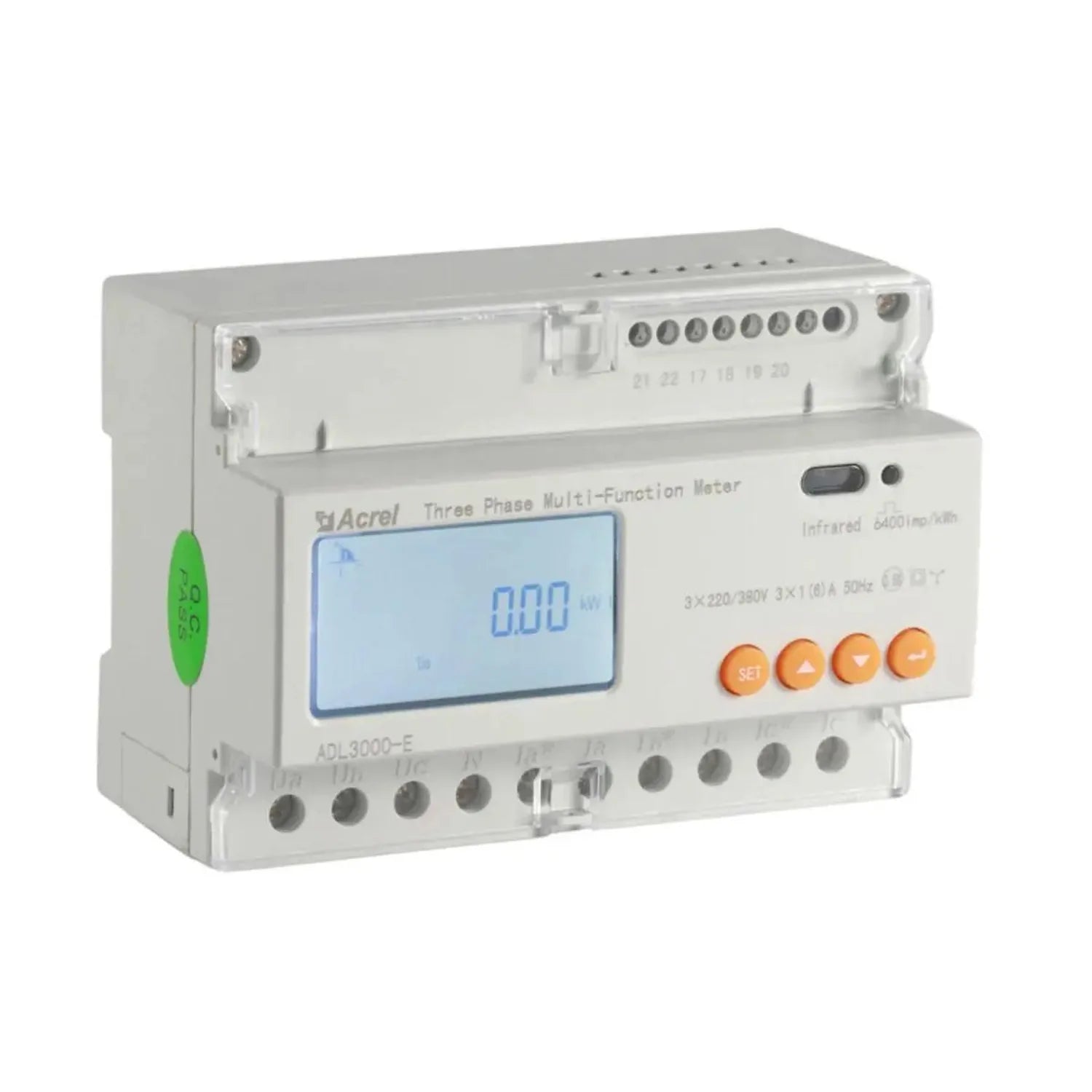

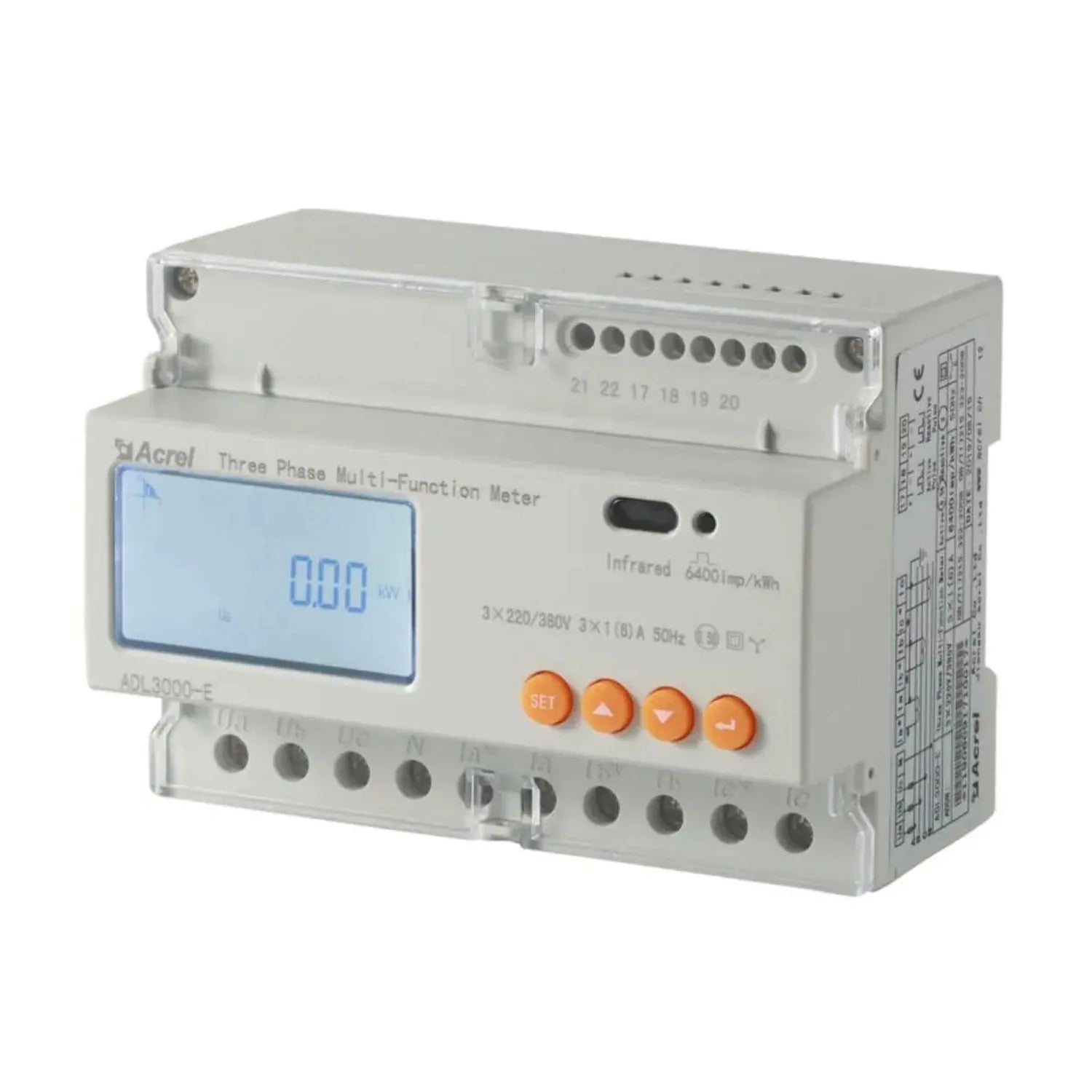

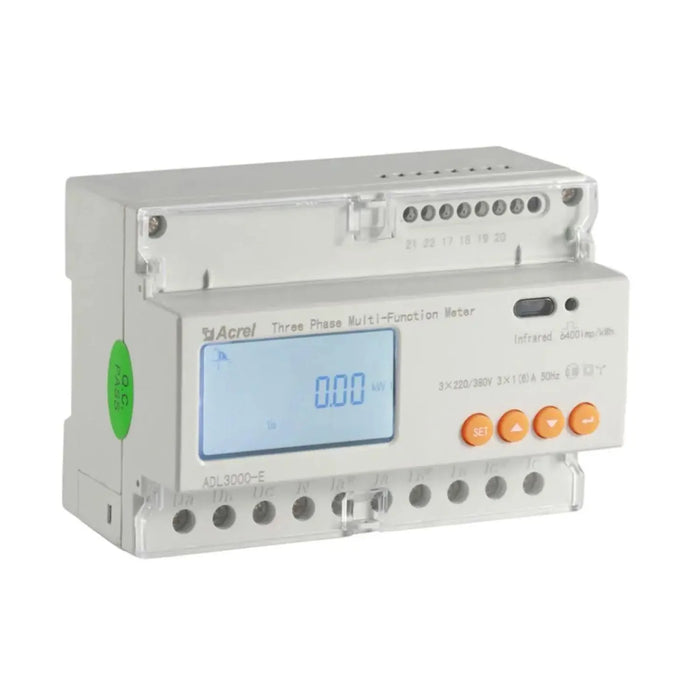

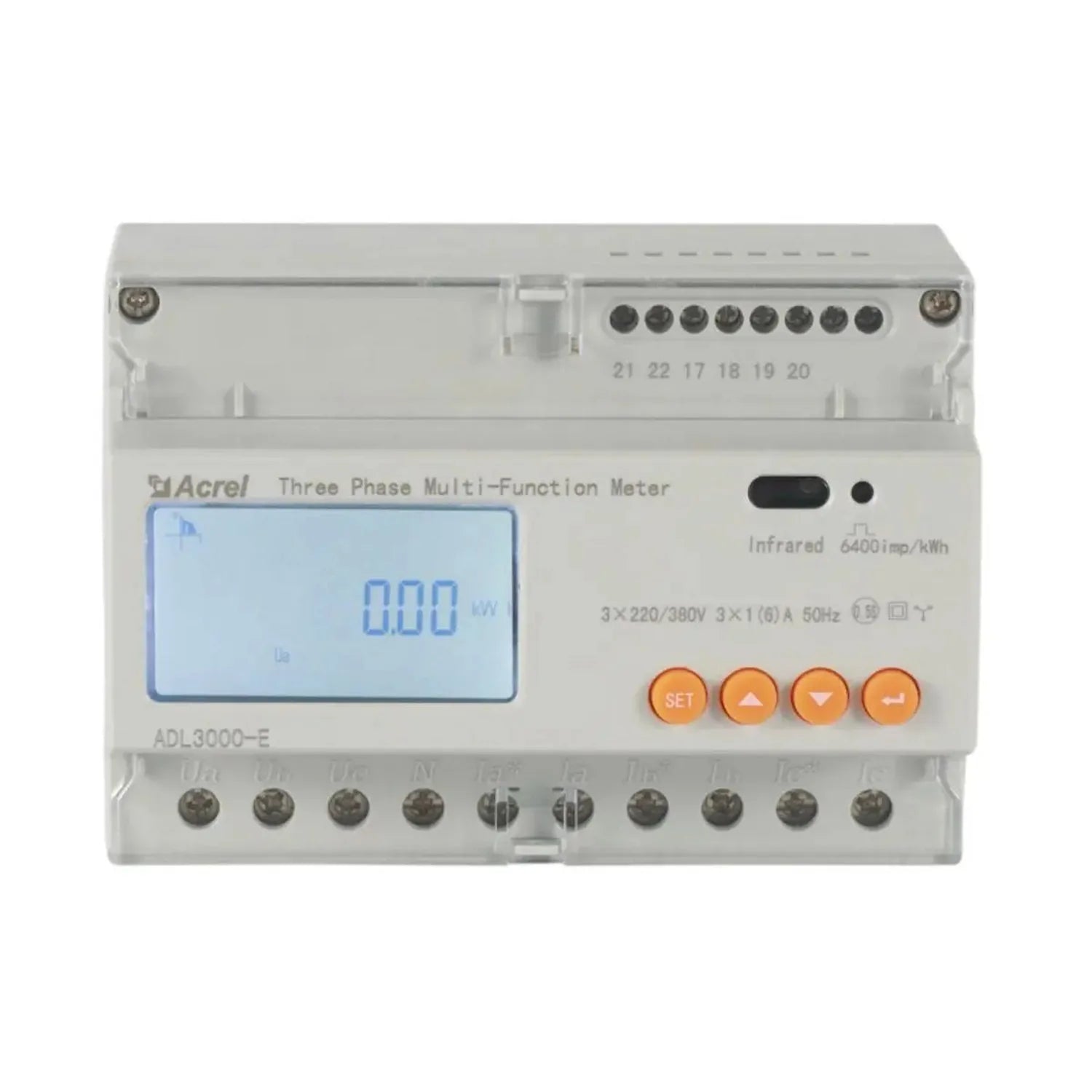

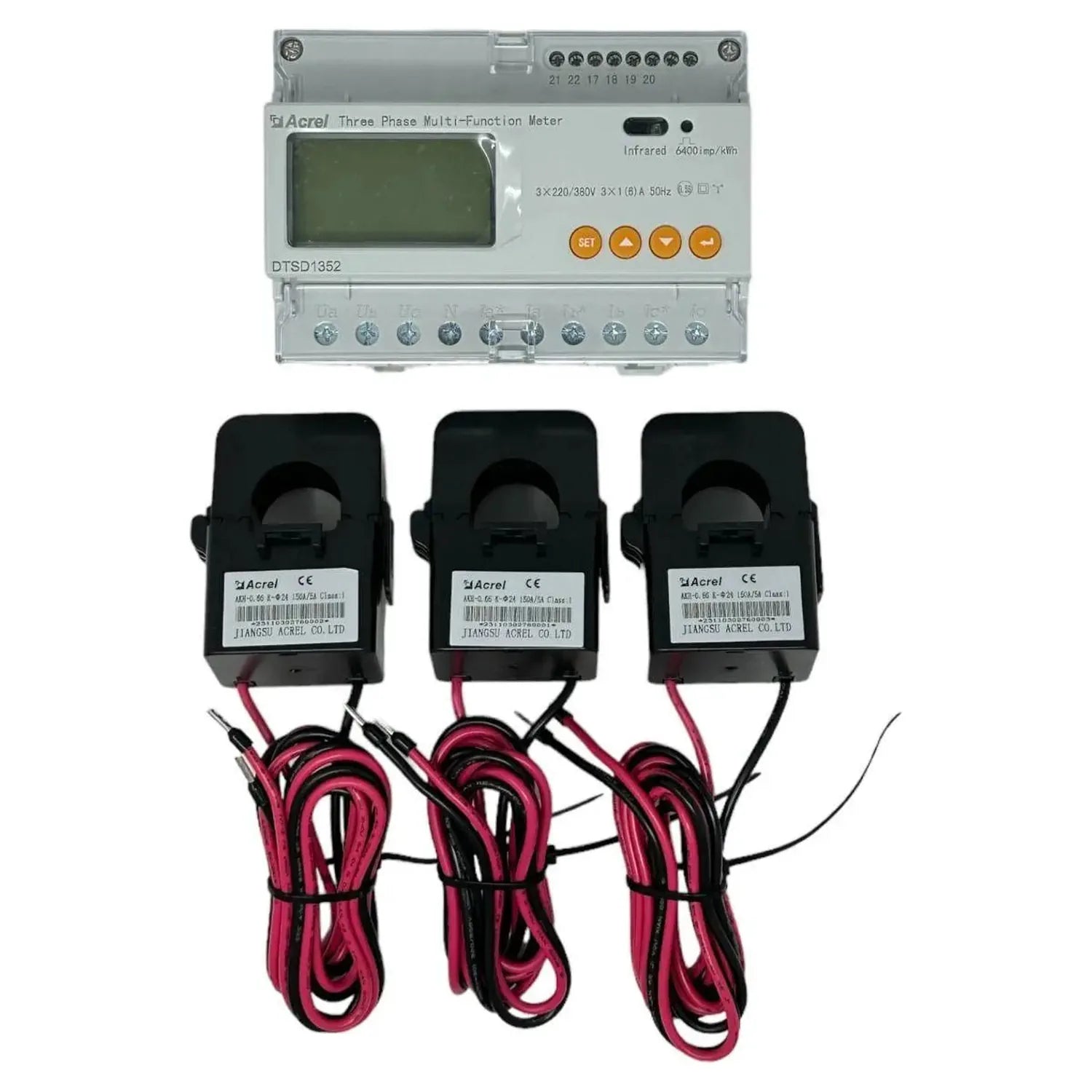

The Acrel DTSD1352-C, also listed as ADL3000-E, is a three phase multi function meter built for Solis hybrid solar inverters. It tracks electricity flow, manages import and export data, and talks to the inverter over RS485 Modbus. The set comes complete with three current transformer clamps ready to fit.

Key features

• Meter type, three phase Modbus energy meter for Solis hybrid inverters

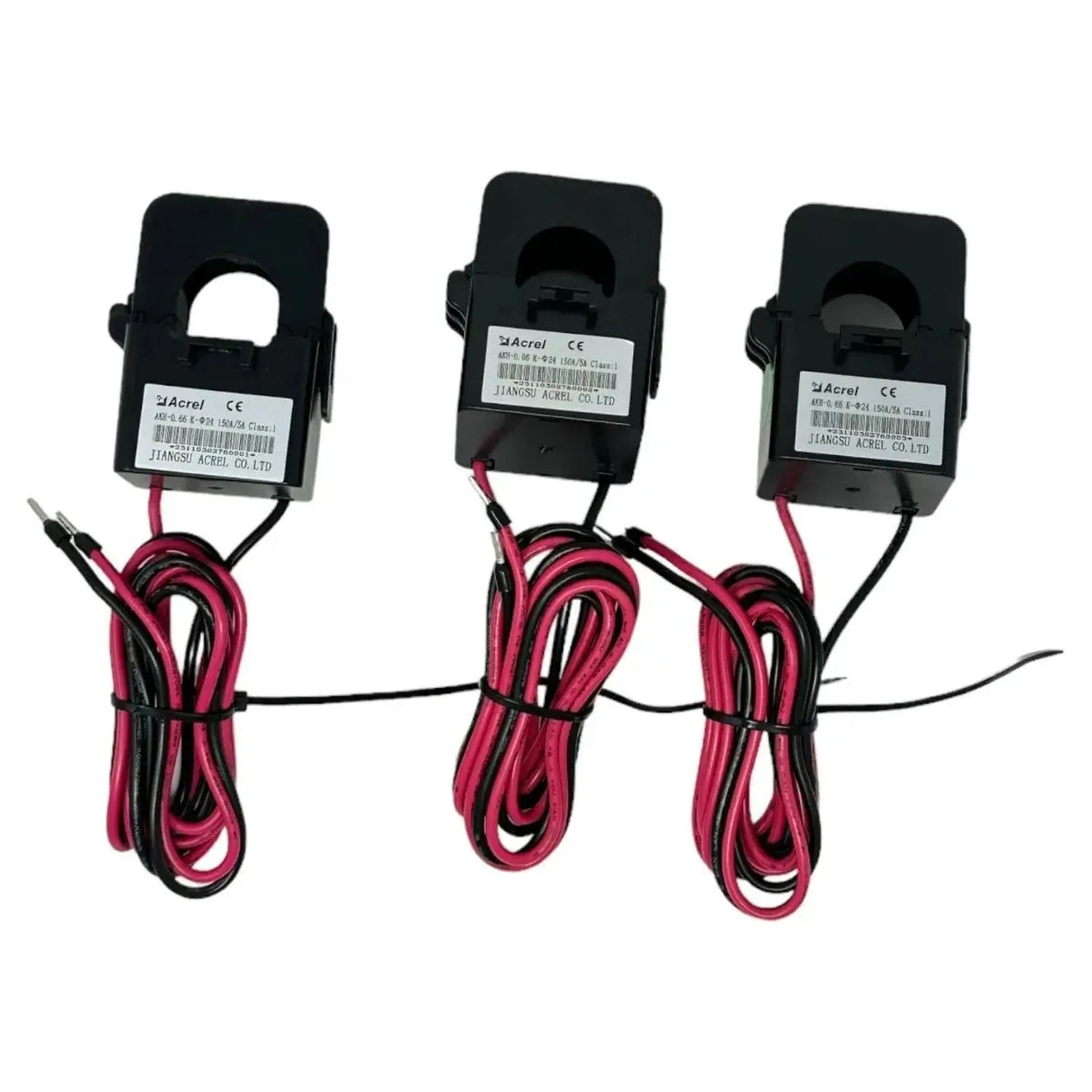

• CT clamps, 3x current transformer clamps included
• Communication, RS485 Modbus
• Measurement, import, export and self-consumption energy flows
• Standards, compatible with IEC62053-21 and IEC62053-22

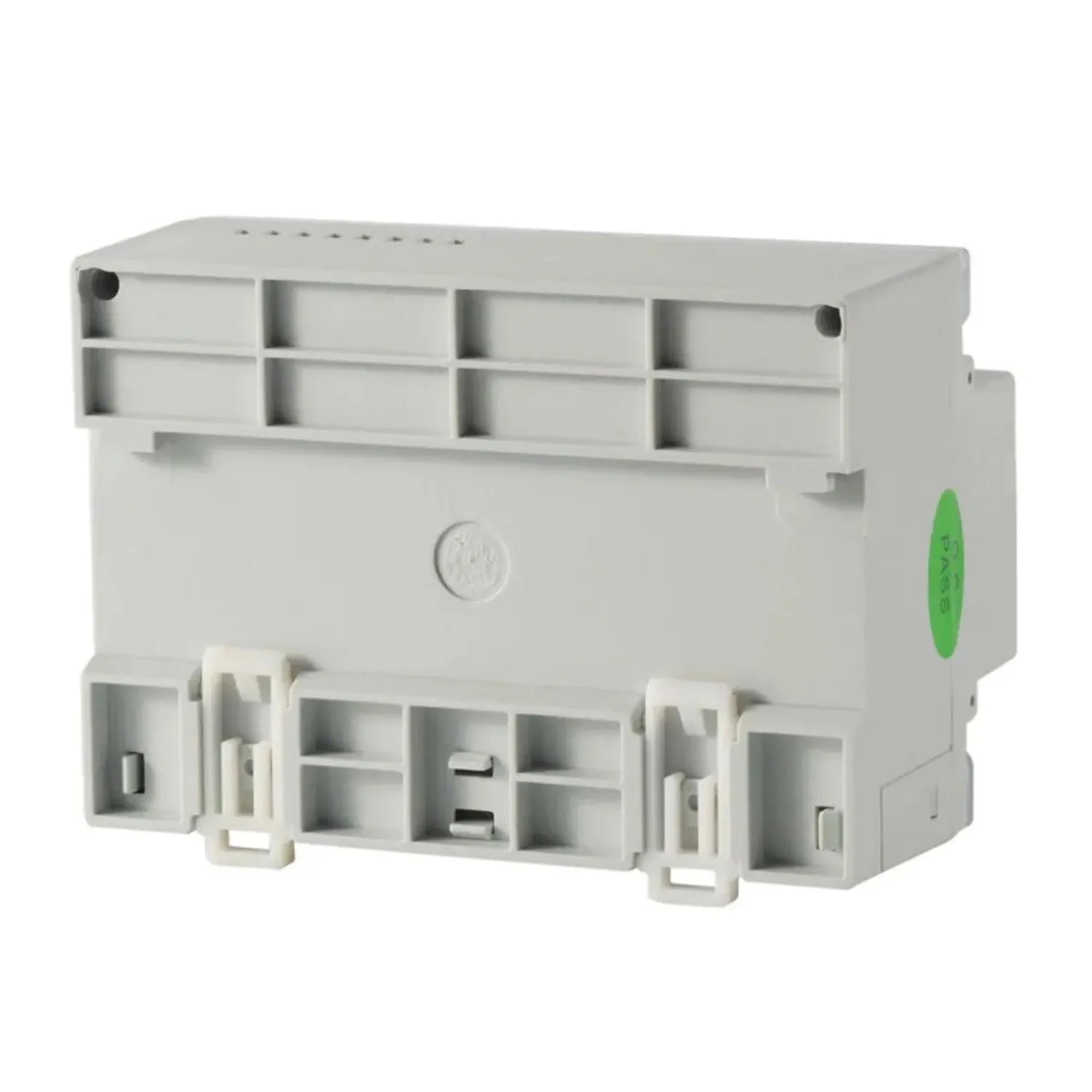

• Mounting, DIN rail

Applications

This three phase energy meter suits self-consumption and export monitoring on Solis hybrid inverter systems. It also supports zero export configuration on three phase PV installations, and works with SCADA and wider energy management setups.

Installation notes

The CT clamps fit to the incoming supply conductors at the main distribution board. Connect the meter to the Solis inverter's RS485 Modbus port with the correct cable. Wiring should only be carried out by a qualified electrician.
