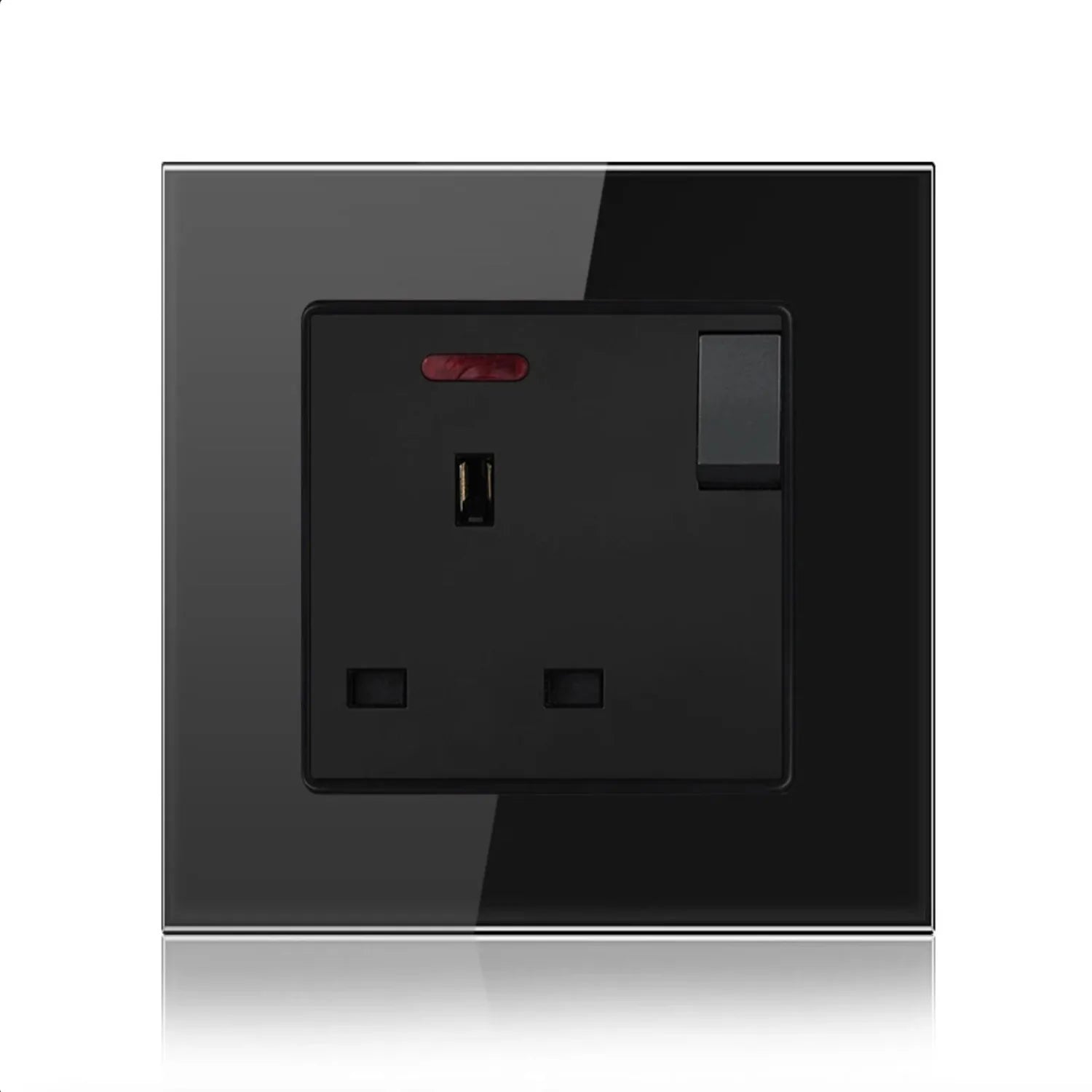

Black tempered glass 1-gang switched socket outlet with red indicator light and toggle switch, mounted on wall plate.

Black Socket 13A 1 Gang Switched Tempered Glass Raised Square | Ledison

£8.14
Skip to product information
Black tempered glass 1-gang switched socket outlet with red indicator light and toggle switch, mounted on wall plate.

Black Socket 13A 1 Gang Switched Tempered Glass Raised Square | Ledison

Vendor
Ledison
SKU
102246
Availability
In stock
Weight
0.05 kg

£8.14inc VAT £6.78exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This black socket from Ledison is a 13A 1 gang switched socket with a tempered glass front. The plate has a raised square profile with square edges, and it measures 86x86mm. It fixes with a screwed faceplate.

Black socket key features

  • Rating: 13A, 1 gang, switched
  • Finish: black tempered glass
  • Profile: raised square, square-edged
  • Fixing: screwed faceplate
  • Size: 86x86mm

Installation

Wiring is done through angled, in-line screw terminals. The captive screws come backed out, so they are ready to take the conductors without being unwound first. Mounting depth matters here. The socket needs a 30mm back box, so check the existing box before swapping out an old fitting, particularly where shallower boxes have been used in the past.

Terminals and fixings

Because the screws are captive, they stay in the terminal block during fitting rather than dropping out. The angled, in-line layout keeps the terminals in a single row. Once wired, the faceplate is secured to the back box with the supplied fixing screws.

Design

The front is tempered glass in black. Its raised square profile sits proud of the wall, and the square edges give the plate a crisp outline rather than a rounded one.

In the box

  • Socket
  • Fixing screws
Technical Specifications 8 rows Show
Type13A 1-Gang Switched Socket
FinishTempered Glass - Black
ProfileRaised Square Profile, square-edged
FaceplateScrewed Faceplate
TerminalsAngled, in-line screw terminals with backed-out captive screws
Dimensions86x86mm
Back boxRequires 30mm Back Box
Supplied withfixing screws

Manufacturer datasheet. Figures as published by the manufacturer.
