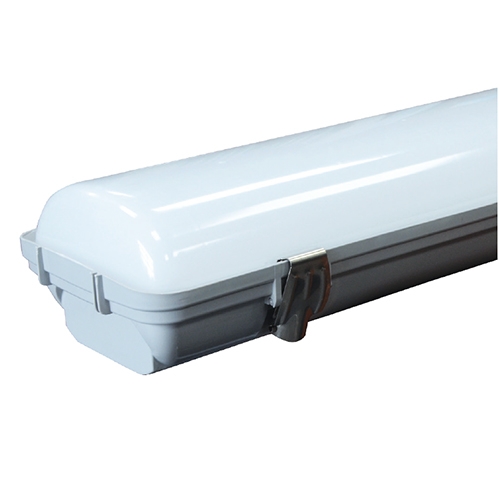

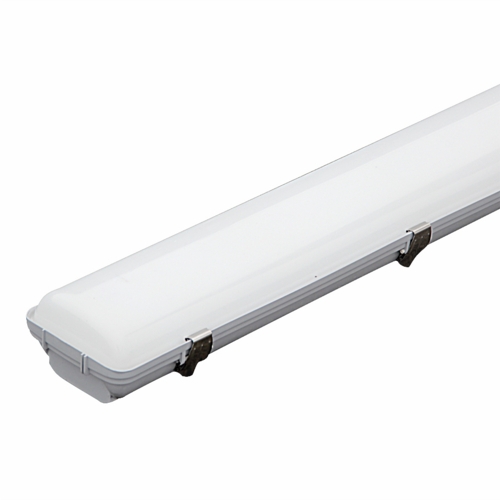

LED Non Corrosive Fitting - 40W, 4ft

Ref: NCF-4FT40

£44.50

Price inc VAT

NCF Light Fitting with LED Board. Weatherproof 120cm-40Watt.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £43.17 Save 3%
12 Items £41.83 Save 6%
24 Items £40.94 Save 8%
Description
Specification
Downloads
Description

LED MOISTURE PROOF LUMINAIRE 40WATT 120CM.

A RUGGED AND DURABLE NON-CORROSIVE FITTING

The VOLTACON LED non-corrosive fittings illuminate parking areas, garages, production lines and basements. The moisture proof LED luminaires main characteristics are efficiency, ruggedness and very long service life over 50,000 hours. This top-rate product comes with excellent quality material and versatile installation accesories. As for all products within our LED lights the non-corrosive fitting has five year manufacturer guarantee.

Our products are independently accredited for CE & RoHS compliance and some products in the range also accredited by TUV and FCC. The complete range of VOLTAFIT non-corrosive fittings is assembled and tested in the UK.

IP & IK RATING WITH DUST-PROTECTION SEALANT

The fitting is suitable for wet enviroment and outdoor applications, it is IP65 rated

IK Impact Rating : IK 08

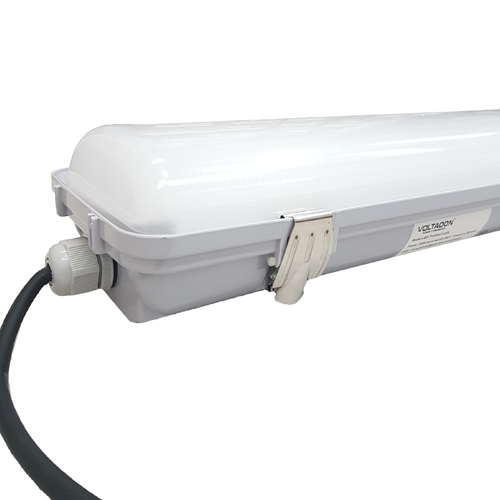

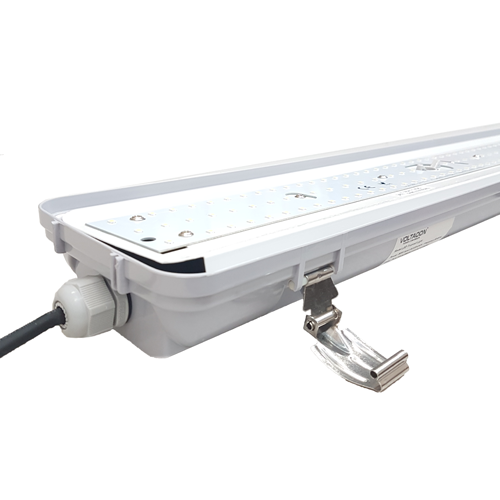

POWER CABLE CONNECTIONS

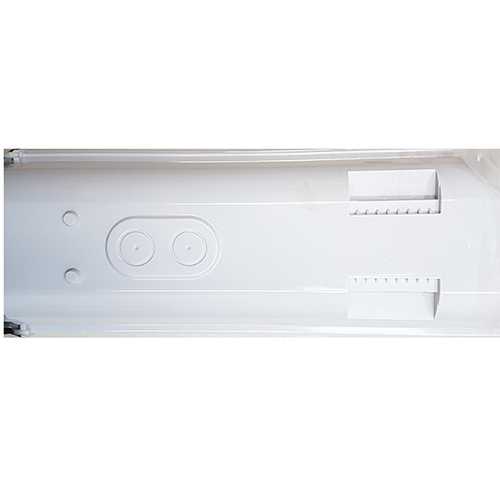

There are four knock out holes on the back side of the fitting for feeding the power cable from the top side. You will find a default connection with cable glands from the side of the fixture.

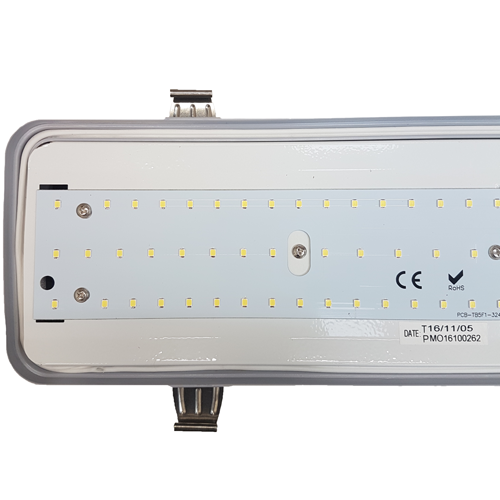

 NUMBER OF LED CHIPS ON ALUMINIUM BOARD: 216

 * IES DATA File available on request

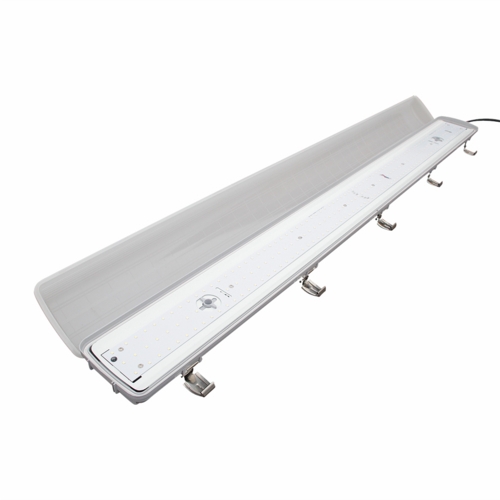

Notice : The internal LED board and power supply are replaceable.

Warranty :5 Years

Specification

Specification - 40Watt 120cm LED NCF Fitting

Fitting:

Non Corrosive

Lumens:

3600lm

Wattage (rated):

40Watt

Color Rendering index:

>80

Voltage:

100-305VAC

Weight :

5.2kg

Line frequency:

50/60Hz

Beam Angle:

140deg.

Average lifetime:

50,000 hours

IP Rating

IP 65

Color Temperature:



Power Factor

0.95

Warm White:

3000K

Dimmensions

1264x130x84

Natural white:

4000K

Dimmable

YES

Cool white:

6000K

Warranty:

5 years

Operating Temp:

-20 OC to 50 OC

Certification:

ROHS Compliant, CE, UL

Downloads

Technical Manual

Non Corrosive / Tri-Proof LED Installation

Installation Guide for tri-proof led fitting

Download
