5ft LED Non-Corrosive Fitting 150cm 60W IP65 Vapour Proof | Ledison
- Vendor
- Ledison
- SKU
- 110535
- Availability
- In stock
- Weight
- 1.041 kg
£70.34inc VAT £58.62exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
This 5ft (150cm) LED non-corrosive fitting from Ledison draws 60W and is sealed to IP65 against dust and water. It is also known as a vapour proof fitting. Because of that sealing, it can be used in wet areas and outdoors as well as indoors. You can order it in natural white or cool white, with sensor and emergency versions available.
5ft non corrosive LED features
- Power: 60W rated
- Protection: IP65 dust and water sealing, IK08 impact rating
- Colour options: natural white 4000K or cool white 5000K
- Versions: standard, sensor, emergency, or sensor and emergency
- Emergency duration: 3 hours on emergency versions

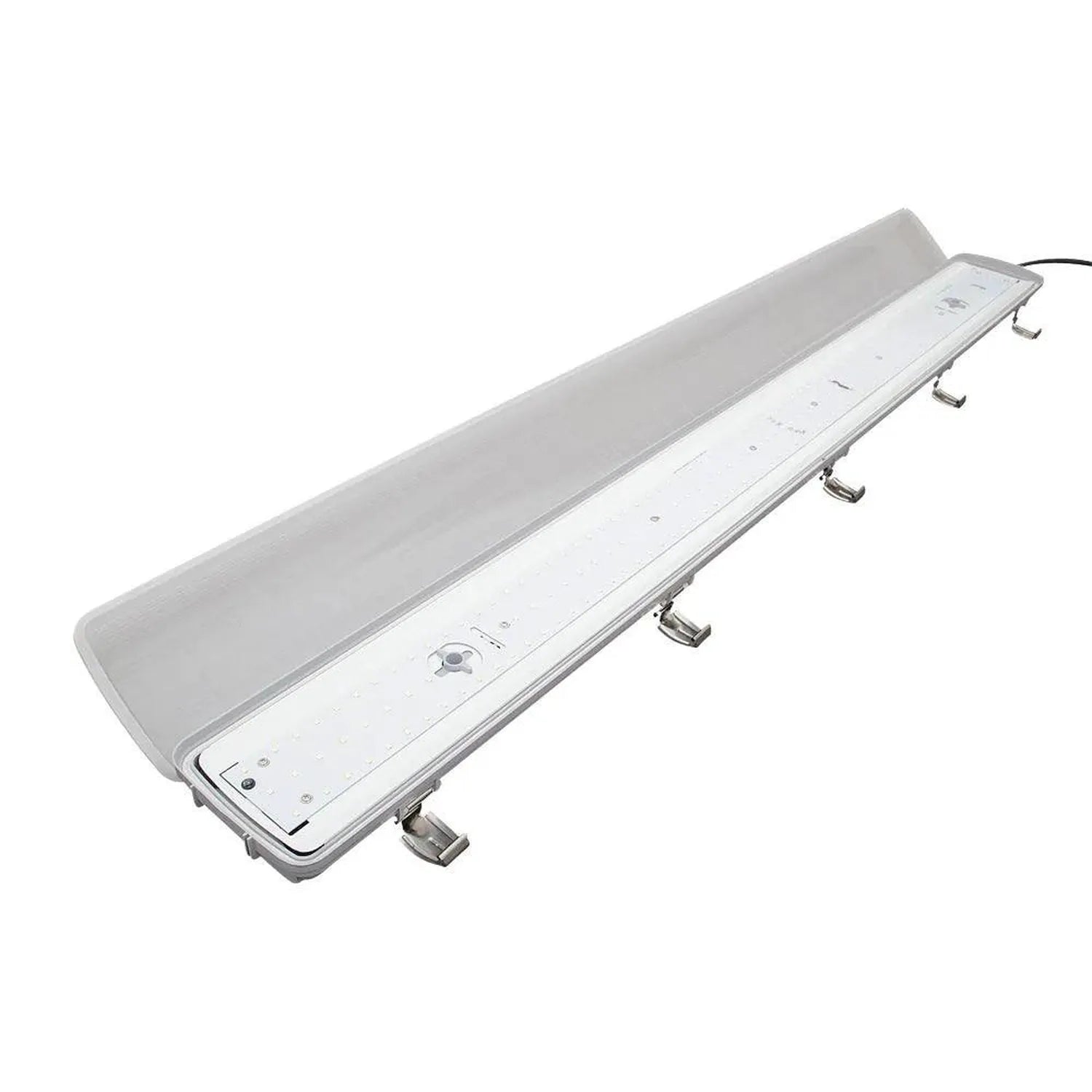

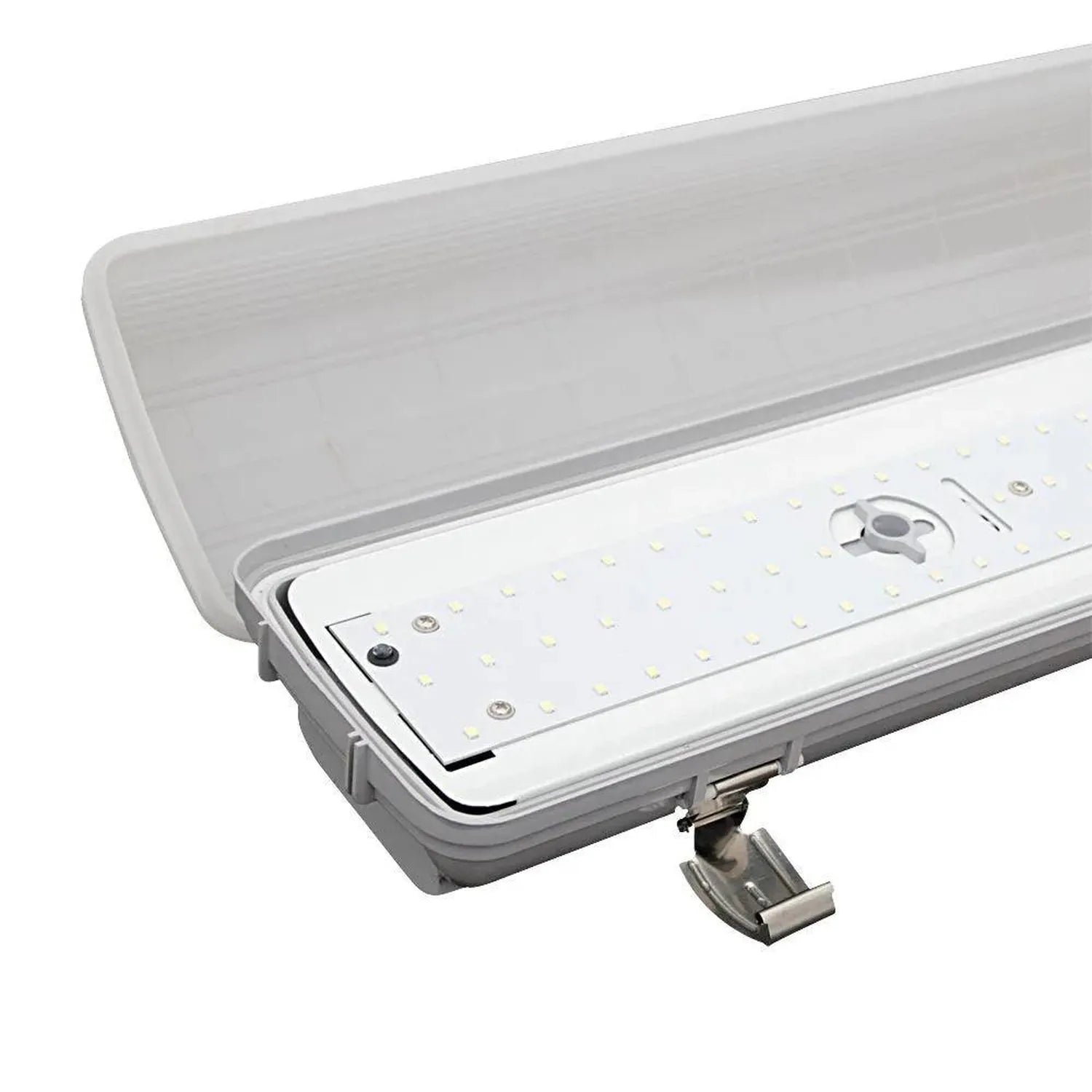

- Serviceable: the internal LED board and power supply can be replaced
Where it fits

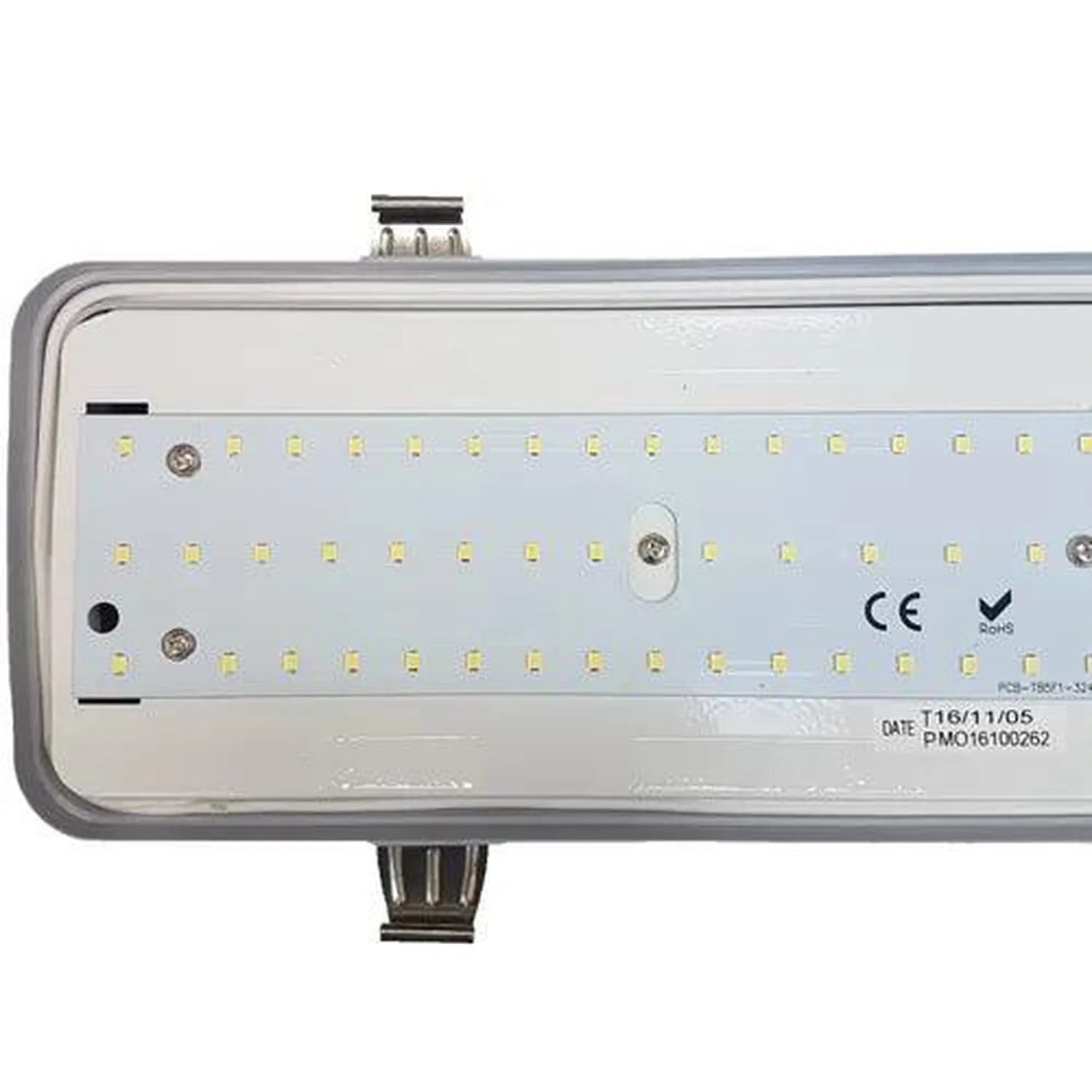

Car parks, garages, production lines, basements and workshops are the typical settings. It runs from an AC200~240V/50Hz supply. The housing is a full plastic case and the LEDs are SMD2835 chips powered by a Philips Xitanium Driver.
Installation and wiring

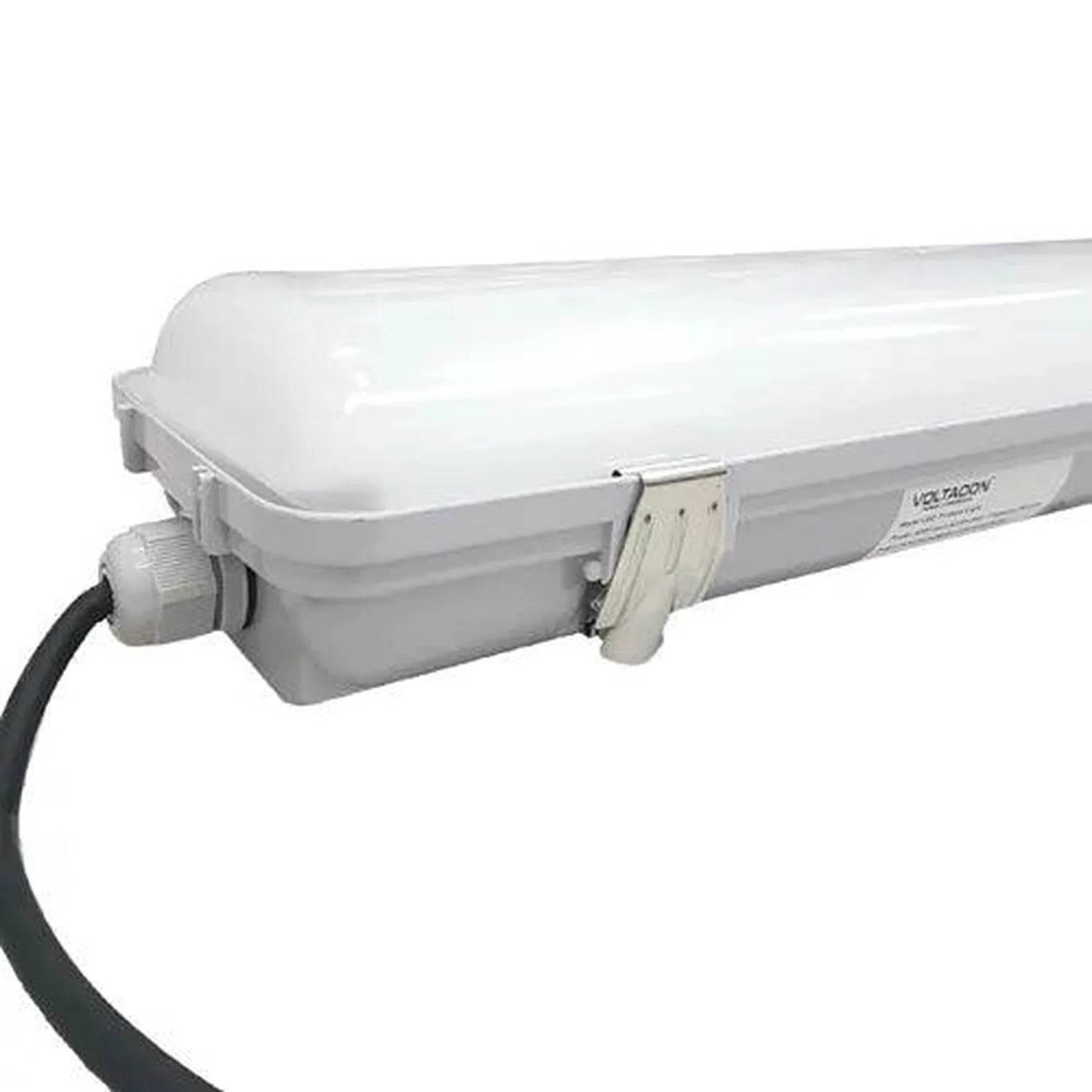

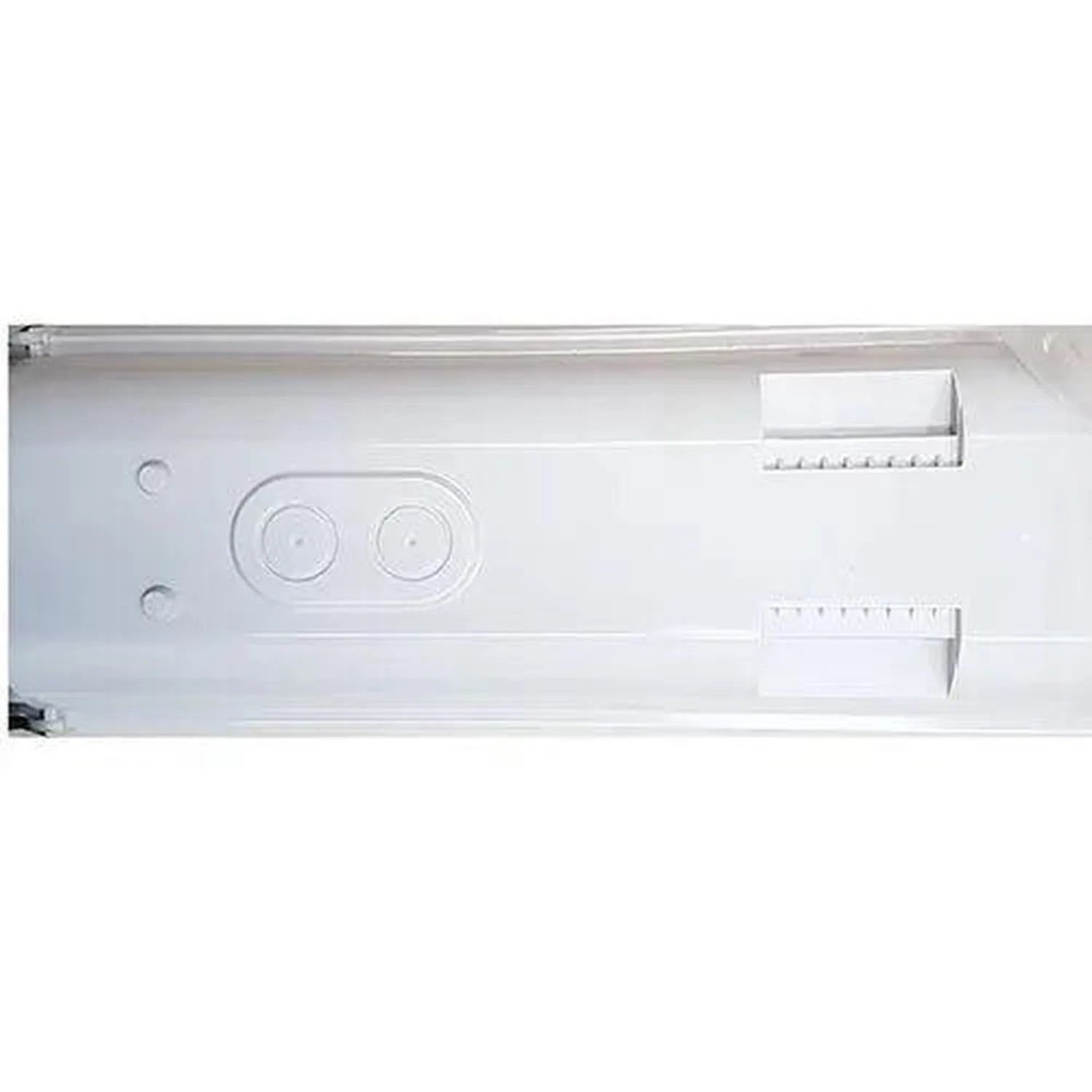

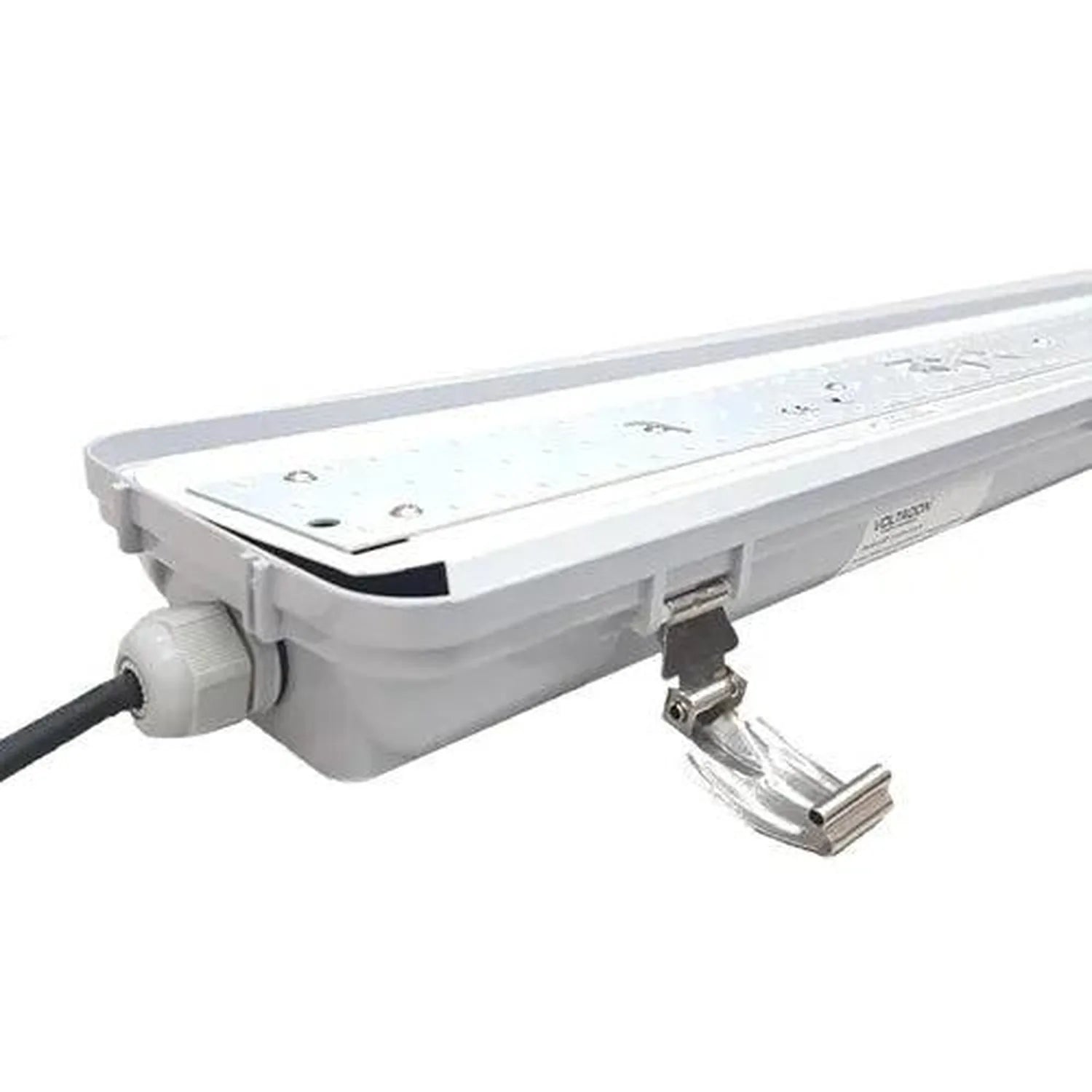

The fitting mounts on fixing clips. Side cable glands come as standard, and four knock-out holes allow top cable entry where that suits the run better. Fittings can be linked from both ends using double insulated wire, which makes it simpler to wire a row along a ceiling or wall.
Lifetime and warranty
Average lifetime is 50,000 hours, with lumen maintenance quoted as L80/B10@50,000 hours. It is rated for more than 100,000 switching cycles. Ledison covers it with a 5-year warranty, and it carries CE and RoHS compliance.
Technical Specifications 24 rows Show
| Fitting | Non Corrosive |
| Wattage (rated) | 60Watt |
| Colour rendering index | >80 |
| Natural white | 4000K |
| Cool white | 5000K |
| Line frequency | 50/60Hz |
| Input voltage | AC200~240V/50Hz |
| Power factor | 0.95 |
| IP rating | IP 65 |
| Impact rating | IK08 |
| Dimensions | 1500 x 125 x 88mm |
| LED chips | SMD2835 |
| Average lifetime | 50,000 hours |
| Warranty | 5 years |
| LED driver | Philips Xitanium Driver |
| Housing | Full plastic case |
| Mounting | Fixing clips |
| Cable entry | Side cable glands as standard; four knock-out holes for top cable entry |
| Linking | Linkable from both ends with double insulated wire |
| Replaceable parts | LED board and power supply |
| Lumen maintenance | L80/B10@50,000 hours |
| Switching cycles | More than 100,000 |
| Compliance | CE & RoHS |
| Emergency duration | 3 hours (emergency versions) |
Manufacturer datasheet. Figures as published by the manufacturer.
