LED Fitting Uranus, 90cm, 30W, Black

Ref: LDN-BT9030-8X0

£39.90

Price inc VAT

LED batten 90cm with mounting accessories. LED fitting power 30watt mains powered 100-240VAC

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £38.70 Save 3%
12 Items £37.51 Save 6%
24 Items £36.71 Save 8%
Description
Specification
Downloads
Description

A stylish 30W LED batten with mounting accessories.

Modern, simple and economical LED lights that inspire you.

You can use it in new built commercial or residential properties or as a replacement for the 90cm long T8 and T5 fluorescent battens. With energy consumption of 30watt only it replaces the old twin 90cm 60w fluorescent fitting.

Uniform Light Distribution

The fireproof lens forms with the aluminium housing curved edges similar to the modern mobile phones. This speacial features offers a wide beam angle that covers every corner in your room.

Stay brighter much longer

It is manufactured to last for nearly 50,000h, you will get many years out of this light without noticing any significant lumen reduction.

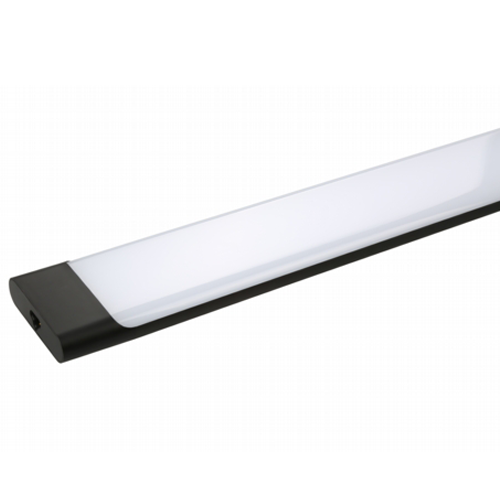

Fire-resistant Polycarbonate diffuser - Curved edges for better light distribution

/media/s_products/library/led-batten-uranus-curved.jpg

Product Features

  • 50% energy saving
  • Long lifetime of 50,000 hours
  • 120° wide beam angle
  • Curved edges for smoother and wider light distribution
  • CCT: 3000K 4000K 5500K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

Application notes

  •  IP20 for indoor use only
  • The lamp must be installed by professional electrician
  •  Ensure the power supply is switched off before fitting this product
  •  Do not touch the lamp when in use
  •  Keep away from hot steam and corrosive gas

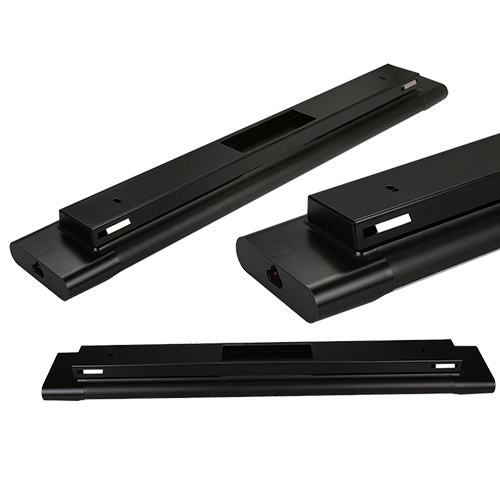

In the picture below, the Uranus LED Batten with surface mount bracket

Picture: The Uranus LED Batten with the surface mounted bracket.

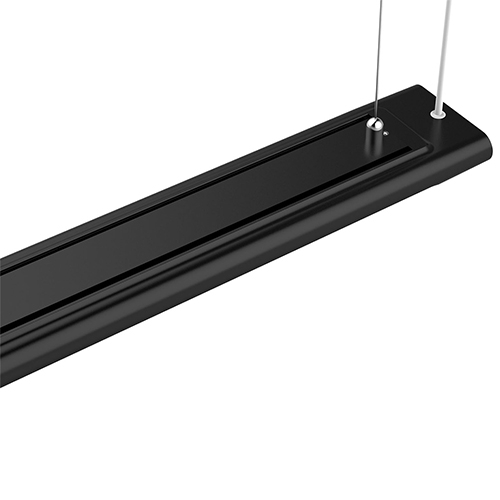

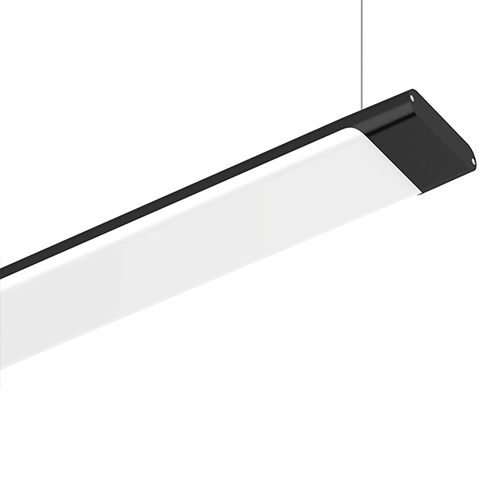

Suspended Installation of LED Fitting

Specification

 TECHNICAL SPECIFICATIONS

Fitting:



Luminous flux:

2600

Wattage (rated):

30 Watt

Color Rendering index:

>80

Voltage:

AC230V

Aluminium housing

Black/Silver

Line frequency:

50Hz

PROTECTION:

Over / Voltage / Temperature

Average lifetime:

50,000 hours

Power Factor

≥0.9

Color Temperature:



Dimensions

L900*W90*H28mm

Warm white:

3000K

Rated output current

400 mA

Natural white:

4000K

Dimmable

YES

Cool white:

5500K

Warranty:

5 years

Operating Temp:

-20 OC to 45 OC

Certification:

ROHS Compliant, CE, SAA

Downloads

Technical Manual

Voltaled Uranus SPEC - 30W

Voltaled Uranus SPEC - 30W

Download

URANUS 30W LED Slim Batten Suspended

Technical Specifications and Photometric Data

Download

URANUS 30W LED Slim Batten Surface

Technical Specifications and Photometric Data

Download

Product Brochures

Uranus VOLTALED LED Batten

Uranus LED Batten product presentation

Download
