LED Batten Light 90cm 3ft 30W 2600lm Dimmable Option | Voltaled Uranus
- Vendor
- Ledison
- SKU
- 222506
- Availability
- In stock
- Weight
- 0.52 kg
£51.40inc VAT £42.83exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

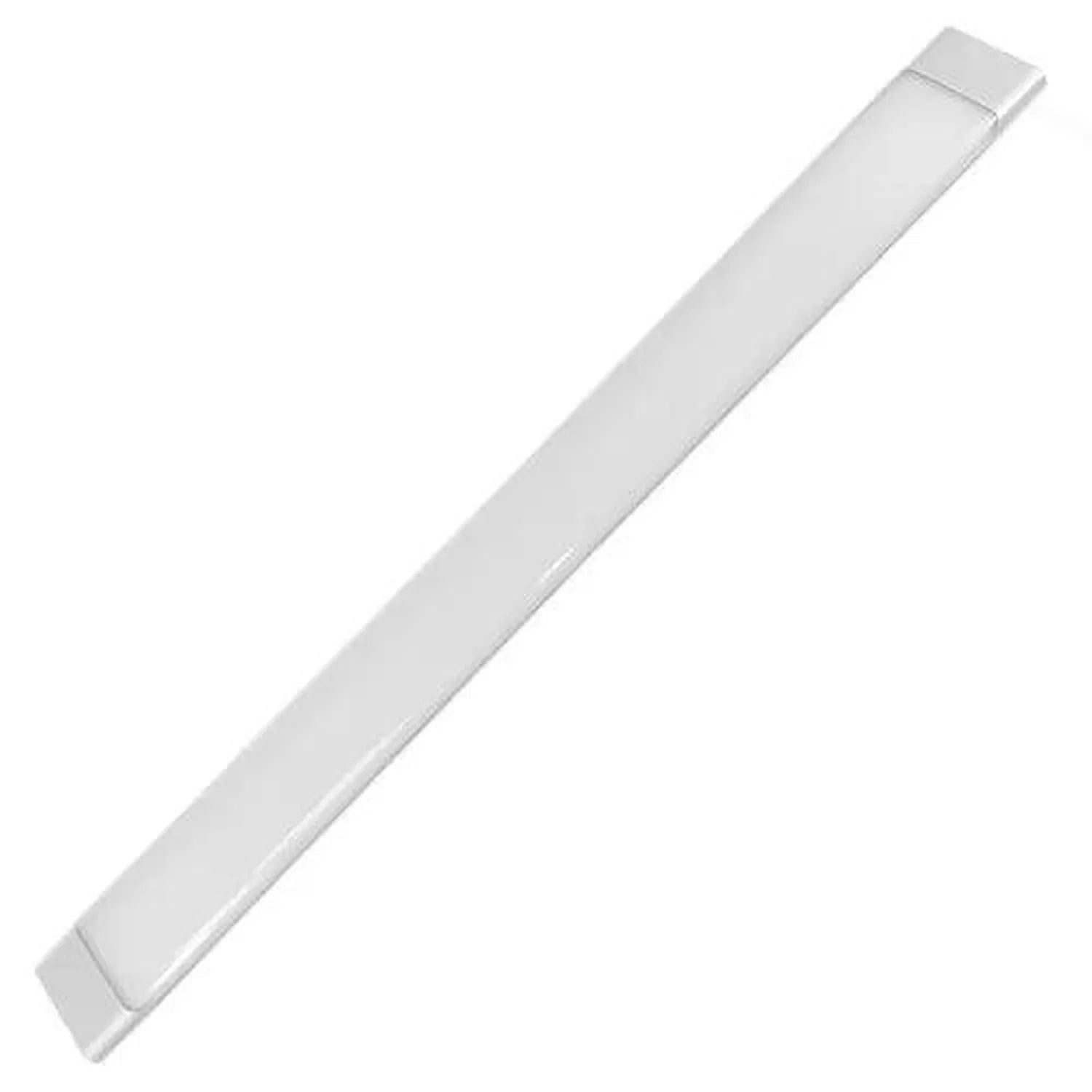

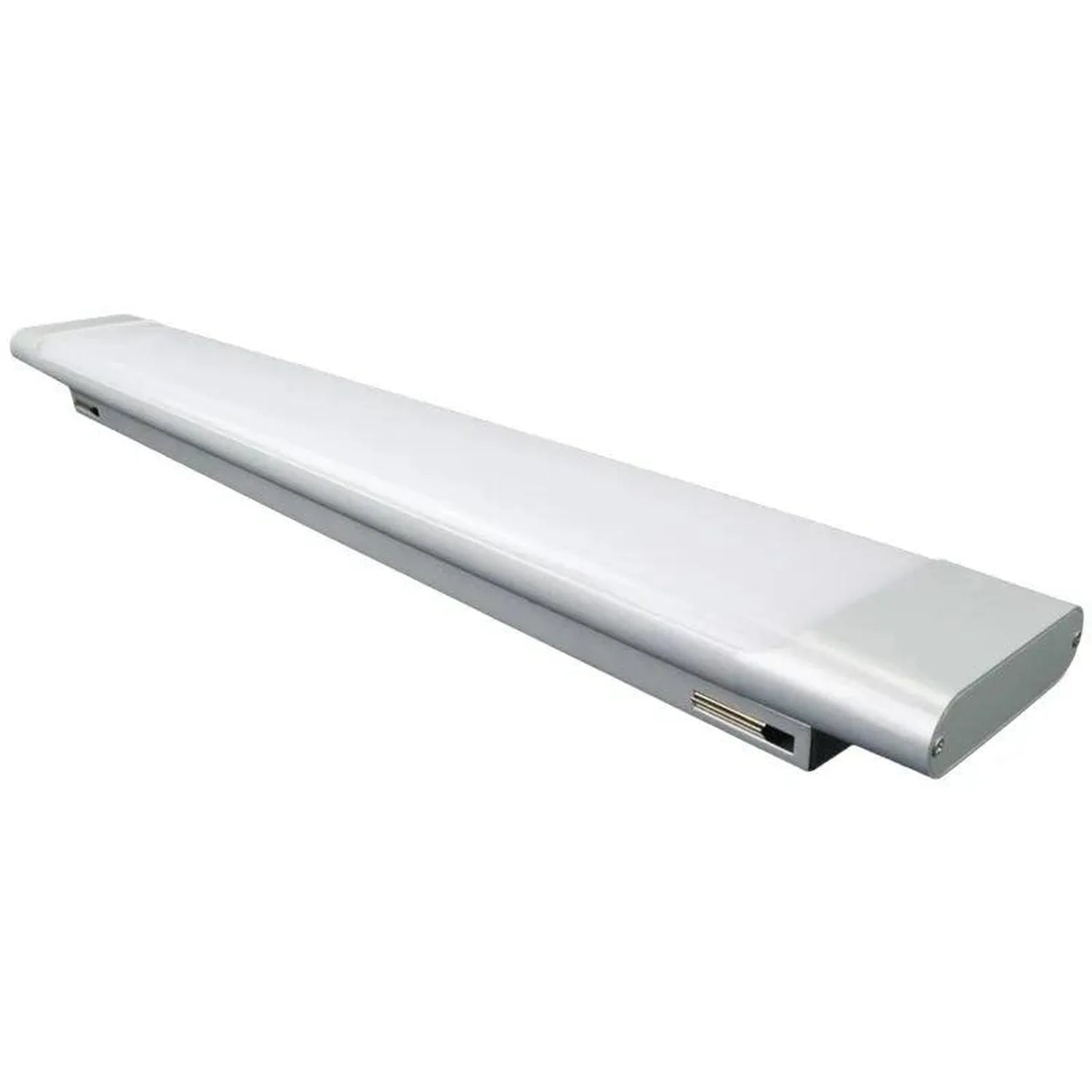

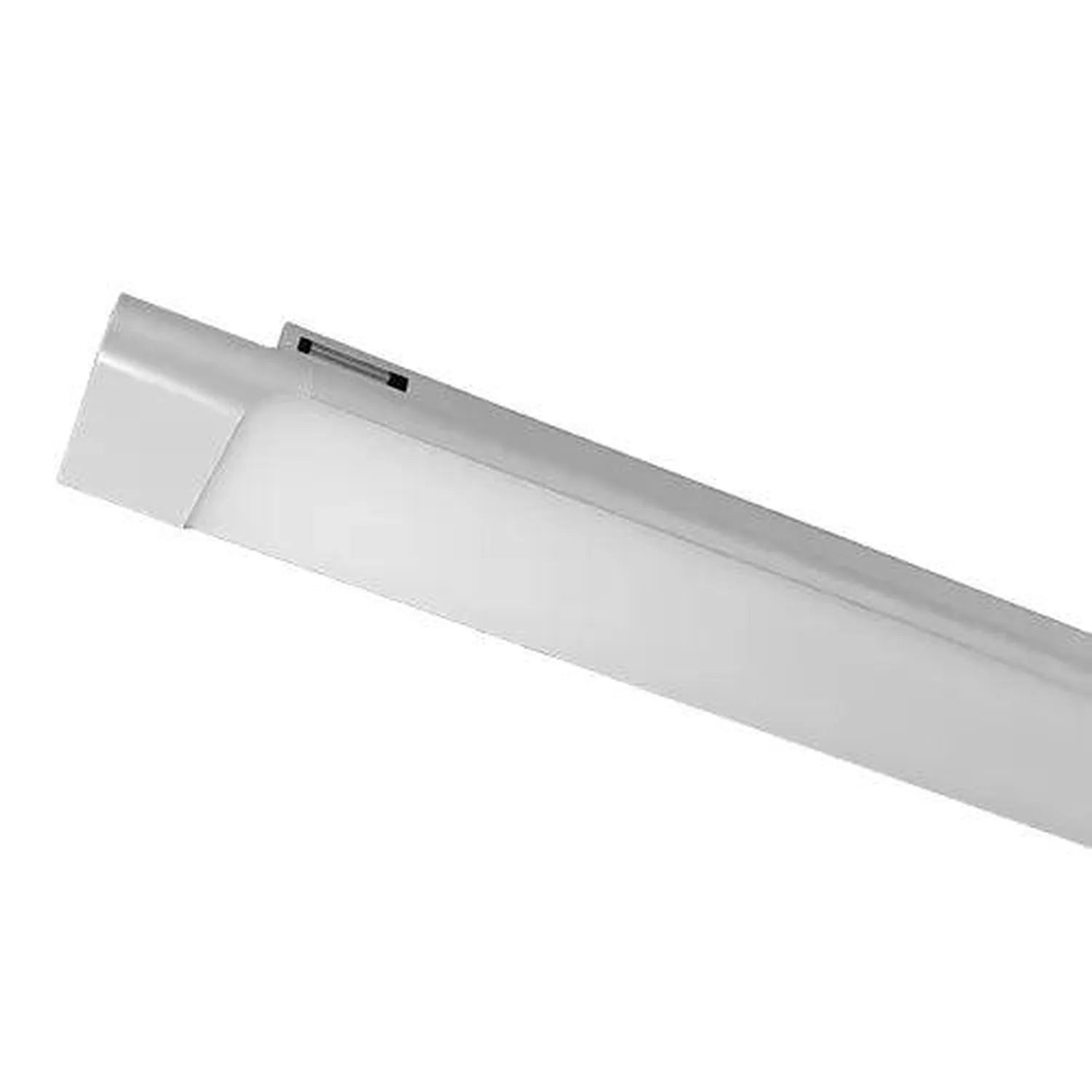

The Voltaled Uranus is a slim 90cm (3ft) LED batten in an aluminium body, rated at 30W with an output of 2600 lumens. It is a direct replacement for 90cm T8 and T5 fluorescent battens, and it also takes the place of the old twin 90cm 60w fluorescent fitting. You can order it non-dimmable or with AC triac dimming.
3ft LED batten light features
- Output: 30 watts, 2600 lumens
- Beam angle: 120°
- Colour rendering: CRI >80
- Colour temperature: warm white 3000K, natural white 4000K or cool white 5500K
- Diffuser: fire-resistant polycarbonate with curved edges
- LED chips: LM80 certified, 80% of original light after 50,000 hours
Where it fits

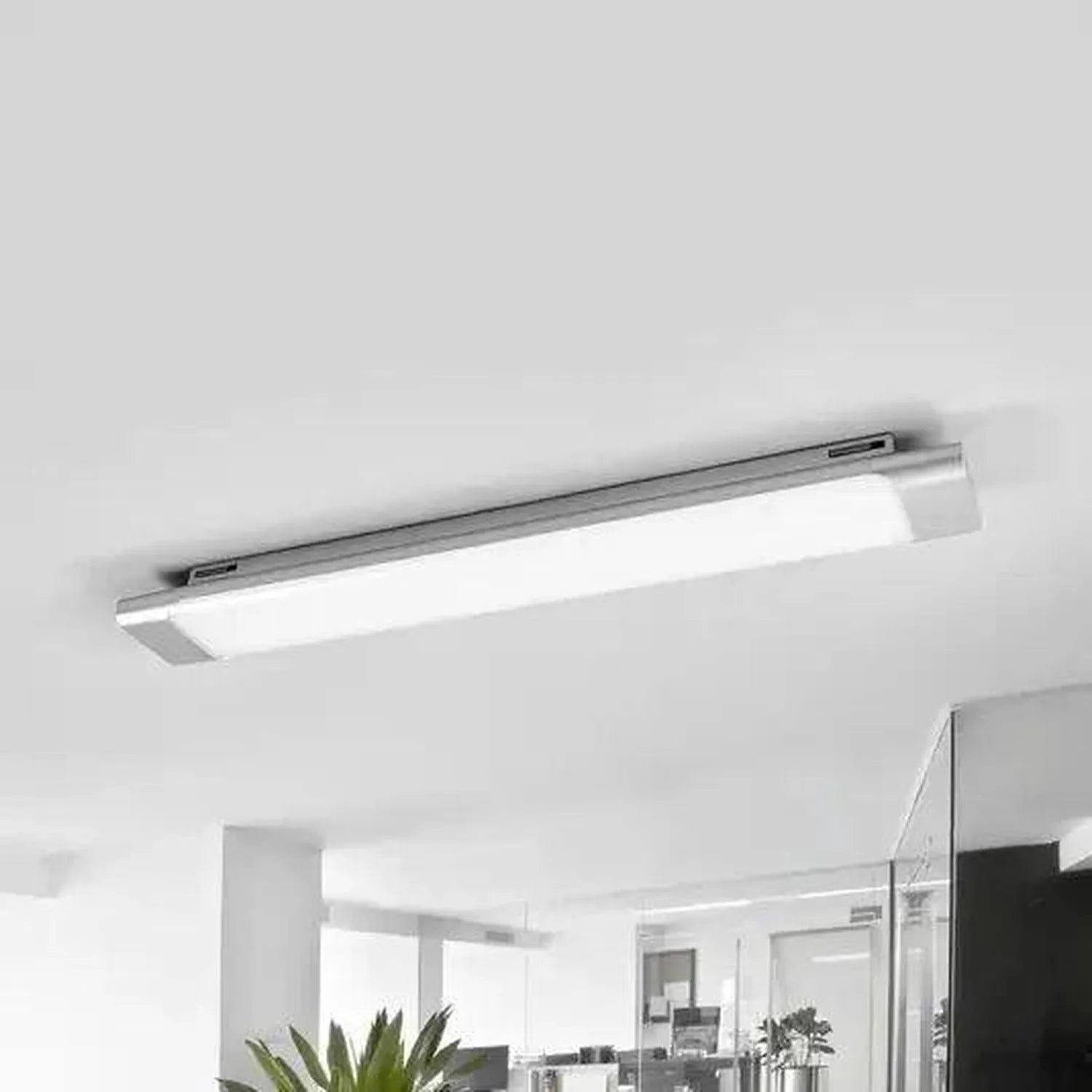

Offices, meeting rooms, hotels and schools are typical locations, along with other indoor spaces. The fitting is IP20 rated, so it is for indoor use only. Keep it away from steam and corrosive gas.

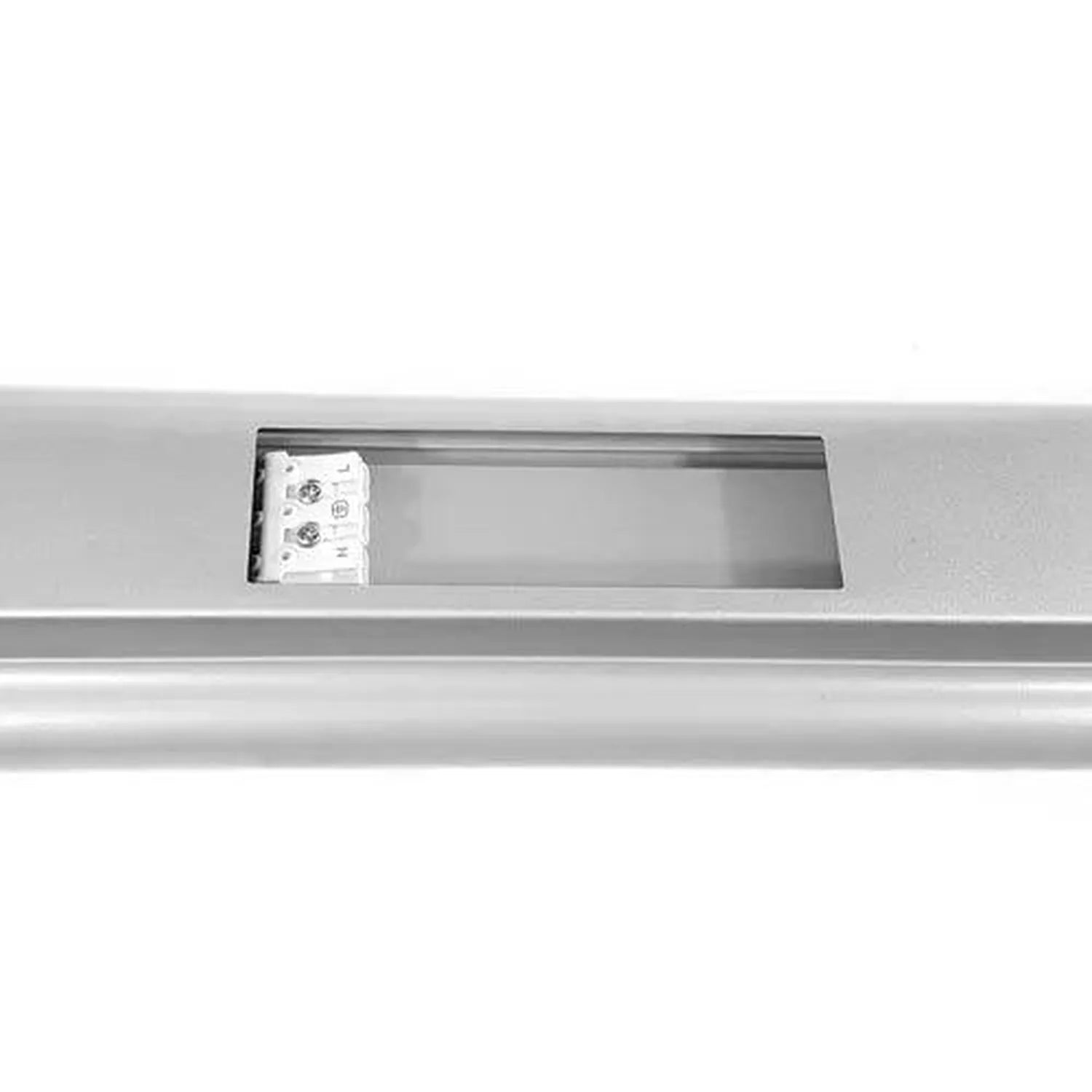

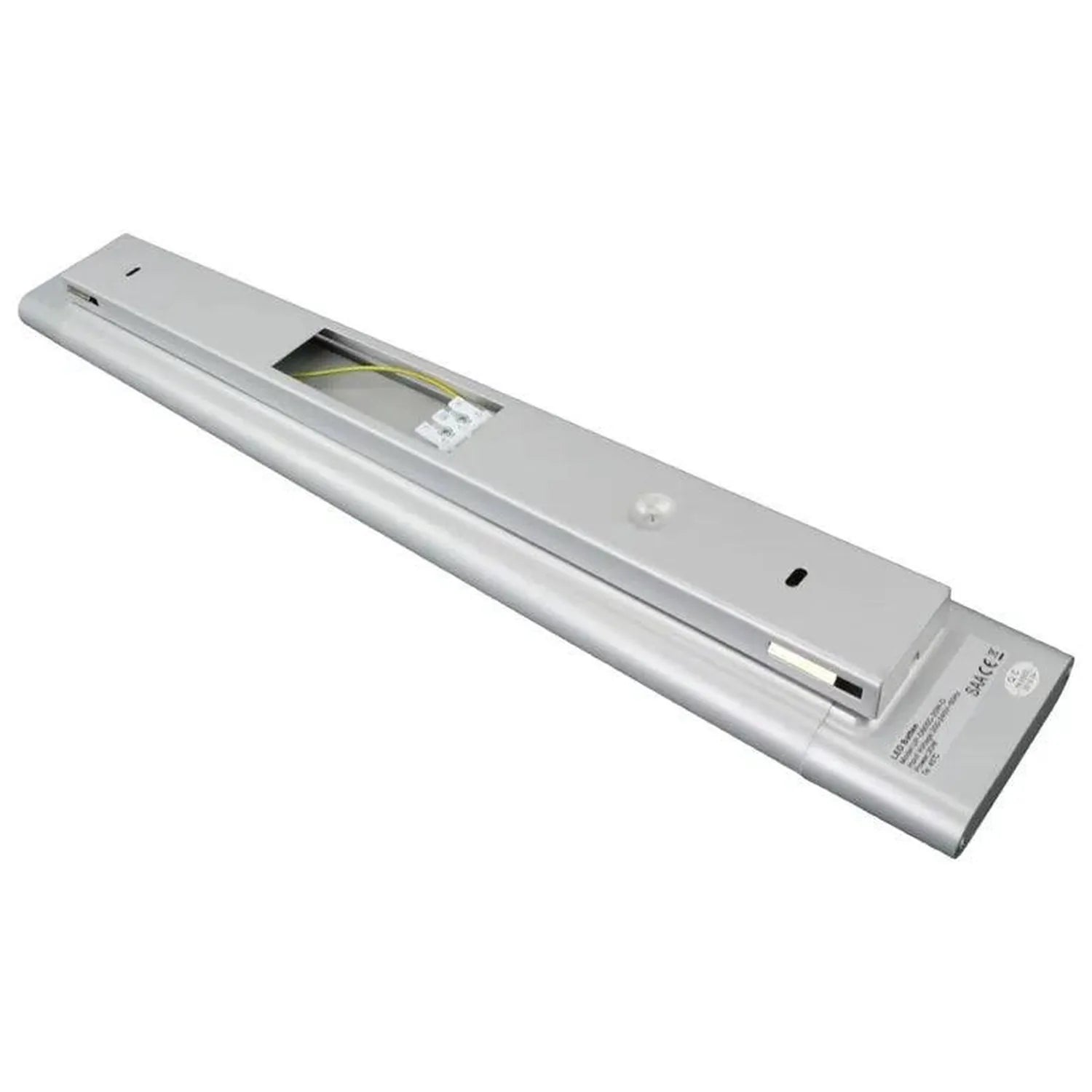

Inside, an aluminium LED board is paired with an isolated LED driver. The light gives off no UV or IR and contains no mercury. Housings come in black or silver.
Installation

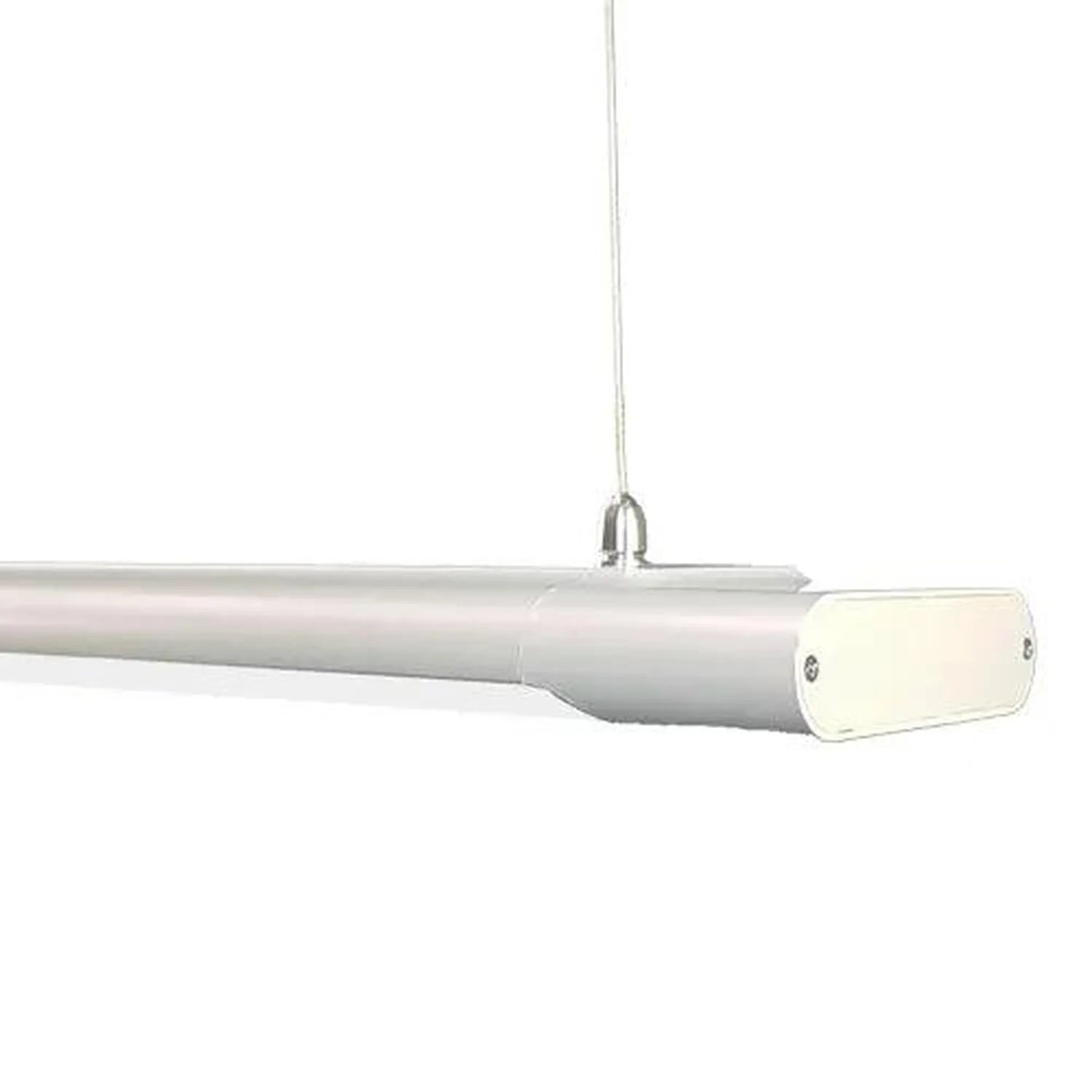

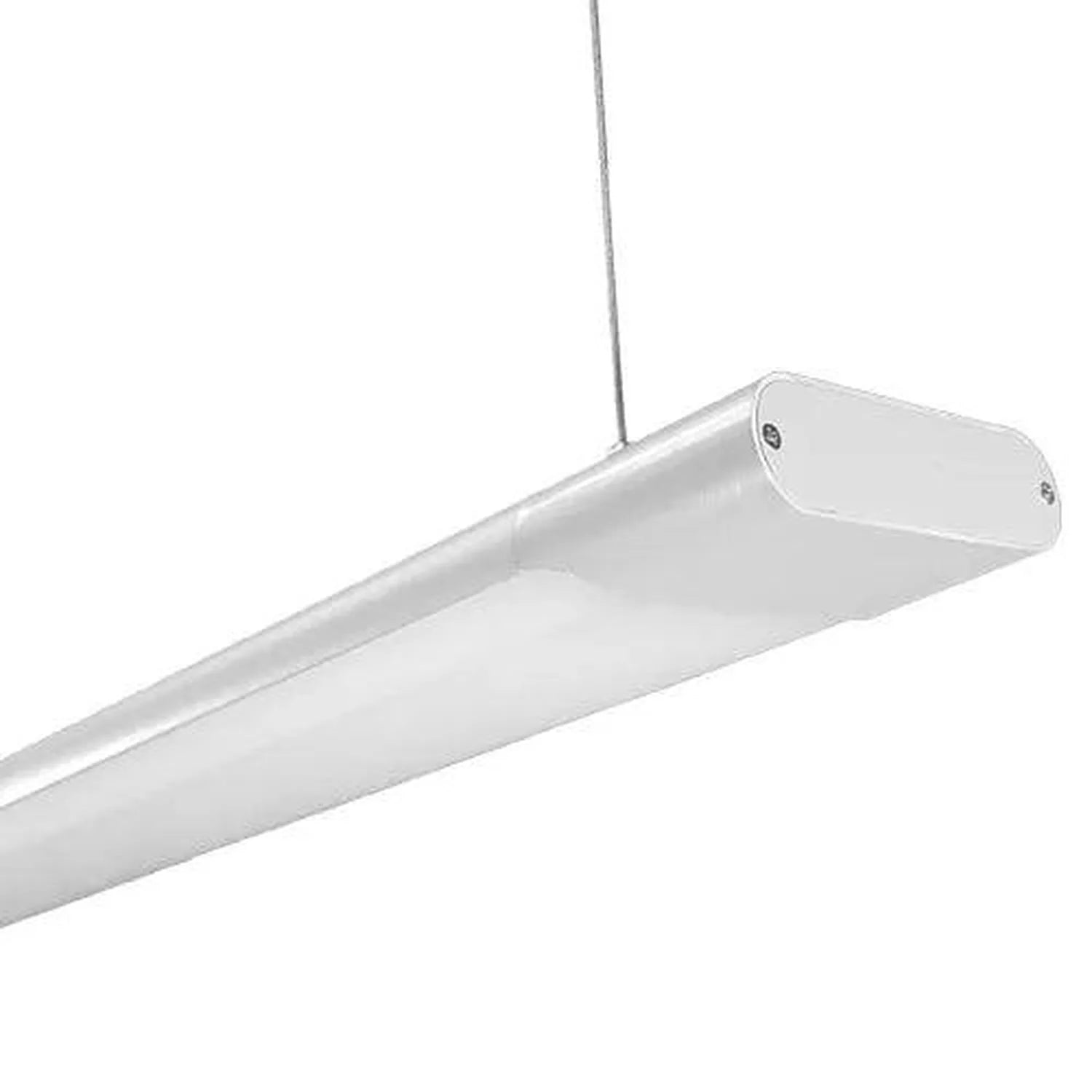

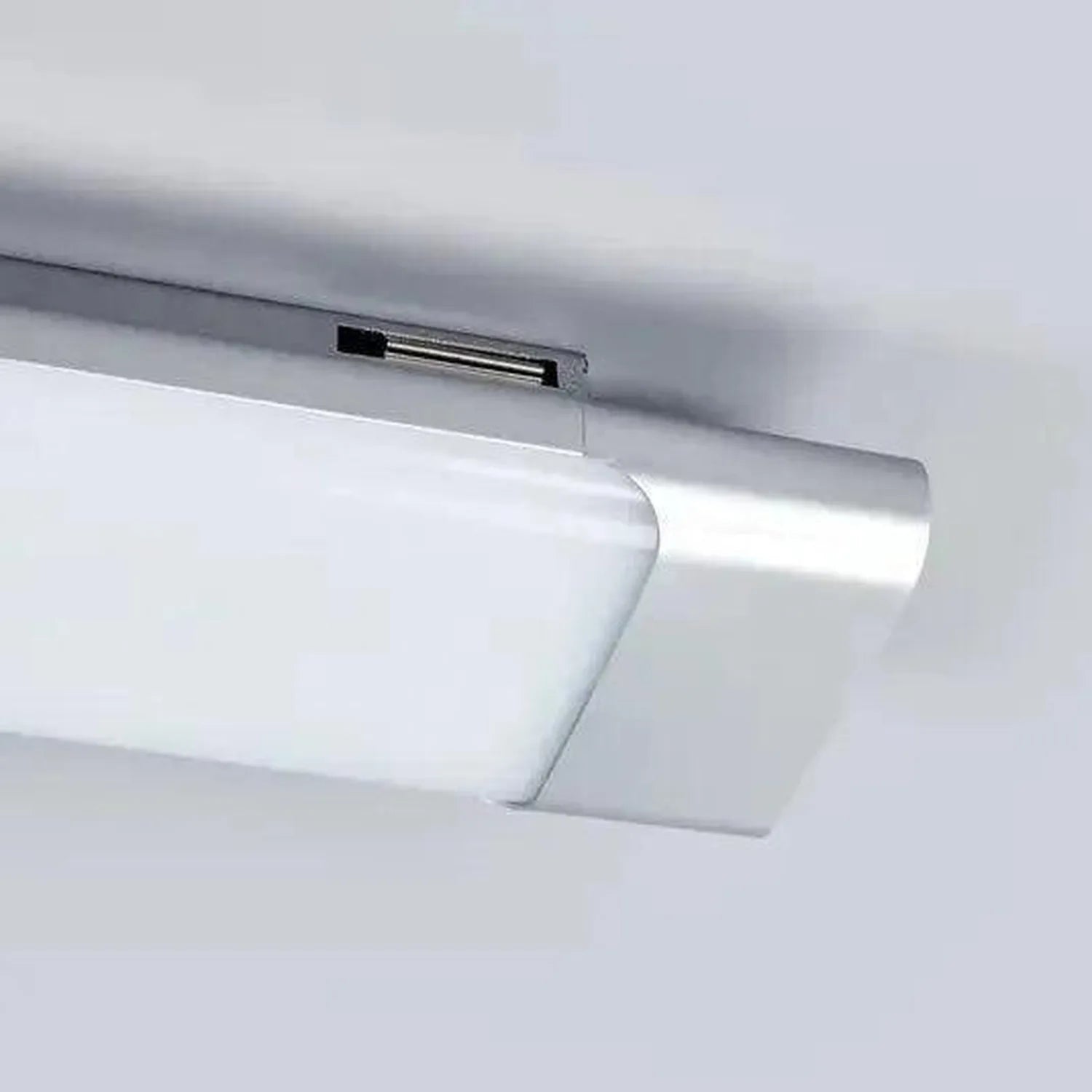

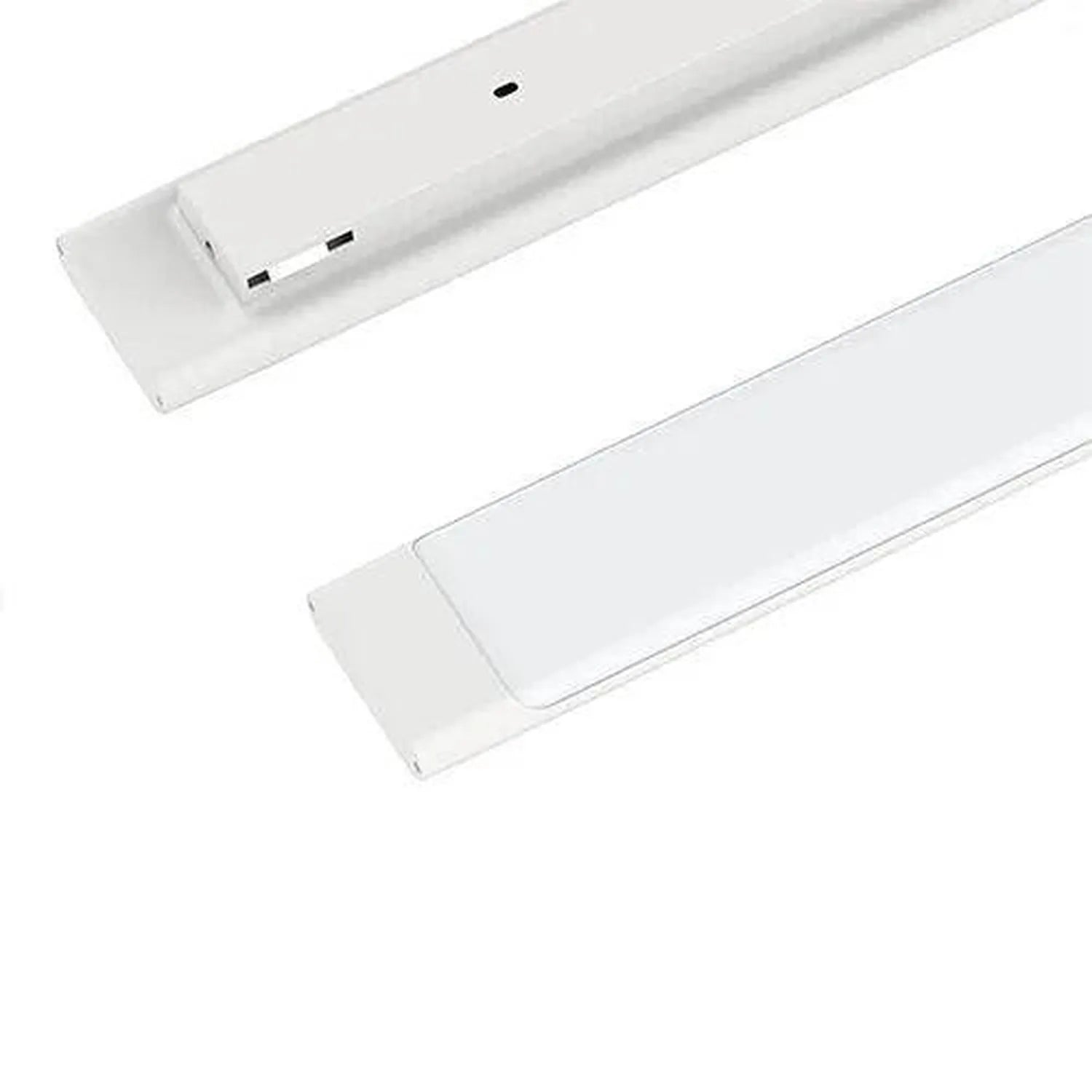

Mount it directly to a surface or suspend it. For a continuous line of light, up to 20 units can be linked together. Each batten measures L900*W90*H28mm and runs on AC230V.
Fitting must be carried out by a qualified electrician.
Warranty and compliance
The batten carries a 5-year warranty and is ROHS compliant, CE and SAA certified.
Technical Specifications 26 rows Show
| Fitting | LED Batten |
| Luminous flux | 2600 |
| Wattage (rated) | 30 Watt |
| Colour rendering index | >80 |
| Voltage | AC230V |
| Housing colours | Black/Silver |
| Line frequency | 50Hz |
| Protection | Over / Voltage / Temperature |
| Power factor | ≥0.9 |
| Beam angle | 120° |
| Dimensions | L900*W90*H28mm |
| Colour temperature | Warm white: 3000K, Natural white: 4000K, Cool white: 5500K |
| Rated output current | 400 mA |
| Dimmable | YES |
| IP rating | IP20 |
| Driver | high-efficiency isolated LED driver |
| LED chips | LM80 certified |
| Lumen maintenance | 80% after 50,000 hours |
| Diffuser | Fire-resistant polycarbonate diffuser with curved edges |
| Linking | up to 20 units |
| Mounting | Surface Mounted or Suspended |
| UV/IR | No UV/IR light |
| Replaces | 90cm T8 and T5 fluorescent battens, twin 90cm 60w fluorescent fitting |
| Operating temperature | -20 OC to 45 OC |
| Certification | ROHS Compliant, CE, SAA |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
