All R7S LED Bulb
LED R7S linear bulb with warm white LEDs in aluminum tube housing and brass connector pins.

LED R7S Bulb 5W 78mm Non-Dimmable 500lm Direct Replacement | Ledison

Warm White
£8.60
Skip to product information
LED R7S linear bulb with warm white LEDs in aluminum tube housing and brass connector pins.
LED R7S Bulb 5W 78mm Non-Dimmable 500lm Direct Replacement | Ledison

LED R7S Bulb 5W 78mm Non-Dimmable 500lm Direct Replacement | Ledison

Vendor
Ledison
SKU
275000
Availability
In stock
Weight
0.1 kg

£8.60inc VAT £7.17exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Ledison LED R7S Bulb 5W is a direct retrofit for halogen R7S linear lamps used in floodlights, wall lights, uplighters and decorative fittings. Built to the exact 78mm length of standard halogen lamps, it drops straight into the existing fitting with no modification needed.

R7S LED bulb 78mm output and build

  • Light output, 500lm
  • Efficiency, 100lm/W
  • Power, 5W
  • Beam angle, 360°, giving even light distribution around the cylinder
  • LED chips, 36 x SMD2835 mounted on a copper PCB for heat dissipation
  • Housing, thermal-resistant polycarbonate protecting the internal driver from dust

Applications

The 360-degree cylindrical shape suits uplighters, floodlights, wall fittings and architectural lighting where the halogen R7S lamp it replaces would normally sit. Because the length matches the original lamp exactly, installers can swap it in without altering the fitting.

Colour temperature options

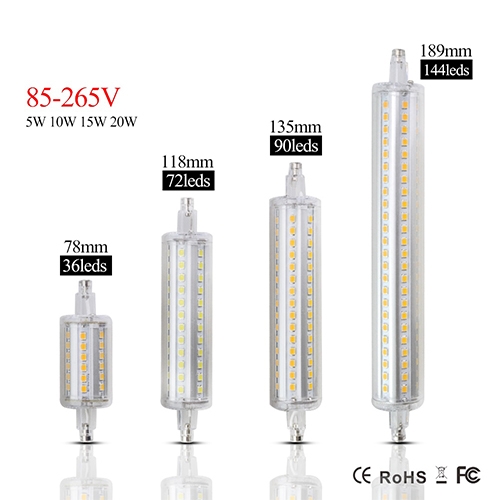

Available in warm white, natural white and cool white, giving flexibility across residential, hospitality and decorative lighting projects.

Dimming

This bulb is non-dimmable. It is intended for use on standard, non-dimmed circuits.

Warranty

Covered by a 5-year manufacturer warranty.

Technical Specifications 20 rows Show
Fitting:R7S
Luminous flux:500lm
Wattage (rated):5 Watt
Color Rendering index:>80
Voltage:100-265Volt
Typical efficiency:100lm/W
Line frequency:50/60Hz
Beam Angle:360deg.
Average lifetime:50,000 hours
Net Weight per piece
Color Temperature:
Diameter22mm
Warm white:3000K
Length pin to pin 78mm
Natural white:4000K
DimmableNO
Cool white:5500K
Warranty:5 years
Operating Temp:-20 OC to 40 OC
Certification:TUV, ROHS, CE, UL



Manufacturer datasheet. Figures as published by the manufacturer.
