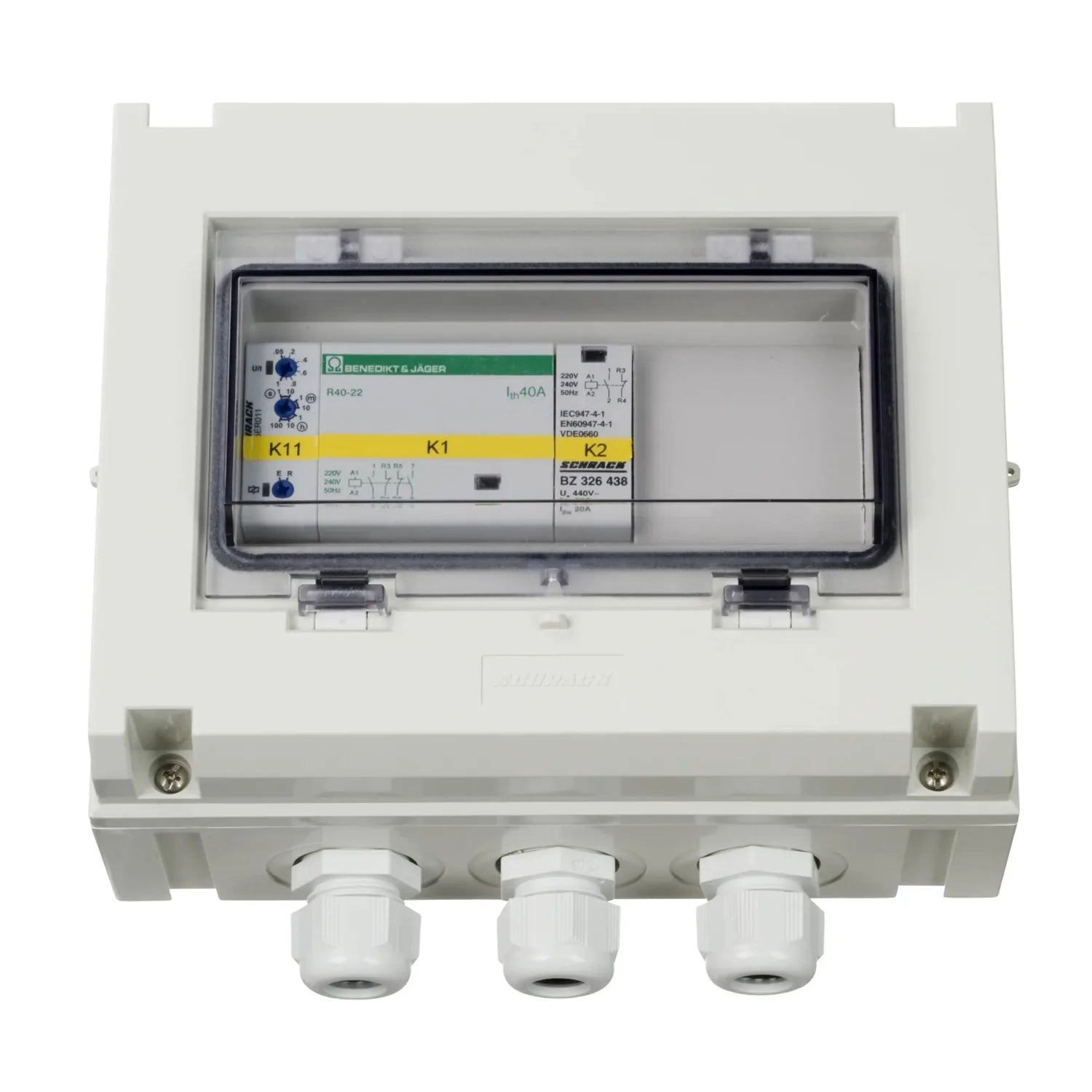

Victron VE Transfer Switch 5kVA 1-Phase 200-250Vac | COS230502100

The Victron VE Transfer Switch is a single-phase automatic transfer switch rated at 5kVA, built for off-grid, backup and marine or vehicle power systems. It switches between two AC sources, such as shore power and an inverter, so only one source ever reaches the load. It is intended for professional installation wherever reliable AC source switching matters.

Victron transfer switch key features

• Rated capacity, 5kVA for single-phase AC loads up to that limit
• Voltage range, 200 to 250Vac, matching standard UK and EU grid supply
• Configuration, single phase (1ph), automatic switching with no manual intervention
• Weight, 1.85kg, suitable for panel or enclosure mounting
• Integration, pairs with Victron inverter/charger systems as part of a wider installation

How it works

A transfer switch selects between two AC inputs, typically a primary source such as mains or shore power and a secondary source such as a generator or inverter output. When the primary source fails or is disconnected, the switch moves the load to the secondary source and prevents backfeed. The 5kVA rating sets the maximum continuous load the switch can carry, and the 200 to 250Vac range covers standard single-phase supply across the UK and EU without adjustment.

Applications

Used in off-grid solar systems with inverter and generator backup, marine and narrowboat installations switching between shore power and an onboard inverter, motorhome and vehicle conversions with two AC sources, residential backup power setups, and light commercial changeover between two supplies.

What's in the box

• 1 x Victron VE Transfer Switch 5kVA, 1 phase, 200-250Vac

Installation notes

This switch must be installed by a qualified electrician, wired in accordance with BS 7671 and any applicable local regulations. For grid-connected UK systems, check G98 or G99 compliance as appropriate. Do not install where exposed to moisture unless housed in a suitably rated enclosure, and confirm the connected load stays within the 5kVA rated capacity.
