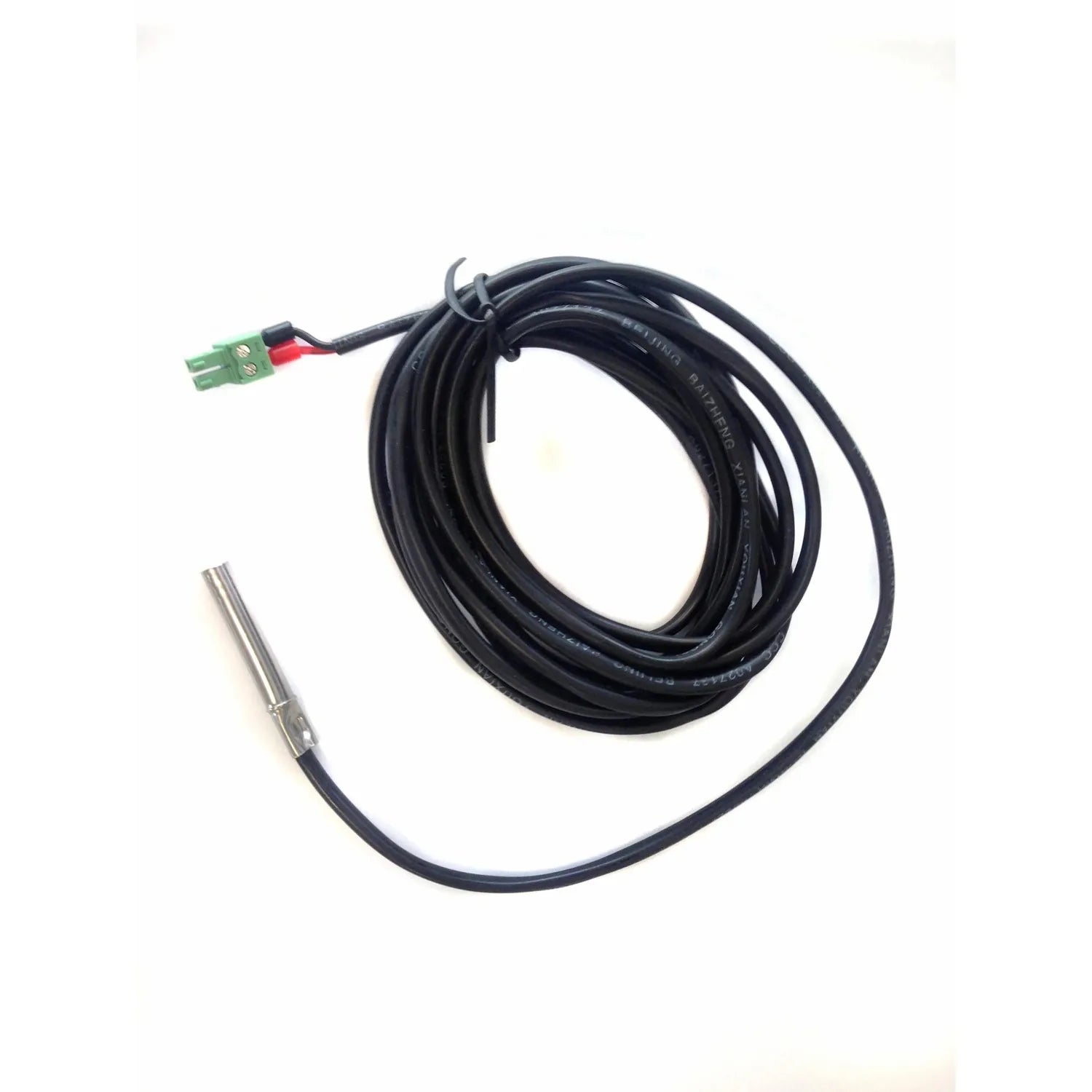

Victron Temperature Sensor for BlueSolar PWM-Pro Charge Controller | SCC940100100

This is the dedicated temperature sensor for the Victron BlueSolar PWM-Pro charge controller. It lets the controller apply temperature-compensated charging, adjusting charge voltage automatically to suit the battery's actual temperature rather than a fixed setpoint.

Why temperature compensation matters

A battery charged at a fixed voltage all year round gets overcharged in summer heat and undercharged in cold winter conditions, and both shorten its life. The BlueSolar PWM-Pro supports temperature compensation, but only once this sensor is fitted and connected. It mounts on or near the battery and feeds live temperature readings back to the controller, which shifts the charge voltage up or down from the nominal setpoint accordingly.

Key features

• Purpose built, designed specifically for Victron BlueSolar PWM-Pro charge controllers.
• Automatic compensation, enables temperature-adjusted charging to protect battery health as ambient conditions change.
• Weight, 0.06 kg, with a compact form factor for tight battery enclosures.
• Connection, plug-and-play fit into the PWM-Pro's dedicated sensor port.
• Genuine part, a Victron Energy accessory for full compatibility with supported controllers.

Applications

Suited to off-grid solar systems where the battery bank sees seasonal or daily temperature swings: narrowboats and marine installations with unheated compartments, motorhomes and campervans, and outdoor cabins or enclosures where ambient temperature affects charging.

Installation notes

Attach the sensor directly to the battery casing for the most accurate reading, and make sure the connector is fully seated in the correct port before commissioning. It is only compatible with the BlueSolar PWM-Pro range, not other Victron controller models. Fitting as part of a wider 12V or 24V DC system should be done by a qualified electrician or competent person.

What's in the box

• 1 x Temperature sensor for Victron BlueSolar PWM-Pro charge controller
