Victron Pre-Charge Cable for Inverters | ASS070400100

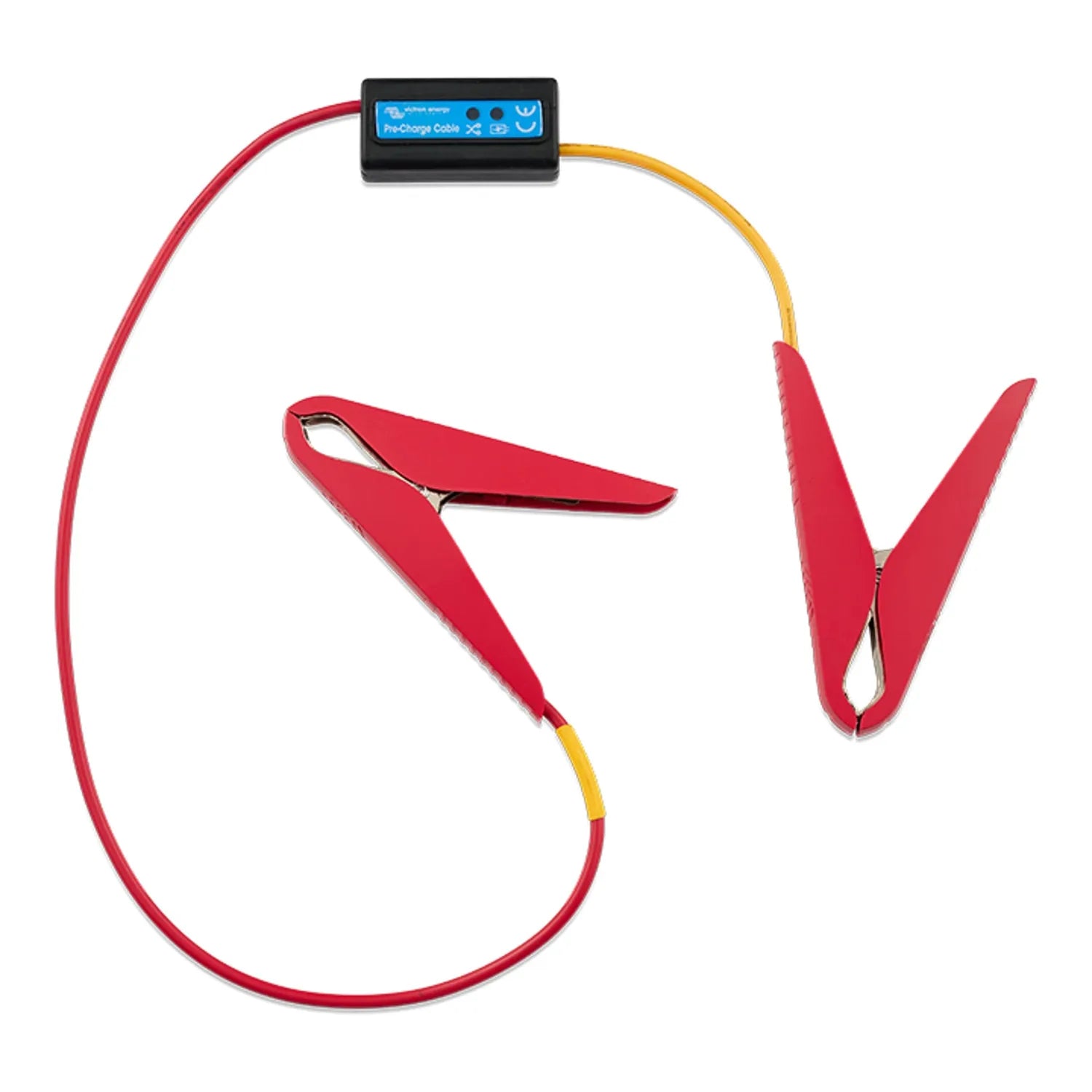

The Victron Energy pre-charge cable is used to safely pre-charge the internal capacitors of inverters, inverter/chargers and other DC-connected equipment before the full battery connection is made. It is intended for installers working on Victron systems where inrush current could damage equipment or cause sparking at the battery terminals.

Key features

• Limits inrush current when connecting DC equipment to a battery bank, protecting capacitors and terminals from damage
• Designed for use with Victron inverters, inverter/chargers and other DC-connected devices that require pre-charging before full connection
• Compact and lightweight at 0.08 kg, easy to carry in a standard installation toolkit
• Genuine Victron Energy accessory, made to match the connection standards of Victron DC equipment
• Simple to use: connect the pre-charge cable first, allow the capacitors to charge, then make the full battery connection

Why pre-charging matters

Connecting a large inverter or inverter/charger directly to a battery bank without pre-charging causes a sudden surge of current into the internal capacitors. This inrush can spark at the terminals, trip protection devices, or damage input circuitry. The pre-charge cable adds a resistive element to the circuit that limits this surge, letting the capacitors charge gradually before the main connection goes on.

Using this cable is a standard step in the correct installation procedure for many Victron Multiplus, Quattro and other inverter/charger products, and a small but important part of a professional DC installation toolkit.

Applications

• Pre-charging inverters and inverter/chargers, such as Victron Multiplus and Quattro, before first battery connection
• Commissioning off-grid and backup power systems with large DC capacitor banks
• Marine and vehicle installations where safe DC connection procedure is required
• Any Victron DC installation needing inrush current protection at first connection

What's in the box

• 1 x Victron Energy pre-charge cable (ASS070400100)

Installation notes

Use this cable as part of the standard commissioning procedure when connecting Victron inverters or inverter/chargers to a battery bank for the first time. Follow Victron's installation documentation for your specific product. DC system installation, particularly at the voltages and capacities involved with inverter/charger equipment, should be carried out by a qualified electrician or experienced installer.
