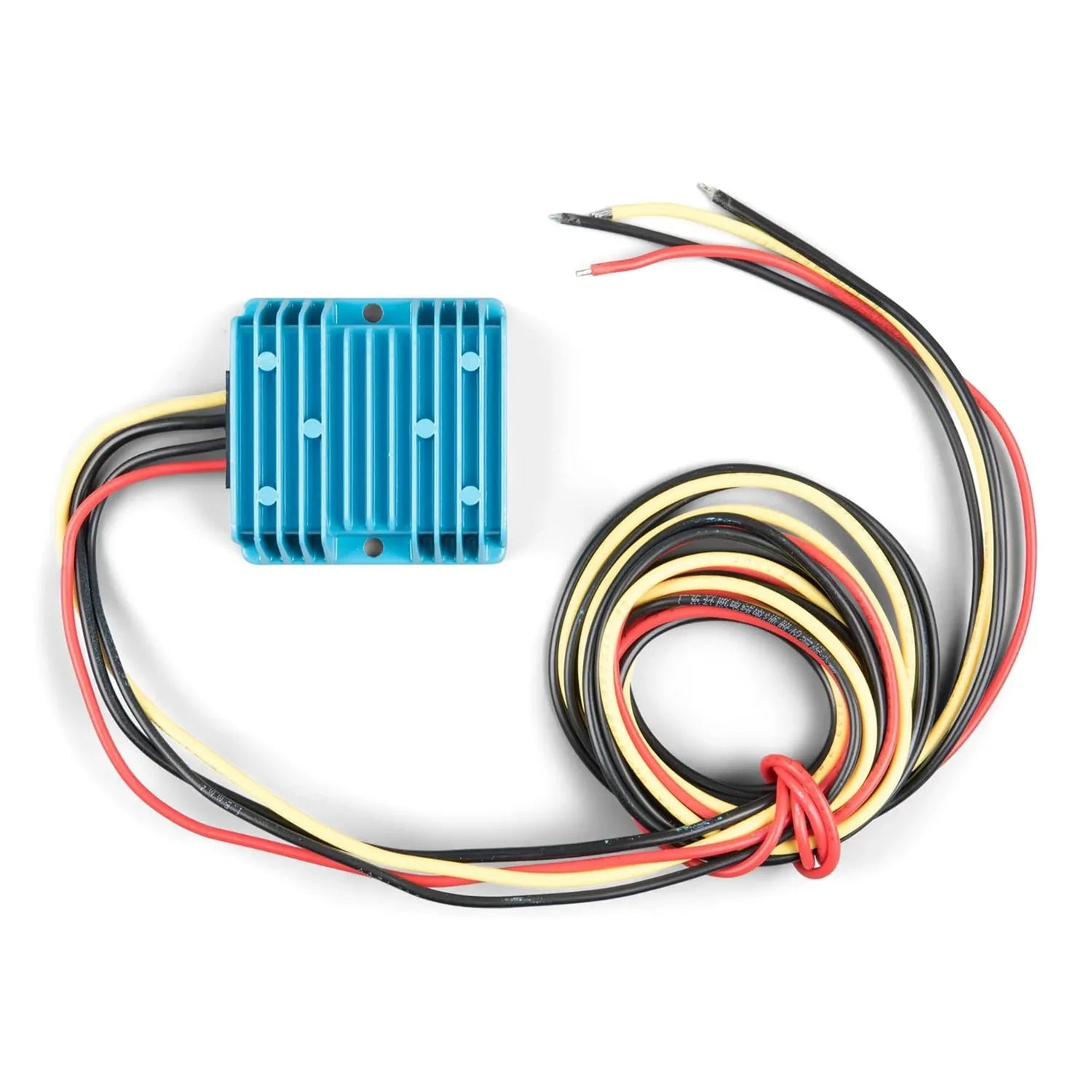

Victron Orion IP67 24/12-10A DC-DC Converter 120W | ORI241210260

The Victron Orion IP67 24/12-10A is a non-isolated DC-DC converter that steps a 24V DC supply down to a regulated 12V output at up to 10A (120W). It suits vehicles, boats and off-grid systems where a 24V main supply needs to feed 12V accessories.

Key features

• Conversion, 24V DC input regulated to 12V DC output at up to 10A continuous.
• Output power, 120W continuous.
• Enclosure, IP67 rated, sealed against dust and temporary water immersion.
• Design, non-isolated, input and output share a common ground reference.
• Weight, 0.4kg.

Applications

The Orion IP67 24/12-10A is built for 24V vehicles, coaches and HGVs that need a 12V feed for lighting, USB charging hubs or control electronics. It also fits marine installations, campervans with a 24V chassis supply, and off-grid or industrial setups where a 24V battery bank must power 12V loads. Because it is non-isolated, input and output share a ground reference, which is fine in most single-battery-bank installations but should be checked against the specific system before fitting.

Installation notes

Fuse the input wiring close to the source battery or busbar. In multi-battery or multi-vehicle configurations, confirm that a shared ground will not cause ground loop issues. Installation should be carried out by someone familiar with DC electrical systems, following the wiring regulations that apply to the installation environment.

What's in the box

• 1x Victron Orion IP67 24/12-10A (120W) DC-DC converter
