Victron Orion 24/12-100A DC-DC Converter IP67 1200W | ORI241221226

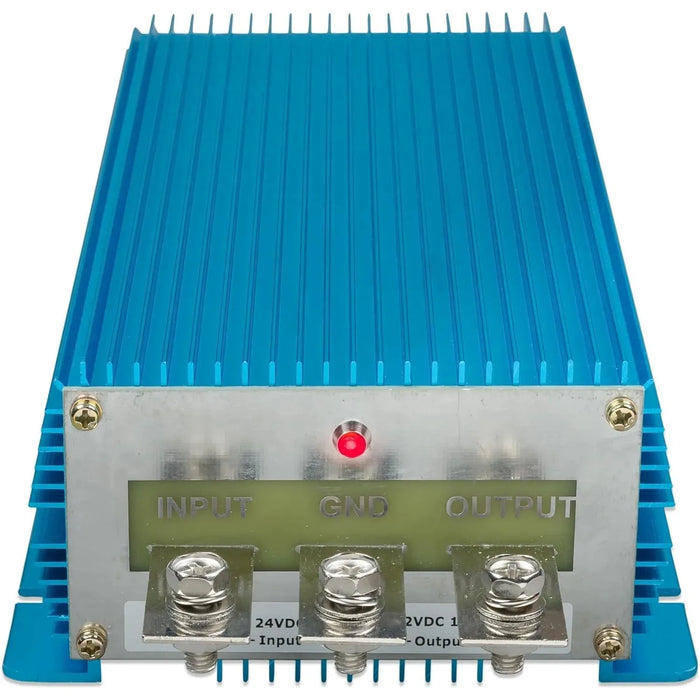

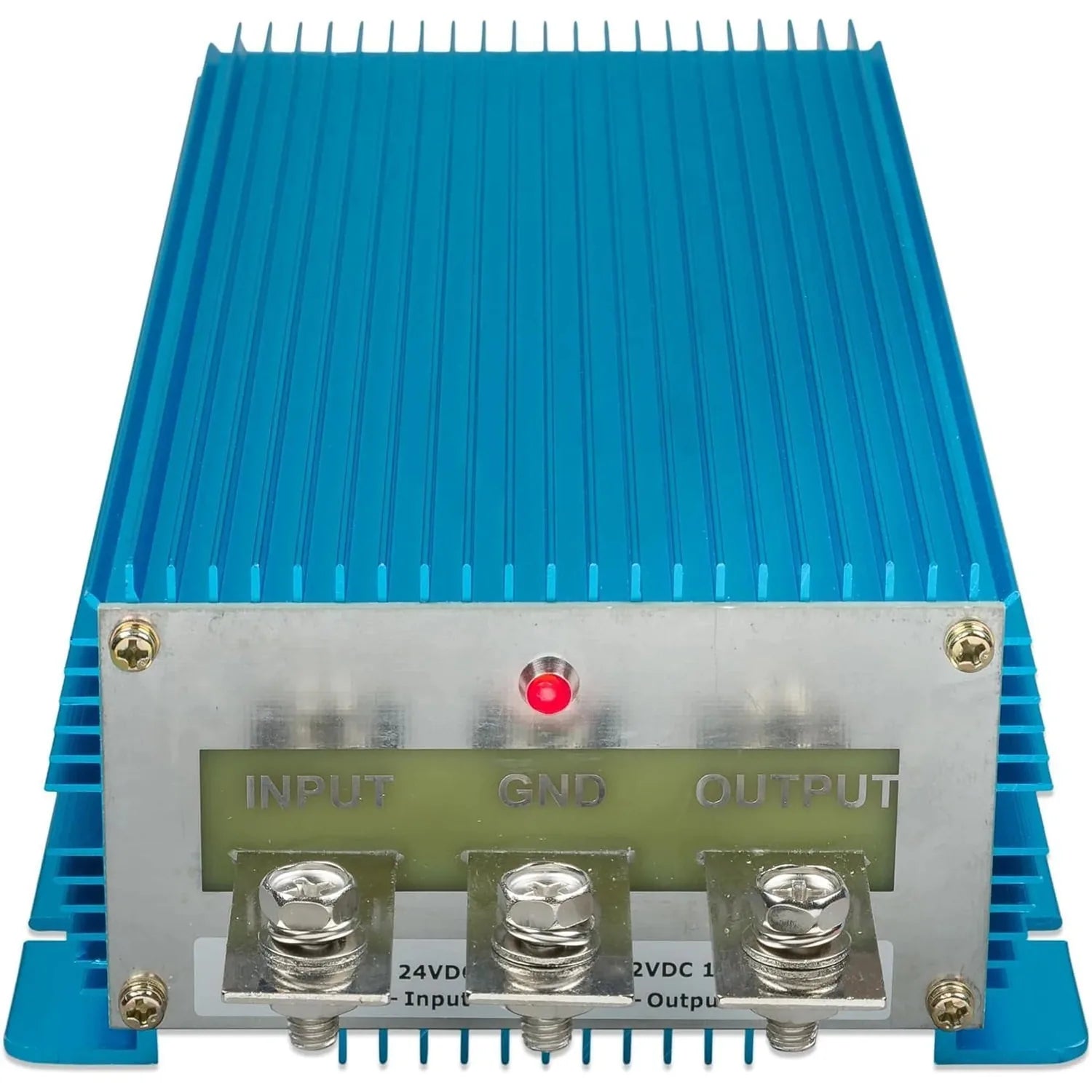

The Victron Orion IP67 24/12-100A is a non-isolated DC-DC converter that steps down a 24V DC supply to a regulated 12V DC output at up to 100A, for a continuous rating of 1200W. It suits vehicles, marine vessels and off-grid systems that need a weatherproof, high-current voltage converter.

Key features

• Output power, 1200W continuous, 24V input to 12V/100A output.
• IP67 enclosure, dust-tight and protected against temporary immersion, suited to exposed or damp locations.
• Non-isolated topology, efficient conversion with input and output sharing a common ground.
• Adjustable output voltage, can be fine-tuned to suit the connected load or battery.
• Weight, 2.23kg, in an aluminium housing for fixed mounting.
• Protection, short circuit, over-temperature and input under-voltage protection.

How it works

The converter takes a 24V DC source and delivers a stable 12V DC output, useful for powering 12V accessories, charging 12V batteries, or running 12V loads from a 24V system. Because the design is non-isolated, input and output share a ground reference, which matches the wiring already common in many vehicle and marine electrical systems.

The IP67 rating means it can be fitted in engine bays, under vehicle floors, bilge areas or other locations exposed to moisture and dust, without a separate weatherproof enclosure.

Applications

Used to run 12V accessories from a 24V vehicle or truck system, to charge a 12V battery bank from a 24V house bank on boats and motorhomes, and to supply 12V equipment in off-grid cabins, agricultural vehicles and marine installations where IP67 protection is needed.

What's in the box

• 1x Victron Orion IP67 24/12-100A (1200W) DC-DC Converter

Installation notes

Fitting should be carried out by someone familiar with high-current DC wiring. At 100A output, correct cable sizing, fusing and terminal torque matter. Confirm the shared-ground, non-isolated design suits your system before wiring it in, and allow ventilation around the unit so heat can dissipate under load. The IP67 rating covers water ingress and temporary immersion, not permanent submersion.
