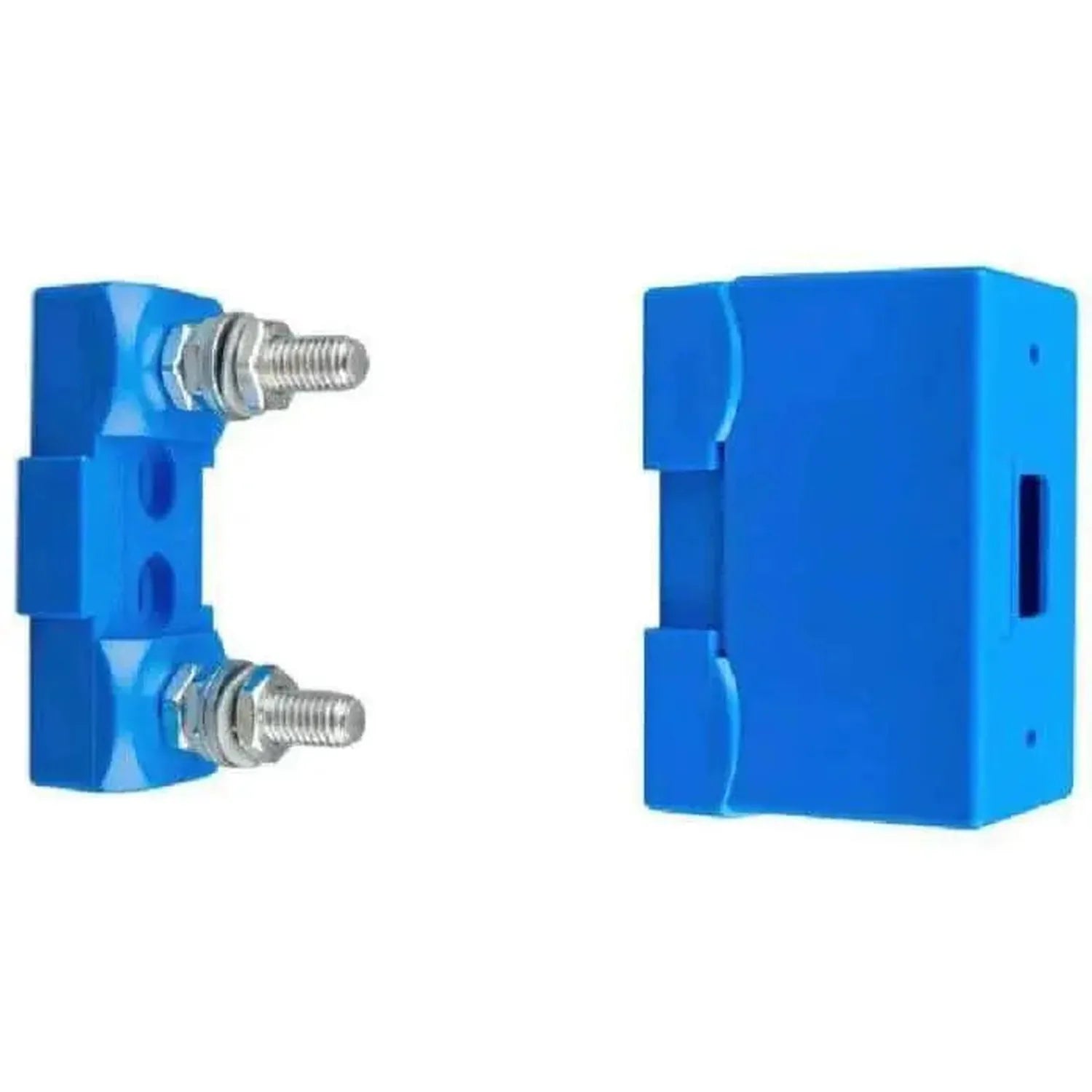

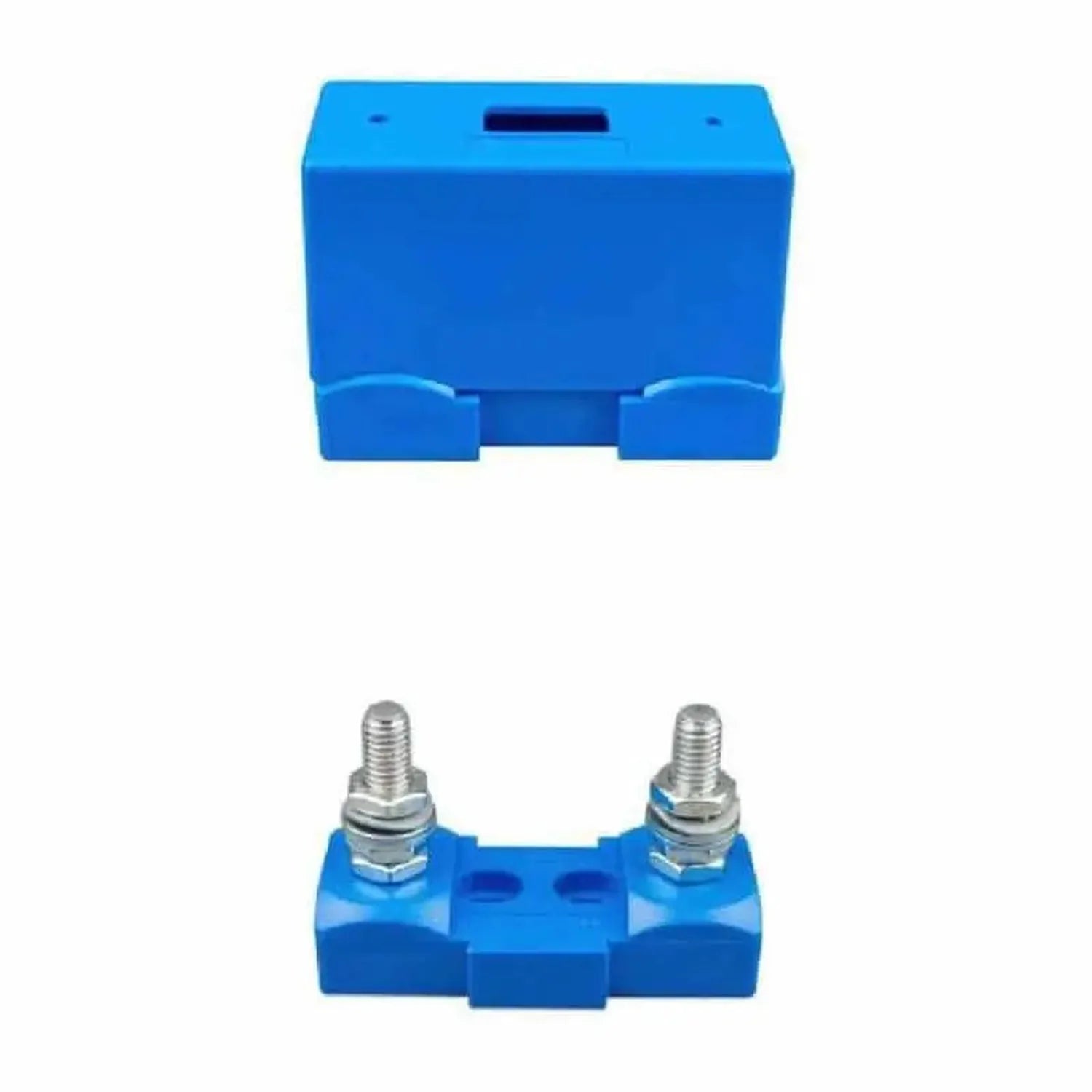

Victron Modular Fuse Holder for MEGA-Fuse | CIP100200100

The Victron Energy modular fuse holder houses a MEGA-fuse cartridge within DC battery and power distribution circuits. It gives professional installers a serviceable fuse point in the main positive cable run on off-grid, marine, vehicle and solar battery systems.

Key features

• Fuse type, accepts standard MEGA-fuse cartridges.
• Modular design, multiple holders link together for multi-circuit fuse distribution.
• Weight, 0.09 kg.
• Part number, Victron Energy CIP100200100.
• GTIN, 8719076018124.

Product overview

MEGA-fuses protect the main cable between a battery bank and an inverter, charger or busbar. This holder provides the mechanical housing and electrical termination needed to fit one correctly into a DC circuit. In systems with multiple battery strings or parallel inverter connections, the holders mount side by side and link together, keeping wiring tidy and each fuse individually replaceable.

A properly housed fuse at the battery terminal is a basic requirement of any DC installation. This holder keeps the fuse accessible and secure without disturbing the rest of the cable run.

Applications

• Main battery fuse protection in off-grid solar systems with inverters or inverter/chargers.
• DC overcurrent protection in narrowboat, canal boat and marine electrical installations.
• Vehicle and motorhome leisure battery systems needing a serviceable fuse point.
• Multi-circuit fuse distribution boards using linked modular holders.
• Additional or replacement fuse holder in existing Victron Energy installations.

What's in the box

• 1 x Victron Energy modular MEGA-fuse holder (CIP100200100)

Installation notes

Fit by a qualified electrician or experienced installer familiar with DC battery systems. Position the holder as close to the battery positive terminal as practicable, in line with wiring regulations for DC installations, and match the MEGA-fuse rating to the cable cross-section and the maximum continuous current of the connected equipment. Do not install without a correctly rated MEGA-fuse cartridge fitted.
