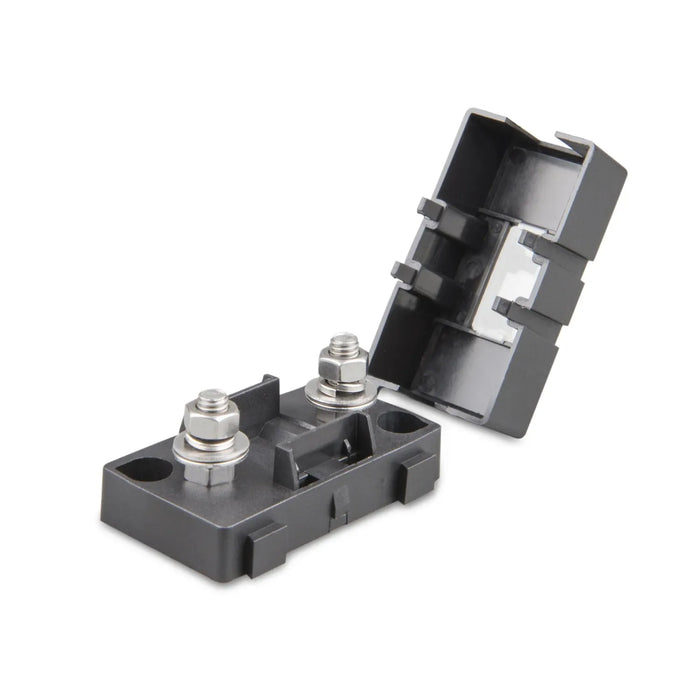

Victron Fuse Holder for MIDI Fuse | CIP000050001

This is the mounting and connection holder for Victron MIDI-type fuses, used in 12V, 24V and 48V DC systems where a serviceable fuse point is needed. It provides the housing and terminals required to fit a MIDI fuse safely into a circuit; the fuse itself is not included.

Key features

• Fuse type, compatible with standard MIDI fuses
• Weight, 24g (0.024 kg)
• Part number, Victron Energy CIP000050001
• Form factor, compact, suited to tight wiring enclosures and battery compartments

Applications

Used for battery to inverter cable protection, DC distribution boards and busbar fuse points. Common in marine and narrowboat 12V and 24V systems, van and motorhome leisure battery wiring, and as a replacement holder in existing Victron installations. The low weight suits mobile and marine builds where every gram counts.

Installation notes

Fitting should be carried out by a competent electrician familiar with DC wiring. Select the correct MIDI fuse rating for the cable and load being protected, and tighten all terminals to the correct torque. A qualified installer is recommended for battery and inverter connections in larger systems.

What's in the box

• 1 x Victron Energy fuse holder for MIDI fuse (fuse not included)
