Victron MEGA-fuse 225A/80V Pack of 5 | CIP138225020

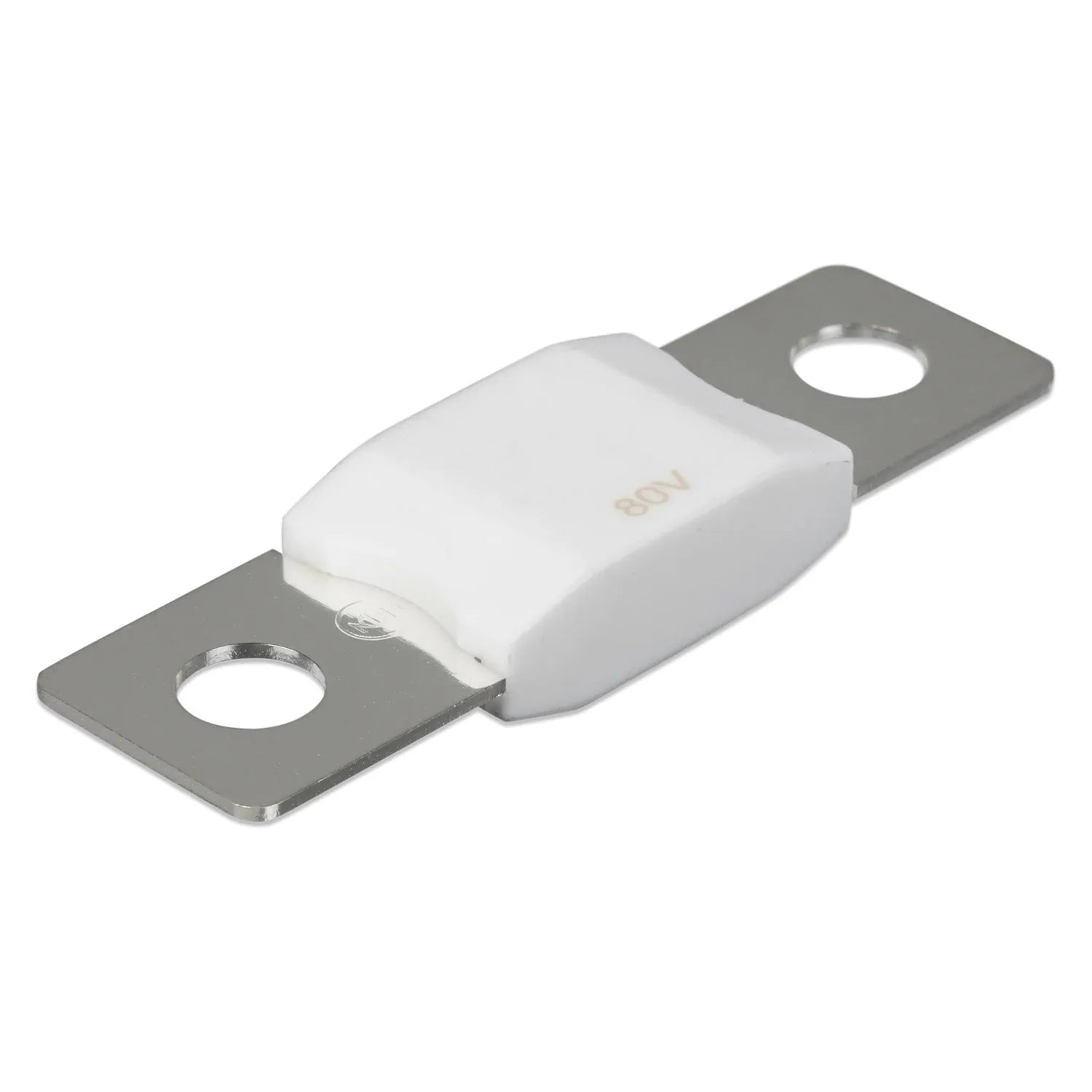

The Victron MEGA-fuse 225A/80V is a blade-style fuse for protecting DC wiring in battery banks, inverters and other high-current 12V, 24V and 48V DC systems. It is sold as a pack of five, giving installers spares on hand for commissioning and servicing.

Key features

• Current rating, 225A
• Voltage rating, 80V DC, covering 12V, 24V and 48V battery banks
• Fuse type, MEGA blade format, fits standard MEGA fuseholders including Victron's own range
• Pack quantity, 5 fuses
• Weight, 45g for the full pack

Where it fits

MEGA-fuses sit between battery banks and inverters, charge controllers or busbars, protecting the main DC cable run. A 225A rating suits systems with high continuous current draw, such as larger inverter installs or multi-battery setups. Fuse sizing should always match the cable cross-section and the connected equipment's maximum current draw, checked against the cable and inverter documentation.

Installation

Fit this fuse into a MEGA fuseholder rated for the same voltage and current. Confirm the fuseholder and cabling are rated for 225A continuous DC current before wiring it in. Battery and inverter DC circuits carry significant fault energy, so installation should be carried out by a qualified electrician, with the battery bank isolated first.

What's in the box

• 5 x Victron Energy MEGA-fuse 225A/80V
