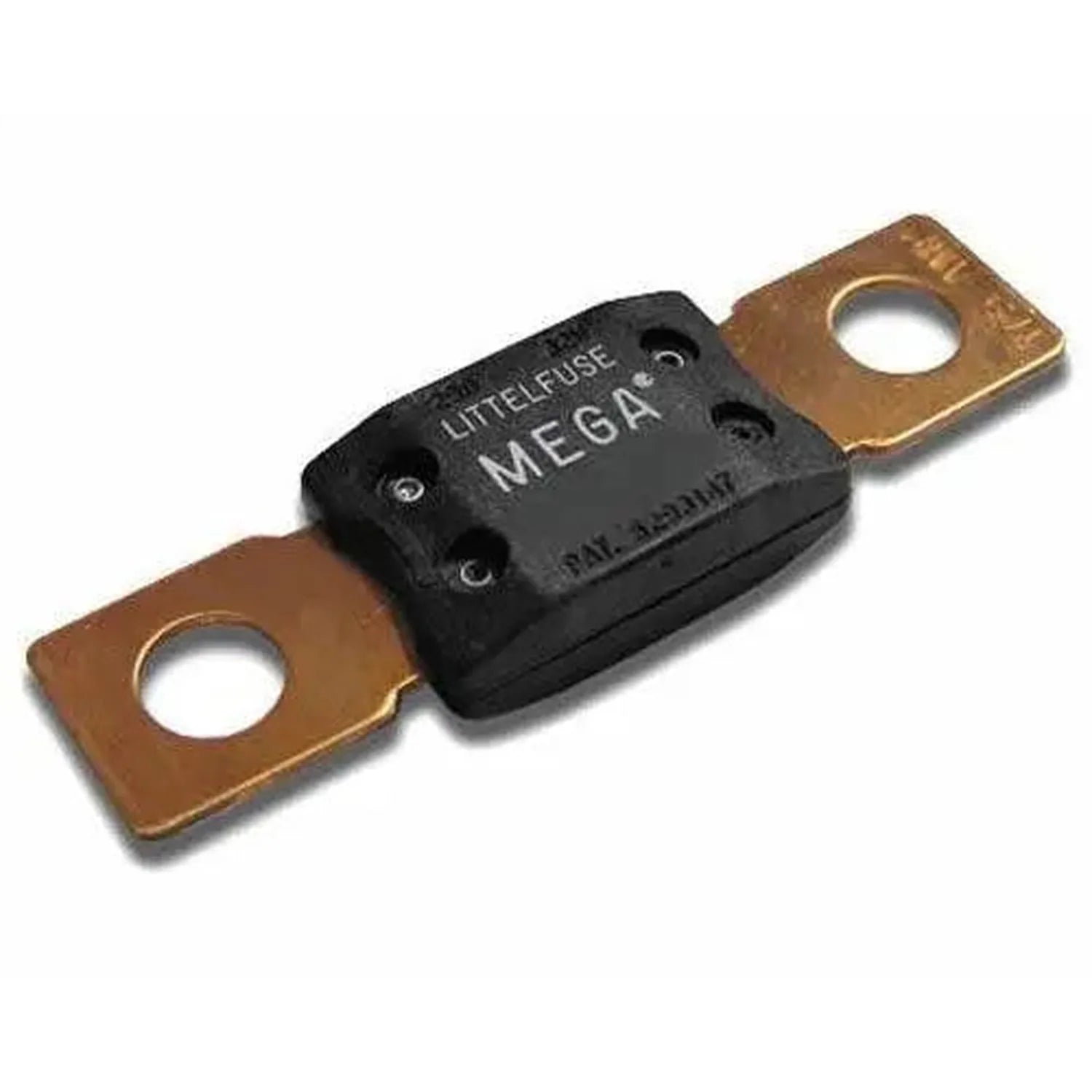

Victron MEGA-fuse 100A/80V DC Blade Fuse Pack of 5 | CIP138100020

The Victron MEGA-fuse 100A/80V is a high-current blade fuse for DC circuit protection in battery systems, inverters and other 12V, 24V and 48V installations. It is supplied as a pack of five, giving installers spare stock for multiple circuits or systems without ordering fuses one at a time.

Key features

• Current rating, 100A continuous
• Voltage rating, 80V DC, covering 12V, 24V and 48V battery systems
• Fuse type, MEGA blade fuse, fits standard MEGA fuseholders
• Pack quantity, 5 pieces
• Weight, 45g per pack
• Ordering codes, SKU CIP138100020, GTIN 8719076061663

Product overview

MEGA-fuses are a common format for protecting DC circuits carrying high continuous currents at relatively low voltages. The 80V rating spans the common battery bank voltages, including 48V nominal systems that can rise higher during charging. At 100A, this fuse suits main battery cables, inverter feeds and DC distribution connections sized for that current.

The MEGA format uses a bolted or clamped connection rather than a push-in blade, so it holds up better under vibration and thermal cycling than smaller blade fuse types. Victron Energy designs these fuses to work with its own range of MEGA fuseholders, keeping dimensions and ratings consistent across the DC protection line.

Applications

Used for main battery cable protection in 12V, 24V and 48V off-grid systems, inverter and inverter/charger DC inputs, DC busbars and distribution boards, marine and motorhome electrical systems, and battery-to-battery charger or DC-DC converter circuits.

What's in the box

• 5 x Victron Energy MEGA-fuse 100A/80V

Installation notes

Fit MEGA-fuses only in a compatible MEGA fuseholder rated for the intended current and voltage, and check that cabling is rated for 100A continuous DC current before wiring. DC work on battery systems carries a risk of arc flash and short-circuit injury, so installation should be carried out by a qualified electrician or competent person. Where a system connects to a solar PV array or grid-tied inverter, relevant UK wiring regulations and G98/G99 requirements should be followed by a suitably qualified installer.
