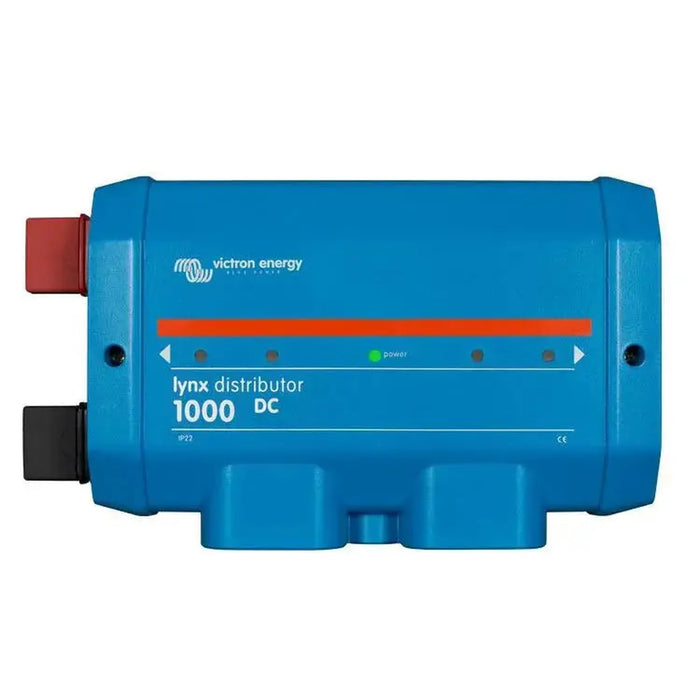

Victron Lynx Distributor M10 DC Busbar Module | LYN060102010

The Victron Lynx Distributor is a DC busbar distribution module built for the Lynx system, giving installers a tidy way to connect multiple DC loads and sources to a central busbar. It is intended for professional battery system installations that need reliable, high-current DC distribution.

Key features of the Victron Lynx Distributor M10

• Terminations, M10 bolt connections for secure, high-current DC cable terminations.
• System integration, connects directly with other Lynx modules, including the Lynx Power In and Lynx Shunt.
• Multiple outputs, provides several fused output connections from a single DC busbar.
• Modular form factor, compact design that lets the system expand with further Lynx modules.
• Voltage range, suitable for 12V, 24V and 48V DC battery systems.
• Fusing, accepts standard ANL or MEGA fuses for overcurrent protection on each output.

How it fits into a Lynx system

The Distributor sits alongside the Lynx Power In module, which handles the main battery connection and fusing, and distributes power to multiple loads or inverters through individually fused outputs. Each output takes its own ANL or MEGA fuse, so a fault on one circuit does not affect the others. That is a tidier and safer arrangement than running several cables straight off a battery terminal block. The M10 bolts suit the heavy-gauge cabling used in high-current DC systems, and the module can be mounted alongside other Lynx components on a DIN rail or panel. Fuses stay visible and replaceable without disturbing neighbouring connections.

Applications

The Lynx platform is common in marine, vehicle and off-grid installations where several inverters, chargers or DC loads draw from one battery bank. The Distributor handles the individual fused circuit outputs within that setup, whether in an off-grid solar system, a boat's electrical installation, a motorhome conversion, or a commercial battery storage system.

Installation notes

Fit by a qualified electrician or experienced system integrator familiar with high-current DC work. Fuses are not included and must be chosen to match each circuit's current rating. Cable sizing, fuse ratings and busbar connections should meet the relevant wiring regulations for the installation, BS 7671 for UK work or the applicable marine or vehicle standard. Systems above 48V need specialist installation.

What's in the box

• 1 x Victron Lynx Distributor (M10), LYN060102010
