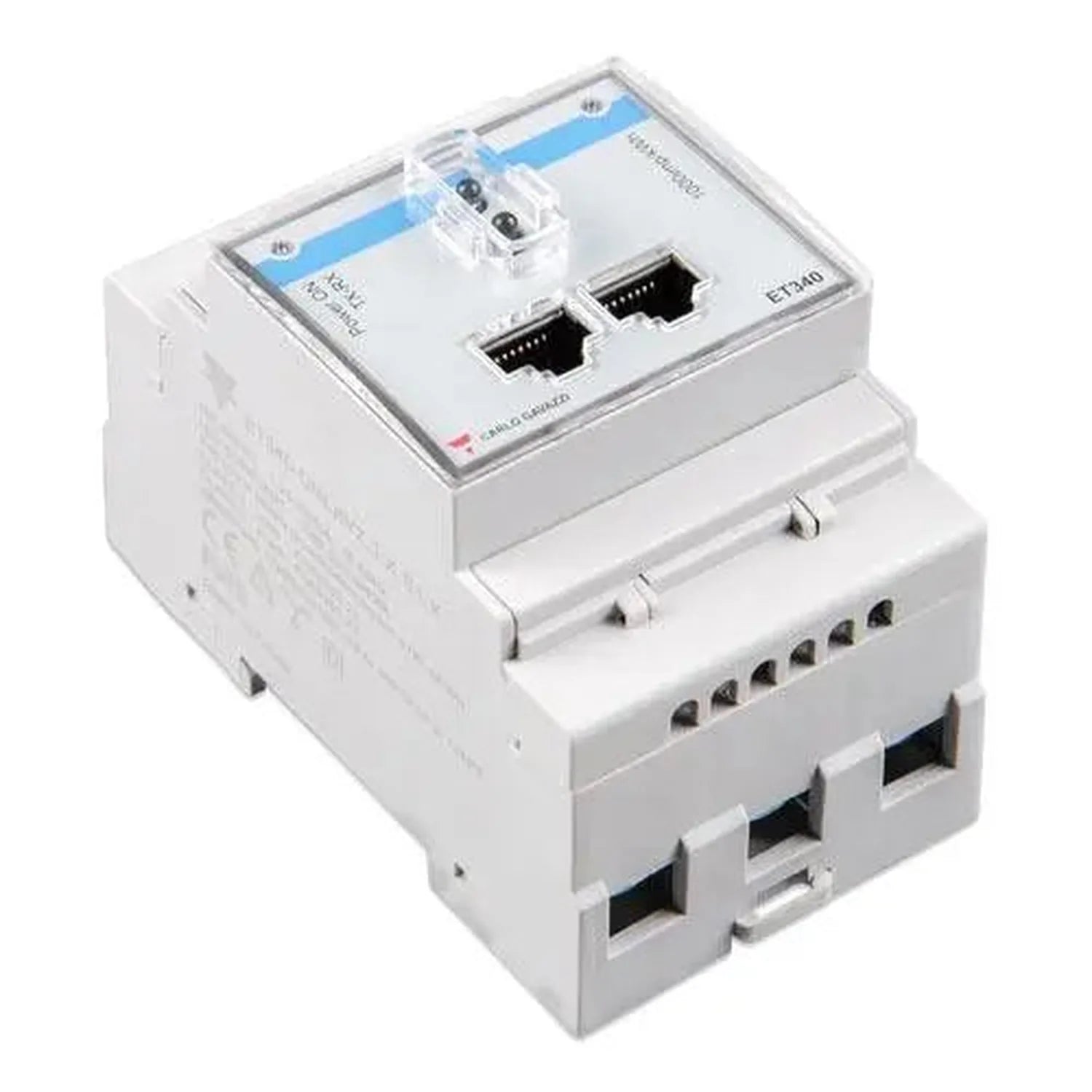

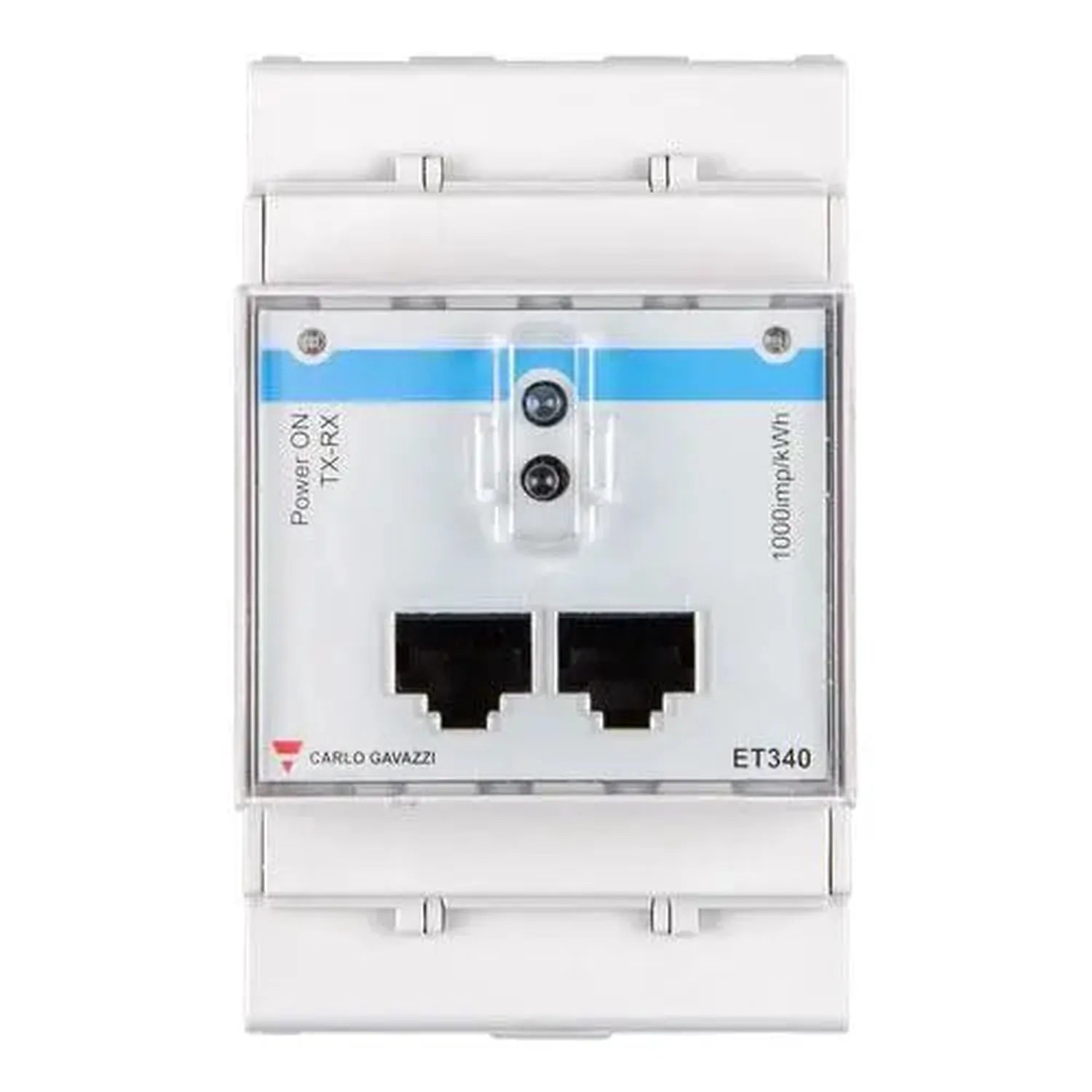

Victron Energy Meter ET340 3 Phase 65A/Phase | REL300300000

The Victron Energy Meter ET340 is a three phase energy meter for tracking AC energy flows in solar, grid and generator systems. It links to a Victron GX device and reports real-time consumption, production and import/export data across all three phases, making it a core part of a three phase victron energy meter setup for professional installers.

Key features

• Measurement range, three-phase monitoring up to 65A per phase.
• Communication, connects to Victron GX devices (Cerbo GX, Color Control GX, Venus GX) via RS-485 Modbus.
• Import/export metering, suited to grid-tied solar installs with feed-in monitoring.
• Flexible role, can be configured as a grid meter, PV inverter meter or load meter within the Victron ecosystem.
• Mounting, DIN rail fitting for a distribution board or enclosure.
• Weight, 0.23 kg, compact enough for standard enclosures.

Product overview

The ET340 connects to a Victron GX device over RS-485 using the Victron USB to RS-485 interface cable, sold separately. Once wired in, the GX device pulls energy data from the meter for display in the VRM portal and on local GX screens, giving a record of grid use, solar yield and load behaviour over time.

Its 65A per phase rating covers most three-phase residential and light commercial jobs without needing external current transformers. Higher-current sites will need CTs and a meter sized to match. As a grid meter it enables ESS functionality on compatible Victron systems responding to grid import and export, which is required for a three-phase ESS installation.

Applications

• Grid metering in three-phase Victron ESS installations for import/export control.
• Monitoring output from third-party three-phase PV inverters on a Victron system.
• Load monitoring on three-phase distribution boards in commercial or industrial sites.
• Retrofitting existing three-phase installations being upgraded with Victron GX equipment.

What's in the box

• 1x Victron Energy Meter ET340 (3-phase, 65A/phase)

Installation notes

Fitting must be carried out by a qualified electrician. This is a direct-connect meter rated to 65A per phase; higher currents need appropriately rated CTs. A USB to RS-485 interface cable is required to link to a GX device and is not included. Keep GX firmware updated for full compatibility, and for grid-connected ESS systems in the UK, follow G98 or G99 requirements as applicable.
