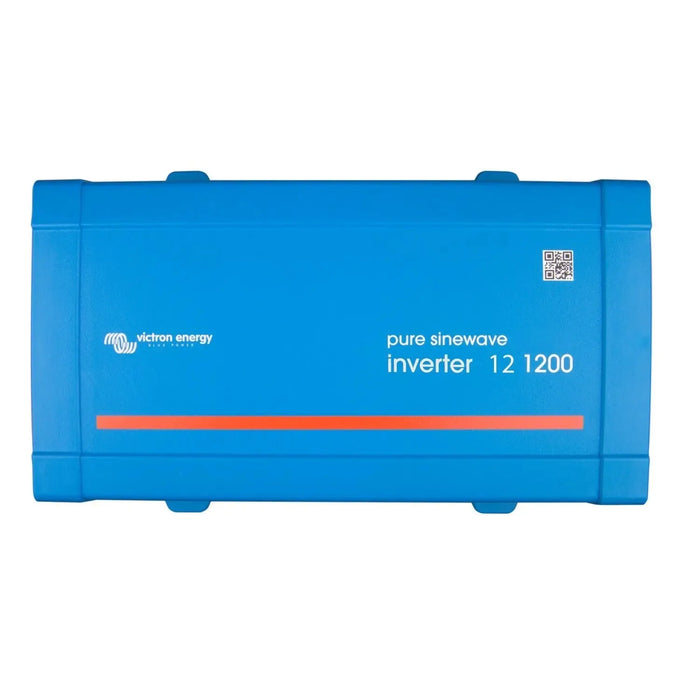

Victron 12/1200 Inverter 230V VE.Direct UK | PIN122121410

The Victron Inverter 12/1200 230V VE.Direct is a pure sine wave inverter that converts 12V DC battery power into 230V AC mains voltage, rated for 1200W continuous output. It suits off-grid installations, vehicle conversions, marine setups and backup power systems where a clean AC supply is needed from a 12V battery bank. The VE.Direct port connects to compatible Victron monitoring devices and displays.

Victron 12/1200 inverter features

• Output, 1200W continuous at 230V AC from a 12V DC input, pure sine wave.
• Monitoring, VE.Direct port for Victron displays, Color Control GX and other compatible hardware.
• Socket, UK plug socket configuration, ready for direct use without adaptors.
• Weight, 7.64 kg, suited to vans, boats, cabins and off-grid enclosures.
• Protection, low battery voltage shutdown, high battery voltage, overload and over-temperature protection.

Where it fits in the range

The 12/1200 sits in Victron's VE.Direct inverter range, between the basic Phoenix range and the full MultiPlus hybrid inverter/charger series. The VE.Direct port allows monitoring and control via a Victron GX device, a BMV battery monitor, or the VictronConnect app through a VE.Direct to USB or Bluetooth dongle. For a monitored off-grid or backup system on a budget, that integration matters.

At 1200W continuous output the unit powers lighting circuits, small appliances, power tools and similar loads from a 12V battery bank. It will not sustain high-draw loads such as electric kettles or large compressors for extended periods, so load planning matters. The pure sine wave output suits inductive loads such as motors and equipment needing a clean AC waveform.

This is a DC to AC inverter only, with no built-in battery charger or solar charge controller. It is intended to work alongside a suitable charger or solar input as part of a wider system.

Applications

• Off-grid cabins and outbuildings powered by a 12V battery bank with solar or generator charging.
• Campervan and motorhome conversions needing 230V AC from the leisure battery.
• Marine installations requiring 230V AC from a 12V DC battery system.
• Backup power for small offices, workshops or domestic circuits during outages.
• Mobile work vehicles needing 230V AC for tools from a 12V auxiliary battery.

Installation notes

Connect this inverter to a 12V DC battery bank with appropriately rated DC cabling and fusing. High DC currents are present at 1200W output, and incorrect cabling or fusing is a fire risk, so installation should be carried out by a qualified electrician or experienced system integrator. The AC output does not carry G98 or G99 grid-tie approval and is not intended for connection to the public grid. Allow adequate ventilation around the unit to prevent thermal shutdown under sustained load.
