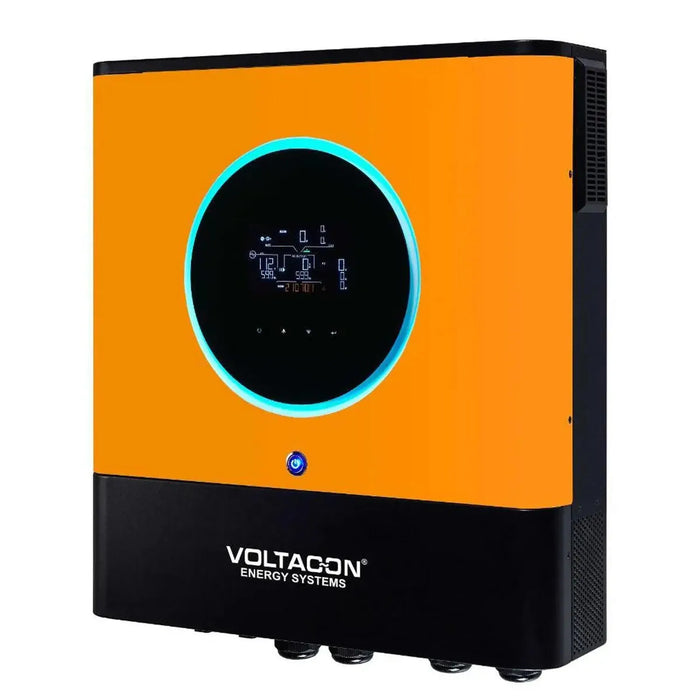

Voltacon Energy Systems inverter charger with bright orange front panel, cyan circular display ring, and black lower section

8kW Off Grid Inverter Charger 150A MPPT | Conversol Max-II

£1,168.60
Skip to product information
Voltacon Energy Systems inverter charger with bright orange front panel, cyan circular display ring, and black lower section

8kW Off Grid Inverter Charger 150A MPPT | Conversol Max-II

Vendor
Voltacon
SKU
002134
Availability
In stock
Weight
24.0 kg

£1,168.60inc VAT £973.83exc VAT

Delivery from £10.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Conversol Max-II 8kW is an off grid inverter charger with dual MPPT solar input and time-controlled charging. It delivers 8kW continuous output with 16kVA surge capacity, pairing a pure sine wave inverter with a solar and AC charger in one unit for off-grid and backup power systems.

Key features of this 8kW off grid inverter

  • Output, 8kW continuous, 16kVA surge capacity
  • Solar charging, 150A combined MPPT current across dual MPPT inputs, up to 8kW total PV capacity
  • Time-controlled charging, schedule AC charging from grid or generator during off-peak hours
  • Battery input, 48V, compatible with lithium and lead-acid batteries
  • Parallel operation, up to 6 units
  • Communication, USB, RS232, RS485, Wi-Fi and dry contact

Product overview

The Max-II builds on the Conversol off-grid platform with programmable time-charging added. The dual MPPT charger operates between 90V and 450VDC, with an open circuit limit of 500VDC, covering a wide range of PV string arrangements.

The 150A MPPT charging current suits large battery banks where fast solar charging matters. Paralleling up to 6 units lets the platform scale to larger off-grid requirements.

Applications

Suited to off-grid homes, commercial and industrial energy storage, backup power systems with grid or generator input, agricultural and rural off-grid installations, and systems needing programmable charge scheduling.

What's in the box

  • Conversol Max-II 8kW off-grid inverter/charger unit
  • Communication cable and accessories
  • User manual

Installation and safety notes

Installation must be carried out by a qualified electrician or accredited solar installer. Correct DC cable sizing, fusing and battery isolators are mandatory at 48V high-current levels. Time-charging functions must be configured correctly to avoid unintended battery overcharge. Read the installation manual in full before commissioning.

Technical Specifications 35 rows Show
MODELConversol MAX II 8000
RATED POWER8000VA/8000W
PARALLEL CAPABILITYYES, 6 units
INPUT
Voltage230 VAC
Selectable Voltage Range170-280 VAC (Computers) / 90-280 VAC (Home Appliances)
Frequency Range50/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)230VAC ± 5%
Surge Power16000VA
Efficiency (Peak)93%
Transfer Time15 ms (Computers) / 20 ms (Home Appliances)
WaveformPure sine wave
No Load Power Consumption<75W
BATTERY
Battery Voltage48 VDC
Floating Charge Voltage54 VDC
Overcharge Protection66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger TypeMPPT
Maximum PV Array Power8000W (4000W x 2)
MPPT Range @ Operating Voltage90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage500 VDC
Maximum Solar Charge Current150A
Maximum AC Charge Current120A
Maximum Charge Current150A
PHYSICAL
Dimension, D x W x H (mm)158.4 x 503.6 x 530.8
Net Weight (kgs)20
Communication InterfaceUSB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity5% to 95% RH (Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
ComplianceCE

Manufacturer datasheet. Figures as published by the manufacturer.

  • 5 stars: 4 (80%)
  • 4 stars: 1 (20%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Ciprian
Off grid in Romania

We powered our countryside house in Romania so far we run all our appliances without problem it seems that another one will be added in parallel

P
Peter
Fast mppt

A bit noisy when I have full sun but in the end it is 8kw and must cool down the electronics

I had extended the warranty for £170 to 5 years

A
Allison
No problems so far

No issues

J
Jack I.
Octopus easy to use

I use with octopus go, I saved around 60% on electric, The ac charger timer is very useful if you have octopus I use with octopus go.

M
Michael M.
Monitoring needs improvement

I used WatchPower which needs major improvement . In the end Solar assistant was a better software for me
