4ft LED Batten Light 36W 120cm Linkable Frosted IP40 | Triumph
- Vendor
- Ledison
- SKU
- 222572
- Availability
- In stock
- Weight
- 0.694 kg
£54.59inc VAT £45.49exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

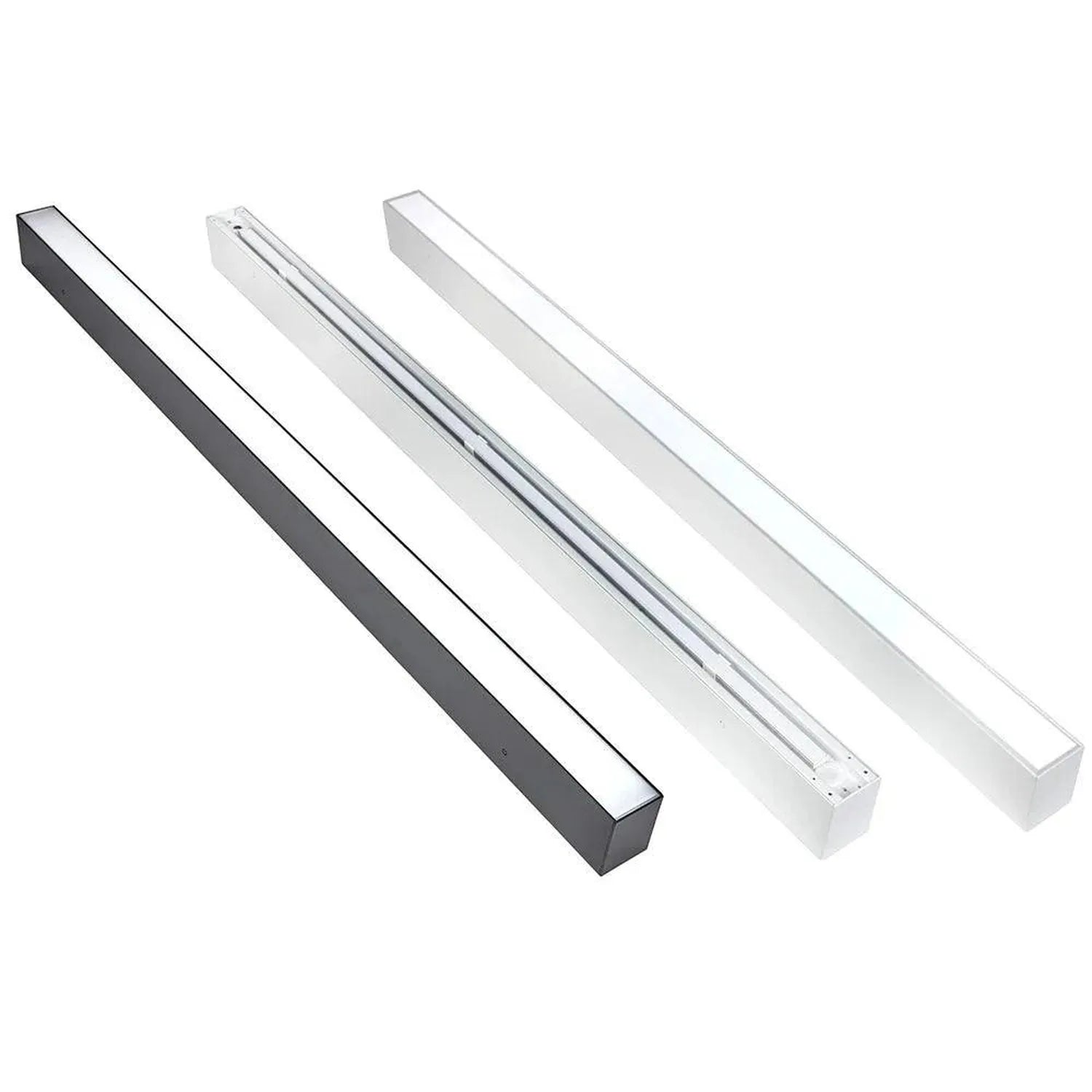

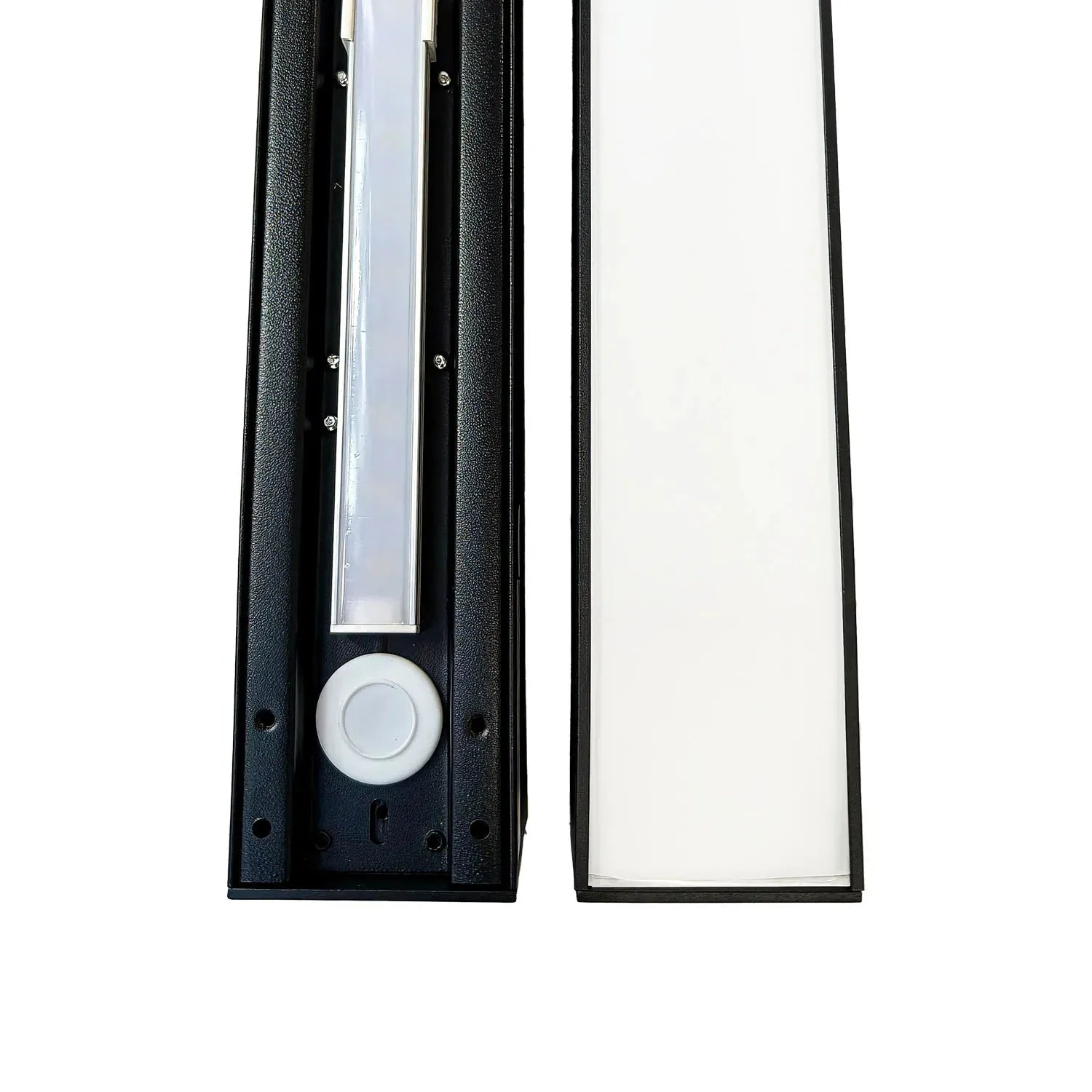

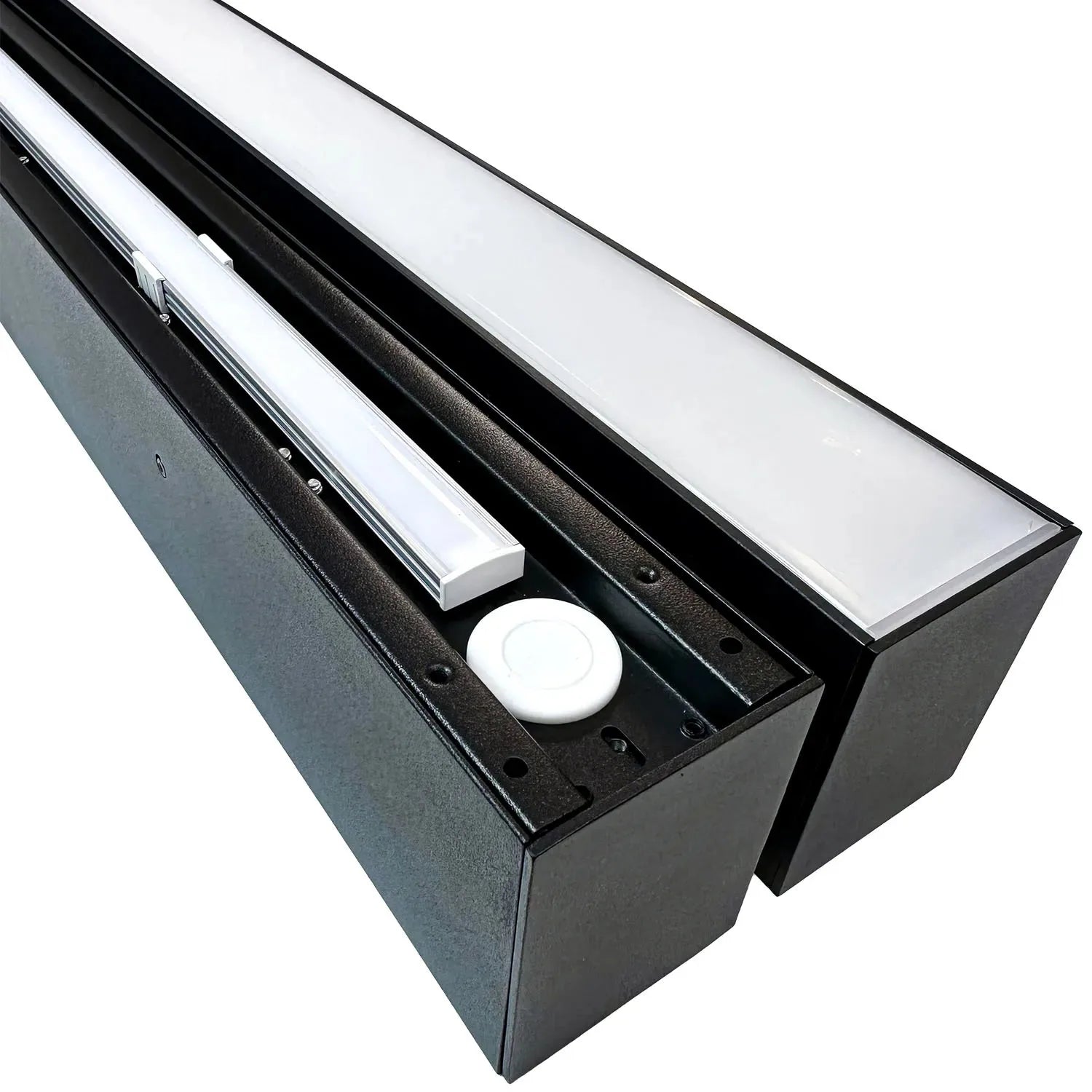

The Triumph is a 36W LED batten light, 120cm long, with a frosted diffuser over SMD LEDs. It is linkable, so several fittings can be joined into one continuous run, and it comes in a black or white finish. Workshops, garages and utility rooms are where it fits best.
4ft LED batten light features
- Power: 36W at 110 lm/w, with a luminous flux of 3700~3950lm
- Beam angle: 120 degrees
- Colour rendering: CRI >80
- Protection ratings: IP40 and IK06
- Supply: AC220-240V with a built-in LED driver
- Body: aluminium housing that keeps the LEDs cool, 1204*56*75 mm and 2.75 kg, rated for a 50,000h lifetime
Mounting and linking

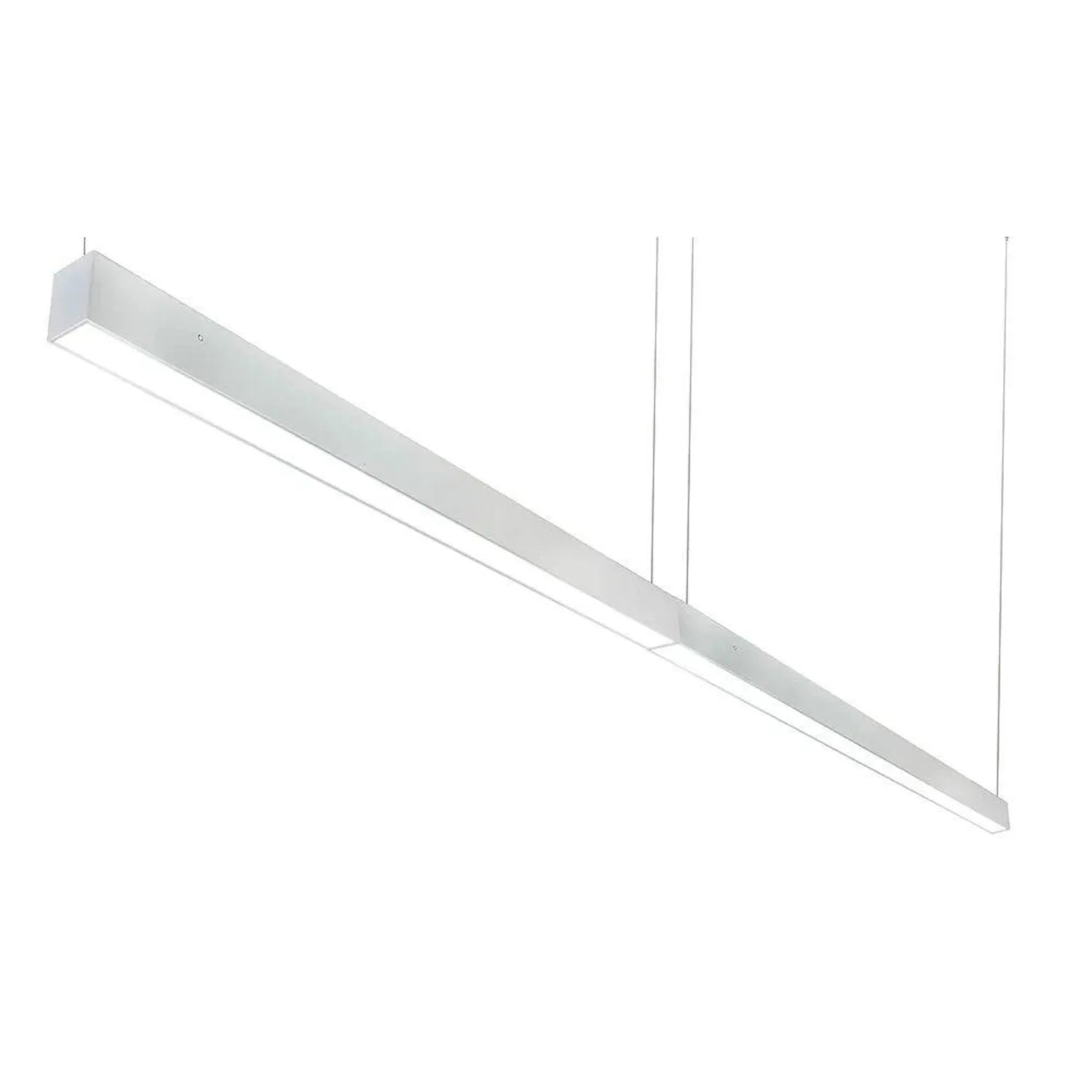

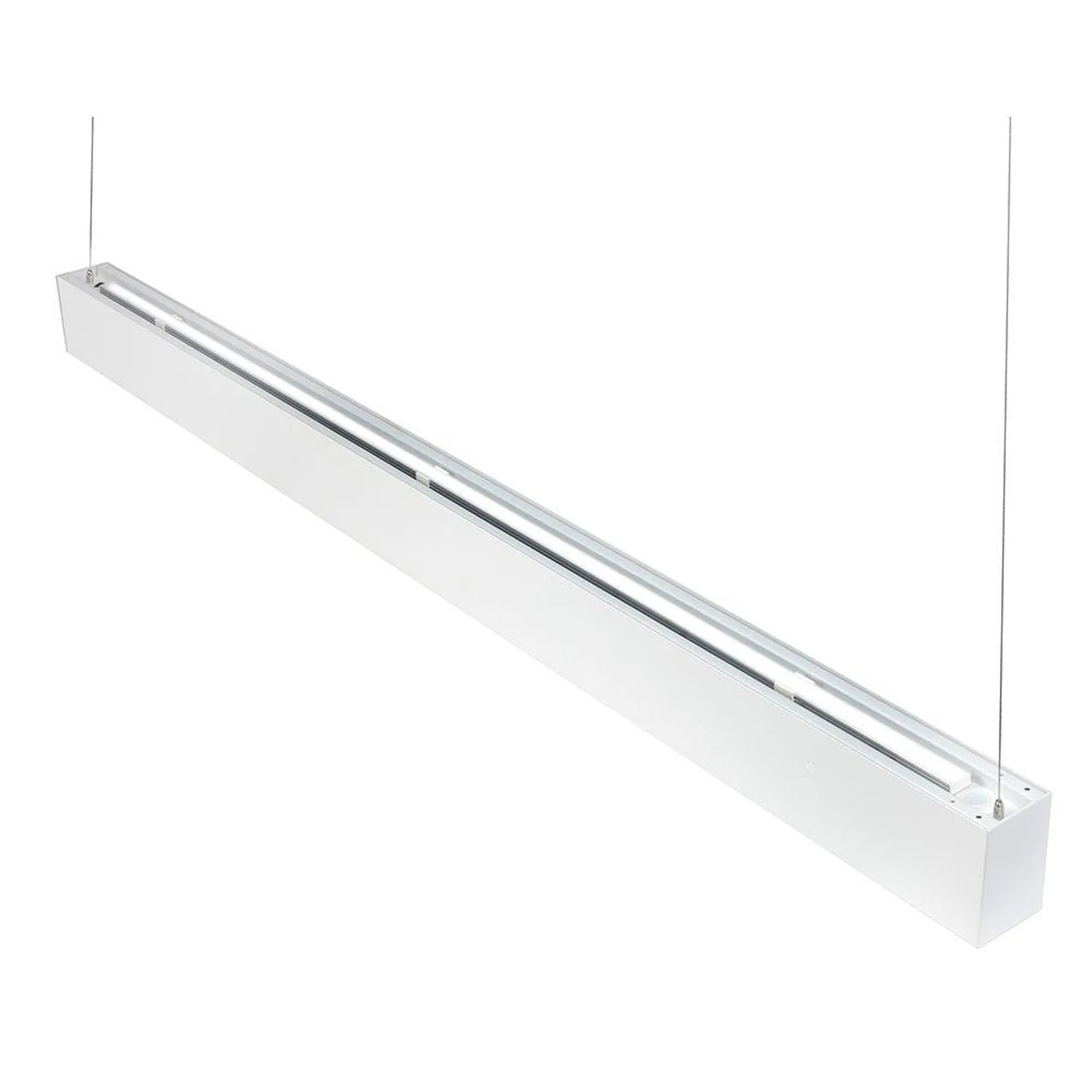

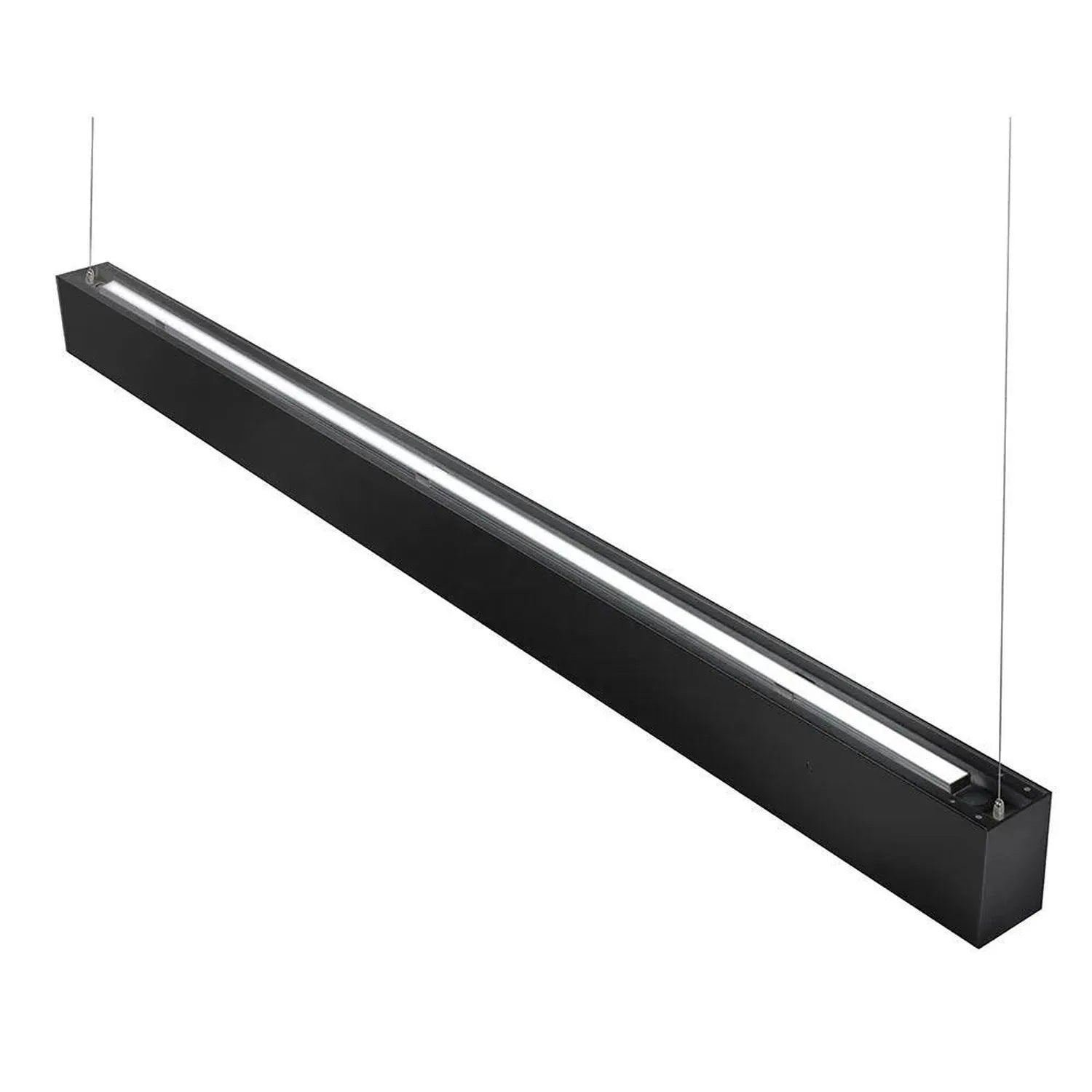

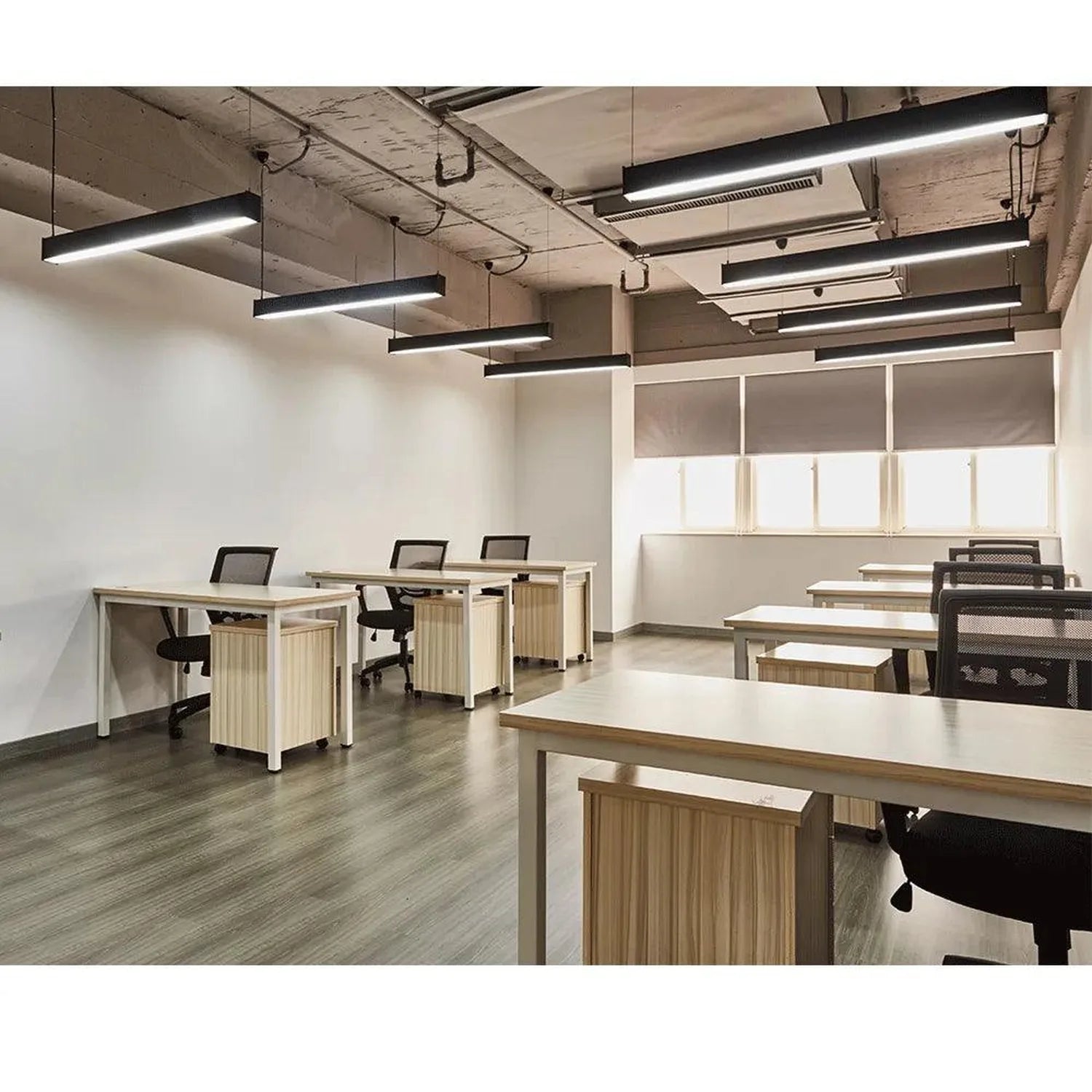

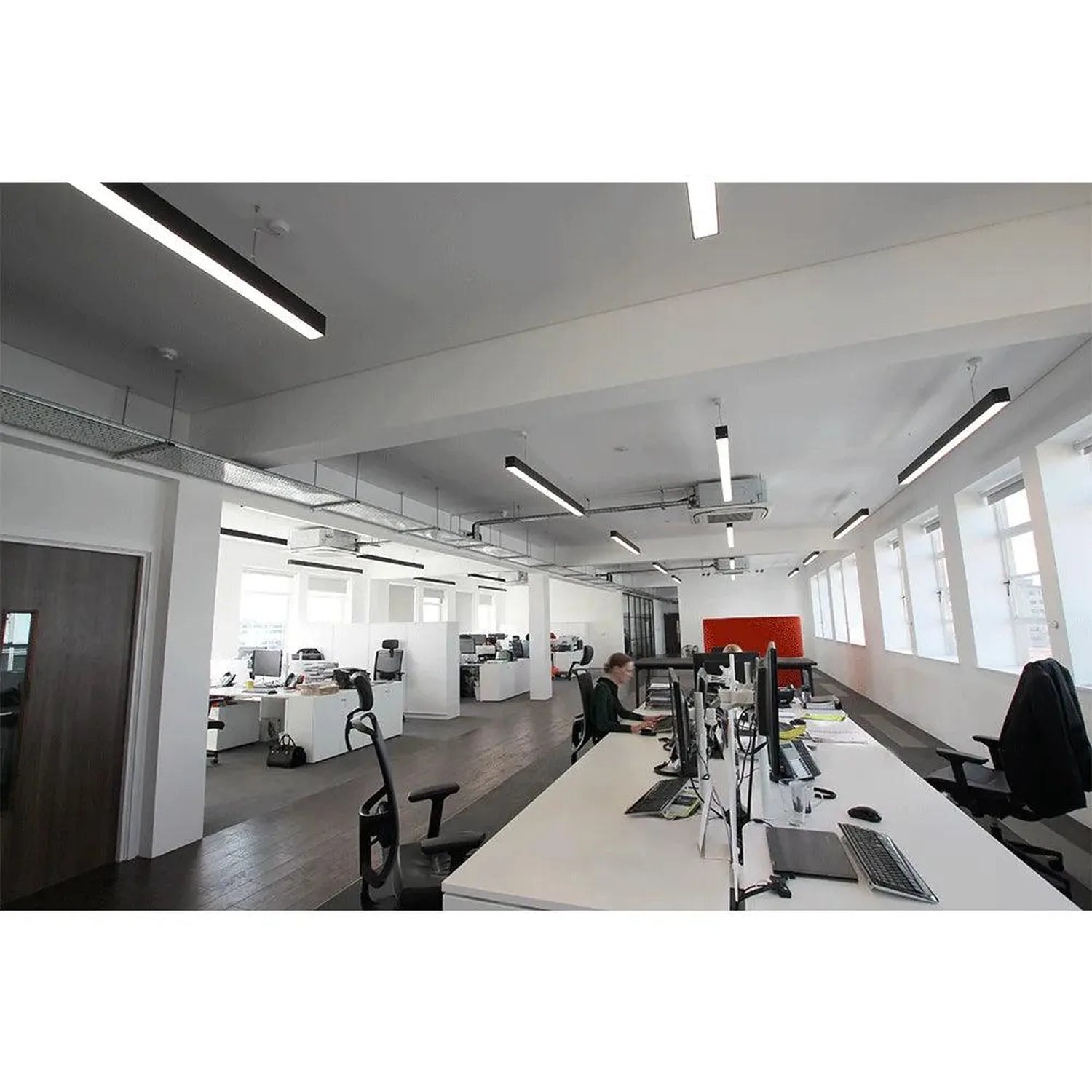

You have several ways to fit it. Suspend it as a pendant on steel rope or a round ceiling plate, fix it directly to a ceiling or wall surface, or choose recessed or track installation.

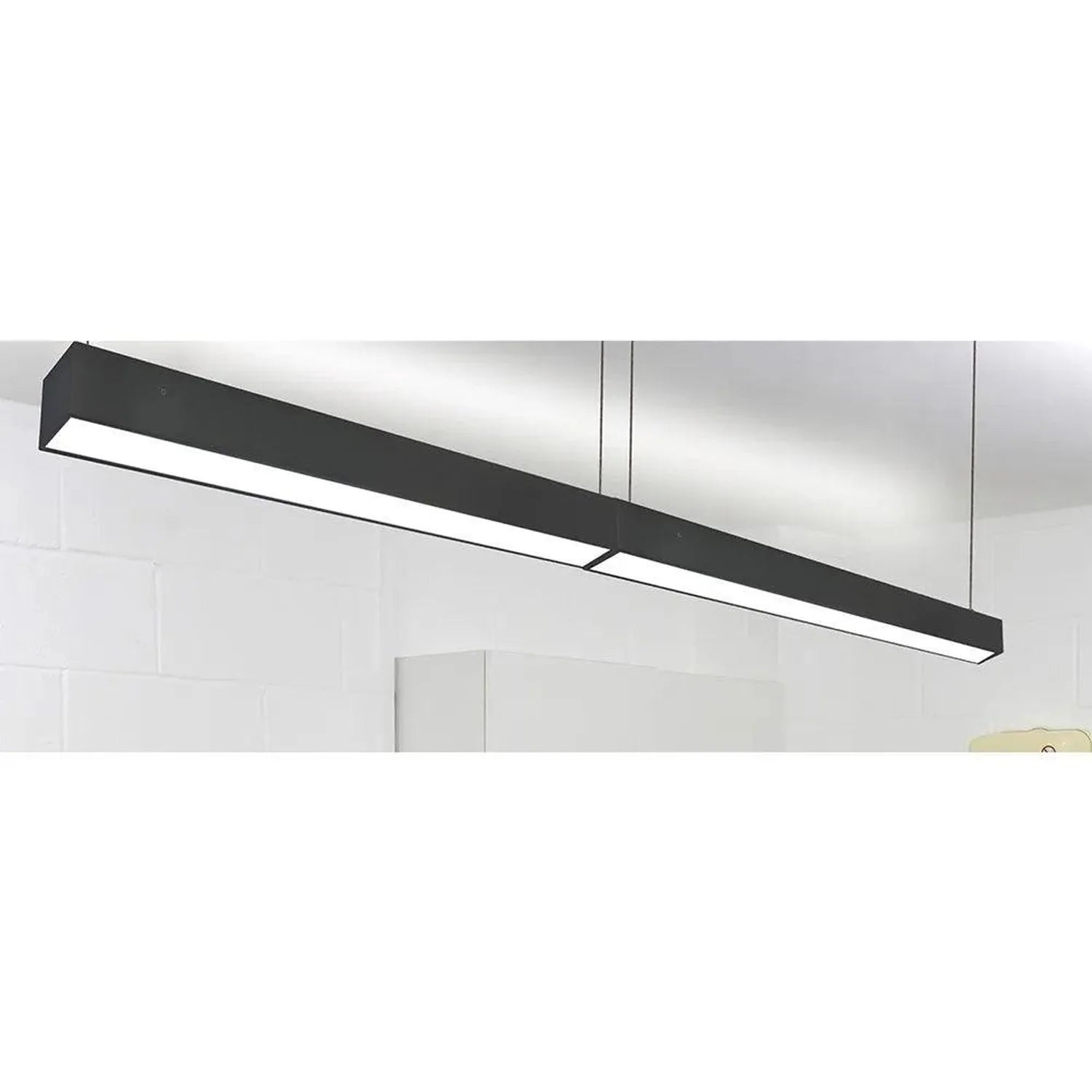

Each fitting is a standard 1.2 metre length. Link more together and you get a single run several metres long. L-shape, T-shape and cross connectors handle corners and junctions, so a layout can follow the shape of the room rather than a straight line.
Other versions
DALI or 0-10V dimmable versions are offered on demand. So is an emergency version, which uses a 3W emergency output with a battery duration of 3hrs.
Where to use it

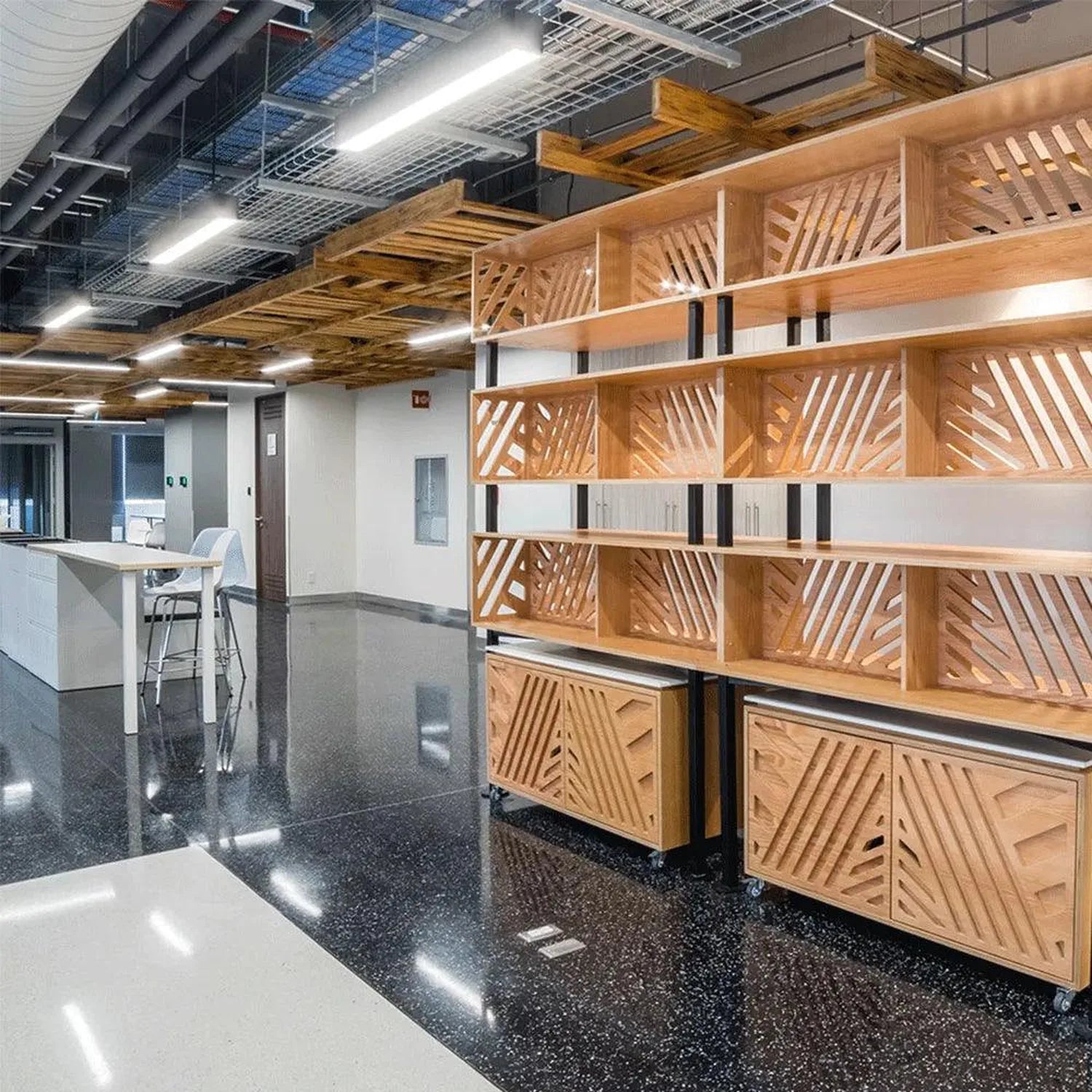

The IP40 rating makes this an indoor fitting. Typical spaces are workshops, utility rooms and garages, along with other suspended installations that need an even spread of light across a long ceiling.
Technical Specifications 26 rows Show
| Model | DB66A-1200-36W |
| Fitting | LED Batten, Triumph |
| Wattage | 36W |
| Luminous flux | 3700~3950lm |
| Typical efficiency | 110 lm/w |
| Colour rendering index | >80 |
| Beam angle | 120 |
| Input voltage | AC220-240V |
| Power factor | 0.9 |
| IP rating | IP40 |
| IK rating | IK06 |
| Dimensions | 1204*56*75 |
| Product weight | 2.75 kg |
| Material | PC / Aluminum |
| Lifetime | 50,000h |
| Operating temperature | -20 ~45 |
| Emergency version | 3W, battery duration 3hrs |
| LED | SMD |
| SDCM | <6 |
| LED driver | Built-in |
| Frequency | 50/60Hz |
| Rated input current | 0.26A |
| Driver efficiency | 87% |
| Glow wire test | 750 |
| Storage temperature | -20 ~65 |
| Protection | Short circuit, over voltage and over temperature protection |
Manufacturer datasheet. Figures as published by the manufacturer.
