4ft LED Batten Light 36W 120cm Reflector Linkable 4000K UGR<19 | Triumph
- Vendor
- Ledison
- SKU
- 222573
- Availability
- In stock
- Weight
- 0.694 kg
£54.59inc VAT £45.49exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

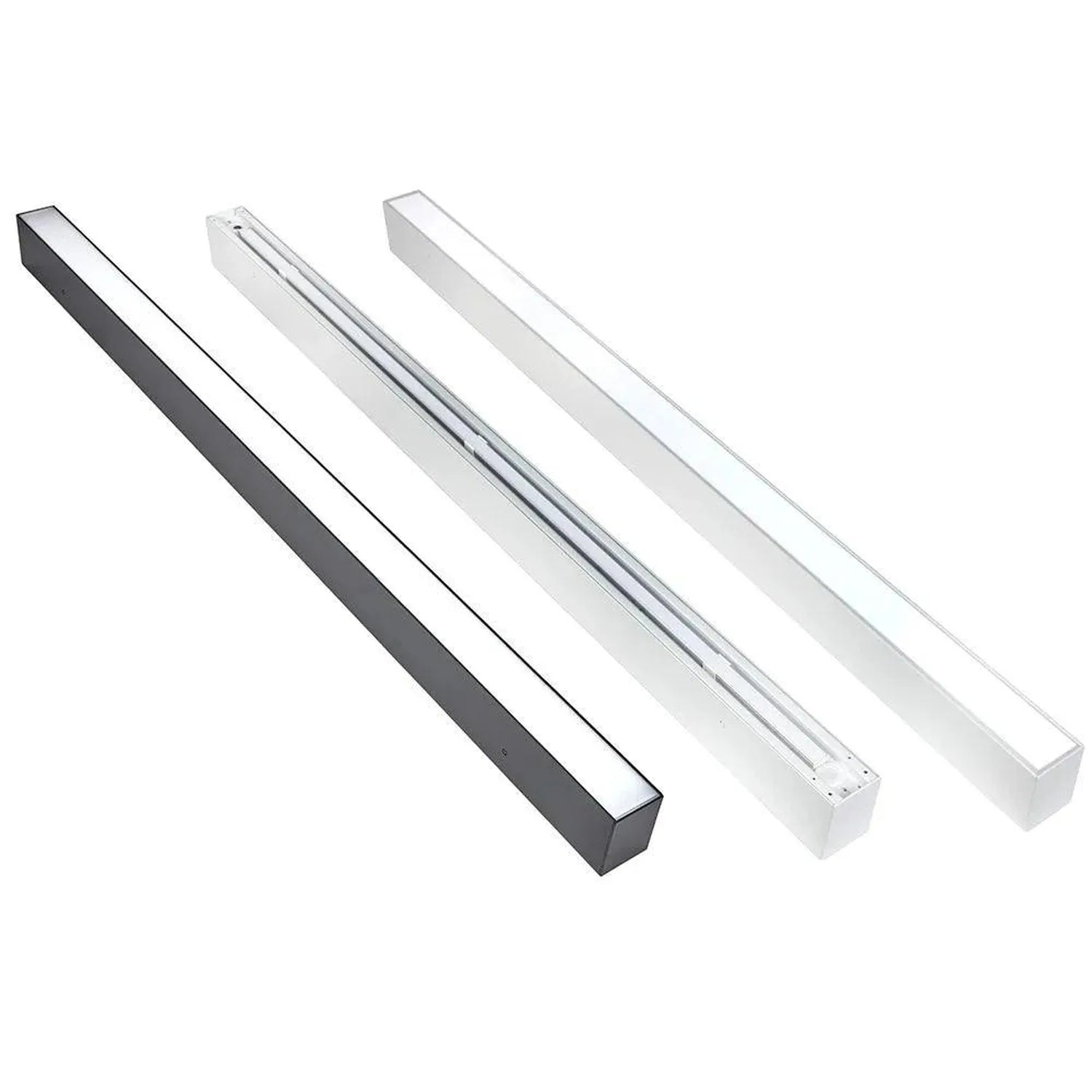

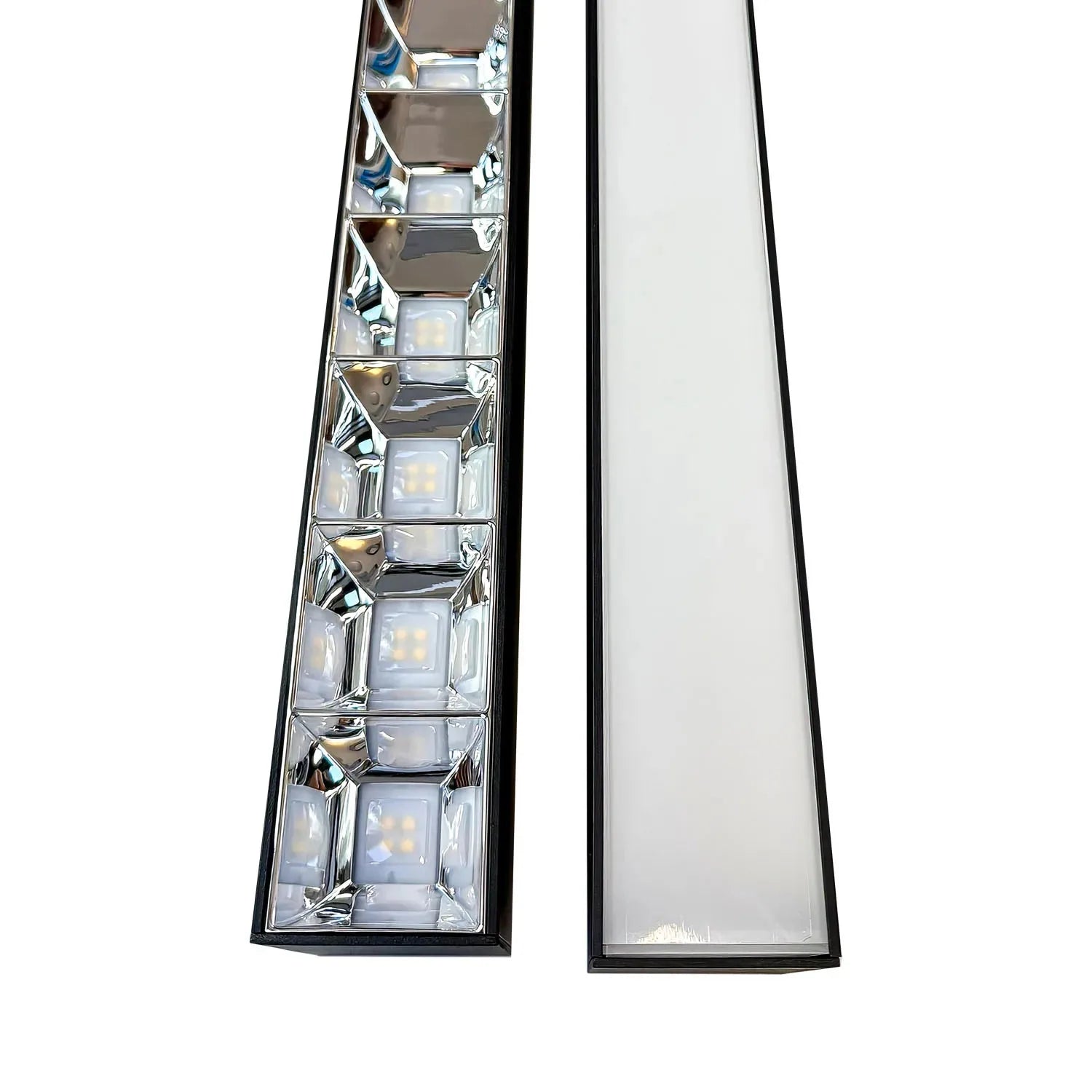

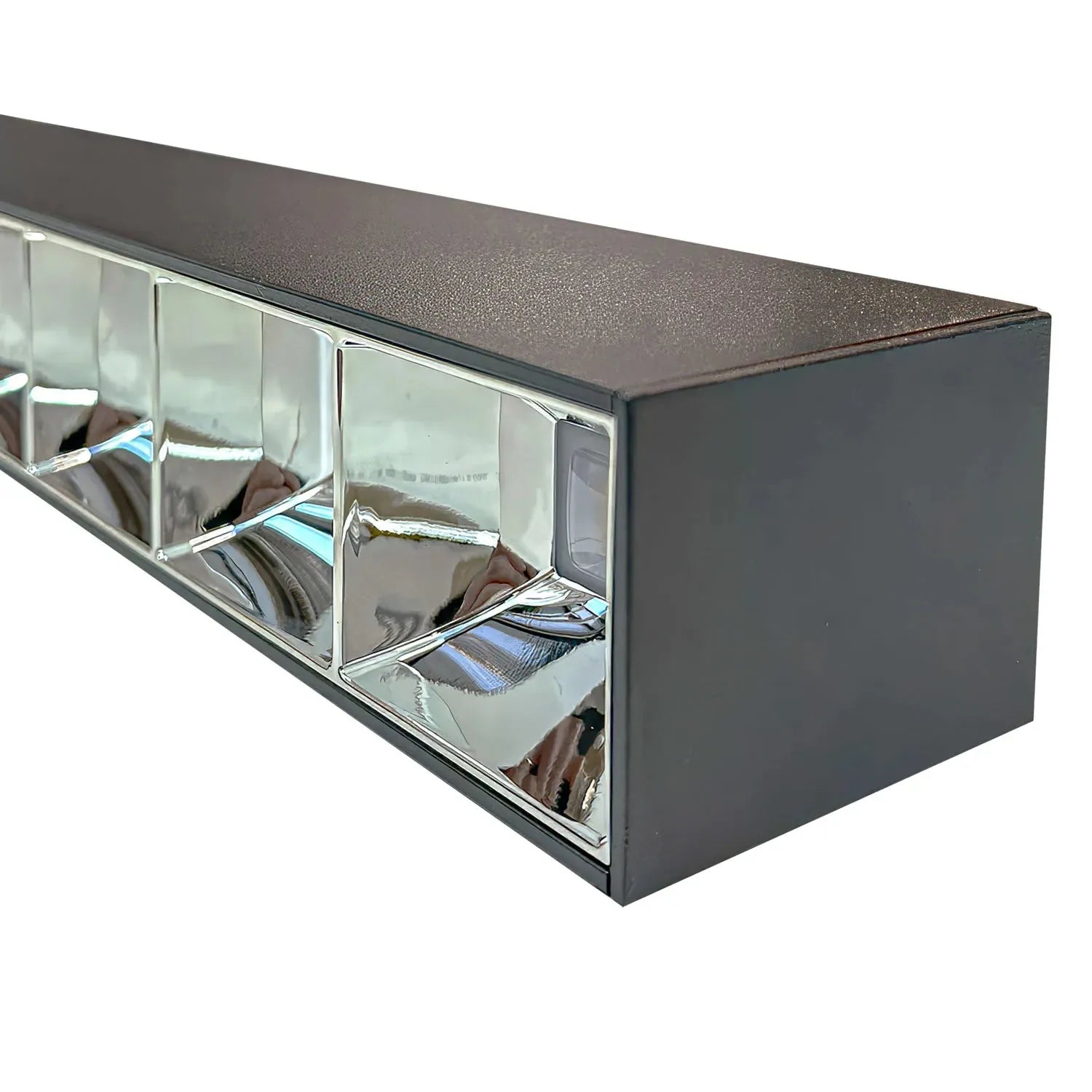

This Triumph 4ft LED batten light pairs a 36W output with a reflector and an anti-glare design rated UGR<19. It produces 3700~3950 lumens at 4000K, and several fittings can be linked into a single continuous run. It comes in black or white.
Linkable LED batten light features
- Output: 36W, 3700~3950 lumens, 110 lm/w
- Light quality: 4000K, colour rendering index >80, 60 degree beam angle
- Glare control: anti-glare design, UGR<19

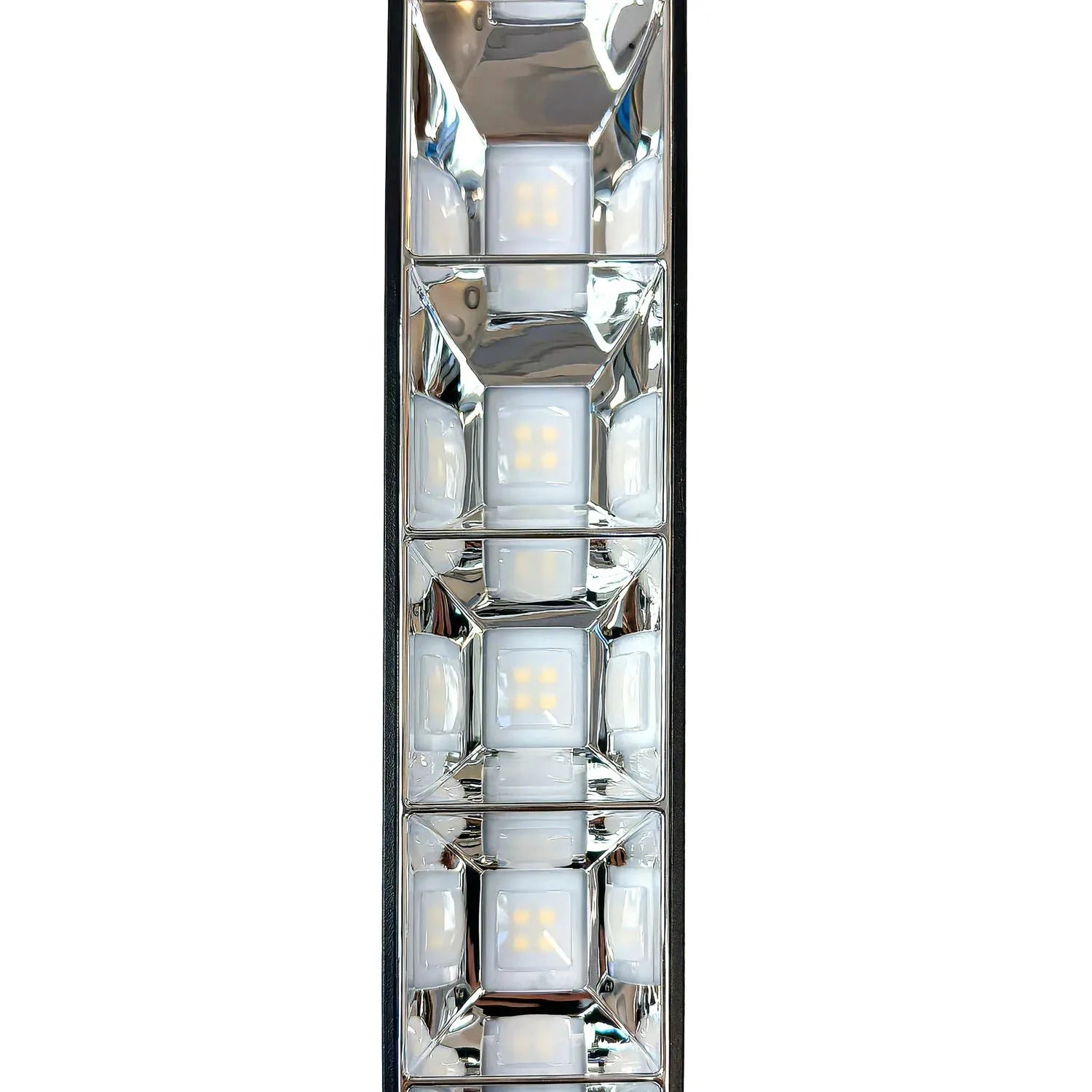

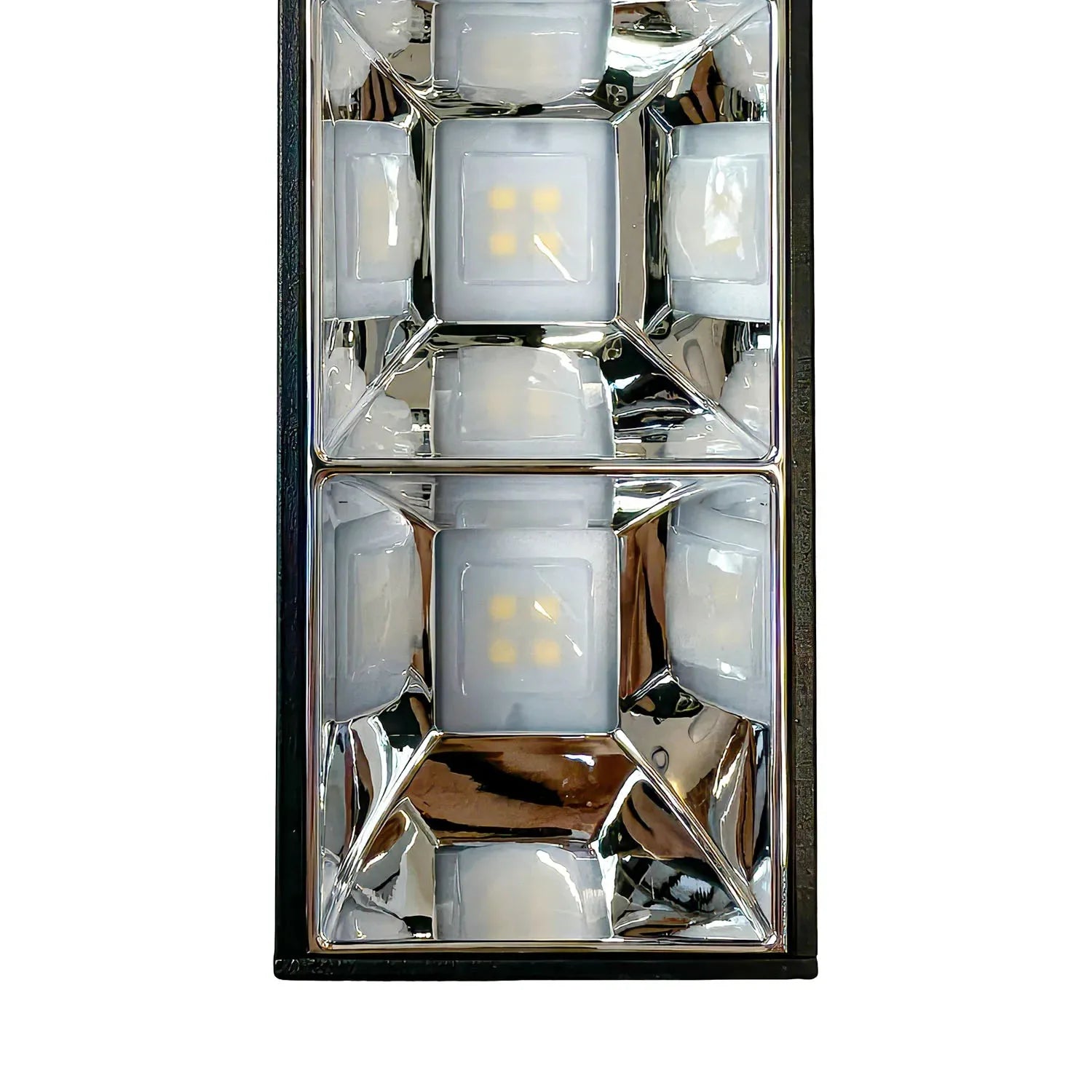

- Construction: aluminium body to keep the SMD LEDs cool, IP40 and IK06 rated
- Supply: AC220-240V input with a built-in LED driver
- Size: 1204*56*75 mm, 2.75 kg, 50,000h lifetime
Mounting and linking

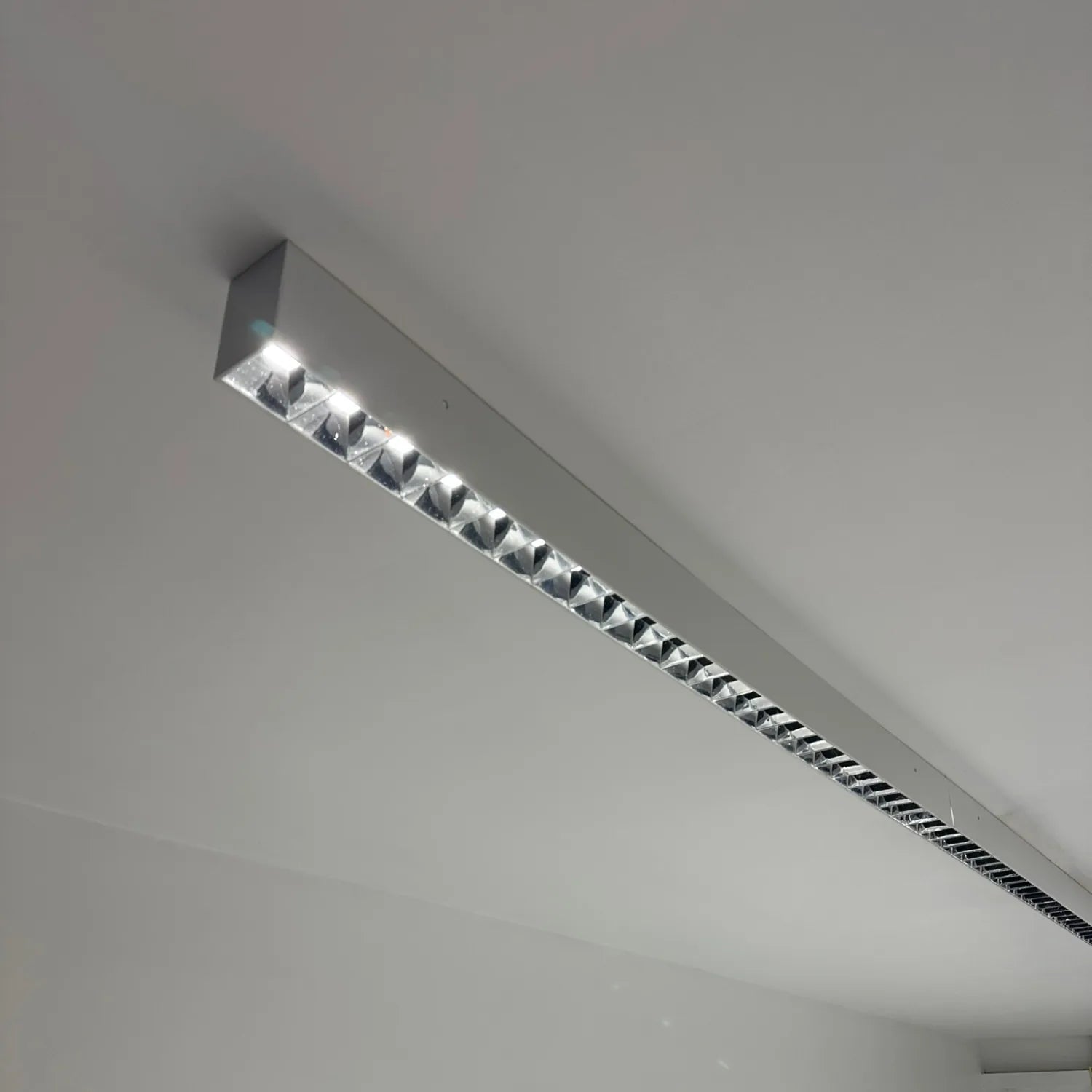

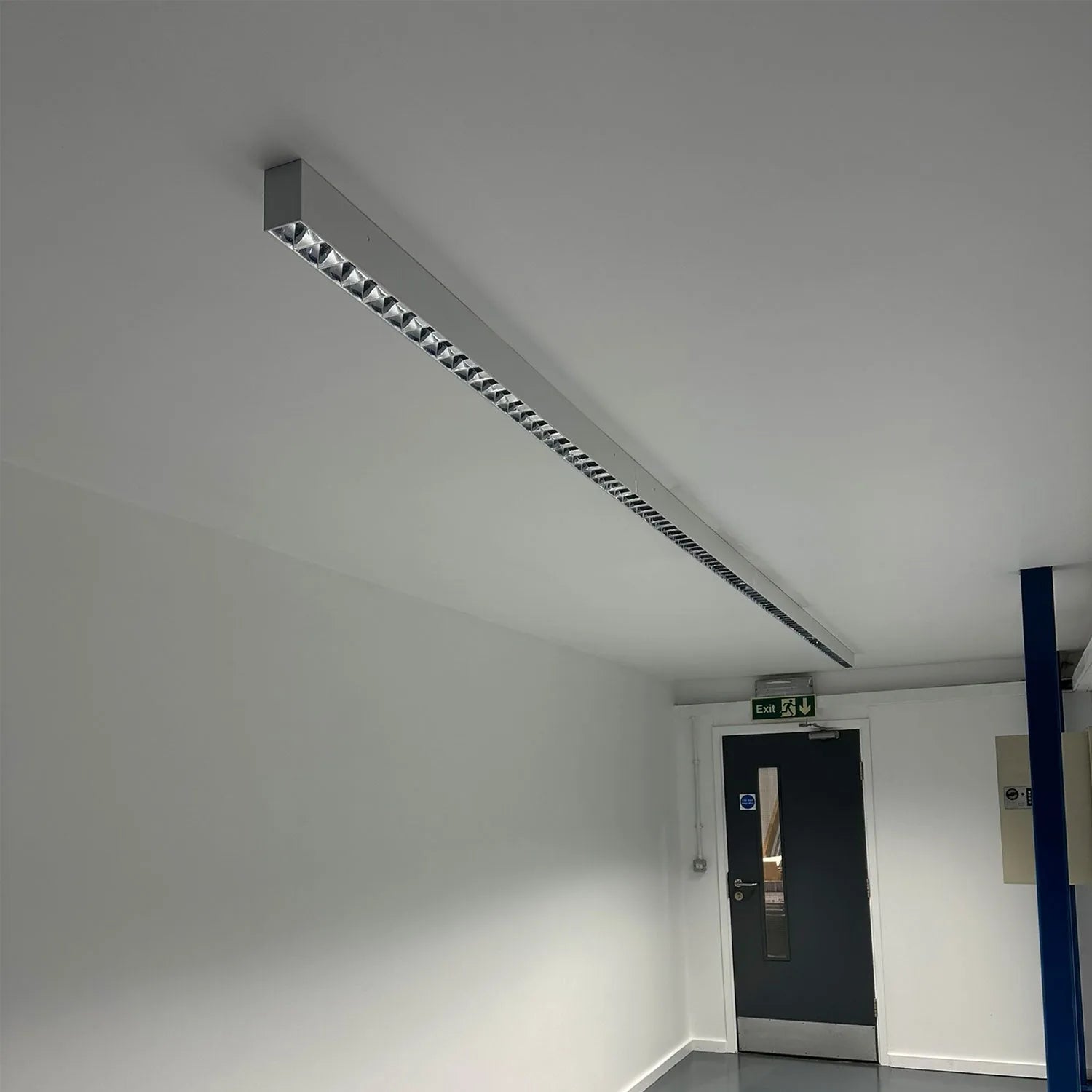

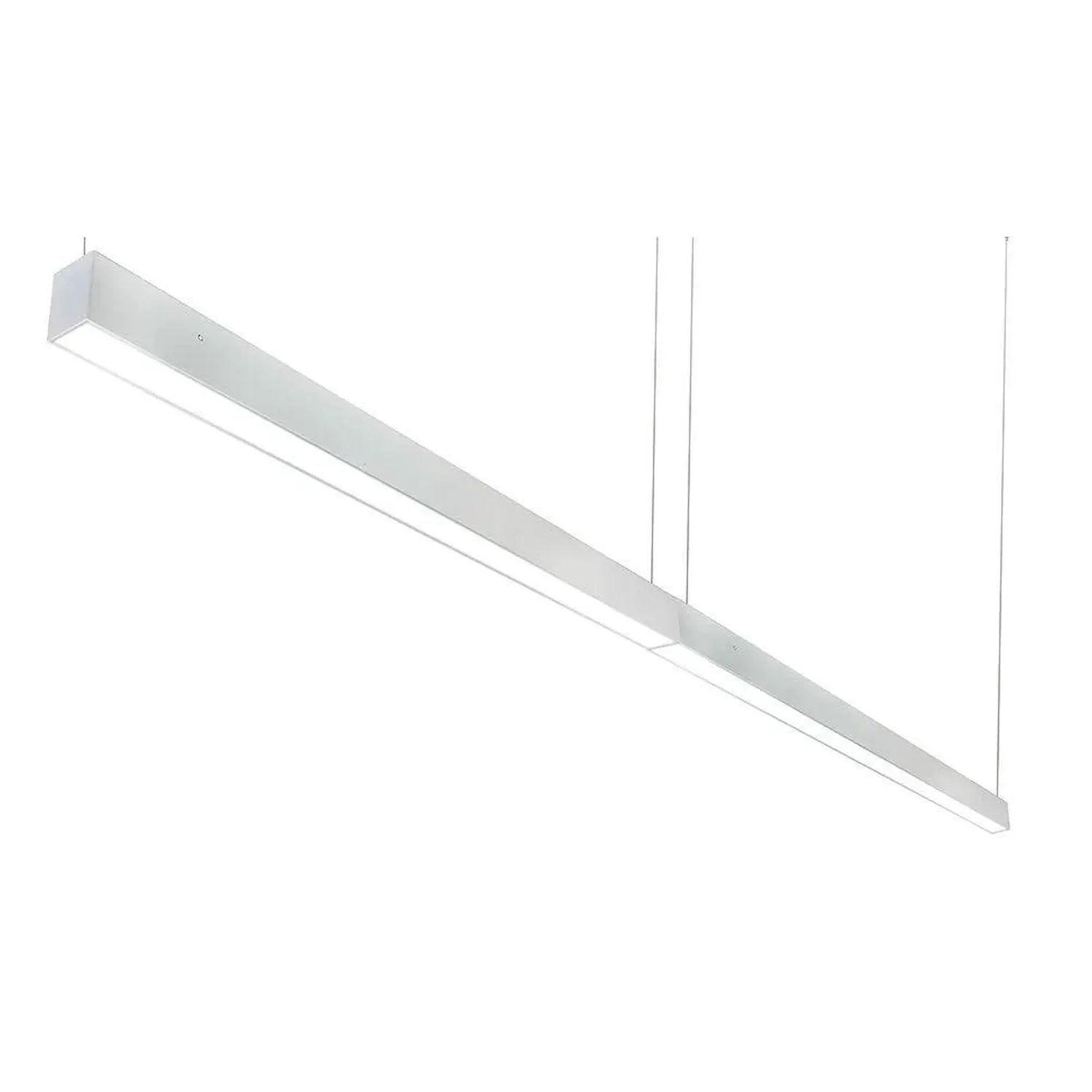

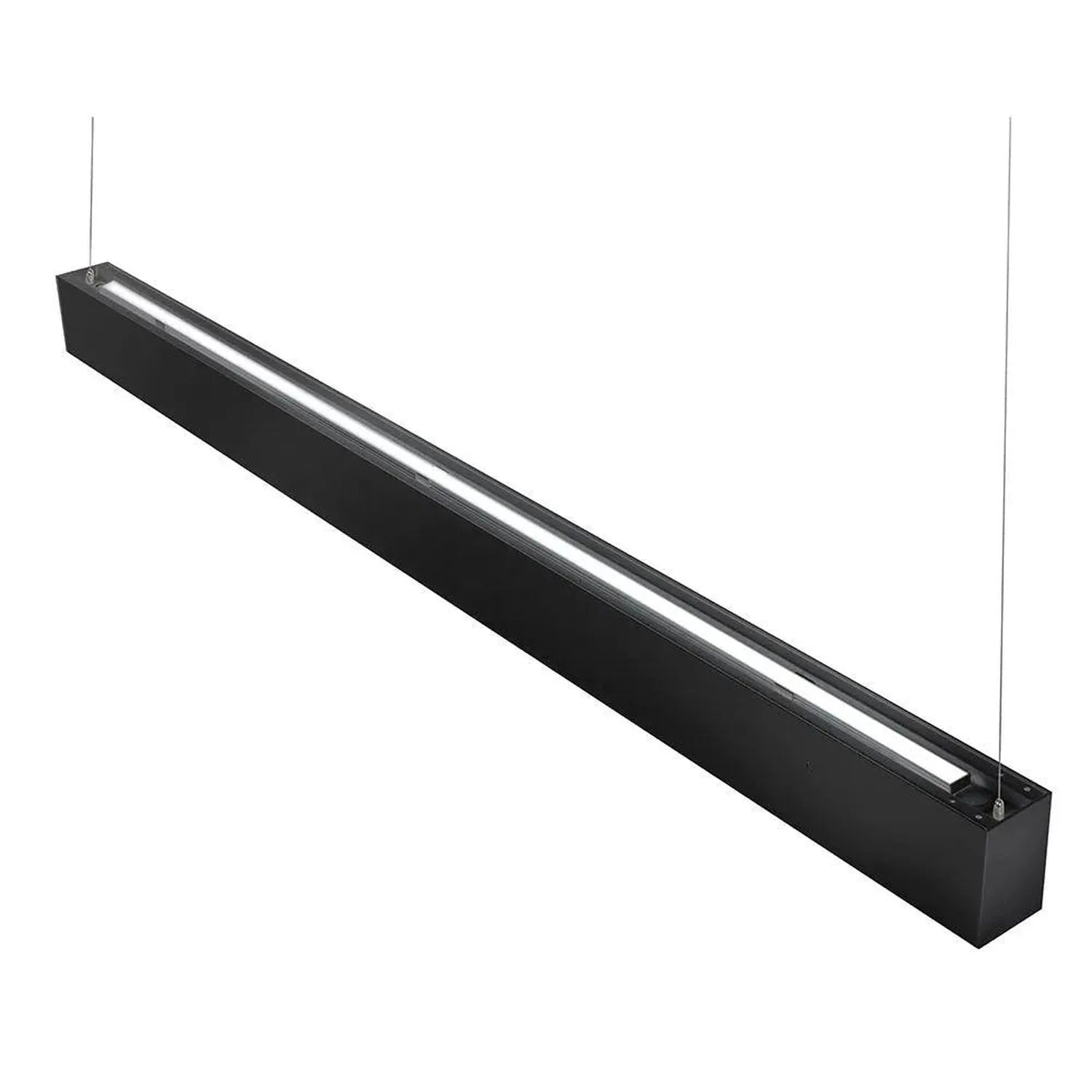

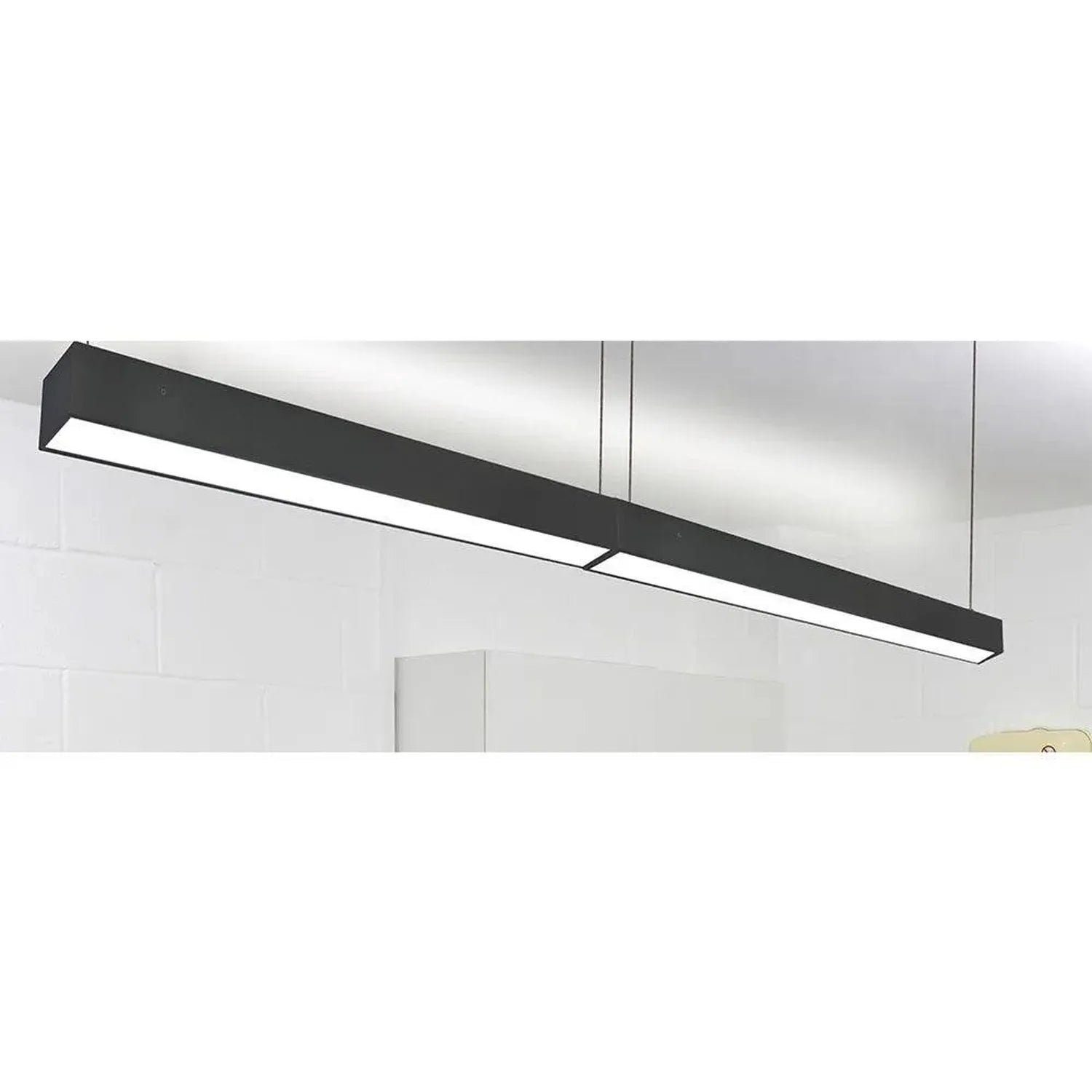

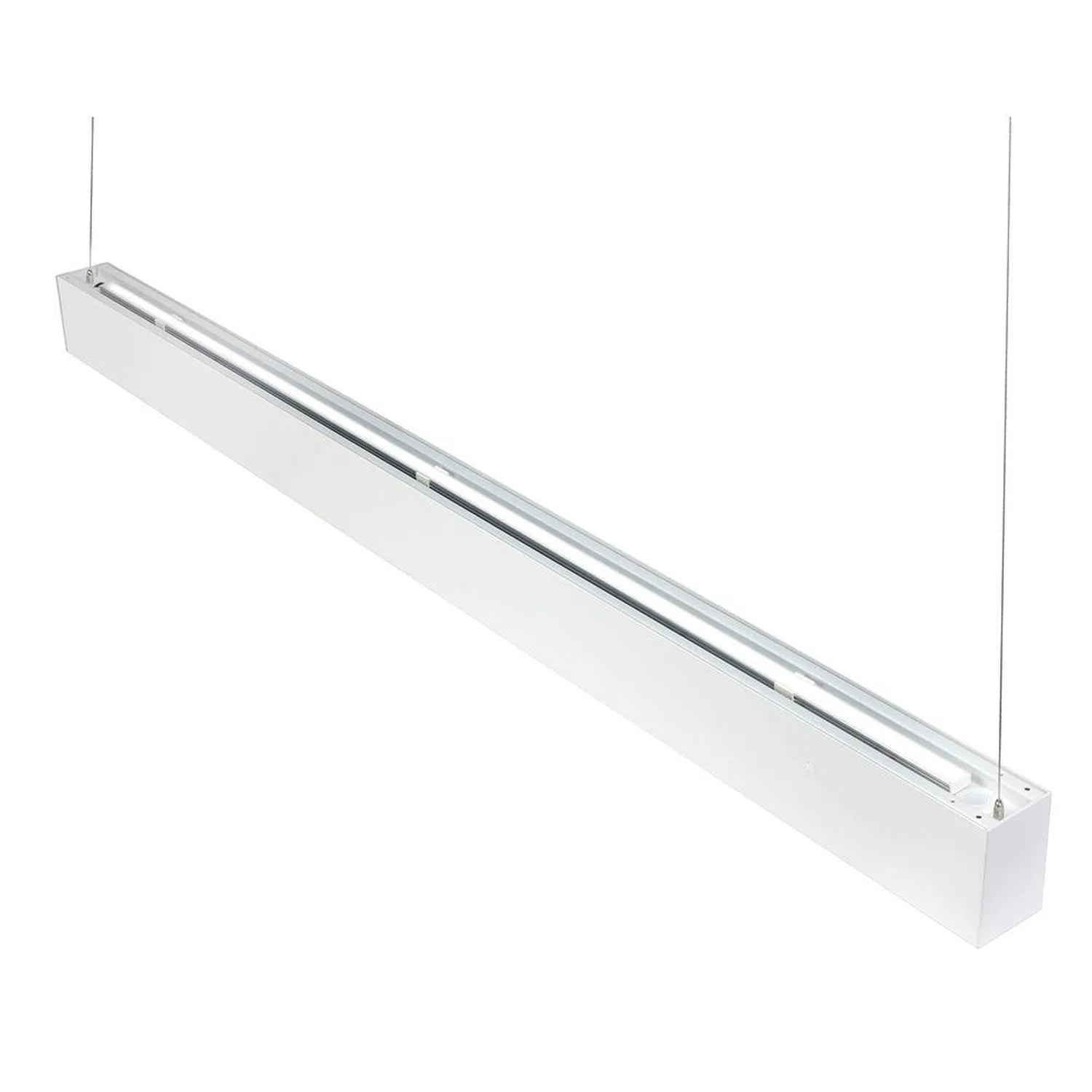

There are five ways to install it. Hang it as a pendant on steel rope or from a round ceiling plate, fix it directly to a ceiling or wall surface, recess it, or run it on track.
Each fitting is a standard 1.2 metre length. Join more of them together and you get one line of light several metres long. L-shape, T-shape and cross connectors handle corners and junctions, so a run can follow the layout of the room rather than a single straight line.
Control and emergency options
DALI or 0-10V dimmable versions are available on demand. So is an emergency version.

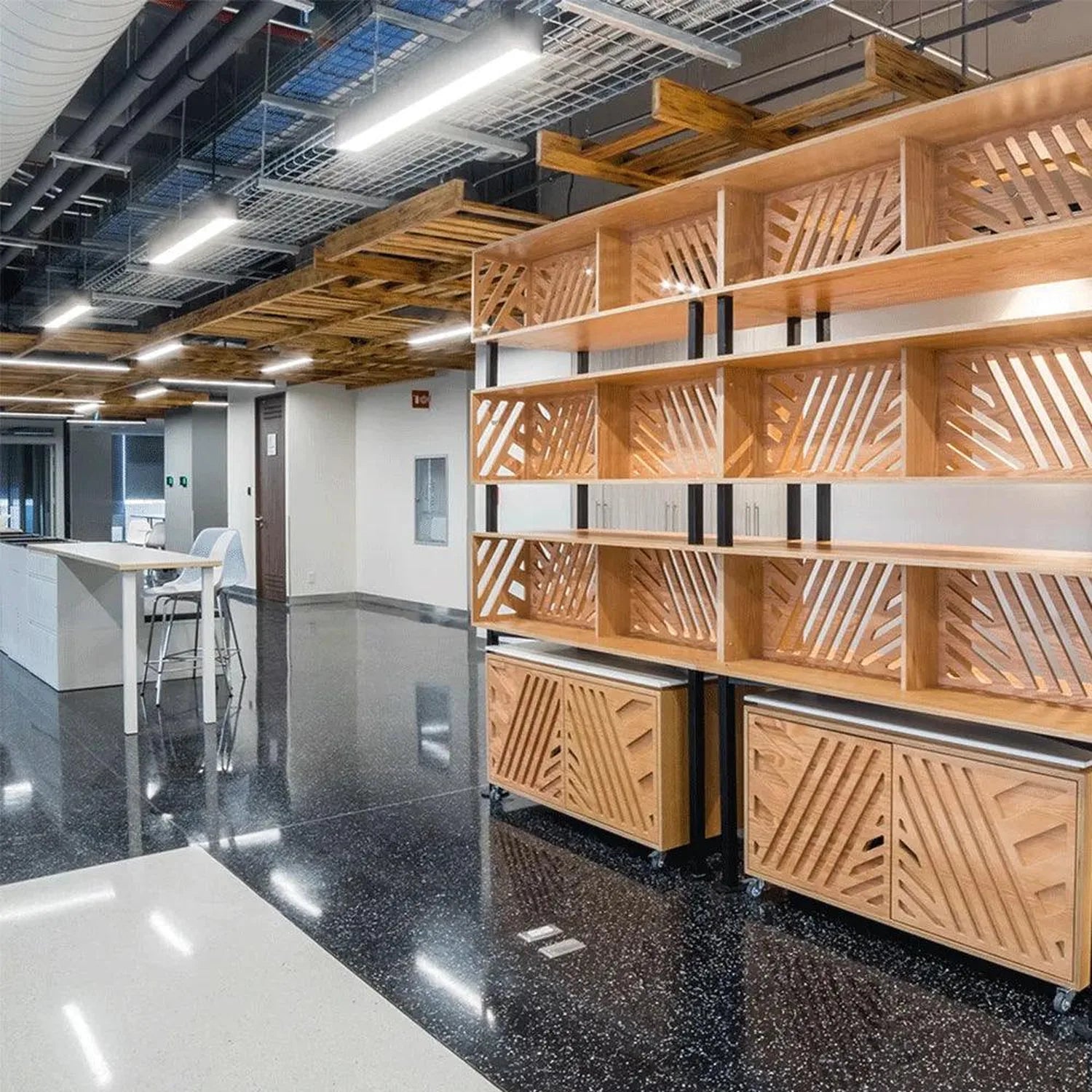

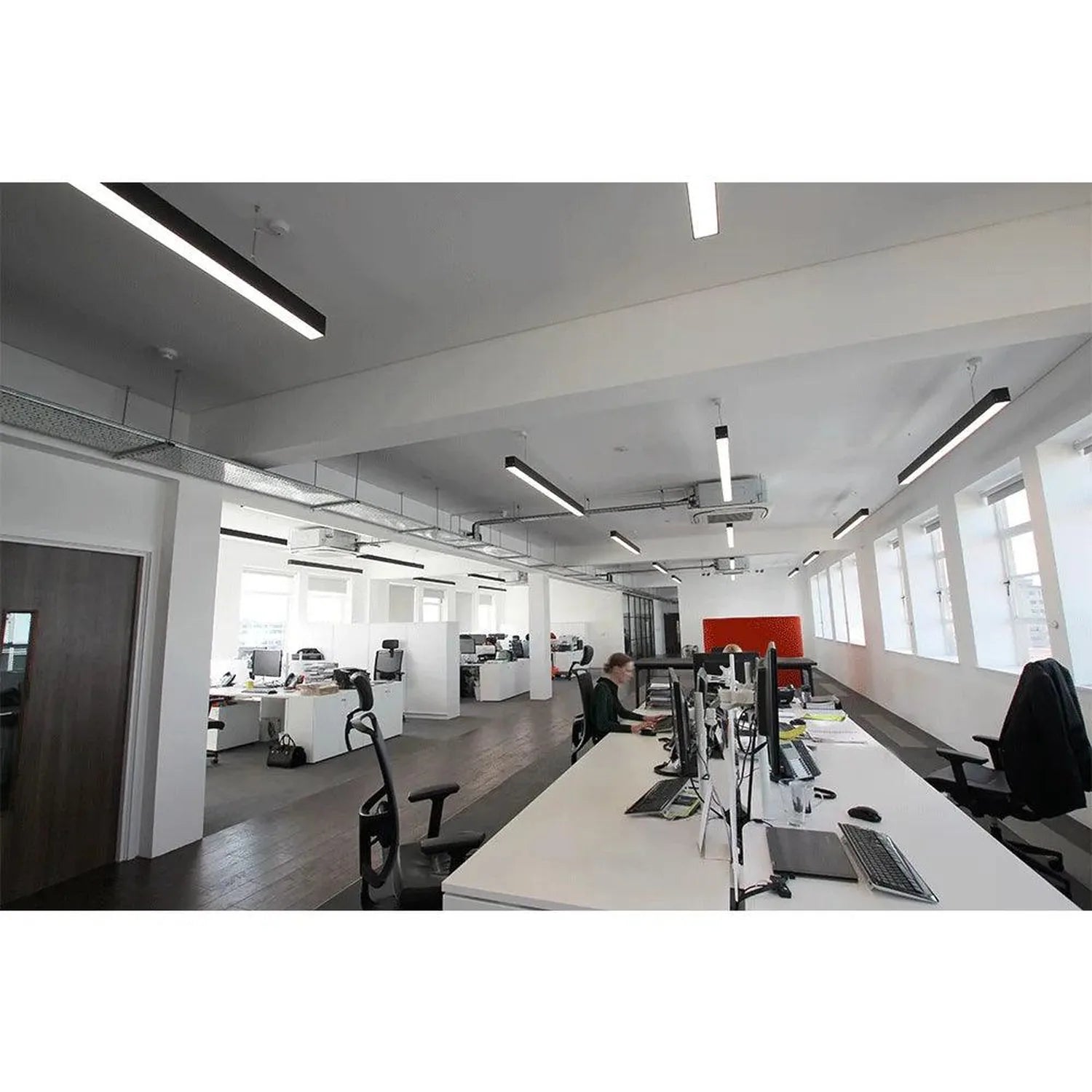

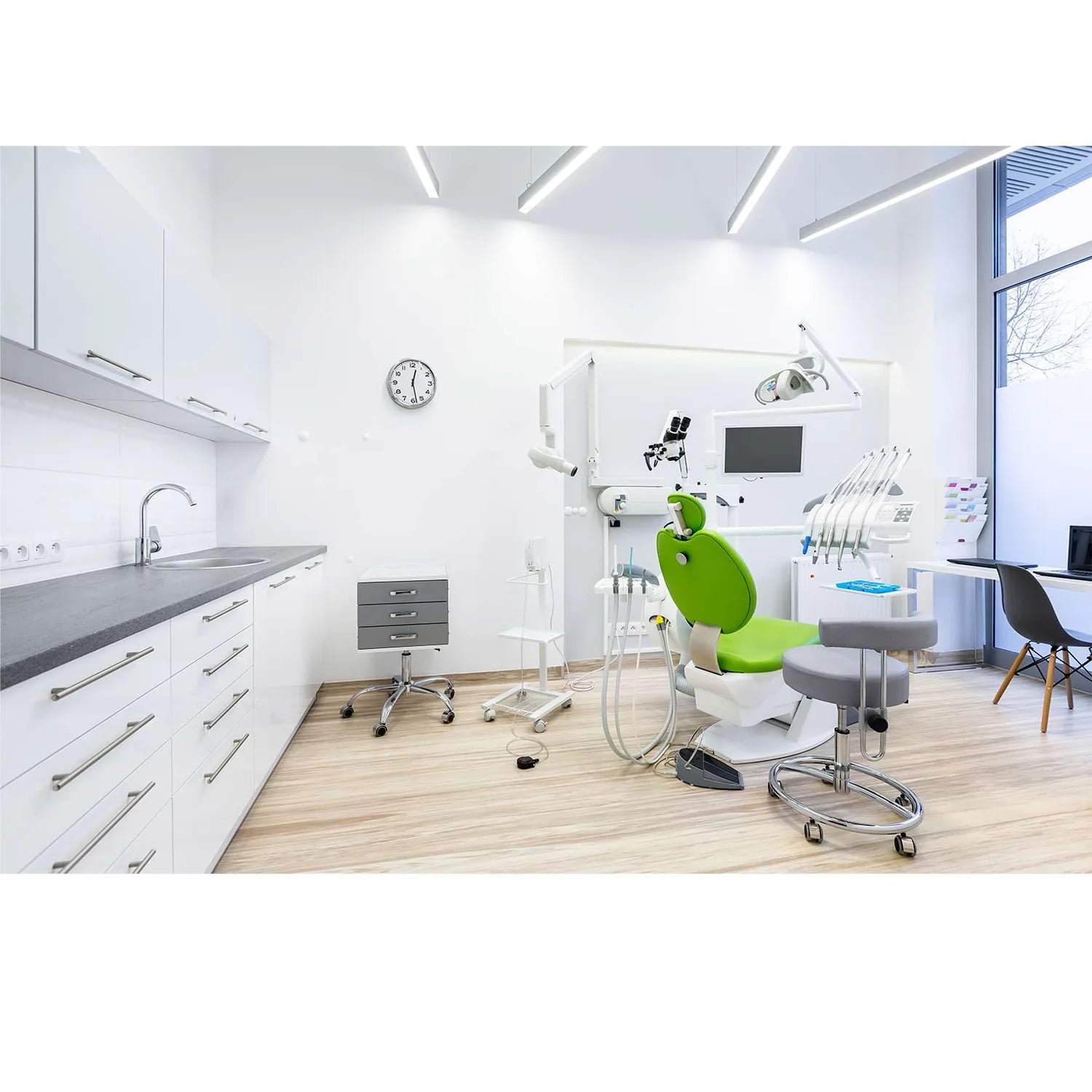

Where to use it

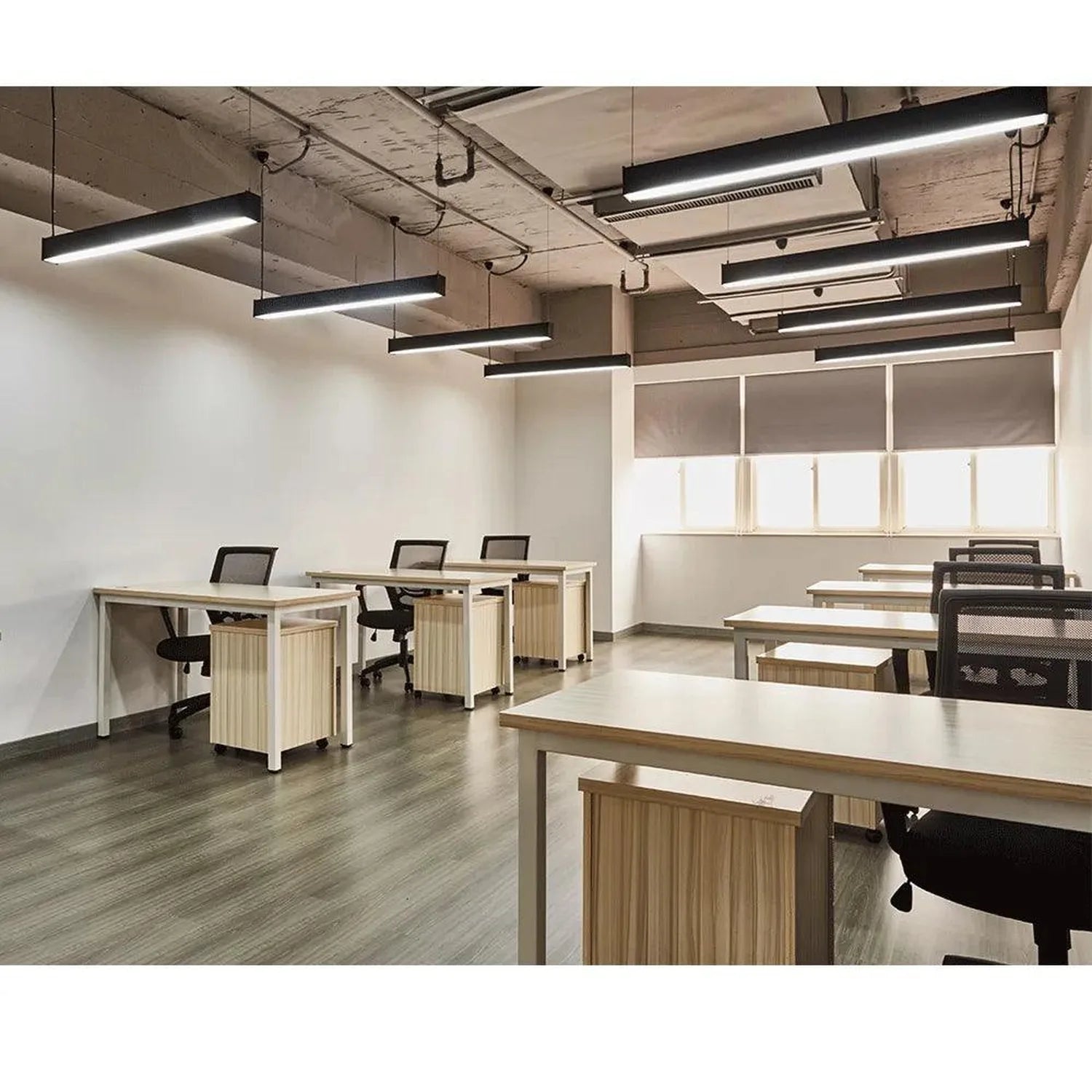

The fitting suits workshops, utility rooms and garages, and other spaces where a suspended run of light makes sense. It carries an IP40 rating, so it belongs indoors. The low glare figure helps in spaces where people spend long periods working under the light.
Technical Specifications 28 rows Show

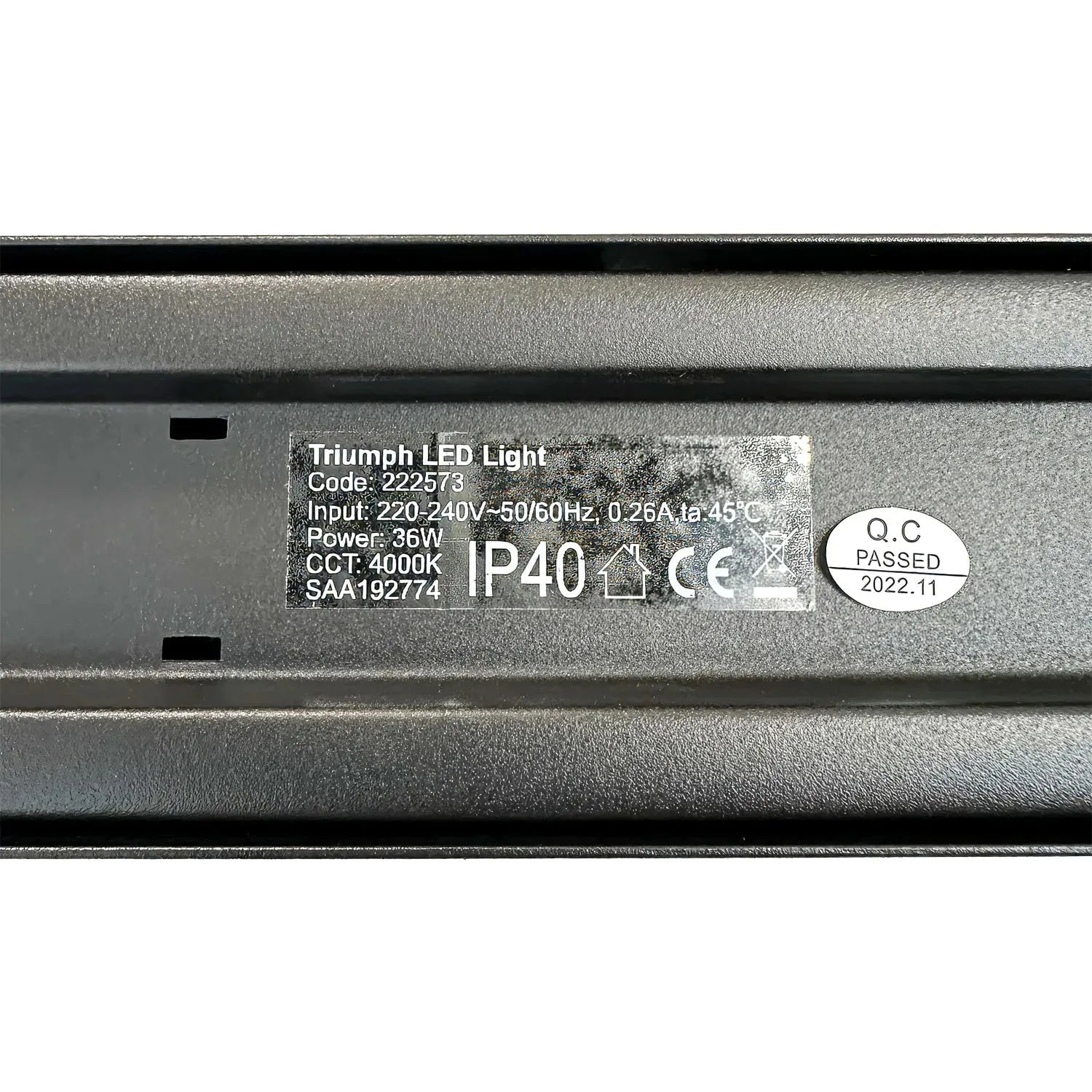

| Model | DB66B-1200-36W |
| Fitting | LED Batten, Triumph Reflector Series |
| Wattage | 36W |
| Luminous flux | 3700~3950 |
| Typical efficiency | 110 lm/w |
| Colour temperature | 4000K |
| Colour rendering index | >80 |
| Beam angle | 60 |
| Glare | UGR<19 |
| Input voltage | AC220-240V |
| Power factor | 0.9 |
| IP rating | IP40 |
| IK rating | IK06 |
| Dimensions | 1204*56*75 |
| Product weight | 2.75 kg |
| Material | PC / Aluminum |
| Lifetime | 50,000h |
| Operating temperature | -20 ~45 |
| Emergency version | 3W, battery duration 3hrs |
| LED | SMD |
| SDCM | <6 |
| LED driver | Built-in |
| Frequency | 50/60Hz |
| Rated input current | 0.26A |
| Driver efficiency | 87% |
| Glow wire test | 750 |
| Storage temperature | -20 ~65 |
| Protection | Short circuit, over voltage and over temperature protection |
Manufacturer datasheet. Figures as published by the manufacturer.
