Product Description

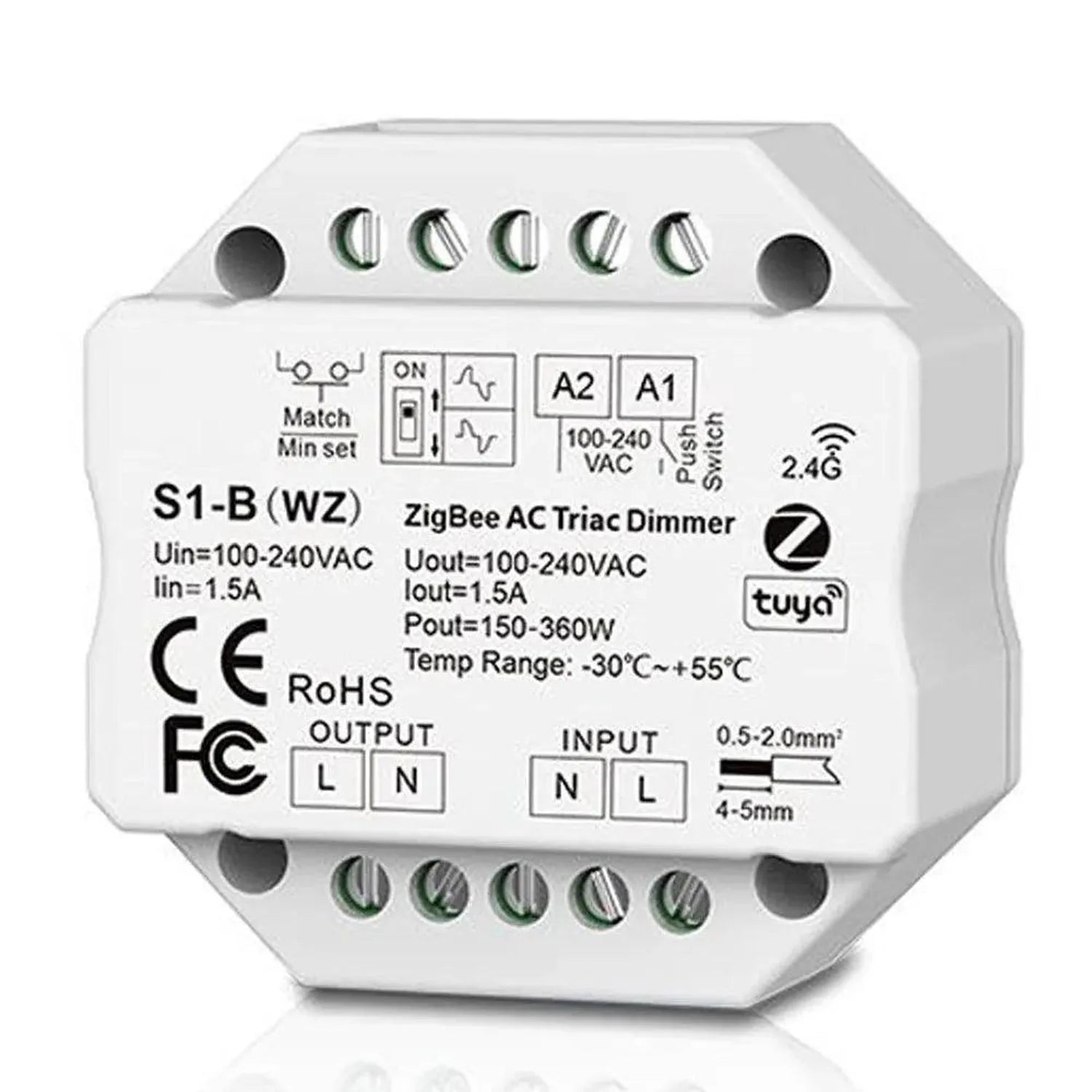

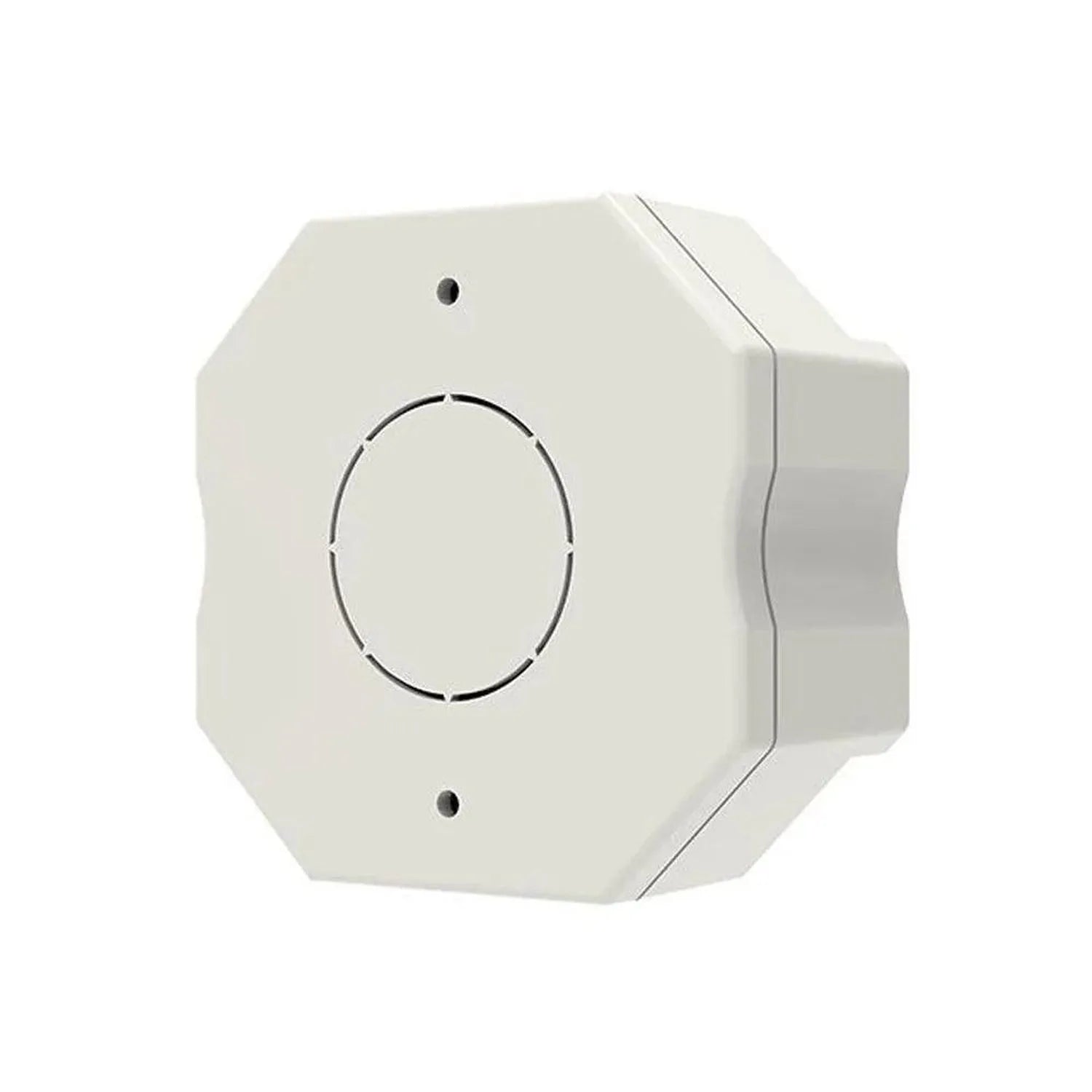

This 1-channel Tuya Zigbee dimmer uses triac control to dim dimmable LED lamps, incandescent lamps and mains voltage halogen lamps. You can adjust your lighting from the Tuya app, by voice through Amazon Echo, with an RF 2.4G remote or from a push switch. It runs on 100~240VAC and handles up to 360W at 240V.

Tuya Zigbee dimmer features

  • Input voltage: 100~240VAC
  • Maximum load: 150W at 100V, 360W at 240V (1.5A, 1 channel)
  • Control inputs: RF 2.4G and push dim
  • Dimming mode: leading edge or trailing edge, selected by DIP switch
  • Minimum brightness: adjustable minimum brightness setting
  • Size: 52x52x26mm
  • Wiring: requires a neutral wire (N terminal) at the switch position

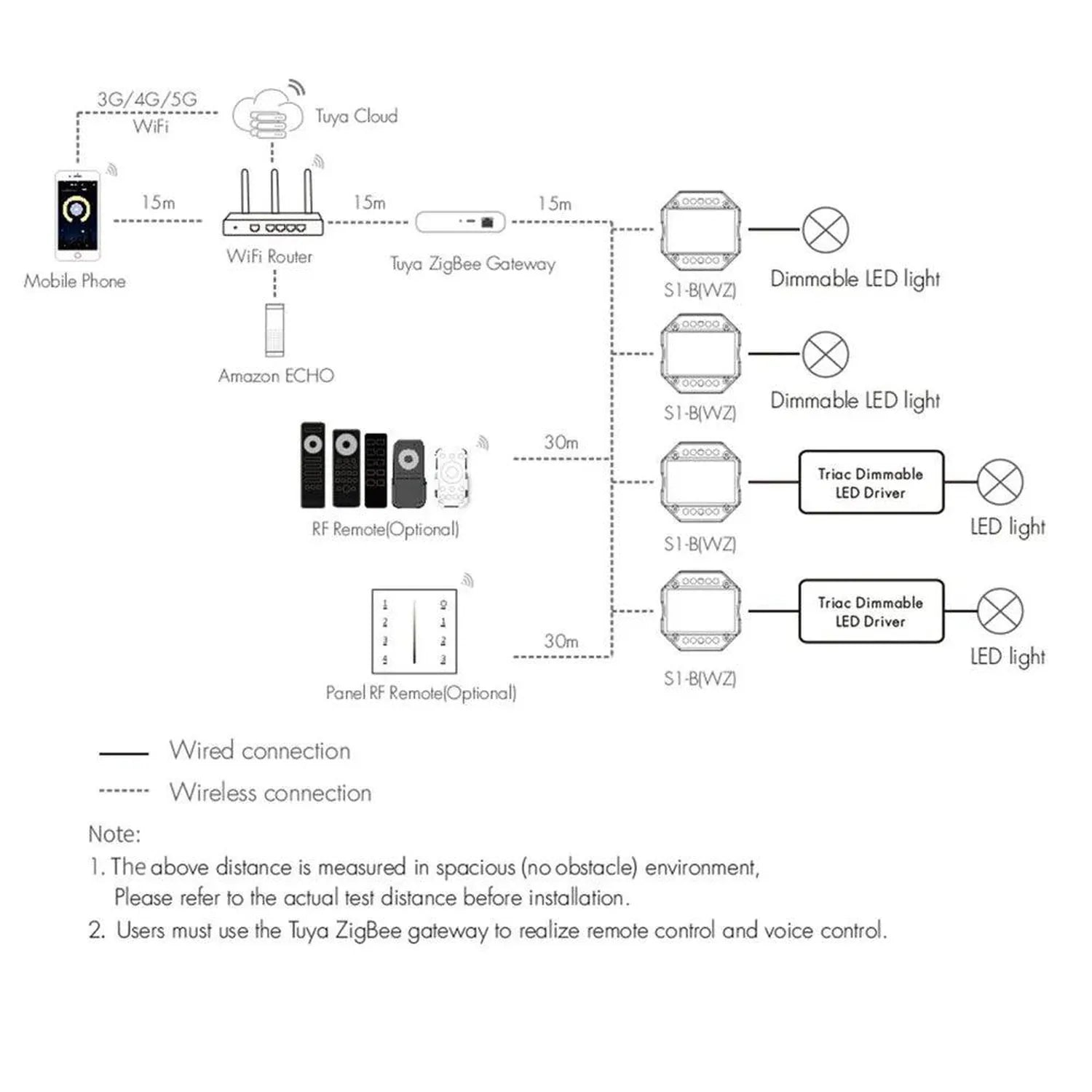

Ways to control your lights

The dimmer works with the Tuya application, so brightness can be set from a phone. Prefer voice? Amazon Echo control is supported. For hands-on use, pair an RF 2.4G remote or wire in a push switch for push dim operation.

Add a Zigbee gateway and the lights can be controlled when you are away from home.

Applications

Use it to bring smart dimming to an existing lighting circuit with dimmable LED, incandescent or mains voltage halogen lamps. Before installing, check that a neutral wire is available at the switch, as the dimmer needs one connected to its N terminal. Being able to switch between leading and trailing edge on the DIP switch lets you match the dimming mode to the lamps on the circuit. The minimum brightness setting helps set a sensible low point for the connected load.

Sizing the load

Keep the total connected load within the rating for your supply voltage: 150W at 100V or 360W at 240V, with a maximum load current of 1.5A on the single channel.

Technical Specifications 11 rows Show
TypeZigbee AC Triac Dimmer
Input voltage100~240VAC
Input signalRF 2.4G, Push DIM
Triac dimming voltage100-240VAC
Max load current1.5A* 1 channel
Max load power150W/360W (100V/240V)
Load typeIncandescent lamps, HV-halogen lamps, Dimmable LED lamps
Dimming modeleading edge and trailing edge by DIP switch
AppTuya application
Dimensions52x52x26mm
Neutral wireRequired

Manufacturer datasheet. Figures as published by the manufacturer.
