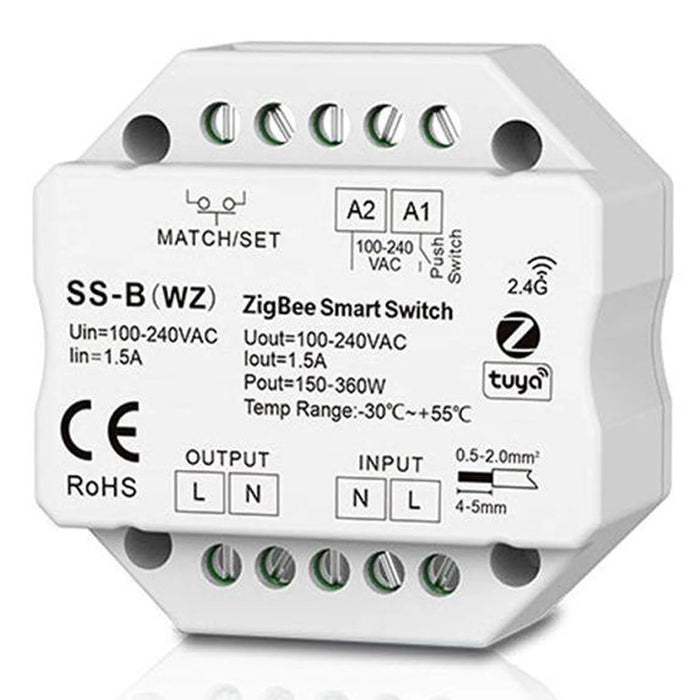

White octagonal ZigBee smart switch module with terminal connectors, specifications label, and 2.4G Tuya branding visible.

Smart Light Switch WiFi RF 1 Channel Tuya Non-Dimmable | Skydance SS-B

£25.15
Skip to product information
White octagonal ZigBee smart switch module with terminal connectors, specifications label, and 2.4G Tuya branding visible.

Smart Light Switch WiFi RF 1 Channel Tuya Non-Dimmable | Skydance SS-B

Vendor
Ledison
SKU
002564
Availability
In stock
Weight
0.15 kg

£25.15inc VAT £20.96exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Skydance SS-B is a 1-channel smart light switch with a relay output. It sits in a standard wall junction box behind a push switch and turns single-colour LED lights, incandescent and halogen lamps on and off. Control comes from the Tuya app, from voice commands, from an RF 2.4G remote or from the push switch itself. It does not dim. On and off is all it does.

Smart light switch features

  • App control: on/off, delayed on/off and timer through the Tuya app
  • Voice control: Amazon Echo, with Amazon Alexa and Google Assistant listed in the specification
  • RF remotes: works with RF 2.4G remotes RU4, RU8 and PF1-2, sold separately
  • WiFi to RF converter: lets the app control other RF switches and controllers
  • Switching: zero-crossing detection and a high-inrush relay, max output surge current 200A
  • Protection: overheat and overload, recovering automatically

Electrical and rating

Input voltage is AC100-240V and output power is 150-360W, max 1.5A. RF range reaches 30m in open space. The unit is rated IP20 and carries a 5-year warranty. WiFi works on the 2.4G band only, so a 5G network will not connect.

Installation notes

Fit the switch in a standard wall junction box behind a push switch, which is optional. Never connect any AC or DC supply to the push-button input. Where several LED drivers share the output, keep their total surge current under 200A. You will need a neutral wire at the switch position, as the unit has an N terminal that must be connected.

Not included

No RF remote comes with the switch. If you want handheld control, the RU4, RU8 and PF1-2 remotes are compatible.

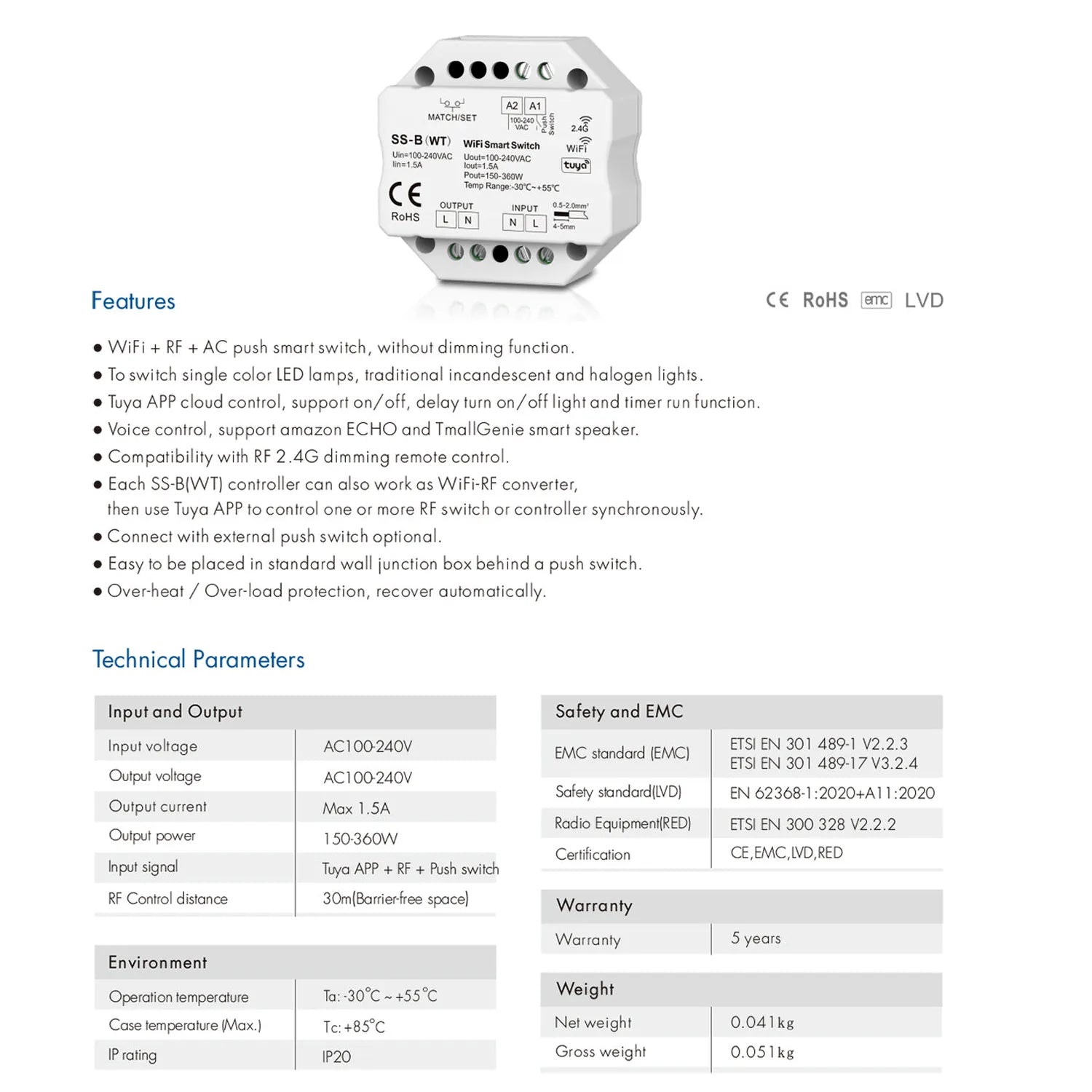

Technical Specifications 24 rows Show
BrandSkydance
ModelSS-B
TypeRF AC Switch/Relay output/ Zero-crossing detection/Push onoff/Wall junction box mounting
Input voltageAC100-240V
Relay surge current200A
Output power150-360W, max 1.5A
Input signalRF 2.4GHz + Push switch
RF control distance30m(Barrier-free space)
Ambient temperatureTa: -30 OC ~ +55 OC
IP ratingIP20
CertificationCE,EMC,LVD,RED
Warranty5 years
ControlWiFi + RF + push switch
Output voltageAC100-240V
Voice controlAmazon Alexa, Google Assistant
Wi-Fi band2.4G only (5G band not available)
ProtectionOver-heat / Over-load, recover automatically
Maximum case temperatureTc: +85°C
Dimensions52.00 mm x 52.00 mm x 26.00 mm
Gross weight0.051kg
Package sizeL60 x W60 x H40mm
Safety standardEN 60669-1/-2
EMC standardEN IEC 55015/EN IEC 61547
Neutral wireRequired

Manufacturer datasheet. Figures as published by the manufacturer.
