T8 LED Tube 150cm 5ft 22W Microwave Motion Sensor 4000K | Ledison
- Vendor
- Ledison
- SKU
- 110208
- Availability
- In stock
- Weight
- 0.25 kg
£32.54inc VAT £27.12exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

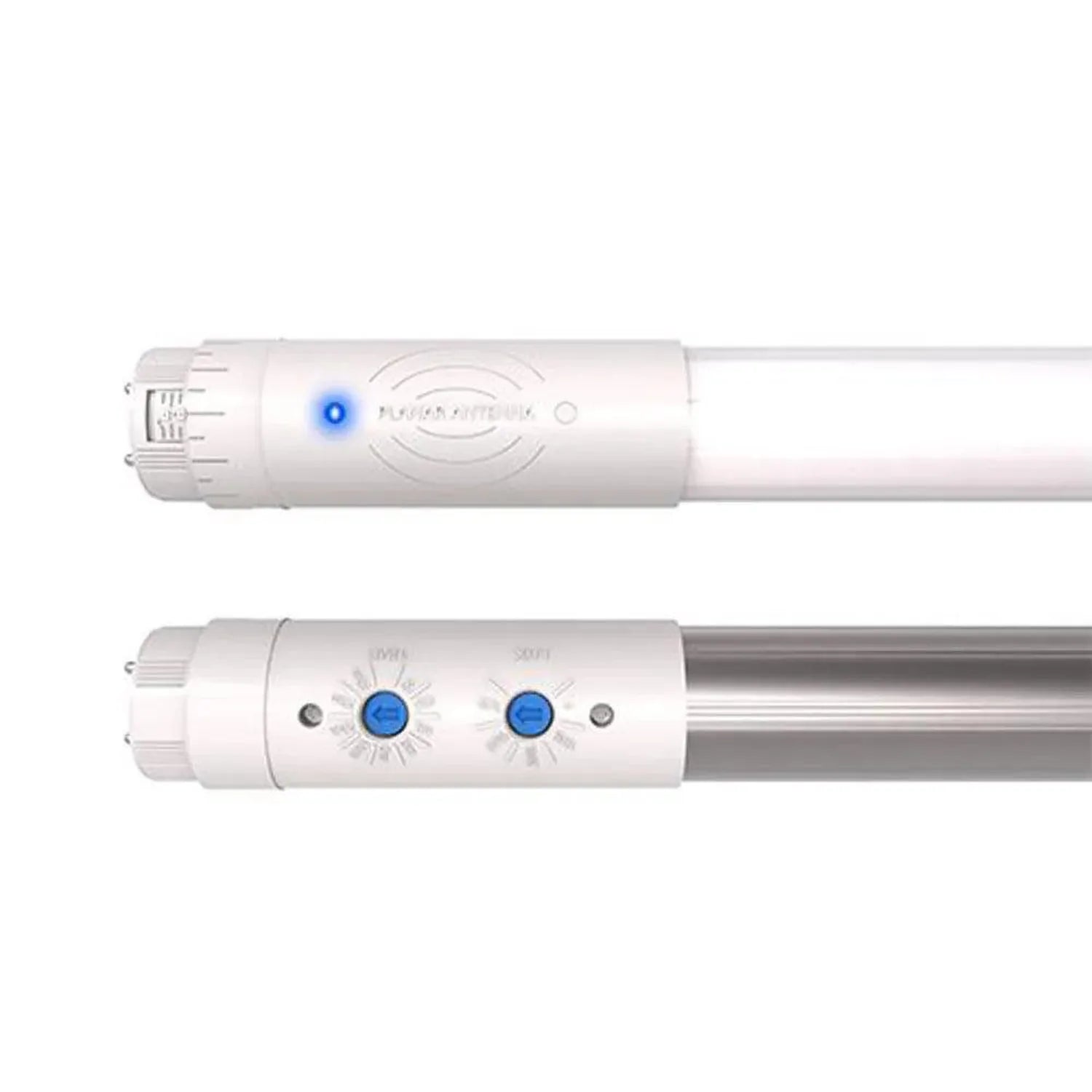

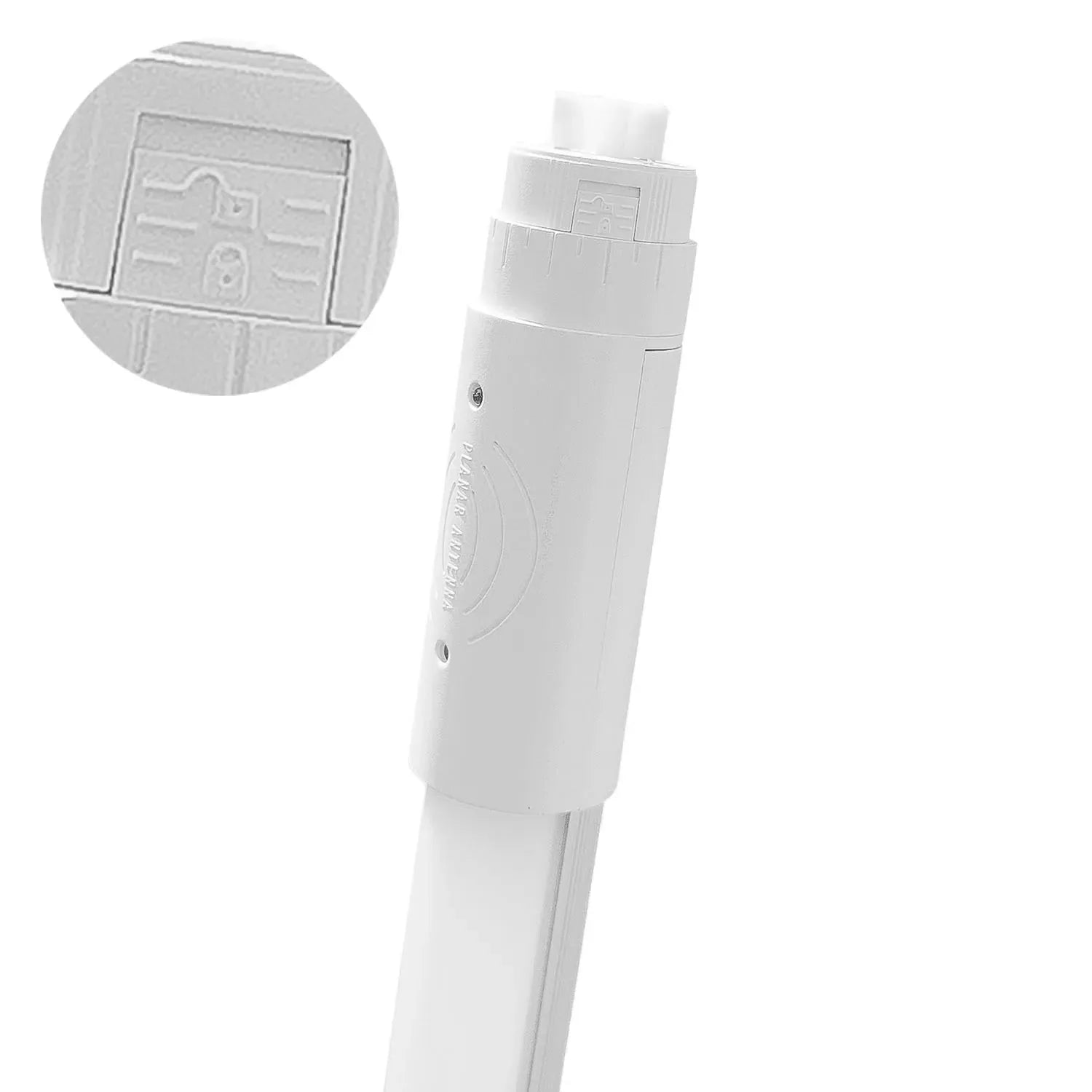

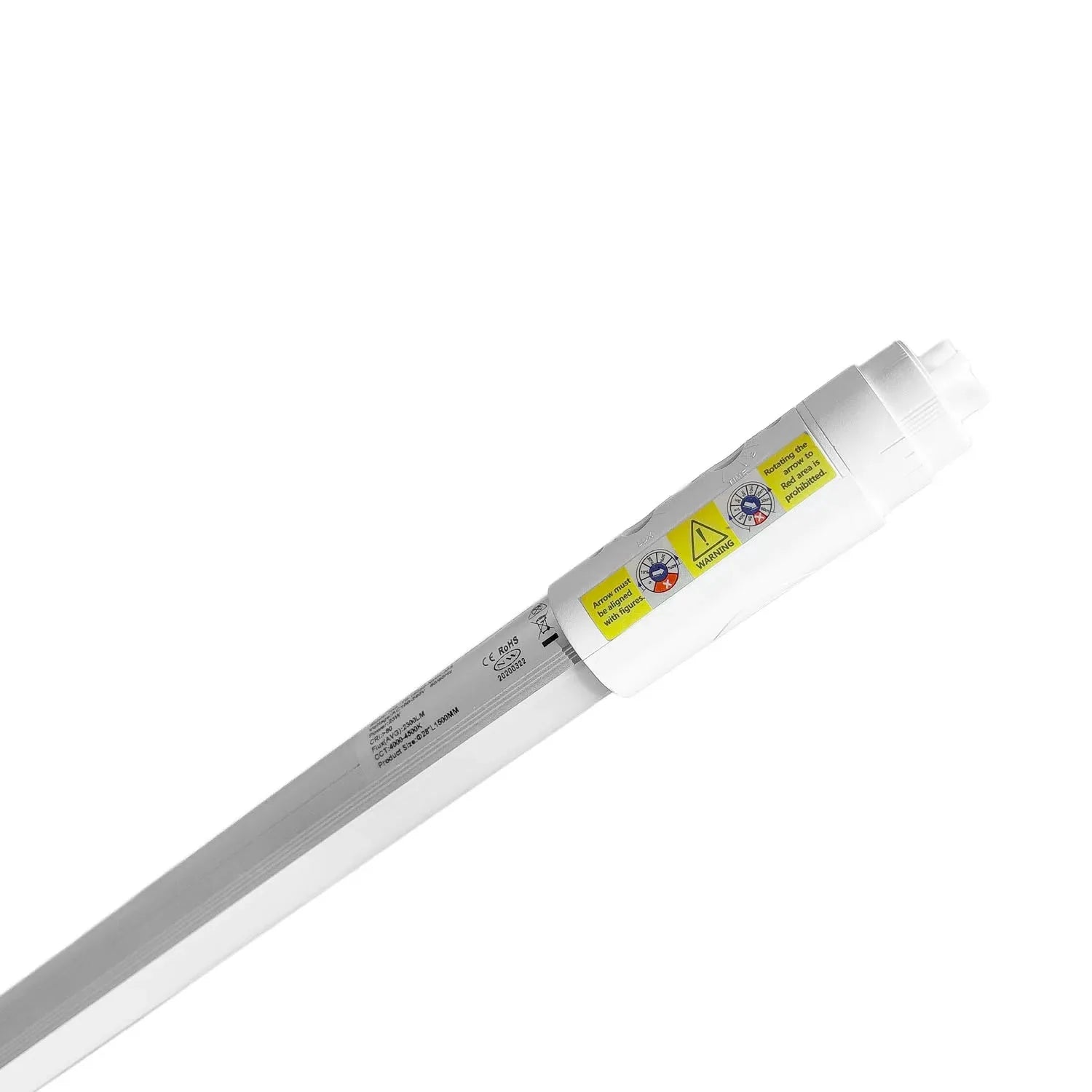

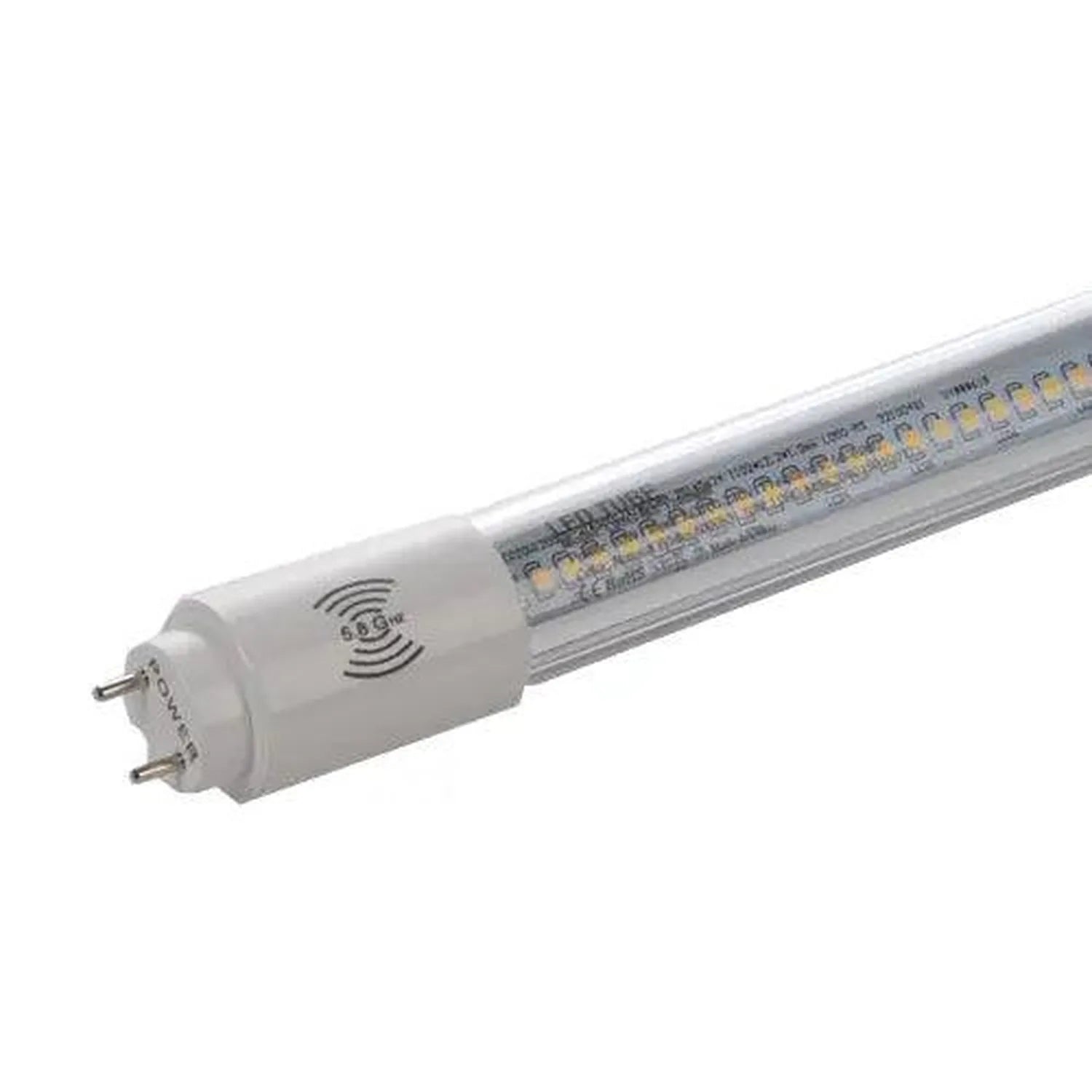

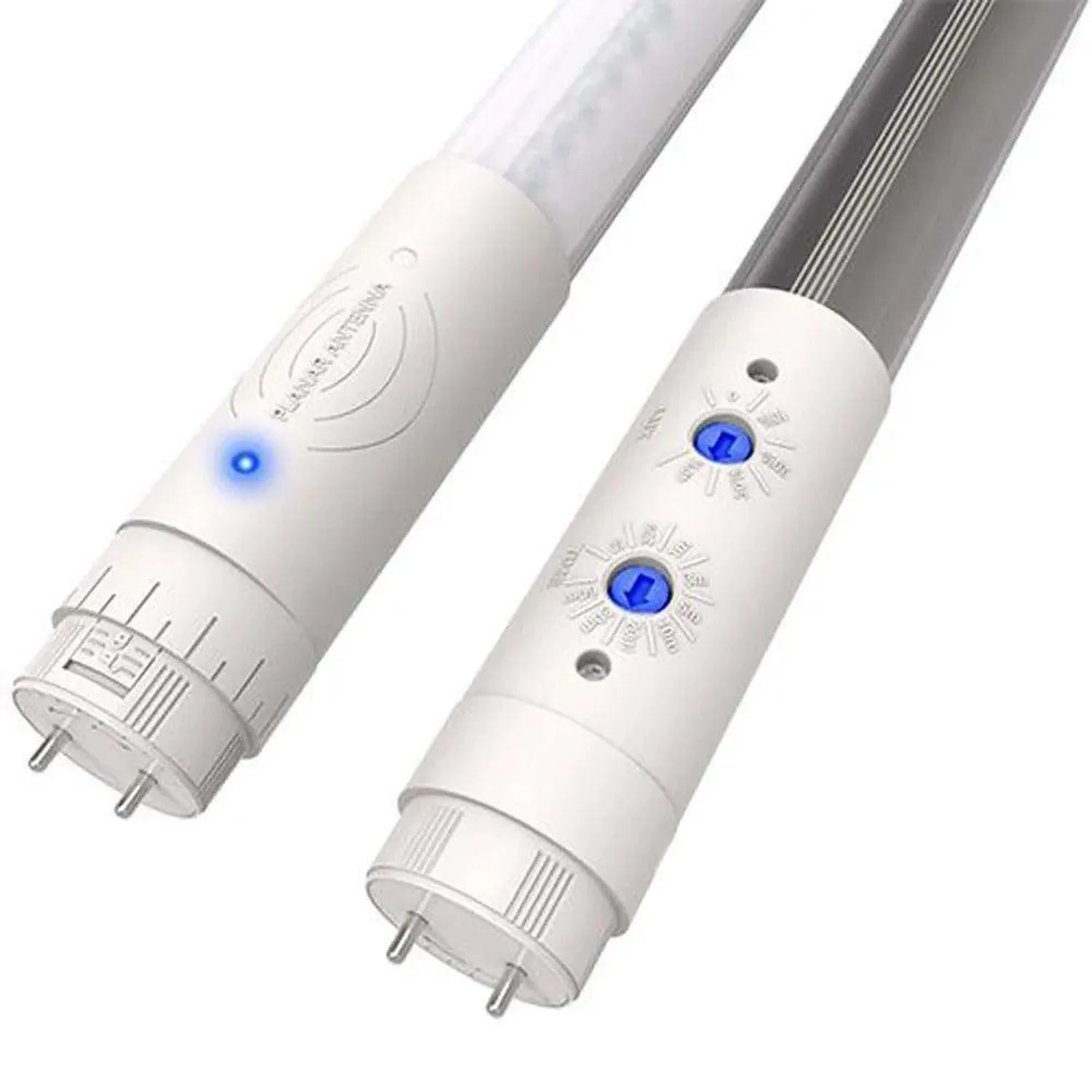

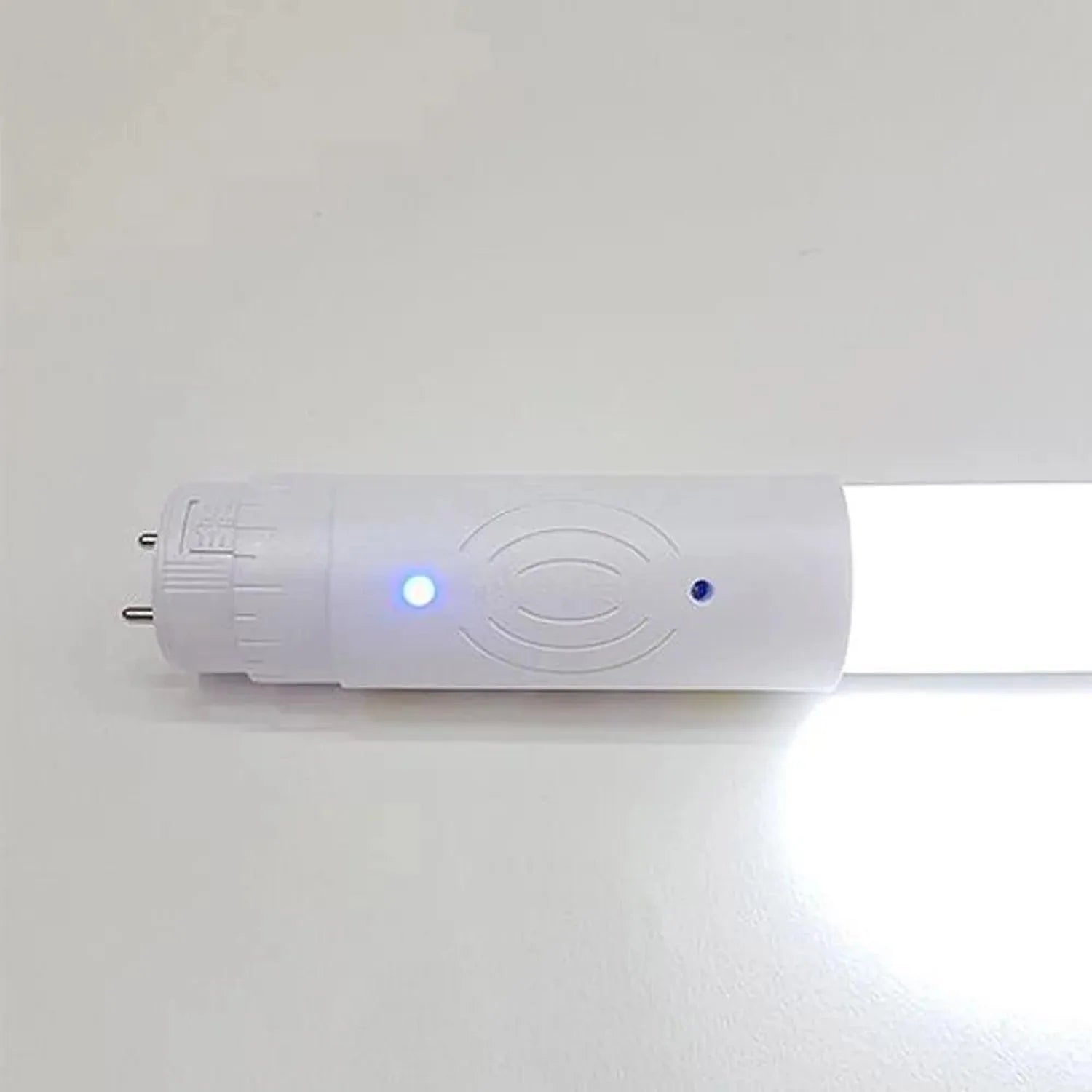

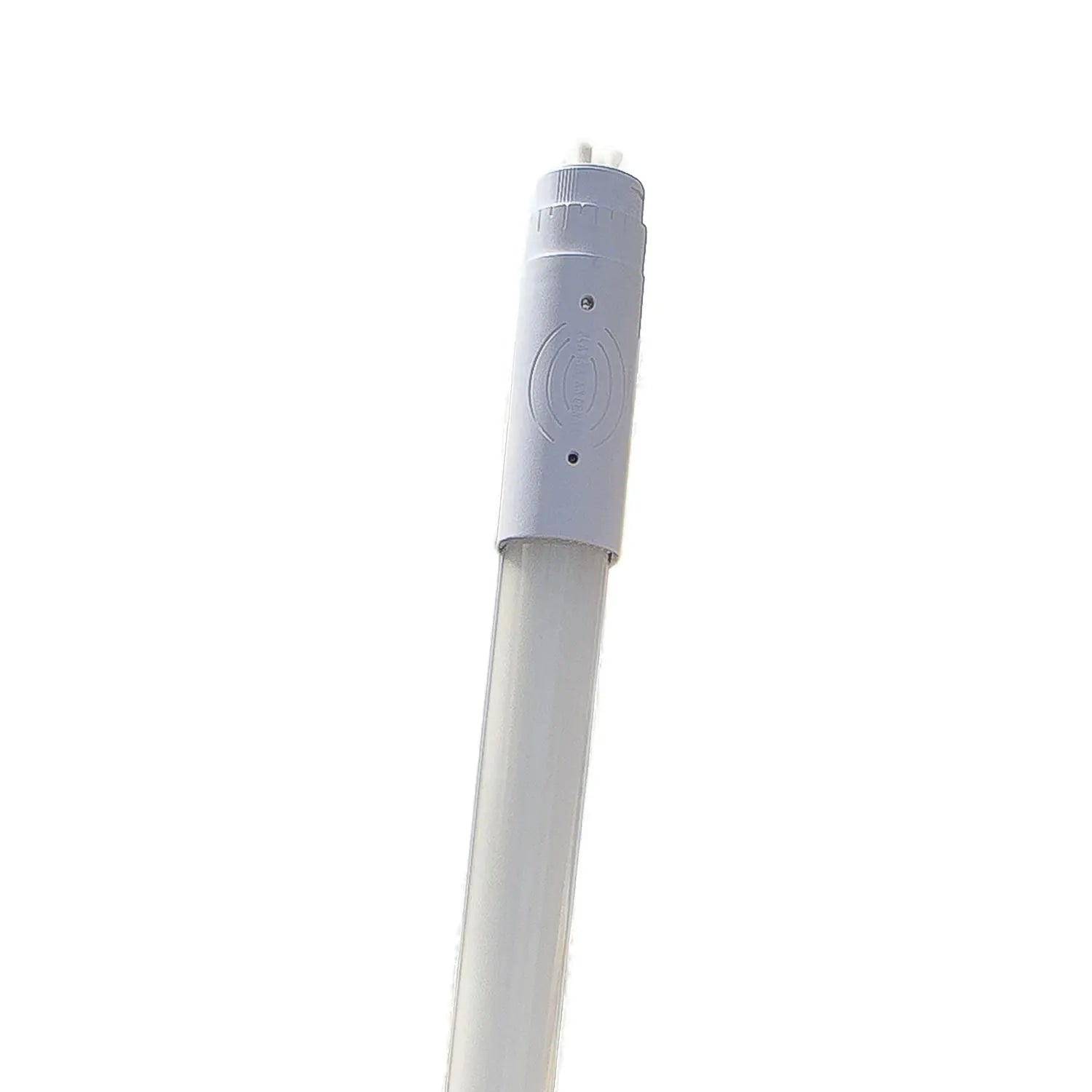

This 150cm (5ft) T8 LED tube has a microwave motion sensor and LED driver built into the tube itself. Movement brings it straight up to full brightness. Once the area empties and the 30s hold time runs out, it falls back to a 20% standby level instead of burning at full power all night.
T8 LED tube with motion sensor: key features
- Power: 22W
- Colour temperature: 4000K natural white
- Sensor: 5.8GHz microwave, detection distance 10m max

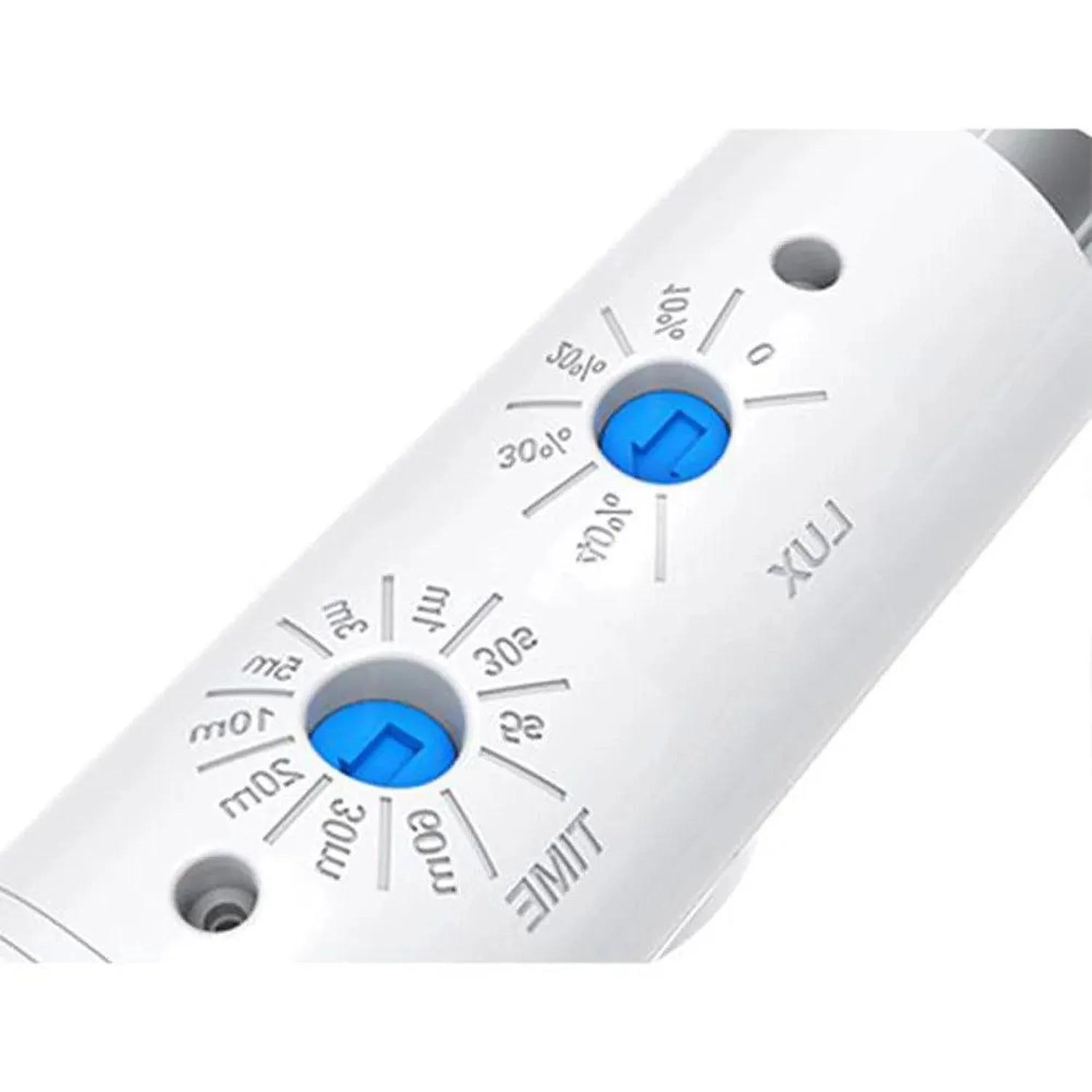

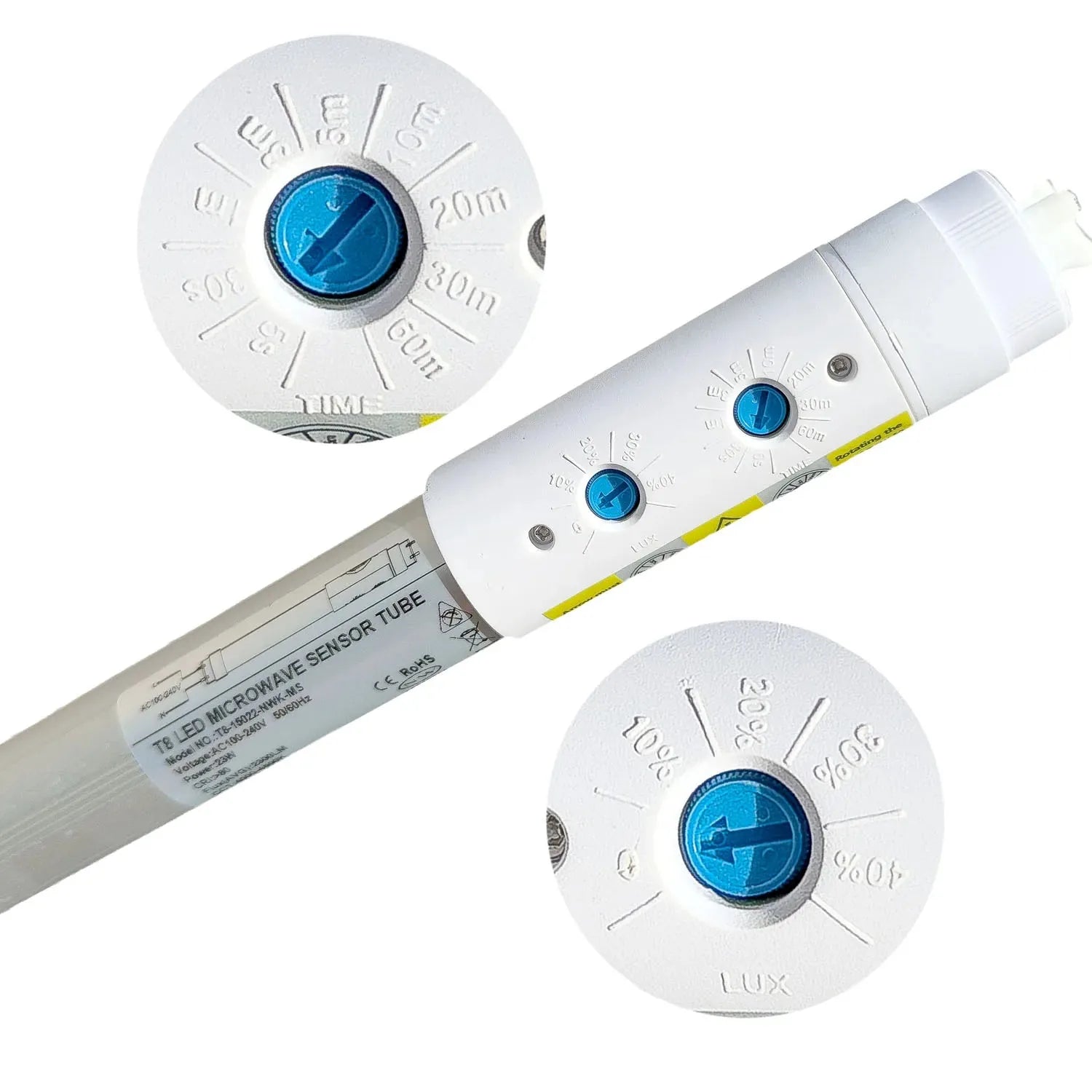

- Dimming: 2-step, 100% on detection and 20% standby after a 30s hold
- End caps: rotate 180 degrees so the tube and sensor can be lined up after fitting
- Certification: TÜV certified, backed by a 5-year warranty
There is no photocell. The tube reacts to movement only, whatever the daylight level. It is not dimmable.
Where it works best
Pick this tube for spaces that are used now and then rather than constantly. Underground and multi-storey car parks are an obvious fit, as are warehouses, factories and workshops. In offices it suits corridors, stairwells and communal areas, and on the back-of-house side it covers storage rooms, loading bays and service corridors. The rated mounting height is 2.5-10m.
Installation notes
- Magnetic ballast battens: swap the starter for the LED fuse, then fit the tube (retrofit only)
- Electronic ballast battens: the ballast must be bypassed by a registered electrician
- Single end power, for safety
- Keep at least 30cm between two tubes
- Not suitable for confined spaces, and the tube should not be surrounded by metal objects
A retrofit into an existing magnetic ballast batten is the quickest route. Anything with an electronic ballast needs an electrician first.
Technical Specifications 25 rows Show
| Fitting | T8 |
| Base | G13 |
| Diameter | 26mm |
| Length pin to pin | 1513mm |
| Power | 22 Watt |
| Colour temperature | NW(4000K) |
| Colour rendering index | >80 |
| Voltage | AC100~277V 50/60Hz |
| Power factor | PF:0.93 |
| THD | THD<20% |
| Beam angle | 120deg. |
| Sensor | Microwave motion sensor |
| Microwave frequency | 5.8GHz+/-75MHz |
| Mounting height | 2.5-10m |
| Dimming | 2-step dimming |
| Hold time | 30s |
| Standby dimming level | 20% |
| Detection distance | 10m Max. |
| Detection angle | 150 |
| Daylight threshold | NO |
| Dimmable | NO |
| End caps | 180-degree rotating end caps |
| Lifetime | 50,000 hours |
| Certification | TÜV certified |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
