T8 LED Tube 120cm 4ft 20W Microwave Motion Sensor 2100lm 4000K | Ledison
- Vendor
- Ledison
- SKU
- 110205
- Availability
- Sold out
- Weight
- 0.25 kg
£33.59inc VAT £27.99exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

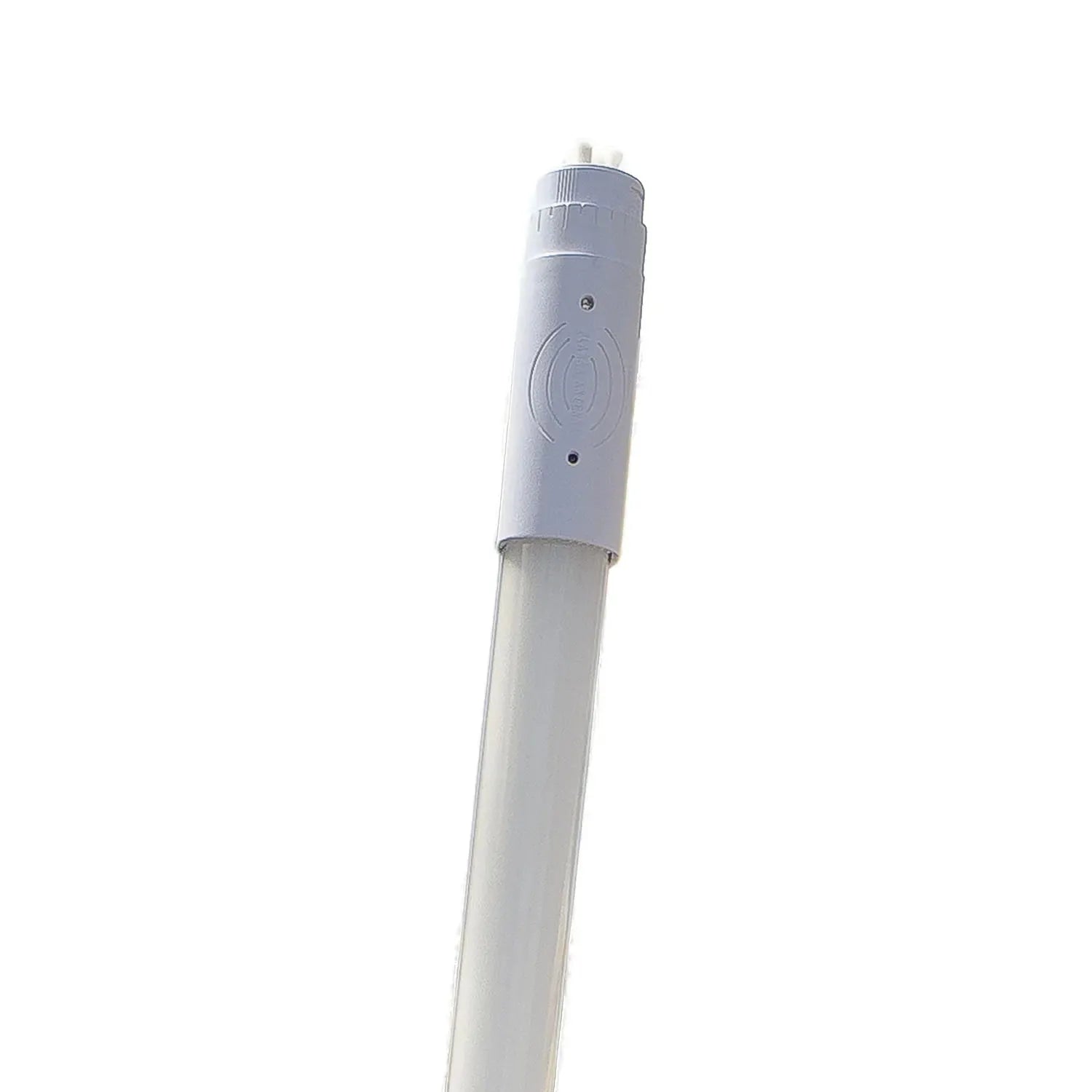

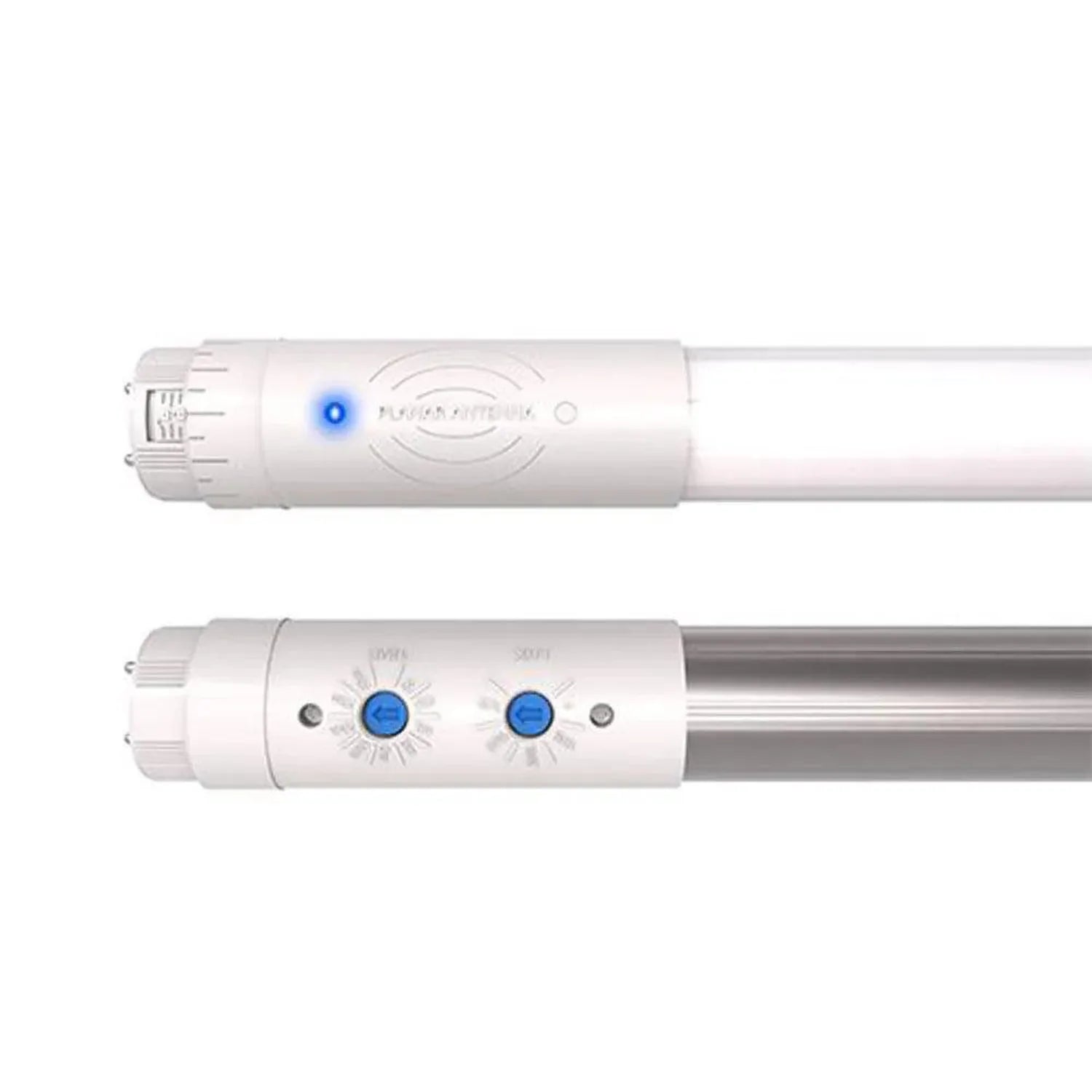

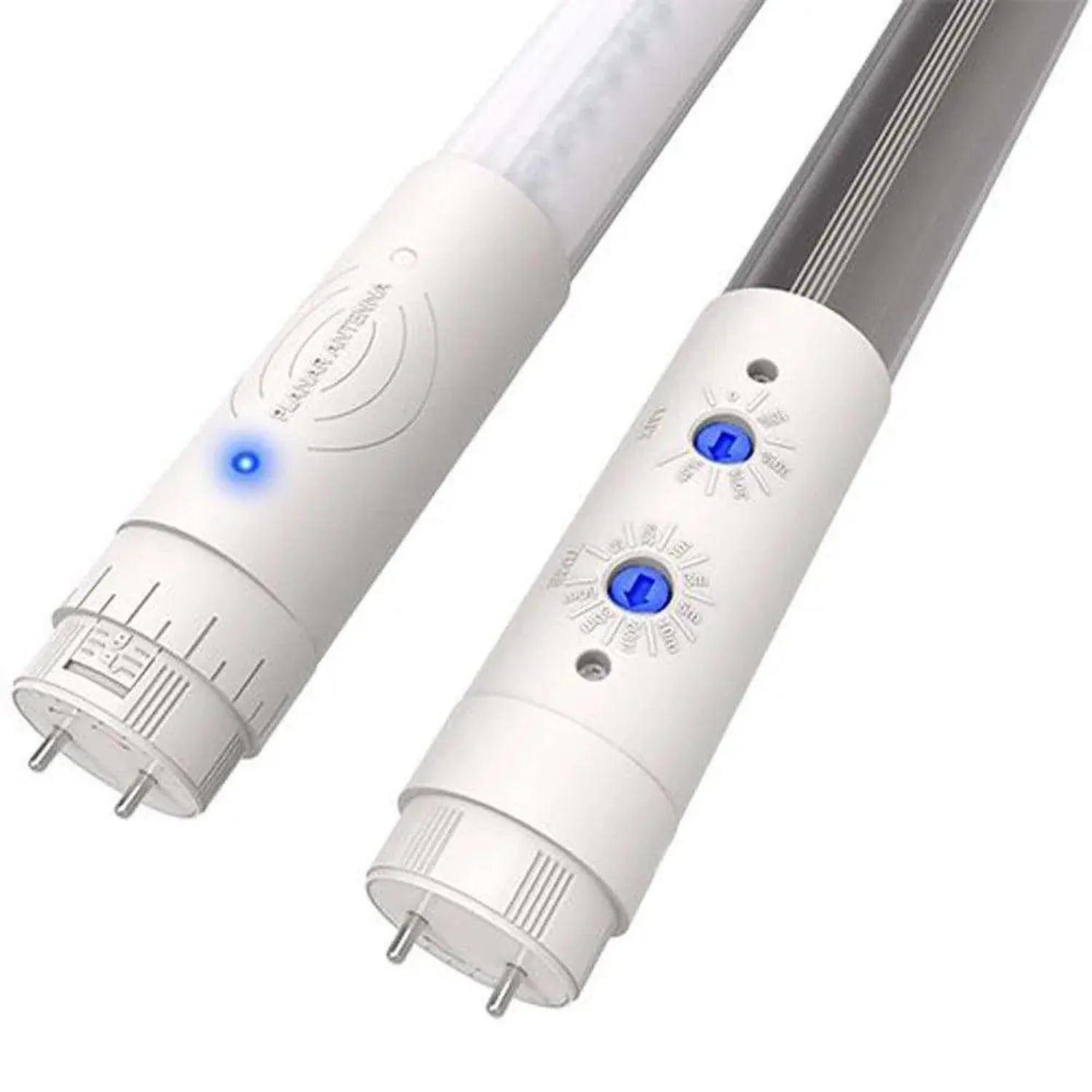

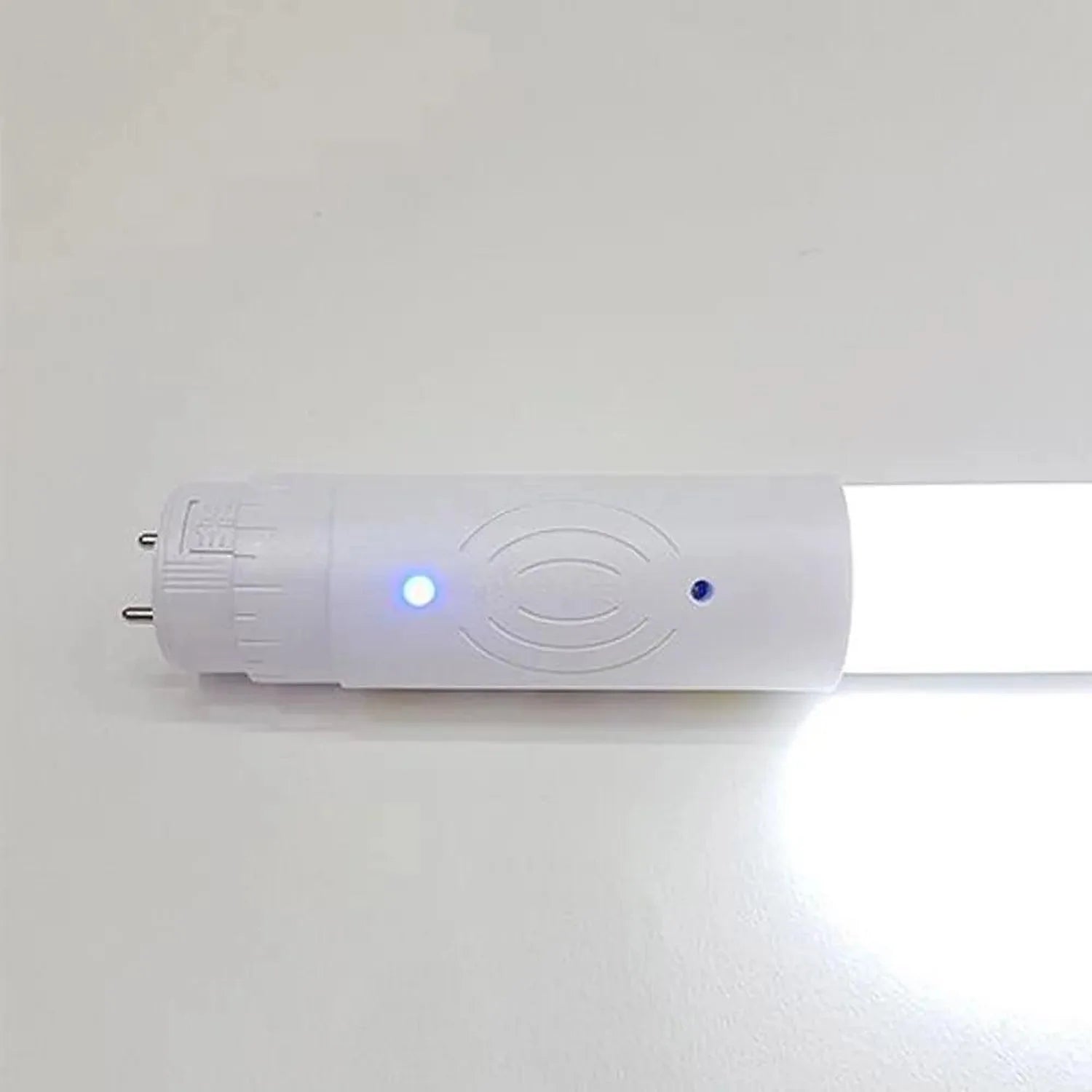

This 120cm (4ft) T8 LED tube has its own microwave motion sensor and LED driver built in. When it picks up movement it runs at full brightness. Once the area empties and the 30s hold time passes, it drops to a 20% standby level, so the light is never left burning at full power in an empty space. Output is 2100 lumens from 20 watts, in a natural white 4000K.
T8 LED tube with microwave sensor: key features
- Output: 20W, 2100lm, 4000K natural white
- Sensor: 5.8GHz microwave, detection distance 10m max, detection radius up to 10m

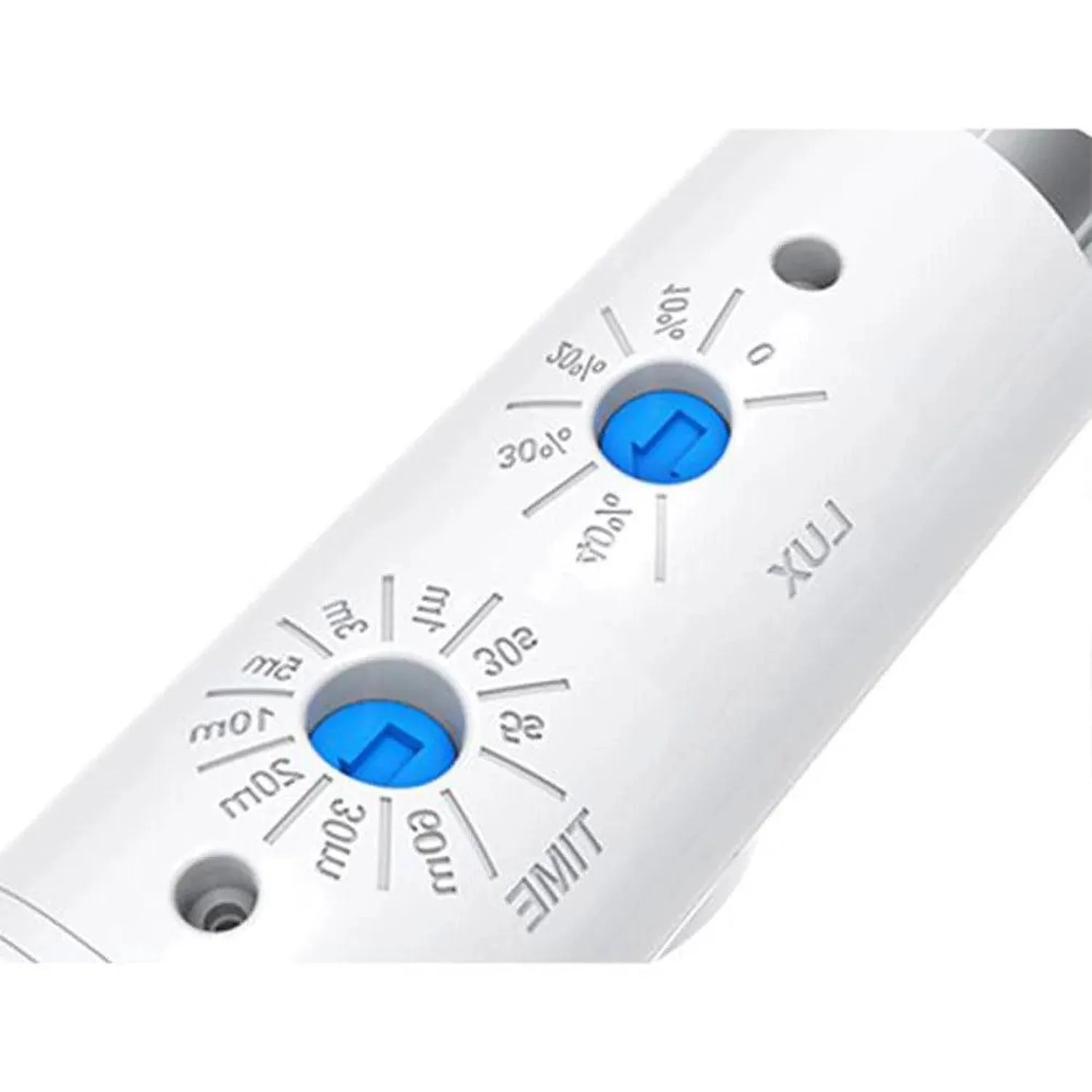

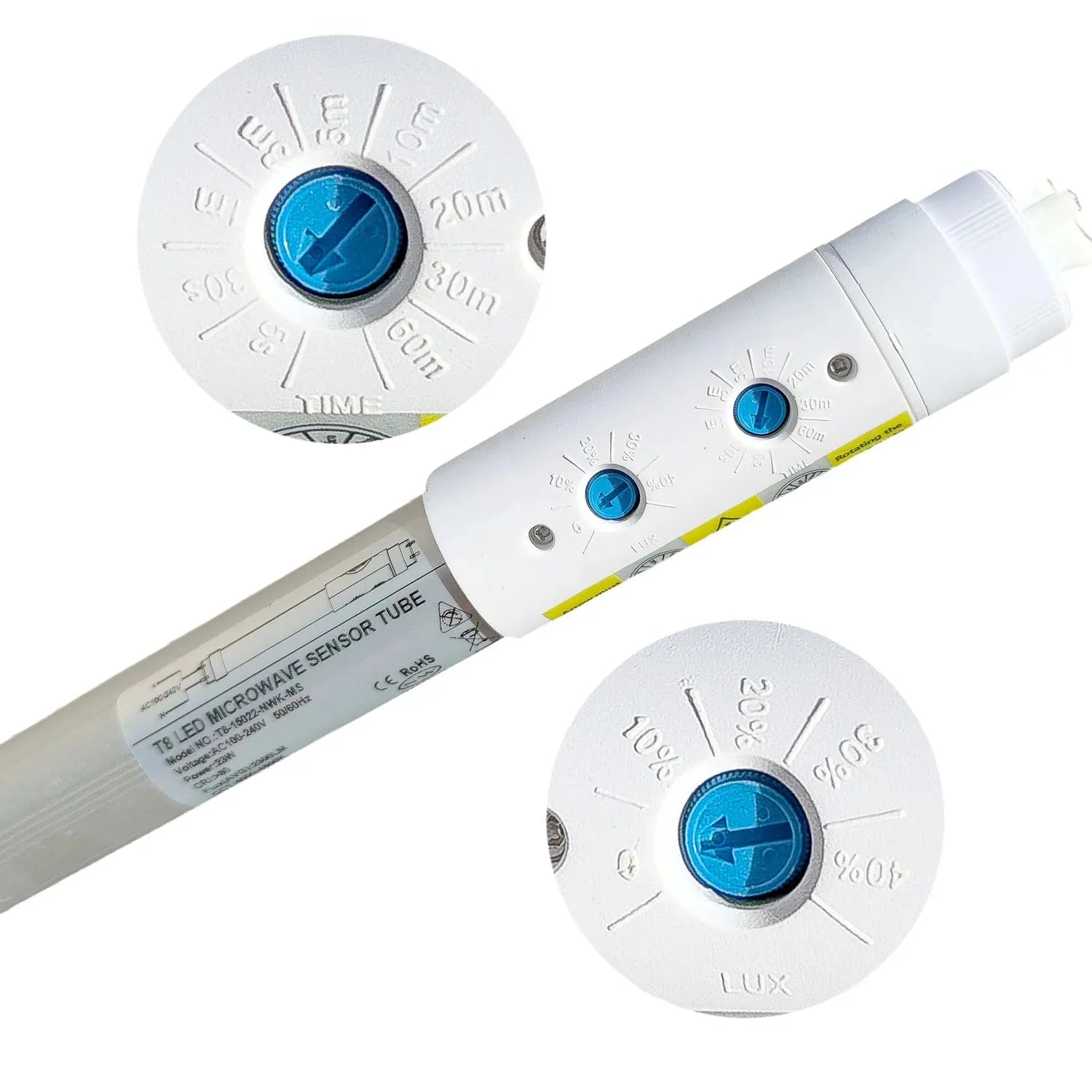

- Dimming: 2-step, 100% on detection and 20% standby after a 30s hold time (not dimmable by external control)
- Movement only: no photocell, so daylight does not affect switching
- Mounting height: 2.5-10m, with 180-degree rotating end caps
- Approvals: TÜV certified, 5-year warranty
Where it fits
It is aimed at spaces that see people only now and then. Think underground and multi-storey car parks, warehouses and factories, office corridors, stairwells and communal areas, plus storage rooms, loading bays and service areas. Short visits. Long empty spells.
Installation notes
Battens with a magnetic ballast
Swap the starter for the LED fuse, then fit the tube. This is a retrofit only.
Battens with an electronic ballast
The ballast has to be bypassed, and that work must be done by a registered electrician.
Spacing and surroundings
- Single end power, for safety
- Leave at least 30cm between two tubes
- Not suitable for confined spaces
- Do not surround the tube with metal objects, as these interfere with the sensor area
Technical Specifications 28 rows Show
| Fitting | T8 |
| Base | G13 |
| Diameter | 26mm |
| Length | 120cm |
| Power | 20 Watt |
| Luminous flux | 2100lm |
| Typical efficiency | 105lm/W |

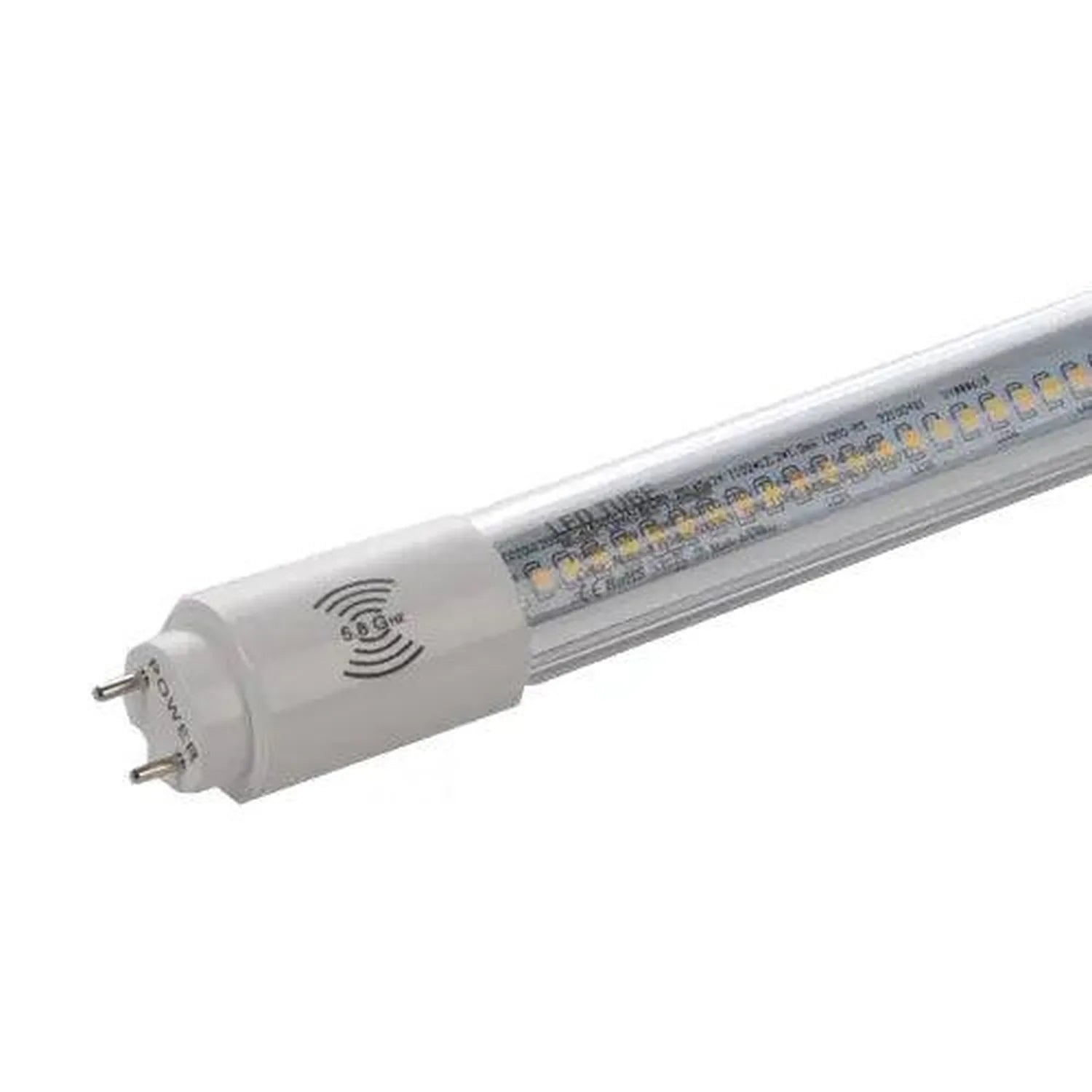

| LED chips | 2835 (216 pcs) |
| Colour temperature | NW(4000K) |
| Colour rendering index | >80 |
| Voltage | AC100~277V 50/60Hz |
| Power factor | PF:0.93 |
| THD | THD<20% |
| Beam angle | 120deg. |
| Sensor | Microwave motion sensor |
| Microwave frequency | 5.8GHz+/-75MHz |
| Mounting height | 2.5-10m |
| Dimming | 2-step dimming |
| Hold time | 30s |
| Standby dimming level | 20% |
| Detection distance | 10m Max. |
| Detection angle | 150 |
| Daylight threshold | NO |
| Dimmable | NO |

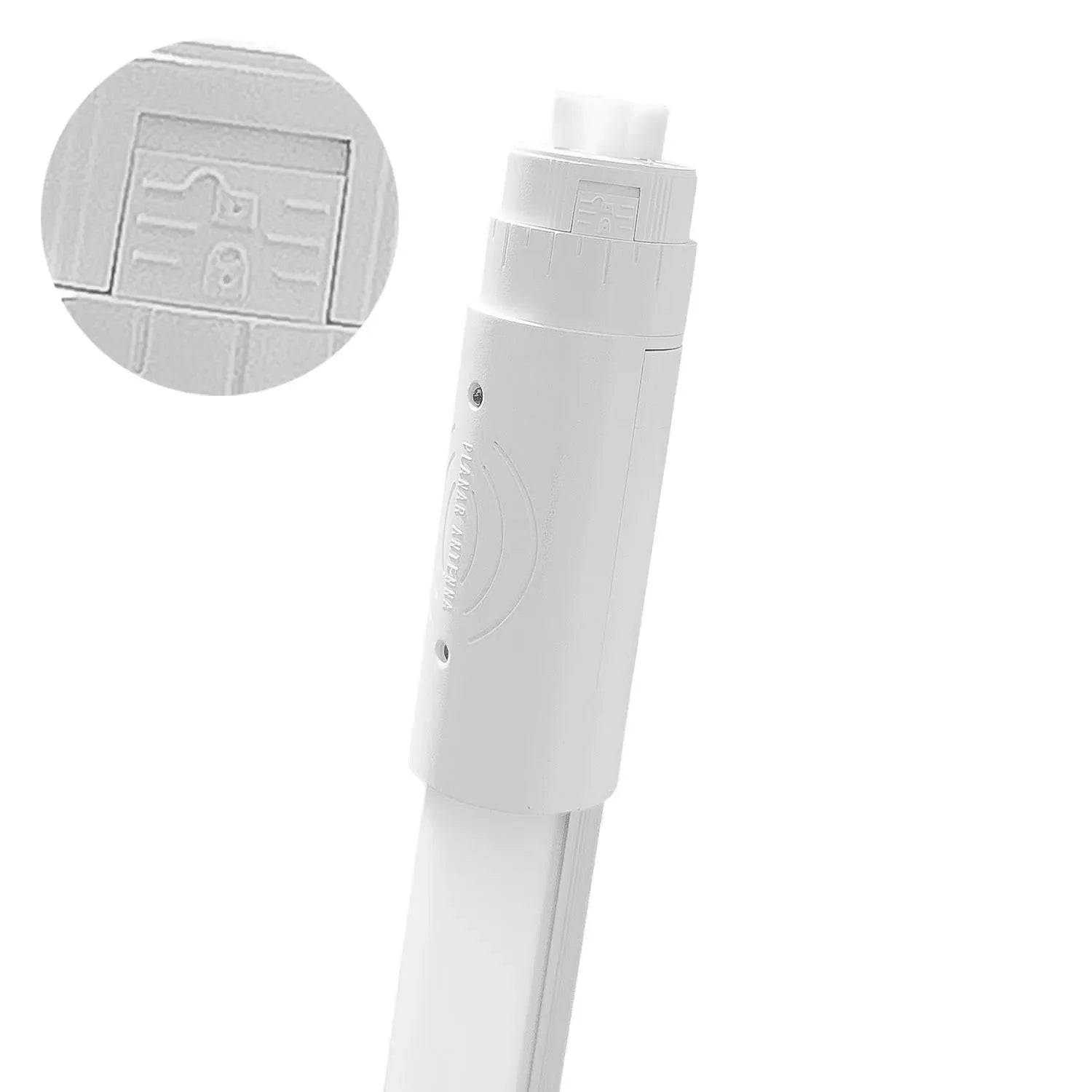

| End caps | 180-degree rotating |
| Lifetime | 50,000 hours |
| Certification | TÜV certified |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
