Klip-Lok 406 Solar Panel Rail Mounting Clamp | Voltacon

An aluminium mounting clamp built to attach solar panel rails directly to Lysaght Klip-Lok 406 standing seam metal roofs, with no roof penetration needed. It clips onto the raised seam profile and includes a rail clamp with each unit, so you can mount solar panels on a corrugated metal roof without drilling into the sheet.

Key features for mounting solar panels on metal roof without drilling

• Roof profile, designed specifically for Lysaght Klip-Lok 406 metal sheet roofing
• No penetration, clips onto the standing seam, no drilling required
• Lining, internal EPDM rubber for a weatherproof, non-abrasive contact point
• Body material, aluminium AL6005
• Rail clamp, included with each mounting plate
• Sold as, per unit

Product overview

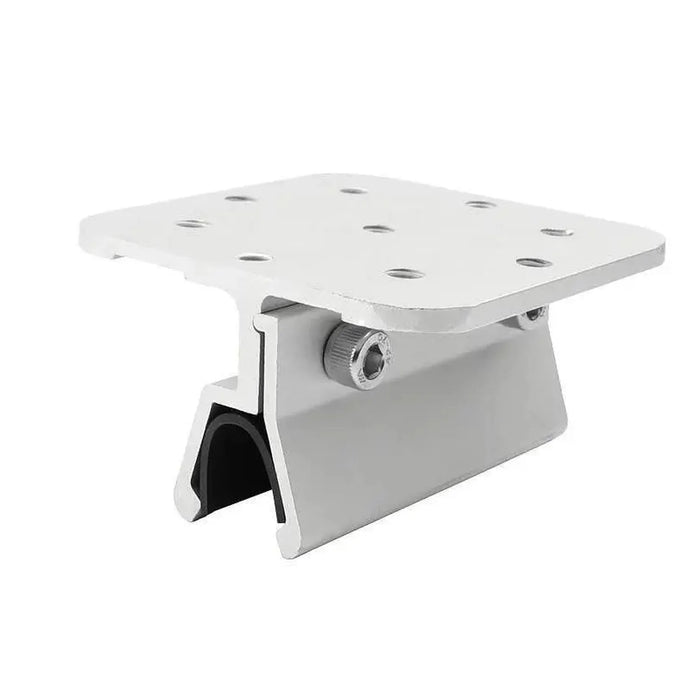

The clamp body clips directly onto the raised seam of the Klip-Lok 406 profile. The EPDM lining seals the contact point and stops the clamp scratching or damaging the roof sheet coating. Each unit comes with an integrated rail clamp, so the aluminium mounting rail attaches straight to the clamp without extra hardware.

Applications

Used on solar PV installations fitted to Lysaght Klip-Lok 406 standing seam roofs, including industrial units, warehouses and agricultural buildings with this roofing profile. Suited to any project needing a non-penetrating rail attachment on a Klip-Lok roof.

Installation notes

Check the roof profile matches Klip-Lok 406 before ordering, as this clamp is not designed for other profiles. Installation should be carried out by a qualified solar installer or roofing contractor, who should confirm roof load capacity and wind uplift requirements for the site. Aluminium mounting rails, end clamps and middle clamps are needed separately and are not included.

What's in the box

• 1x Aluminium AL6005 Klip-Lok 406 mounting clamp with EPDM lining
• 1x Rail clamp
