End Clamp 30mm for Solar Panel Mounting Rail | Voltacon

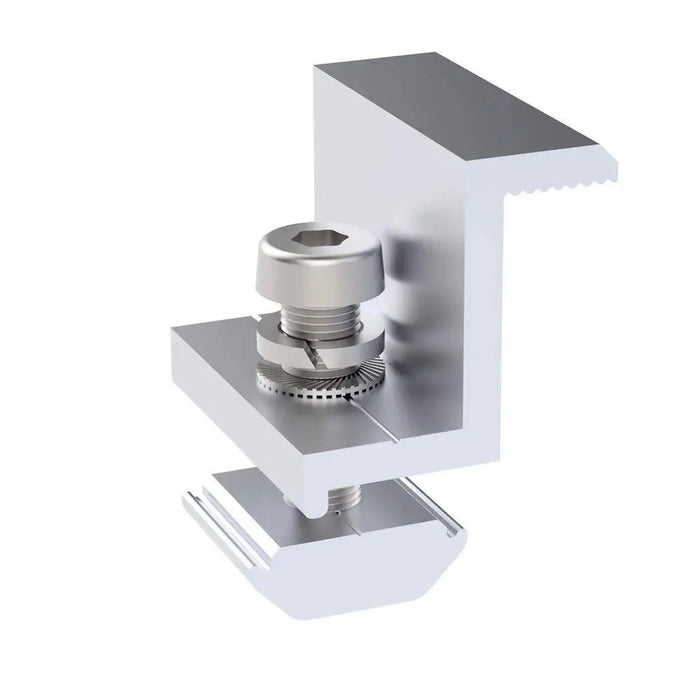

A fixed 30mm aluminium Z-shape end clamp for securing the outer edge of solar panels to a mounting rail. It is sized for panel frames exactly 30mm thick and comes with a stainless steel Allen bolt. Sold per unit.

Key features

• Frame thickness, fixed for 30mm solar panel frames
• Profile, Z-shape aluminium body for a low-profile fit
• Hardware, stainless steel Allen bolt and washer included
• Position, fits the outer edge of a panel row on the rail
• SKU, ING-SEC-30
• Sold as, per unit

Solar panel mounting rail overview

This end clamp sits at the outermost position on a solar panel mounting rail, clamping the outer edge of the first or last panel in a row. It is built for rows where every panel has a 30mm aluminium frame.

If your panels have a frame thickness between 30mm and 45mm, or you have a mixed panel specification, the adjustable end clamp (ING-ASEC) offers more flexibility than this fixed-size version.

Applications

Used on residential and commercial rooftop solar PV installations, wherever panels with a fixed 30mm frame are fitted to standard aluminium PV mounting rail systems.

Installation notes

Fitting should be carried out by a qualified solar installer. Confirm the panel frame thickness before ordering, and torque all fixings to the value specified by the mounting system manufacturer.
