Victron SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller | SCC125110412
£473.54
Skip to product information

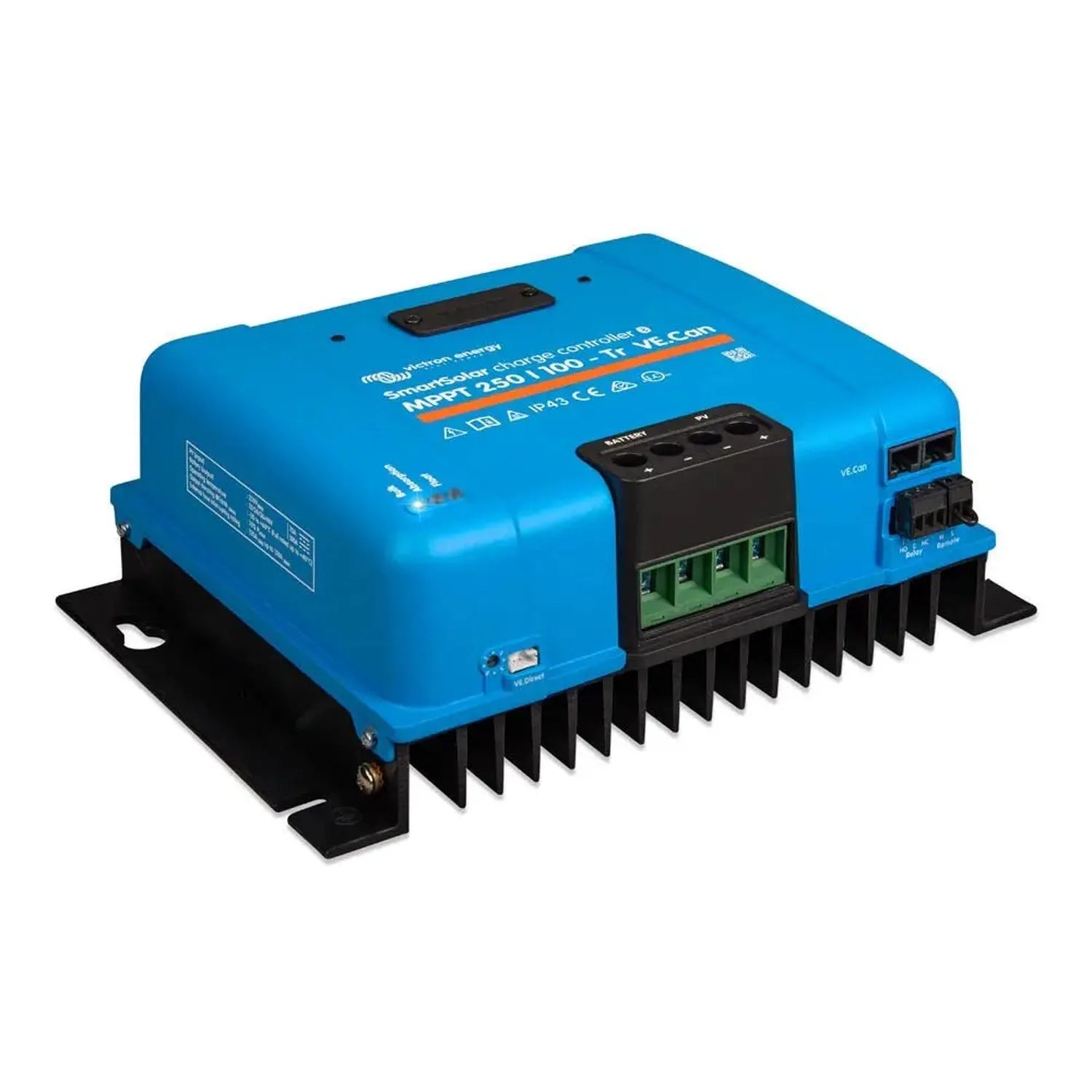

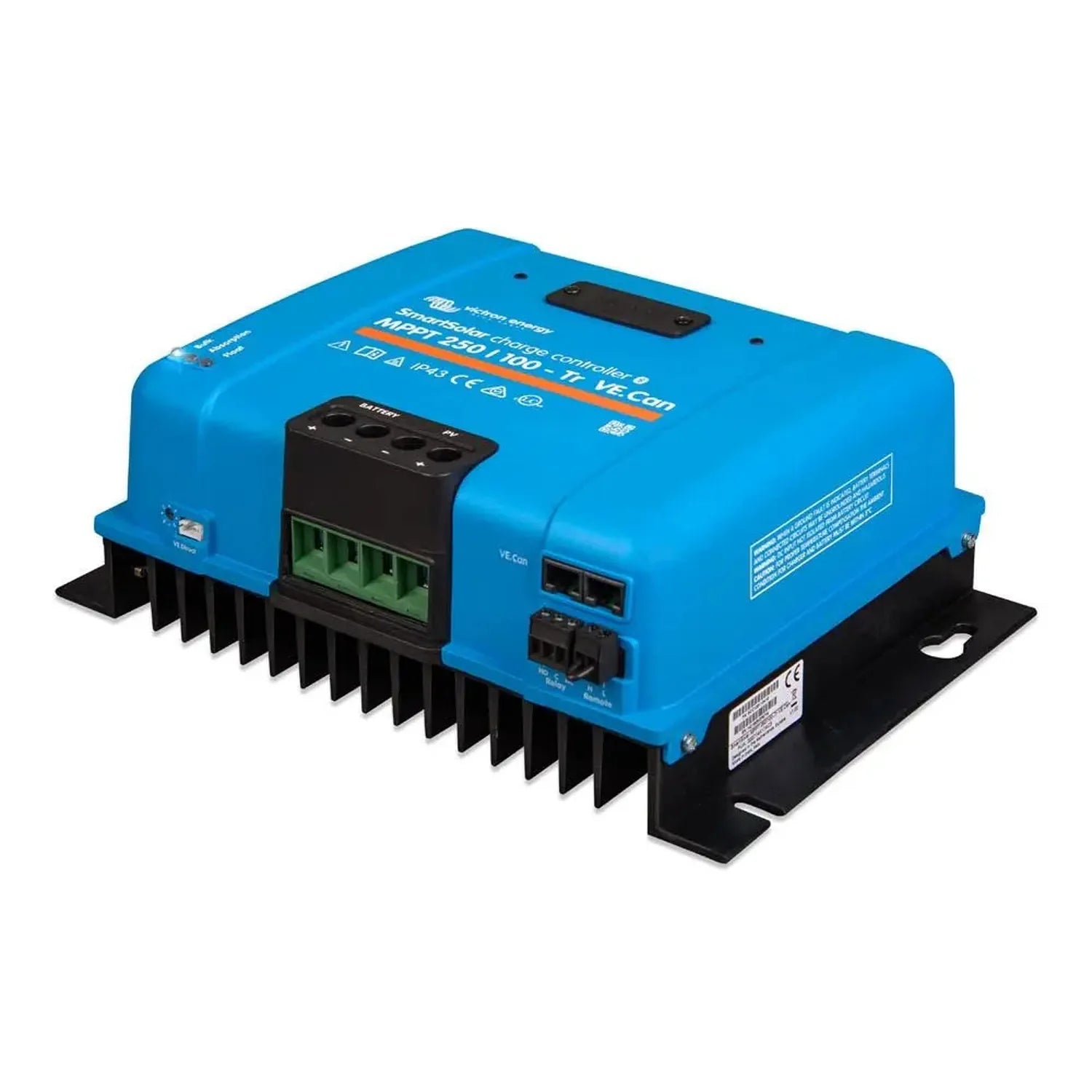

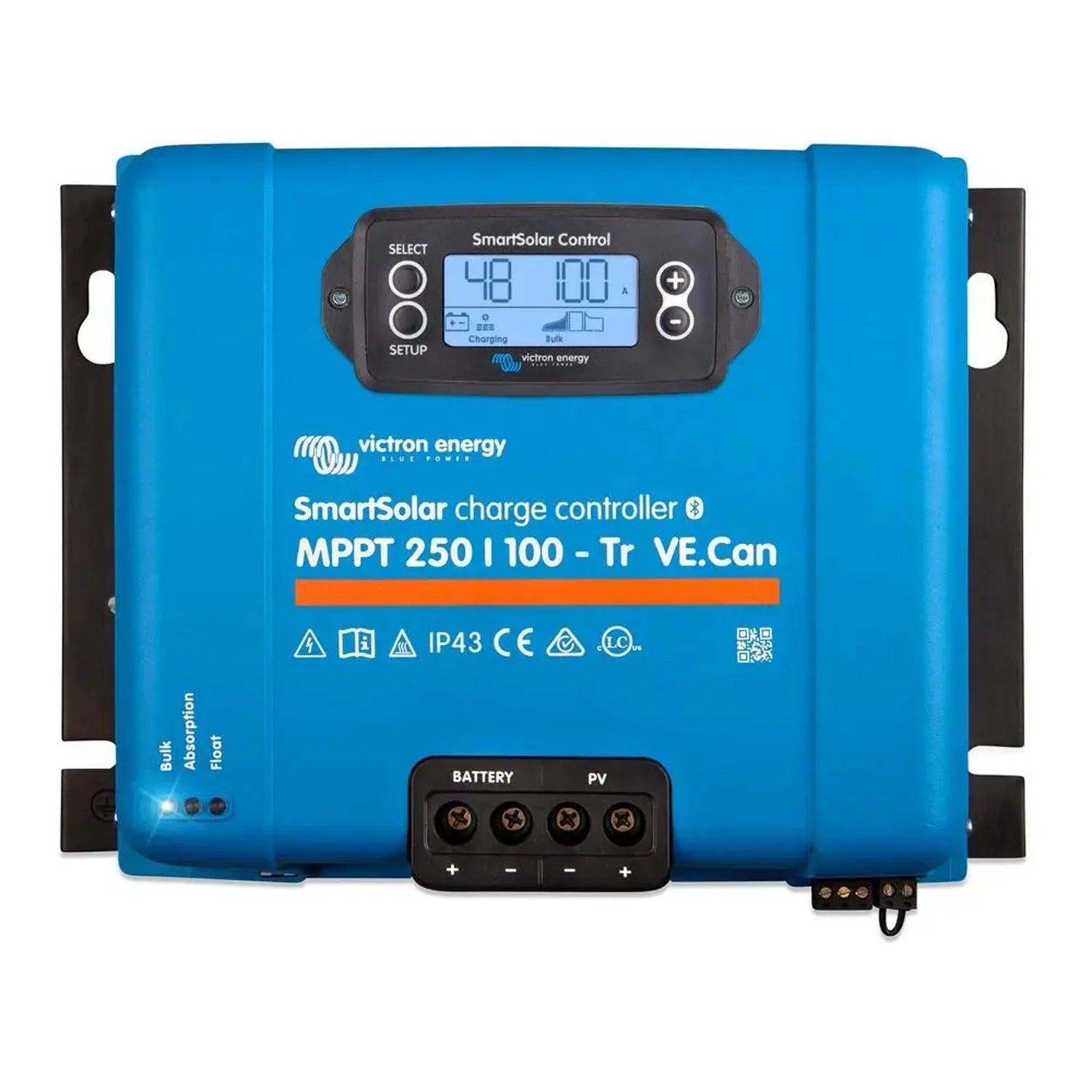

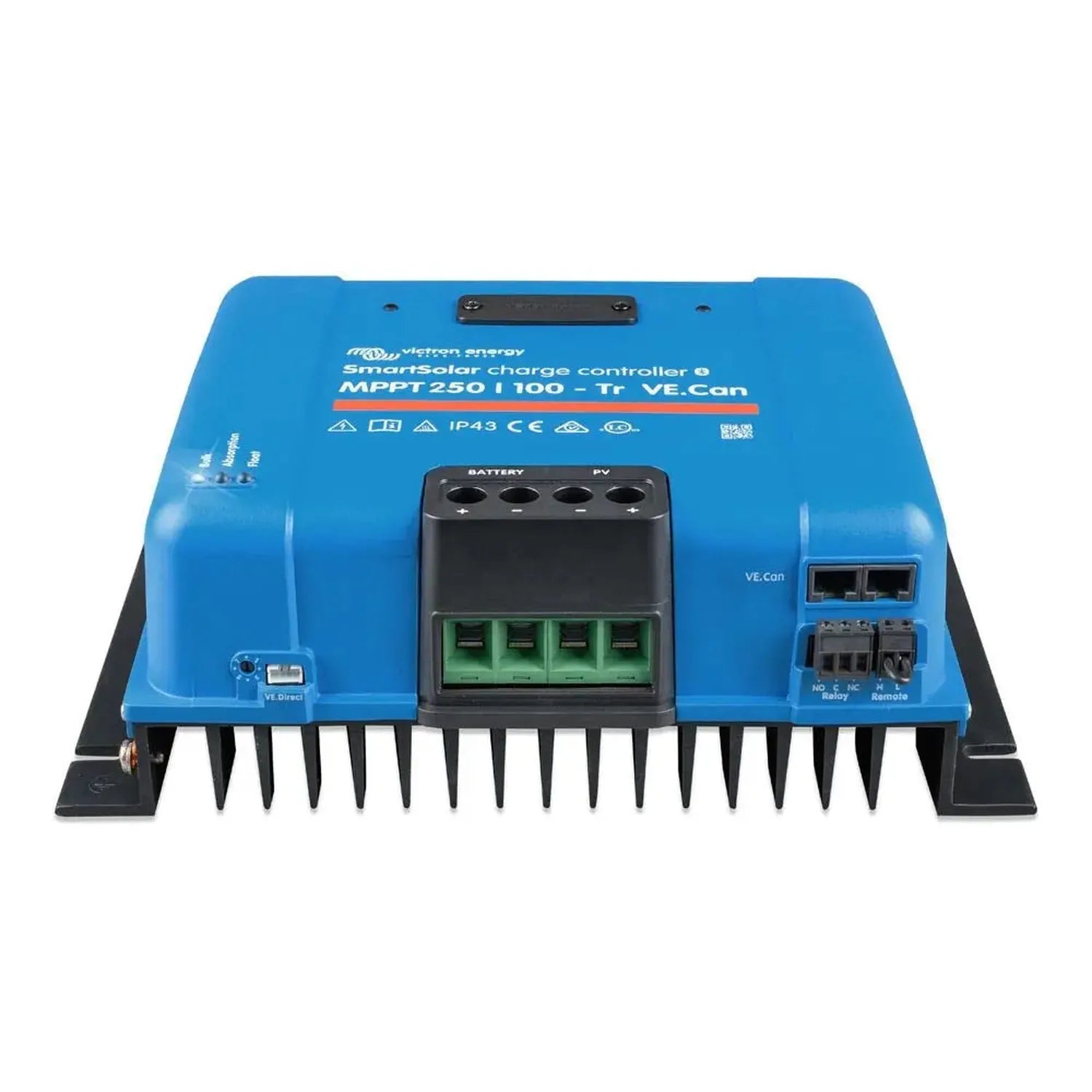

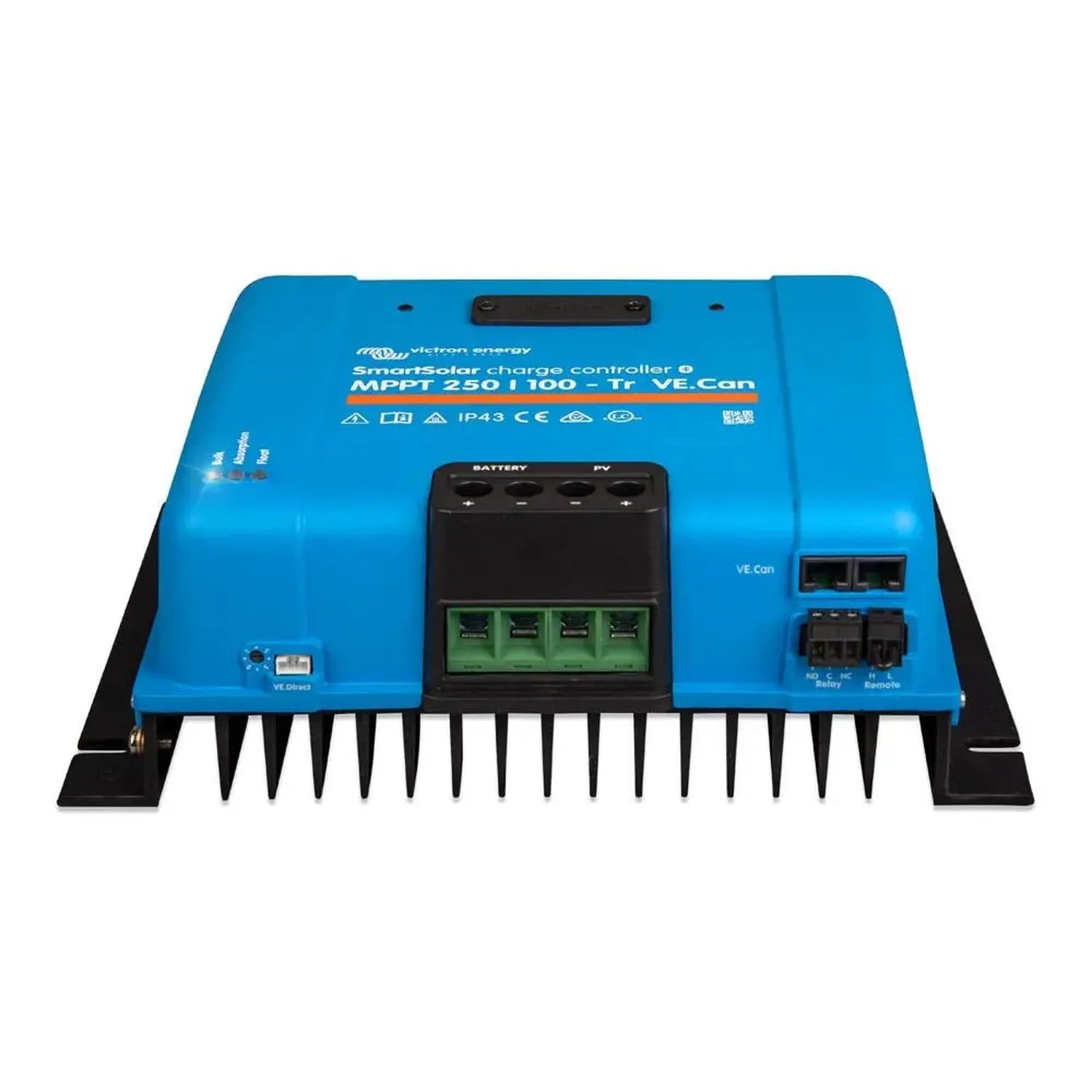

Victron SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller | SCC125110412
- Vendor
- Victron Energy
- SKU
- SCC125110412
- Availability
- In stock
- Weight
- 5.5 kg
£473.54inc VAT £394.62exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description
The Victron SmartSolar MPPT 250/100-Tr VE.Can is a solar charge controller built for large off-grid, marine and commercial systems. It accepts a maximum PV open-circuit voltage of 250V and delivers up to 100A of charge current, with built-in VE.Can and Bluetooth connectivity for integration into Victron's monitoring network.
Victron SmartSolar MPPT 250/100-Tr VE.Can key features
- PV input, accepts up to 250V open-circuit, allowing longer series-connected panel strings.
- Charge current, 100A maximum, for 12V, 24V, 36V and 48V battery banks.
- VE.Can port, connects directly to Victron GX devices, Lynx systems and other CAN-bus equipment.
- Bluetooth, built in for setup and monitoring through the VictronConnect app on iOS and Android.
- MPPT tracking, a true MPPT algorithm tracks rapidly across changing irradiance.
- Terminals, screw terminal (Tr) design for fixed wiring in enclosures and distribution boards.
- Battery chemistries, supports lithium-ion, AGM, gel, flooded and other types with configurable charge profiles.
- Load output, programmable DC load output for direct connection of loads.
Product overview
A 250V open-circuit rating means longer panel strings can run in series before combiners are needed, cutting cabling and simplifying larger arrays. The VE.Can interface sets this unit apart from VE.Direct-only models: it links straight into a Cerbo GX or Venus GX for remote monitoring and logging through the VRM portal, and several VE.Can devices can share the same bus in installations running multiple controllers side by side.
Configuration runs through the VictronConnect app over Bluetooth, covering battery type, absorption and float voltages, temperature compensation and load output behaviour, with no extra interface cable needed. For systems with a GX device already installed, the VE.Can link keeps data flowing without a phone needing to stay nearby.
Applications
Fits large off-grid systems with 48V battery banks, marine and yacht installations networked through VE.Can, commercial and agricultural off-grid sites, motorhome conversions built around Victron GX monitoring, and multi-controller installations synchronised over VE.Can to a central GX device.
What's in the box
- Victron SmartSolar MPPT 250/100-Tr VE.Can charge controller
Technical Specifications 37 rows Show
| Model | SmartSolar MPPT 250/100-Tr VE.Can |
| Part number | SCC125110512 |
| Battery voltage | 12 / 24 / 48 V auto select (36 V manual) |
| Rated charge current | 100 A |
| Nominal PV power (12 V) | 1450 W |
| Nominal PV power (24 V) | 2900 W |
| Nominal PV power (36 V) | 4350 W |
| Nominal PV power (48 V) | 5800 W |
| Max PV short circuit current | 70 A (max 30 A per MC4 connector) |
| Maximum PV open circuit voltage (absolute max) | 250 V (coldest conditions) |
| PV start-up and operating maximum | 245 V |
| Maximum efficiency | 99 % |
| Self consumption | Less than 35 mA at 12 V / 20 mA at 48 V |
| Charge voltage (absorption) default | 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage (float) default | 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge voltage (equalisation) default | 16.2 / 32.4 / 48.6 / 64.8 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (8 pre-programmed) or user defined |
| Temperature compensation | -16 mV / -32 mV / -64 mV per °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 5000 m (full rated output up to 2000 m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication | VE.Can, VE.Direct and Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST. AC: 240 VAC / 4 A. DC: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel operation | Yes, synchronised with VE.Can (max 25 units) or Bluetooth (max 10 units) |
| Enclosure colour | Blue (RAL 5012) |
| PV terminals (Tr models) | 35 mm² / AWG2 |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (h x w x d) Tr model | 216 x 295 x 103 mm |
| Safety standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Stored trends | Battery voltage, current, temperature, load output current, PV voltage, PV current |
| Days of trends stored | 46 |
Notes: If more PV power is connected, the controller will limit input power. PV voltage must exceed Vbat + 5 V to start, thereafter minimum PV voltage is Vbat + 1 V. A PV array with a higher short circuit current may damage the controller.
Manufacturer datasheet. Figures as published by the manufacturer.
