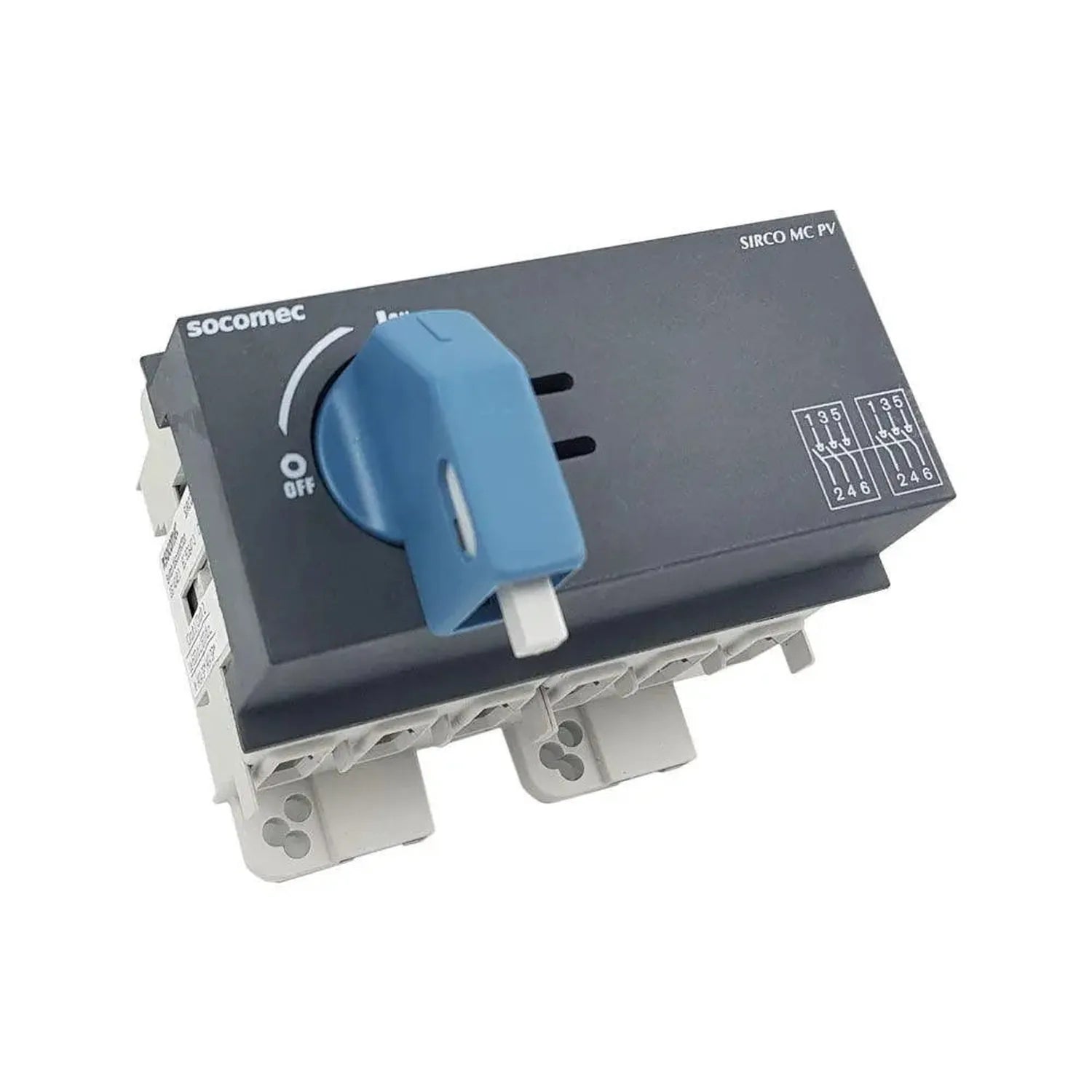

Socomec Sirco MC PV 40A DC isolator switch with blue manual handle and gray housing, mounted on white DIN rail base.

Sirco MC PV 40A 3-Pole DC Isolator Switch 1000VDC | Socomec

£73.45
Skip to product information
Socomec Sirco MC PV 40A DC isolator switch with blue manual handle and gray housing, mounted on white DIN rail base.
Sirco MC PV 40A 3-Pole DC Isolator Switch 1000VDC | Socomec

Sirco MC PV 40A 3-Pole DC Isolator Switch 1000VDC | Socomec

Vendor
Socomec
SKU
21PV3421
Availability
In stock
Weight
0.5 kg

£73.45inc VAT £61.21exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Socomec Sirco MC PV is a 3-pole DC isolator switch rated at 40A and 1000VDC, built for photovoltaic installations. It makes and breaks under load, giving installers a reliable way to isolate DC circuits in solar PV combiner boxes and at inverter DC inputs. Its compact body fits neatly inside a combiner box enclosure without eating into space needed for other components.

Key features of this solar dc isolator switch

  • Rating, 40A, 3-pole, 1000VDC
  • Switch type, non-fusible DC load break switch, on-load operation
  • Breaking capacity, up to 600VDC
  • Footprint, compact design suited to combiner box and inverter cabinet installation
  • Function, safe isolation of PV circuits under load

Applications

This pv array dc isolator switch is used for DC string isolation within solar PV combiner boxes, and for on-load disconnection at the DC input of solar inverters.

Installation notes

DC solar circuits carry dangerous voltages, so this switch must be installed by a qualified electrician. Installation should comply with IET Wiring Regulations and with the inverter manufacturer's requirements for DC isolation.
