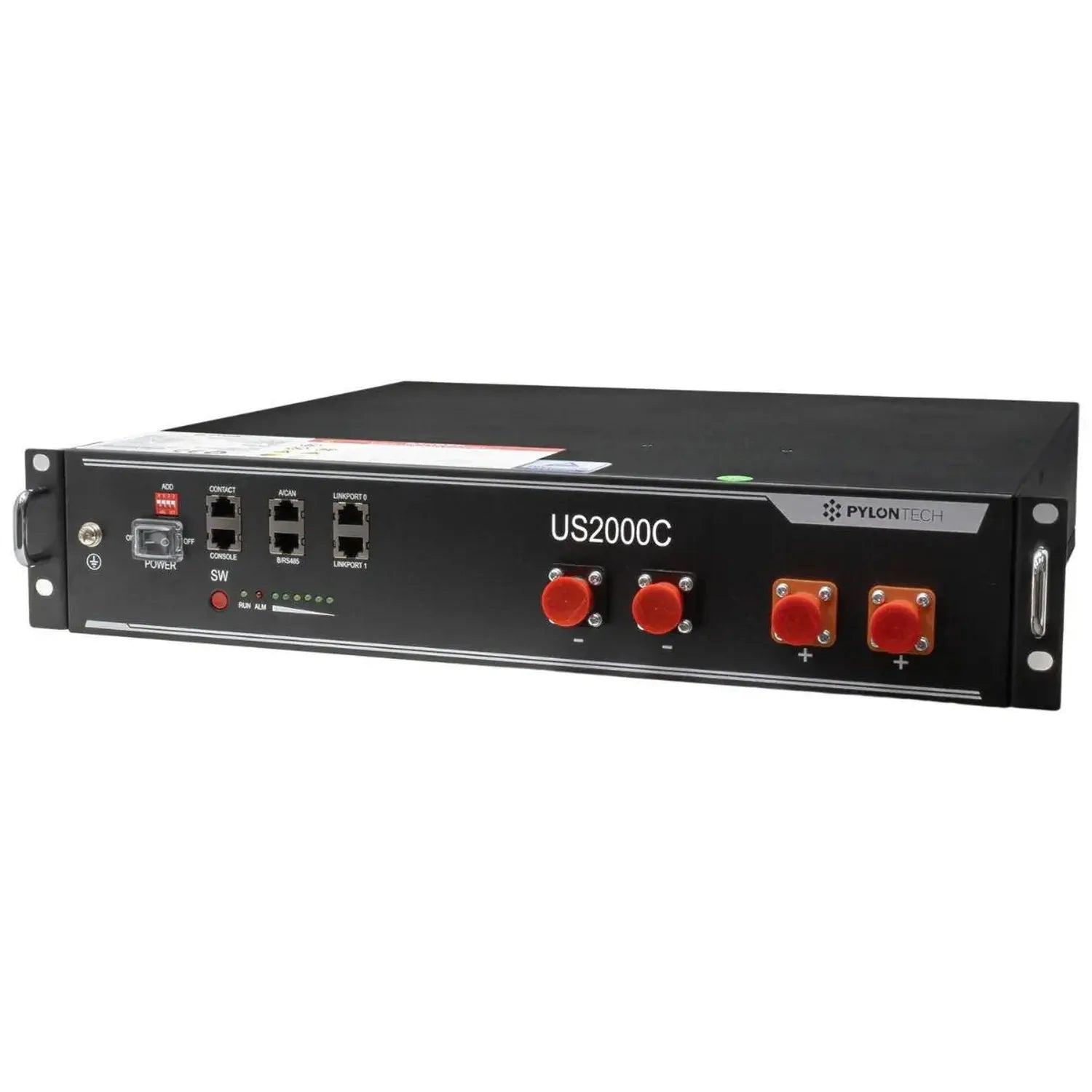

Pylontech US2000C lithium ion battery unit, black rackmount chassis with network ports, power switch, status indicators, and

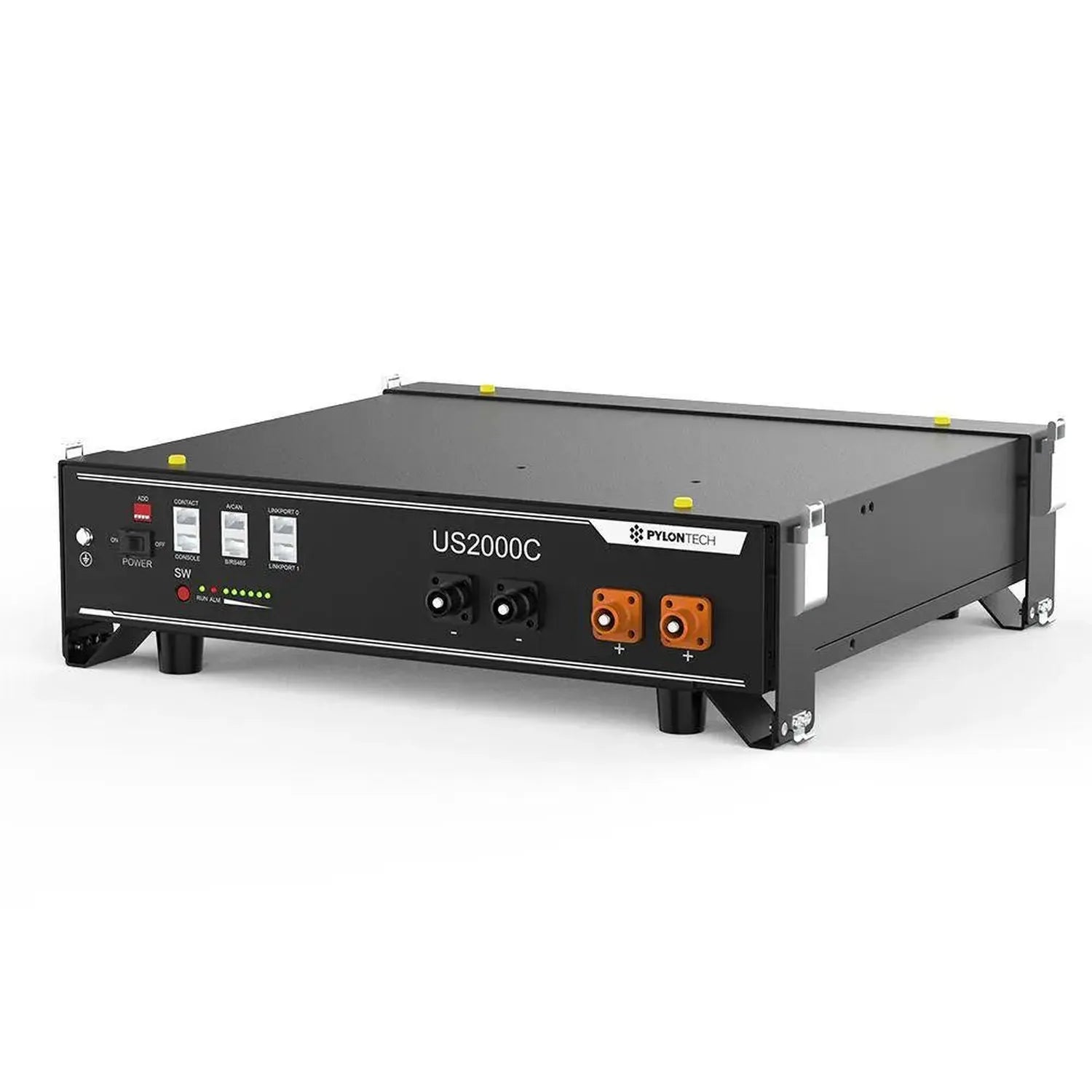

Pylontech US2000C 48V 2.4kWh Lithium Ion Phosphate Battery

£730.75
Skip to product information
Pylontech US2000C lithium ion battery unit, black rackmount chassis with network ports, power switch, status indicators, and

Pylontech US2000C 48V 2.4kWh Lithium Ion Phosphate Battery

Vendor
Pylontech
SKU
001954
Availability
Sold out
Weight
24.0 kg

£730.75inc VAT £608.96exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.

Delivery from £10.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Pylontech US2000C is a 48V lithium iron phosphate battery with a 2400Wh nominal capacity, built for stacking into larger home and small commercial energy storage banks. This model has now been discontinued by Pylontech and is no longer in production, so it is shown here for reference and for owners maintaining existing systems.

Key features of the Pylontech US2000C lithium battery

  • Nominal voltage, 48V nominal
  • Nominal capacity, 2400Wh, 2280Wh usable
  • Cell chemistry, LFP (Lithium Iron Phosphate)
  • Cycle life, greater than 2000 cycles at 25°C
  • Communication, CAN BUS / RS485
  • Parallel capability, up to 8 units in parallel

Discontinued status and current alternatives

Pylontech has withdrawn the US2000C from production. For a new installation, Pylontech's current range includes the US3000C at 3.55kWh 48V with 95% DoD and a 10-year warranty, the US5000C at 4.8kWh 48V 100Ah with an improved C rate and 10-year warranty, and the Pelio-L at 5.12kWh 48V with IP65 protection and Wi-Fi monitoring for indoor or outdoor fitting. All three can be stacked in parallel arrangements up to 16 units.

Applications

Where still in service, the US2000C sits within off-grid and hybrid battery banks alongside compatible inverters using CAN BUS or RS485 communication, cased at 442 x 410 x 89mm and weighing 24kg per unit.

Voltacon is an authorised Pylontech UK distributor and can advise on sizing a replacement bank around the US3000C, US5000C or Pelio-L.

Technical Specifications 16 rows Show
SpecificationDetails
Nominal Voltage48V nominal
Nominal Capacity2400Wh
Usable Capacity2280Wh
Dimensions442 x 410 x 89mm
Weight24kg
Discharge Voltage44.2V cut-off
Charge Voltage53.2V
Max Charge/Discharge Current25A / 25A
Cell TypeLFP (Lithium Iron Phosphate)
Cycle Life>2000 cycles at 25°C
Operating Temperature0 to 50°C (charge), -10 to 50°C (discharge)
CommunicationCAN BUS / RS485
IP RatingIP20
Max Parallel Units8
StatusDiscontinued, replaced by US3000C or US5000C

Manufacturer datasheet. Figures as published by the manufacturer.
