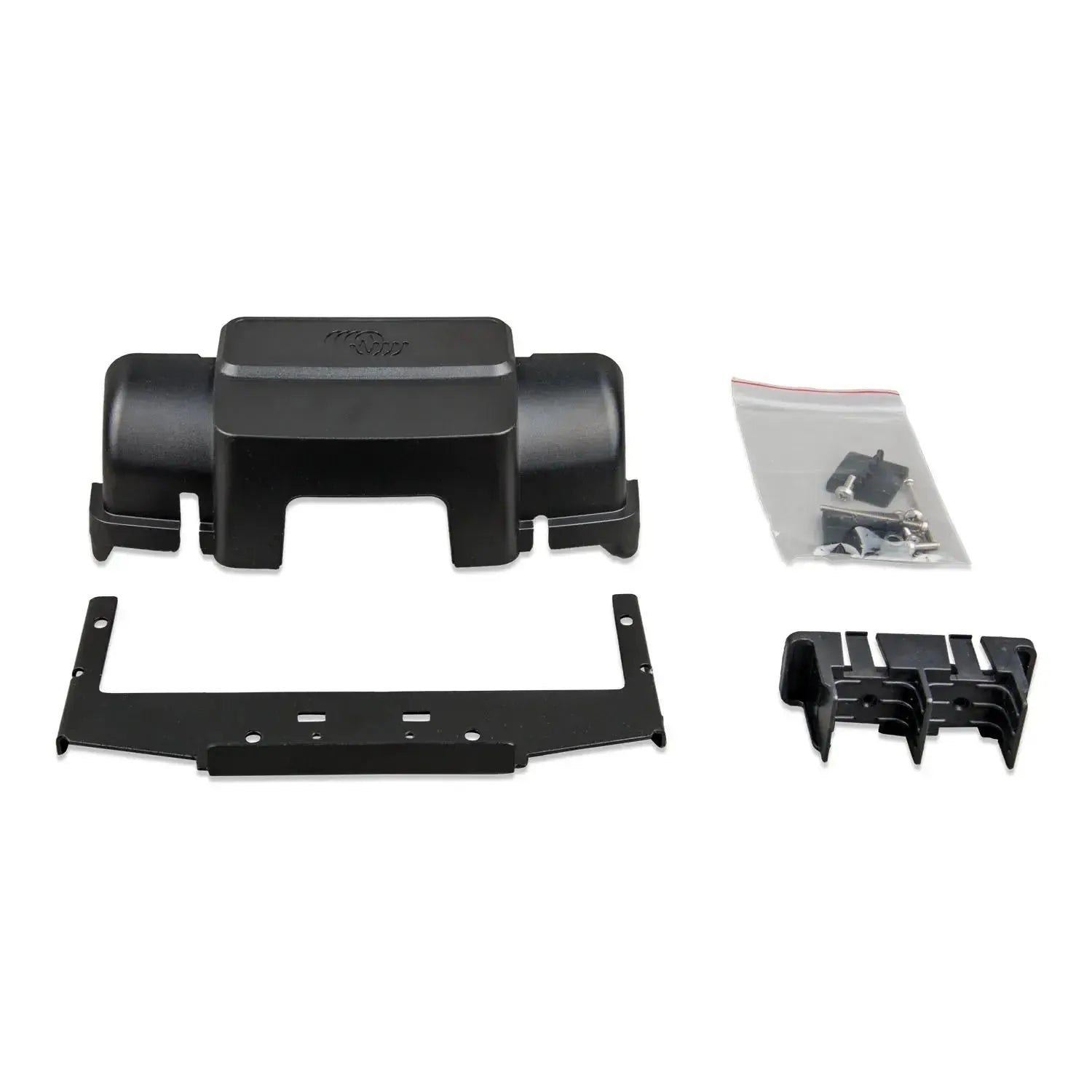

Victron WireBox-L component parts displayed including black housing unit, mounting bracket, hardware bag, and cable managemen

Victron MPPT WireBox-L Tr 150-60/70 & 250-60/70 | SCC950300210

£30.32
Skip to product information
Victron WireBox-L component parts displayed including black housing unit, mounting bracket, hardware bag, and cable managemen
Victron MPPT WireBox-L Tr 150-60/70 & 250-60/70 | SCC950300210

Victron MPPT WireBox-L Tr 150-60/70 & 250-60/70 | SCC950300210

Vendor
Victron Energy
SKU
SCC950300210
Availability
In stock
Weight
0.33 kg

£30.32inc VAT £25.27exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

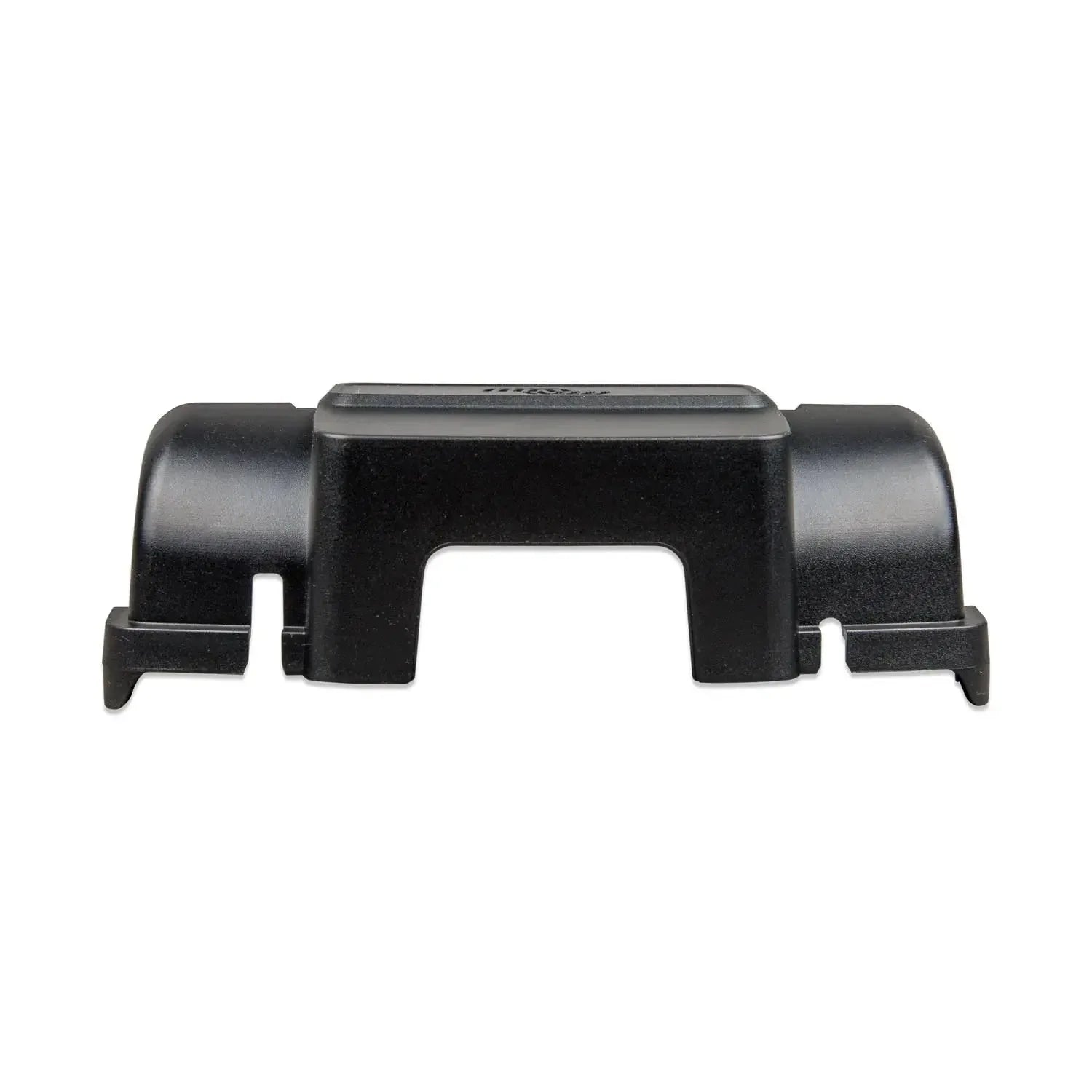

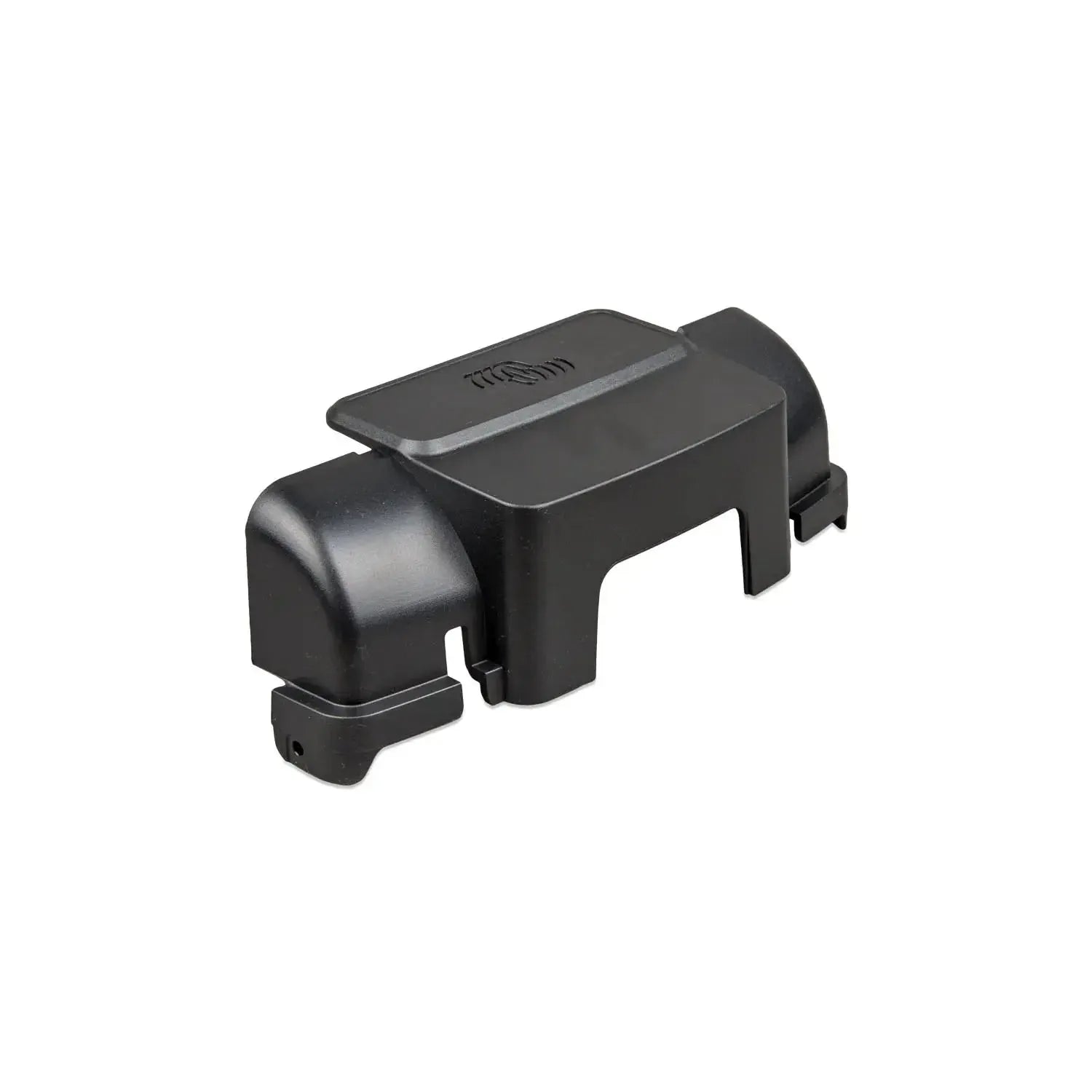

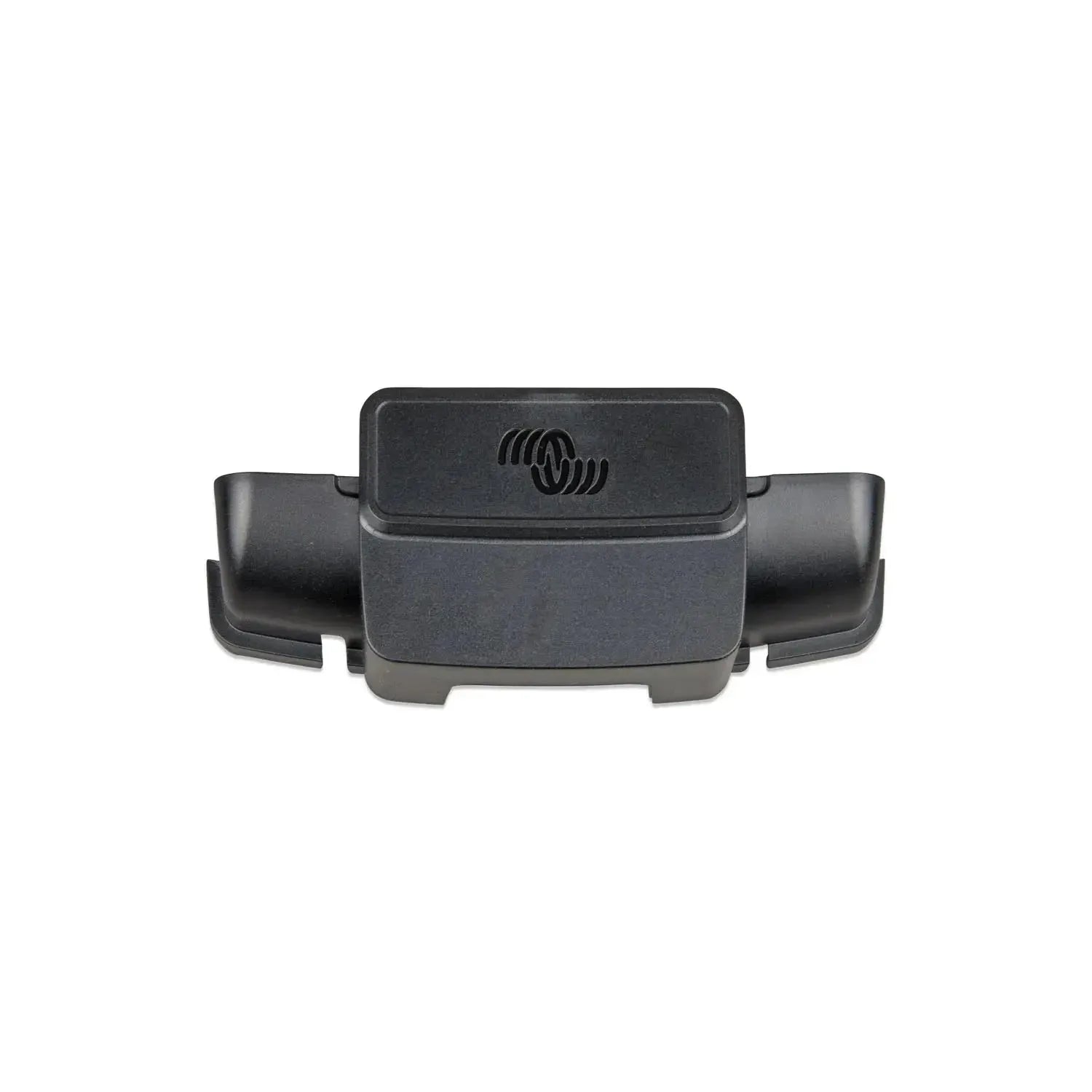

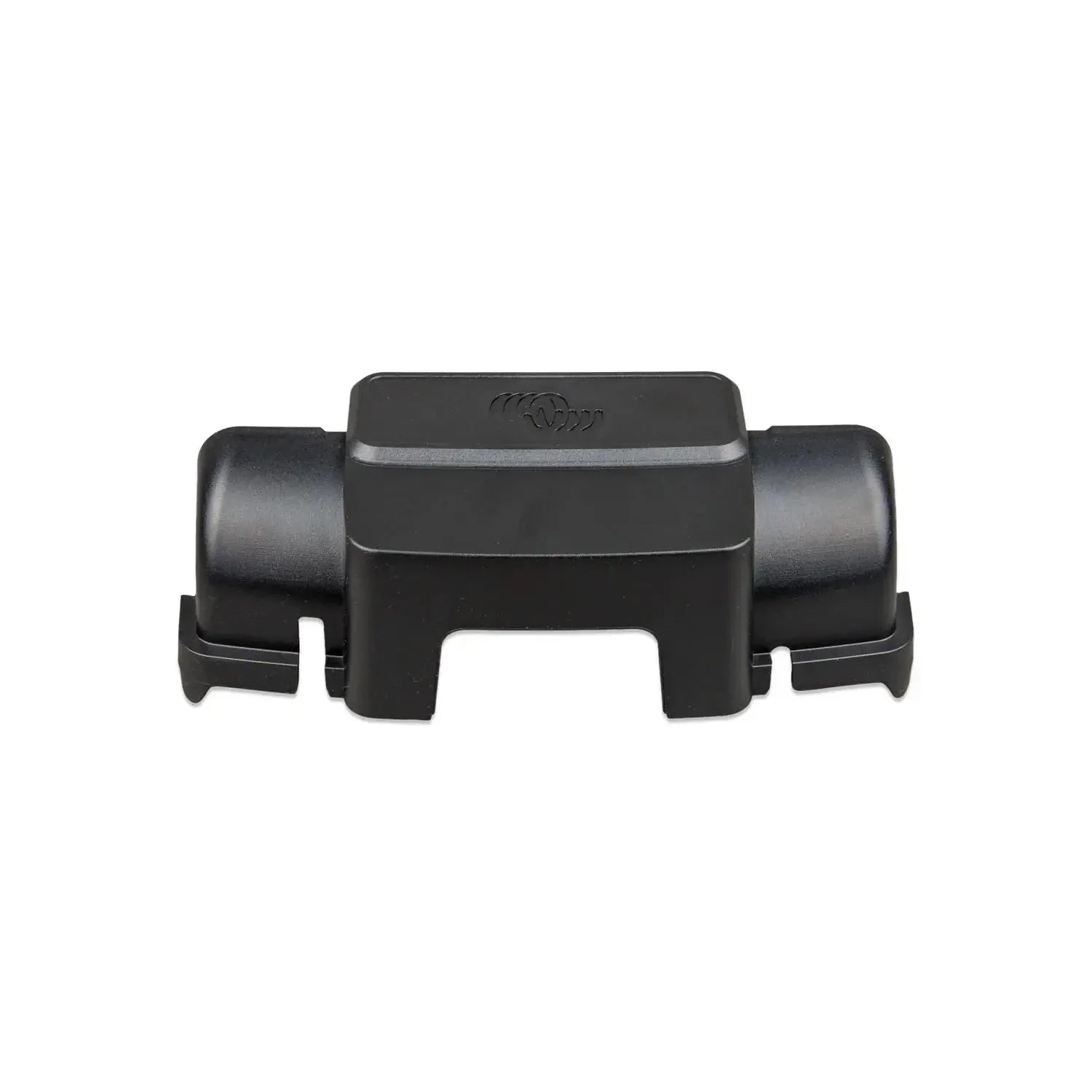

The Victron MPPT WireBox-L Tr is a protective enclosure that fits over the DC wiring terminals of SmartSolar and BlueSolar MPPT Tr charge controllers in the 150/60, 150/70, 250/60 and 250/70 range. It covers the terminal area once cables are connected, keeping live conductors out of reach during routine maintenance or inspection.

Key features

  • Compatibility, fits Victron MPPT Tr models 150/60, 150/70, 250/60 and 250/70.
  • Coverage, encloses all DC input and output terminals once wiring is complete.
  • Fit, made specifically for the "L" (large) Tr chassis, no modification needed.
  • Weight, 0.23 kg.
  • Retrofit, can be added to an existing MPPT installation after commissioning.

Applications

The WireBox-L Tr suits commercial, industrial and off-grid installations where the electrical cabinet may be accessed by people other than the original installer. It is also relevant where local regulations or a site risk assessment call for exposed DC terminals to be covered, and for retrofit projects where a WireBox was not fitted at initial commissioning.

Installation notes

Fit the WireBox-L Tr only after all DC cabling has been terminated and inspected. Isolate the charge controller from both the PV array and the battery before fitting or removing it. This accessory is designed for Tr-series MPPT controllers on the large chassis only, and is not compatible with MC4-variant or Ve.Can models.

What's in the box

  • 1 x MPPT WireBox-L Tr, fits 150-60, 150-70, 250-60 and 250-70 Tr models
Technical Specifications 33 rows Show
Specification Details
Battery Voltage 12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated Charge Current 70 A
Nominal PV Power, 12 V 1000 W
Nominal PV Power, 24 V 2000 W
Nominal PV Power, 36 V 3000 W
Nominal PV Power, 48 V 4000 W
Max. PV Short Circuit Current 50 A
Maximum PV Open Circuit Voltage 150 V at minimum operating temperature; 145 V at 25°C startup
Maximum Efficiency 98%
Self-Consumption Less than 35 mA @ 12 V
Charge Voltage 'Absorption' Default setting: 14.4/28.8/43.2/57.6 V
Charge Voltage 'Float' Default setting: 13.8/27.6/41.4/55.2 V
Charge Voltage 'Equalization' Default setting: 16.2/32.4/48.6/64.8 V (adjustable)
Charge Algorithm Multi-stage adaptive (eight pre-programmed algorithms or user defined)
Temperature Compensation -16 mV / °C
Protection PV reverse polarity / Output short circuit / Over temperature
Operating Temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95%, non-condensing
Maximum Altitude 5000m (full rated output up to 2000m)
Pollution Degree PD3
Data Communication Port VE.Direct Bluetooth
Remote on/off Yes
Programmable Relay Yes
Parallel Operation Yes, up to 10 units can be synchronized with Bluetooth
Colour Blue (RAL 5012)
PV Terminals 35 mm² / AWG2
Battery Terminals 35 mm² / AWG2
Protection Category IP43 (electronic components), IP22 (connection area)
Weight 3 kg
Dimensions (h x w x d) 215 x 250 x 95 mm
Safety Standards EN/IEC 62109-1, UL 1741, CSA C22.2
Data Stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of Days Trends Data is Stored 46 days

Manufacturer datasheet. Figures as published by the manufacturer.
